Designer Anthracite Thermostatic Radiator Valve TRV - Straight

Designer Anthracite Thermostatic Radiator Valve TRV - Straight Description

High quality thermostatic radiator valves in durable anthracite powder coat finish

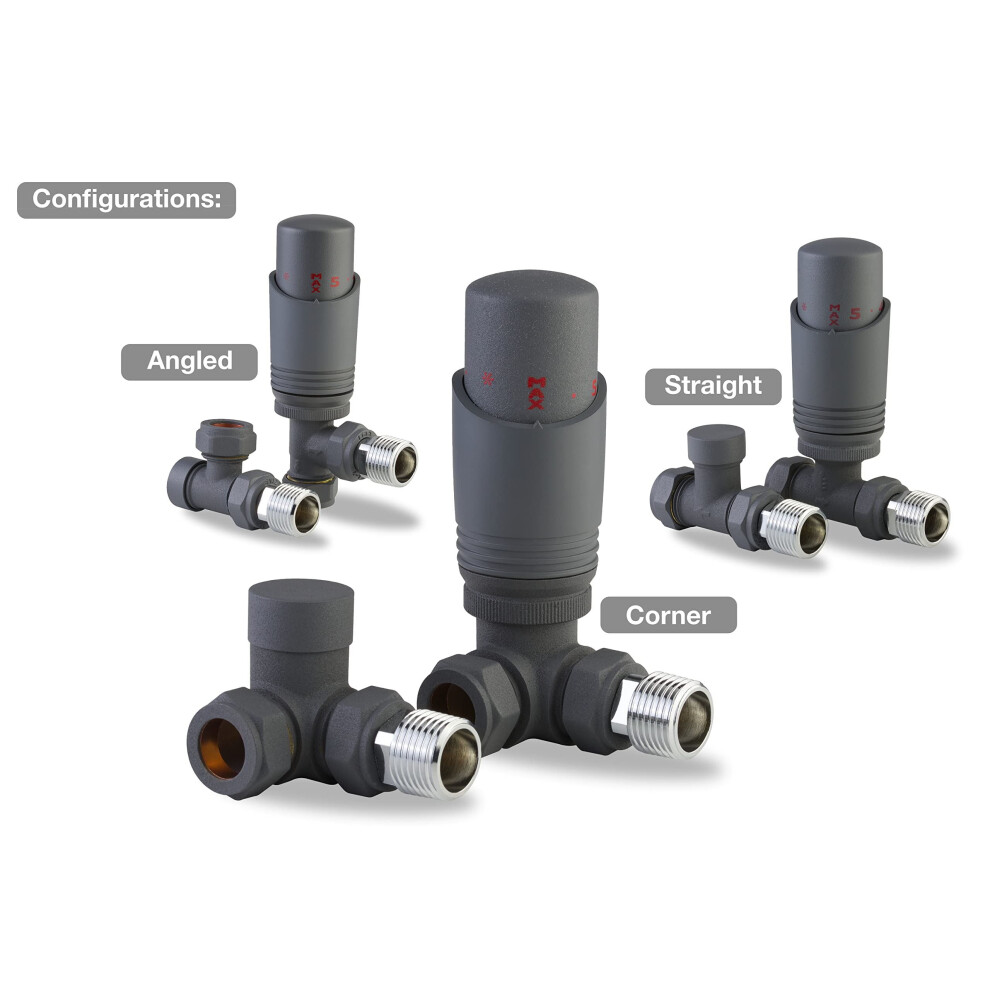

Available in corner configuration generally for where pipes exit the wall. Angled for when they come up from the floor and into the side of the radiator. Straight for when the pipes are angled towards the valve inlet/outlet on the radiator. Please check your configuration prior to purchase.

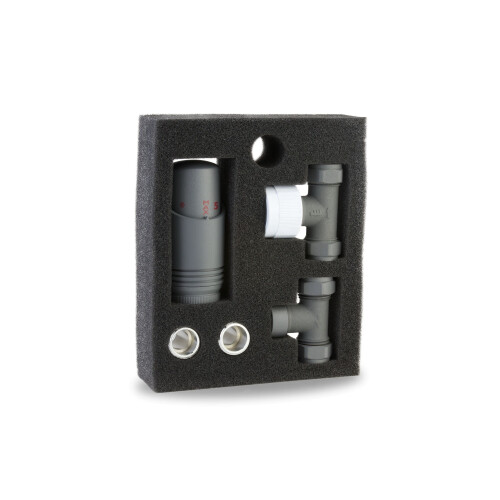

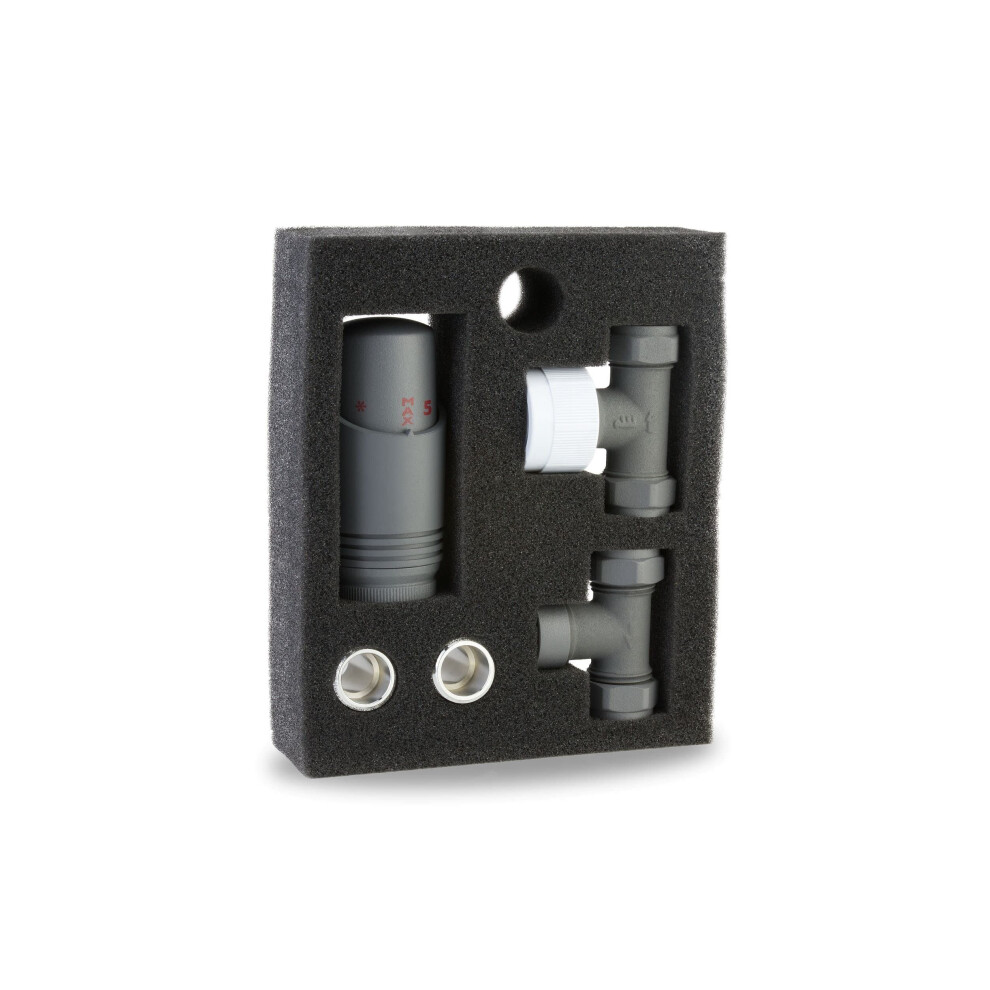

The anthracite radiator thermostat valves come with a matching lockshield and a screw in 1/2" 20mm long radiator tail extension

We recommend all TRVs are installed on the flow, rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve, this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requiremement for all new installations and boiler upgrades. All bi-directional TRVs from any manufacturer require the bypass valve to function correctly and thus avoid water hammer.

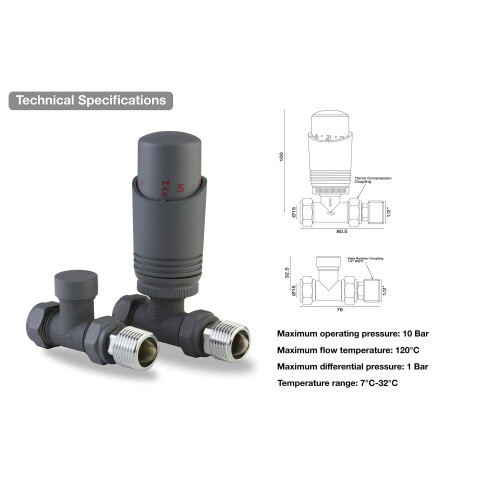

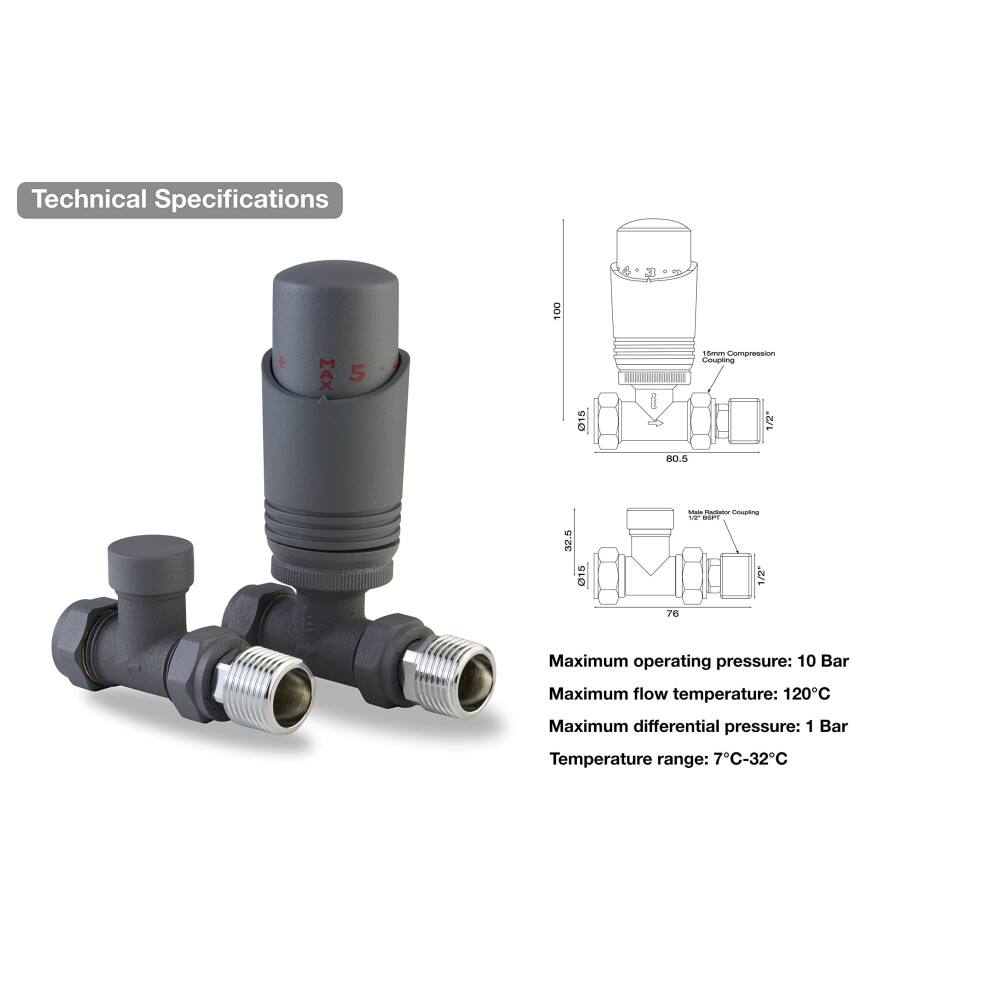

Max operating pressure: 10 Bar, Max flow temp 120c, Max pressure differential 1Bar, Temp ramge 7 - 32c.
