Digital 18-leads Electrocardiograph ECG Machine
Brand Contec
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£950.00
FREE Delivery
1%
Earn £9.50 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 27th Jul - Sat 1st Aug
Returns: 30 days
180-day payment protection
Most Popular in Medical Diagnostics Accessories
Description & Details
Summary
- Electrocardiograph
- 18-lead
- pc software
- ECG Machine
Digital 18-leads Electrocardiograph ECG Machine Description
Introduction
The device is an electrocardiograph which can collect 18-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in auto / manual mode; measuring, analyzing and diagnosing ECG waveform parameters automatically; prompting for “Lead off” and “Lack of paper”; optional interface language (Chinese / English, etc.); built-in lithium battery, AC / DC; selecting rhythm lead freely to observe abnormal heart rhythm; case database management.
Functions

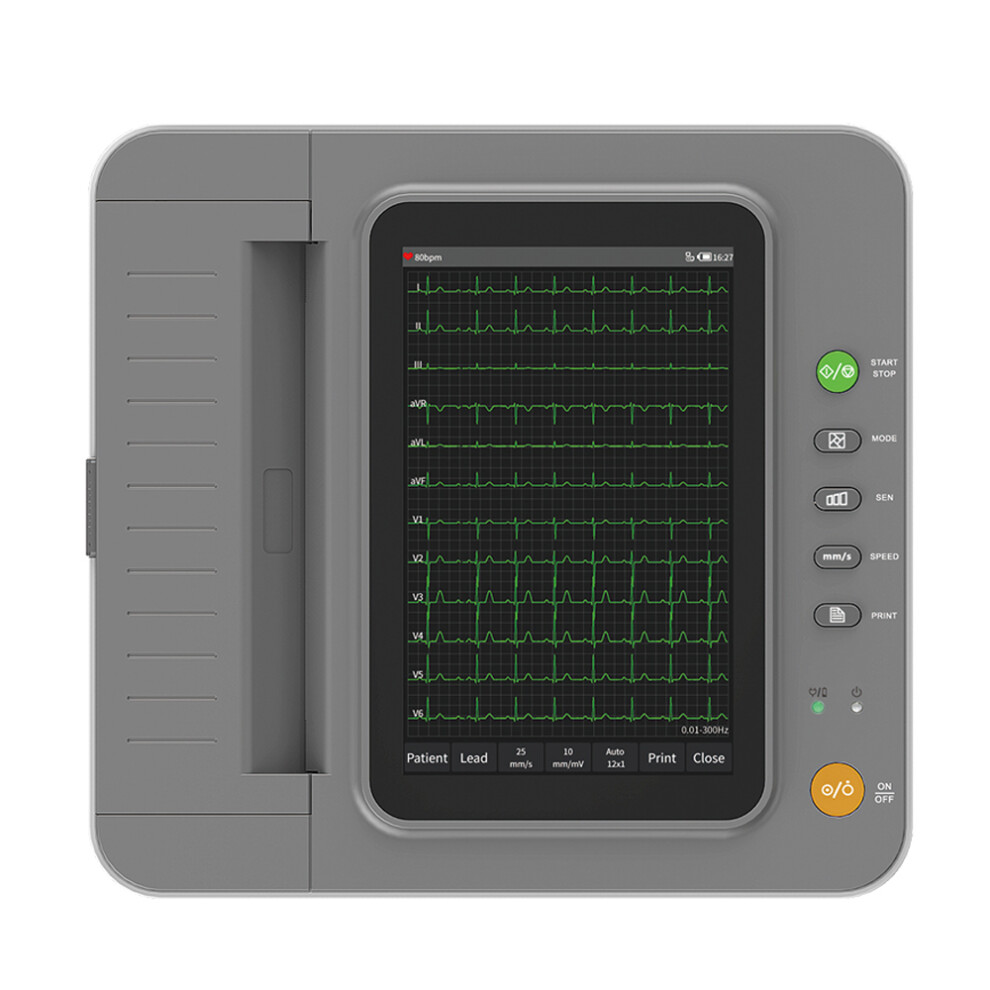

1)Display with 1280*800 dots 10.1 inch high resolution color LCD, operate either by touch screen or function buttons, which is convenient and quick.
2)Sync collection for 18-lead ECG, support for 18-lead and Cabrera-lead waveform display, adopt digital signal processing technology and get high-quality ECG via power frequency filter, baseline filter, EMG filter and Low-pass Filter for ECG signals.
3)Display of 3/6/12/18-lead ECG waveform on one screen, and HR value, print mode, sensitivity, paper speed, filter state, clock, battery level, background gridlines, measured data and interpretation information, etc. Prompting function for lead-off and overload, system working state.
4)The device can be powered either by AC or DC(can adapt to 50/60Hz AC frequency), with built-in rechargeable lithium battery and charging circuit, perfect battery overcurrent and overvoltage protection circuit.
5)In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 1000 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.
6)Built-in thermal printer, support for Auto M*N, Auto M*N+1, Auto M*N+2, Auto M*N+3, rhythm M line, manual and other printing modes and formats.The printed content contains time, paper speed, sensitivity, calibration signal, name of lead, filter state and patient’s information. Information including printed waveform length, output measurement parameter, diagnostic conclusion, superposition QRS waveform, histogram, trend chart and interval list, can be set, and with time print function and auto arrhythmia print function, which meets different requirements.
7)With the functions of auto-measurement and auto-interpretation for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, PR Interval, P Duration, QRS Duration, T Duration, QT/QTc Interval, P/QRS/T Axis, R(V5), S(V1), R(V5)+S(V1) amplitude, Cornell Index, etc. which reduces the doctor’s burden.
8)The built-in large-capacity memory can store at least 4000 medical records, making it easy for doctors to review medical records and statistical information.
9)Historical medical records can be reviewed, inquired, modified, transmitted, printed, lead correction, exported to other electronic file formats (dat, pdf, xml, bmp, jpeg, png etc.).
10)Multi-language(Chinese, English) interface and report. Full touch screen with buttons operation, built-in virtual keyboard, support Chinese and English input methods.

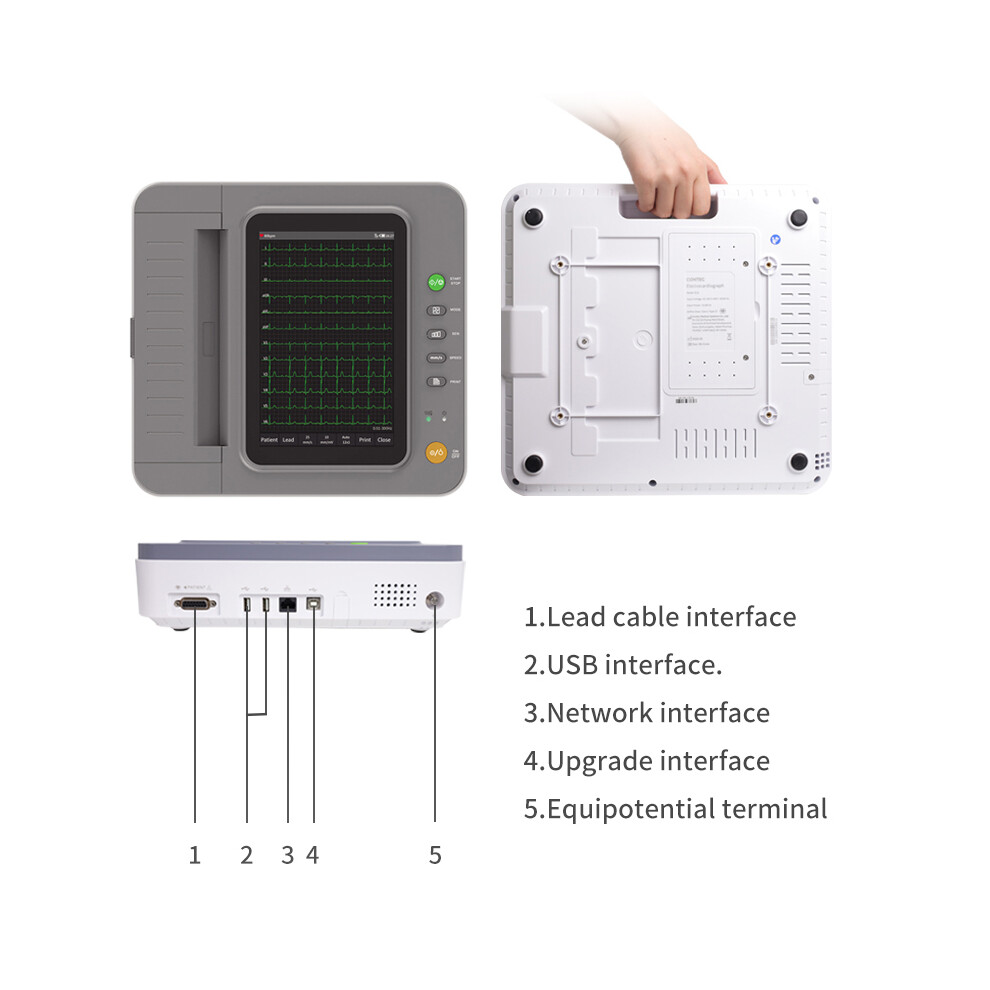

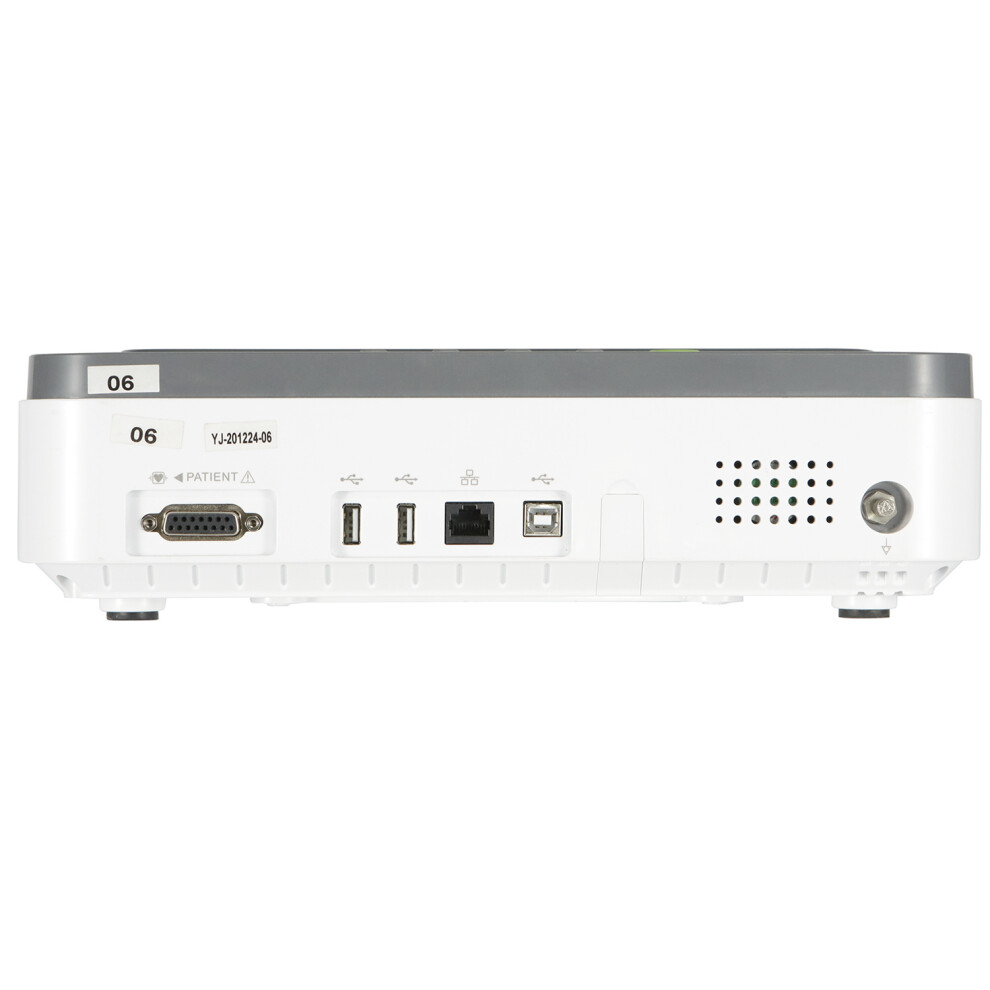

11)With Wi-Fi wireless communication function.With functions of LAN, USB cable transmission. Automatically upload cases, download reports and print them.
12)Support external USB standard keyboard, mouse, scanner, printer.
Performance
1)Input mode: floating and defibrillation protection
2)Lead: standard 18-lead
3)Patient leak current: < 10 µA
4)Input impedance: ≥100MΩ(1Hz)
5)Frequency response: 0.01Hz-300Hz（-3dB）
6)Time constant: ≥ 3.2 s
7)CMRR: >123dB
>140 dB(Open filter)
8)Filter: AC Filter(50Hz/60Hz), EMG Filter(25Hz/35Hz (-3 dB)),DFT Filter, Low-pass Filter
9)Recording way: Thermal printing system
10)Specification of recording paper: 210 mm(W)×20 m(L) high-speed thermal paper
11)Time base selection(paper speed):
5mm/s、6.25mm/s、10mm/s、12.5 mm/s、25 mm/s、50 mm/s, error: ±5%
12)Gain control(sensitivity):
1.25、2.5、5、10、20、40、10/5、20/10mm/mV and automatic, accuracy is ±5%
Standard sensitivity: 10 mm/mV±0.2 mm/mV
13)Record mode: auto, rhythm and manual record
14)Measurement parameters: HR, PR Interval, P Duration, QRS Duration, T Duration, QT/ QTc Interval, P/QRS /T Axis, R(V5), S(V1), R(V5)+S(V1) amplitude
15)Product safety type: Class I type CF defibrillation-proof function applied part
16)Polarization resistance voltage: ±950 mV
17)Noise level: ≤ 12 µVp-p
18)ECG signal input sampling frequency: 32 kHz
19)Waveform data processing sampling frequency: 1 kHz
20)Sampling precision: 24 bit
21)The minimum detection signal: 10 Hz, 20 µV(peak-peak value) deflected sinusoidal signal can be detected.
22)Pacing detection channel: All channe
23)Pacing signal sampling frequency: 32kHz
24)Accuracy of input signal: The overall system error, ±5%
25)Amplitude quantization: ≤ 5µV/LSB
26)Interchannel time deviation: <100 µs
27)Calibration voltage:1mV±2%
28)Input loop current:≤0.01uA
29)Power supply:
AC: 100V ~ 240V (50 / 60 Hz)
DC: 14.8 V / 5200 mAh rechargeable lithium battery
30)Degree of protection against ingress of liquid: IPX0
31)Working mode: continuous operation
Accessories
Standard:
One lead cable
One limb electrode
Two chest electrode
One thermal recording paper
One power cord
One earth wire
One User Manual
Physical characteristic
Operating:
a) Environment temperature: 5 ℃ ~ 40 ℃
b) Relative humidity: 25 % ~ 95 % (non - condensing)
c) Atmospheric pressure: 700 hPa ~ 1060 hPa
Transport and storage:
a) Environment temperature: - 20 ℃ ~ + 55 ℃
b) Relative humidity: ≤ 95 %
c) Atmospheric pressure: 500 hPa ~ 1060 hPa
Dimension: 340 mm (L) × 320 mm (W) × 91 mm (H)
Weight: 5 kg
Details
| OPC | PSWGJCD |
|---|---|
| Brand | Contec |
| Codes | 0658126735001 (EAN) |
| 658126735001 (UPC) |
Detailed Product Information
| Weight | 7kg |
|---|---|
| Height | 25cm |
| Length | 43cm |
| Width | 42cm |
