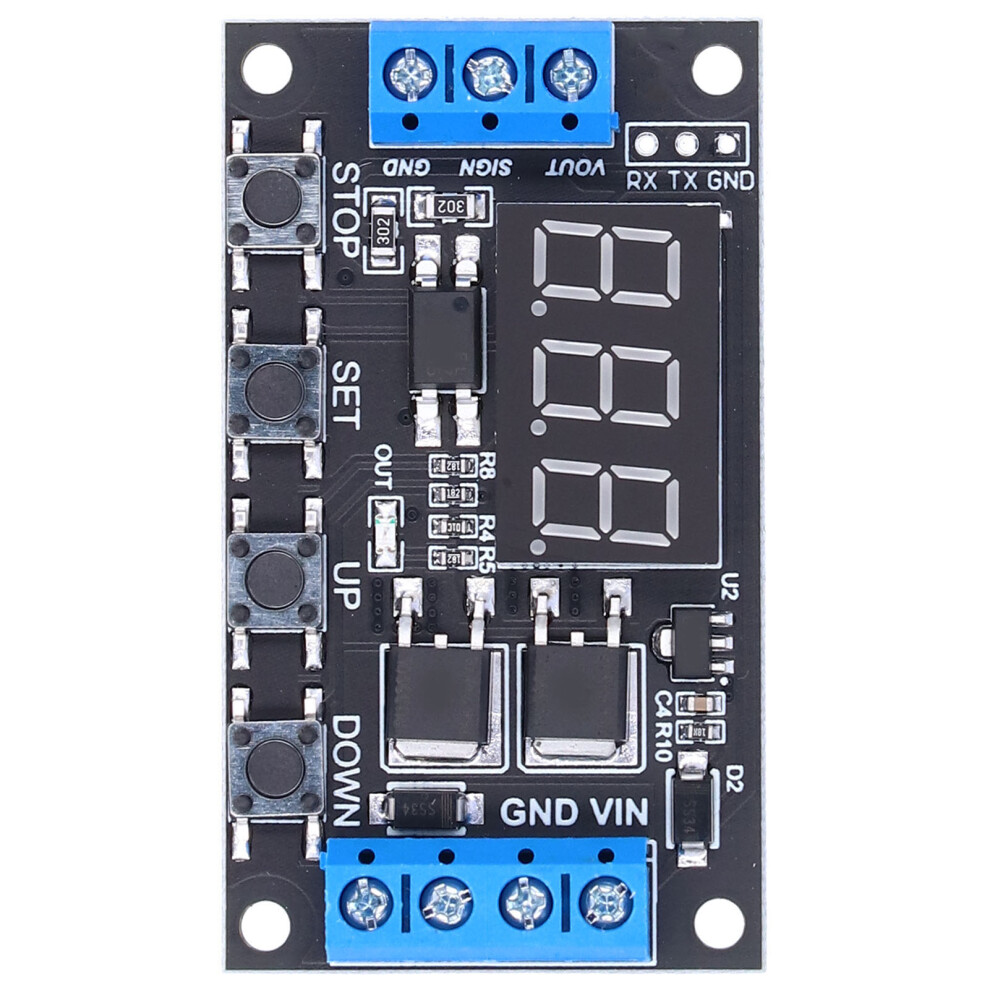

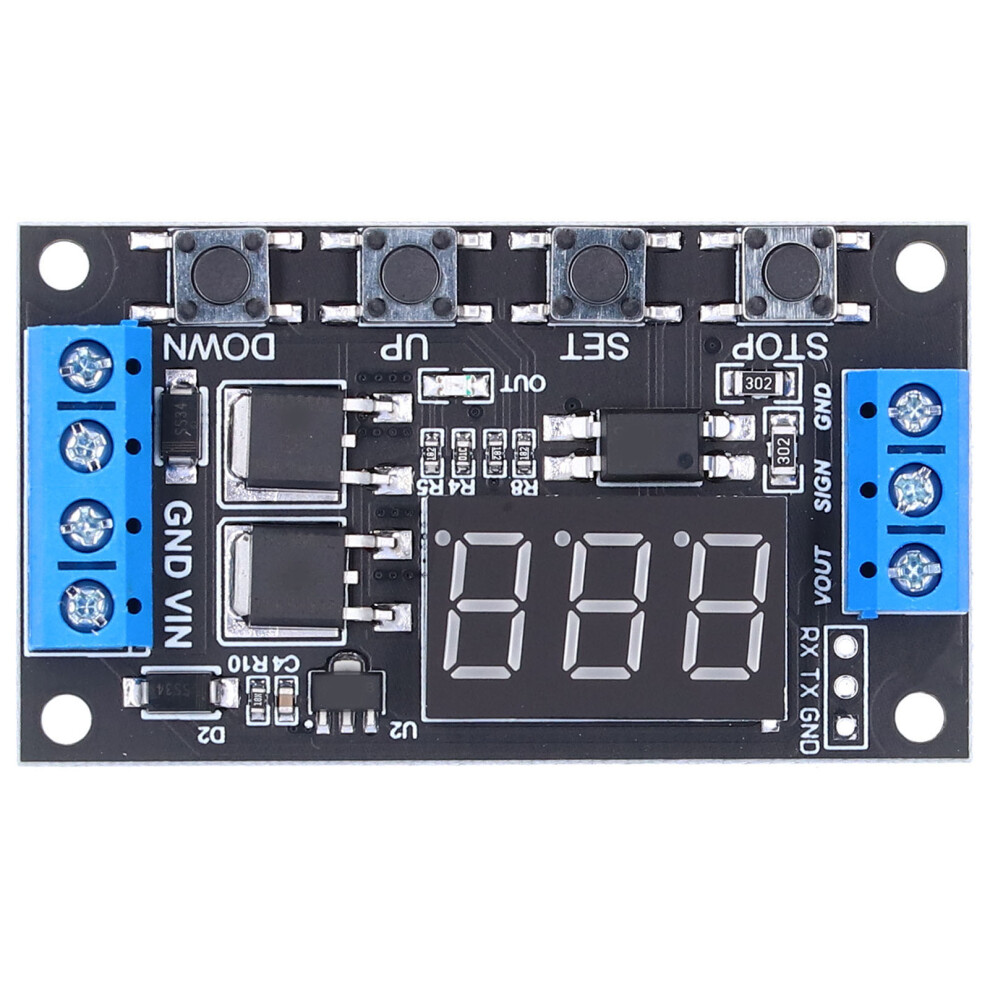

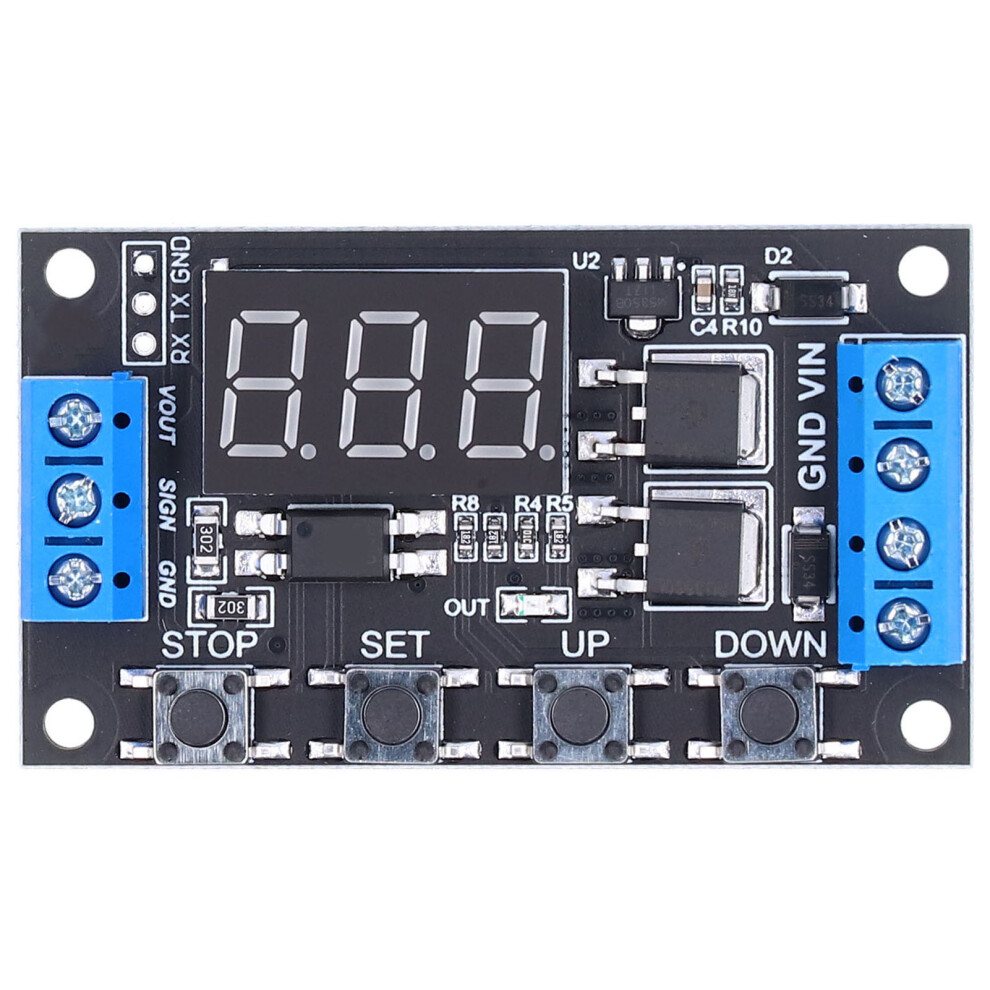

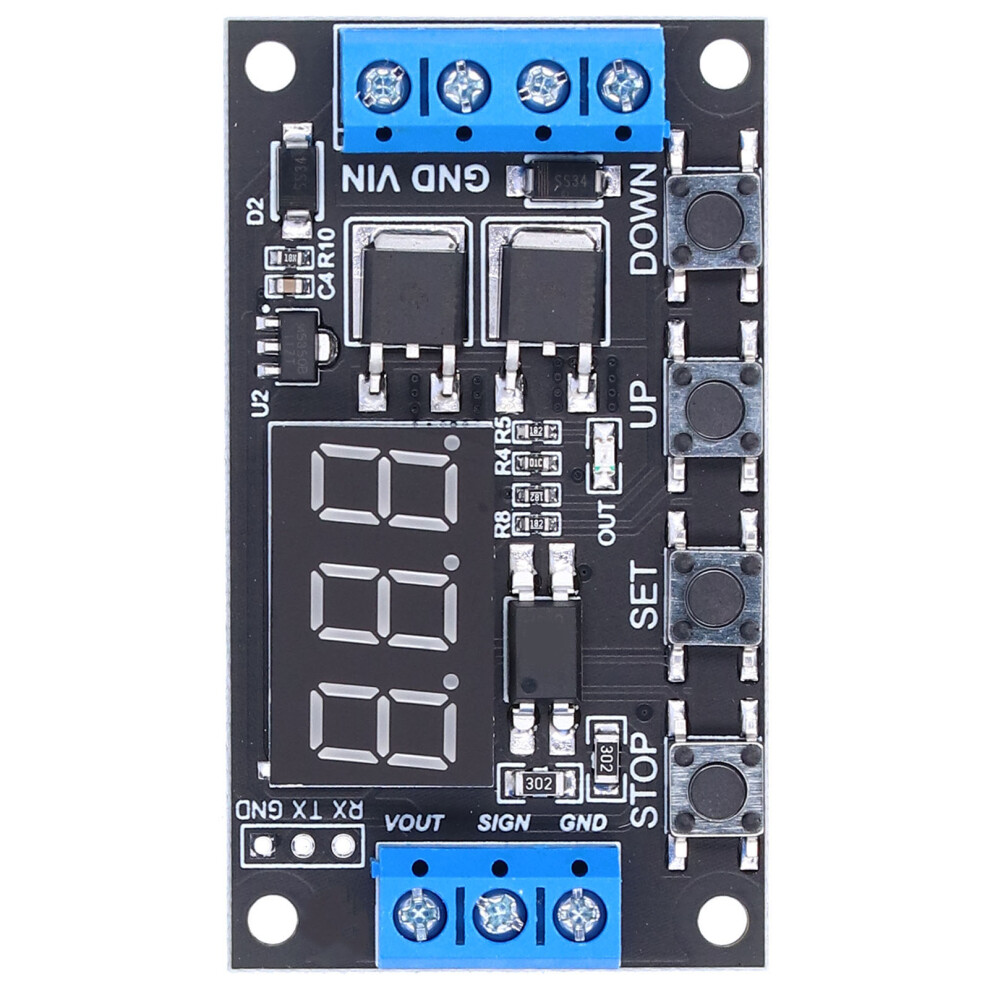

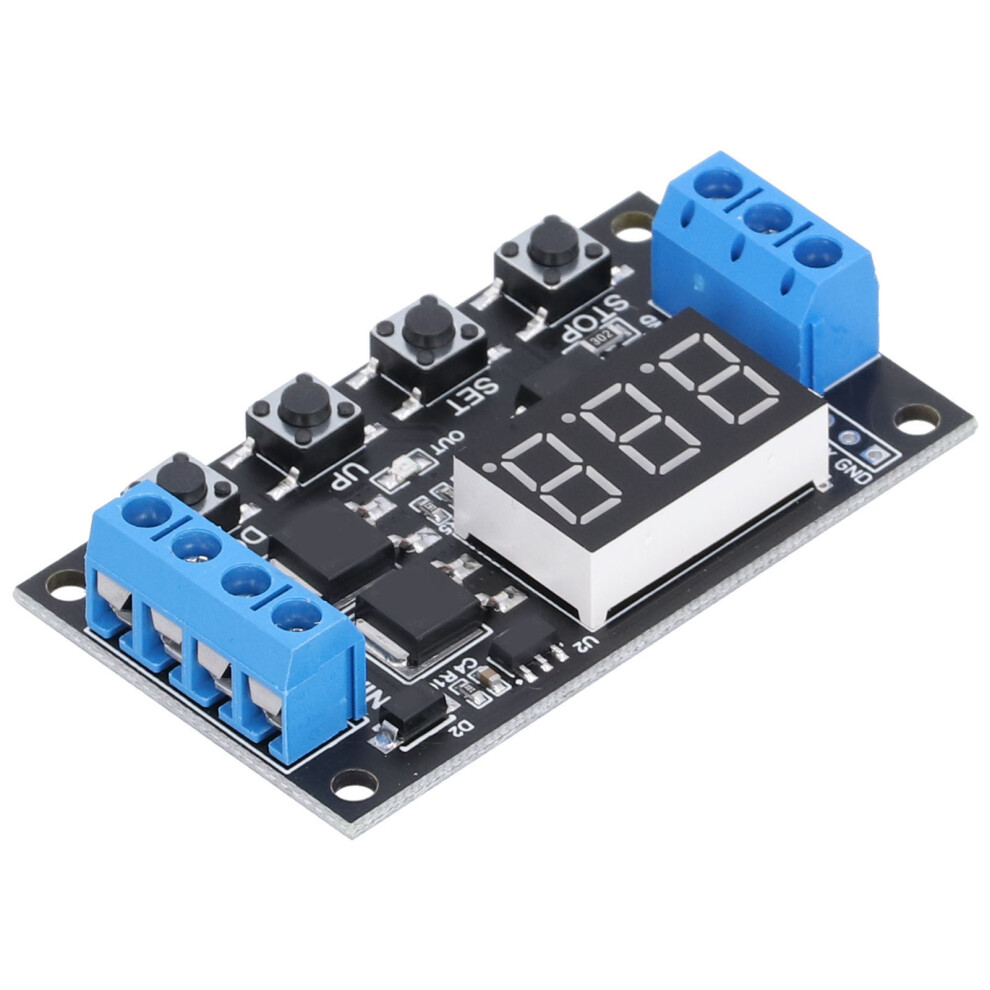

Digital Delay Module LED Relay Board for Industrial Control

Digital Delay Module LED Relay Board for Industrial Control Description

1、Wide voltage work, most equipment can be used, very convenient, one‑button emergency stop function, with reverse connection protection, reverse connection does not burn. 2、The interface is clear and simple, powerful, easy to understand, which can meet the needs of various work scenarios. 3、With sleep mode, without any operation within 3 minutes, it will automatically turn off the display, energy saving and environmental protection, any key to wake up. 4、Different OP, CL, LOP, CLL, CLH parameters can be set, and the parameters are independent of each other and saved separately. 5、New serial port communication function, convenient to read and set parameters, all set parameters are automatically saved after power-off.
Item Type: Delay Module
Material: Printed Circuit Board
Working Voltage: DC 5-30V
Trigger Signal Source: High Level Trigger (DC3V-24V), Switch Trigger, Serial Communication Trigger
Output Capacity: Can Control Equipment within DC30V 5A or AC220V 5A
Quiescent Current: 20mA
Working Current: 50mA
Service Life: More Than 100,000 Times
Working Temperature: -40-85
Purpose: Delay Trigger Action
Applicable Scenarios: Industrial Control, Electronic Equipment
1 x Delay Module
