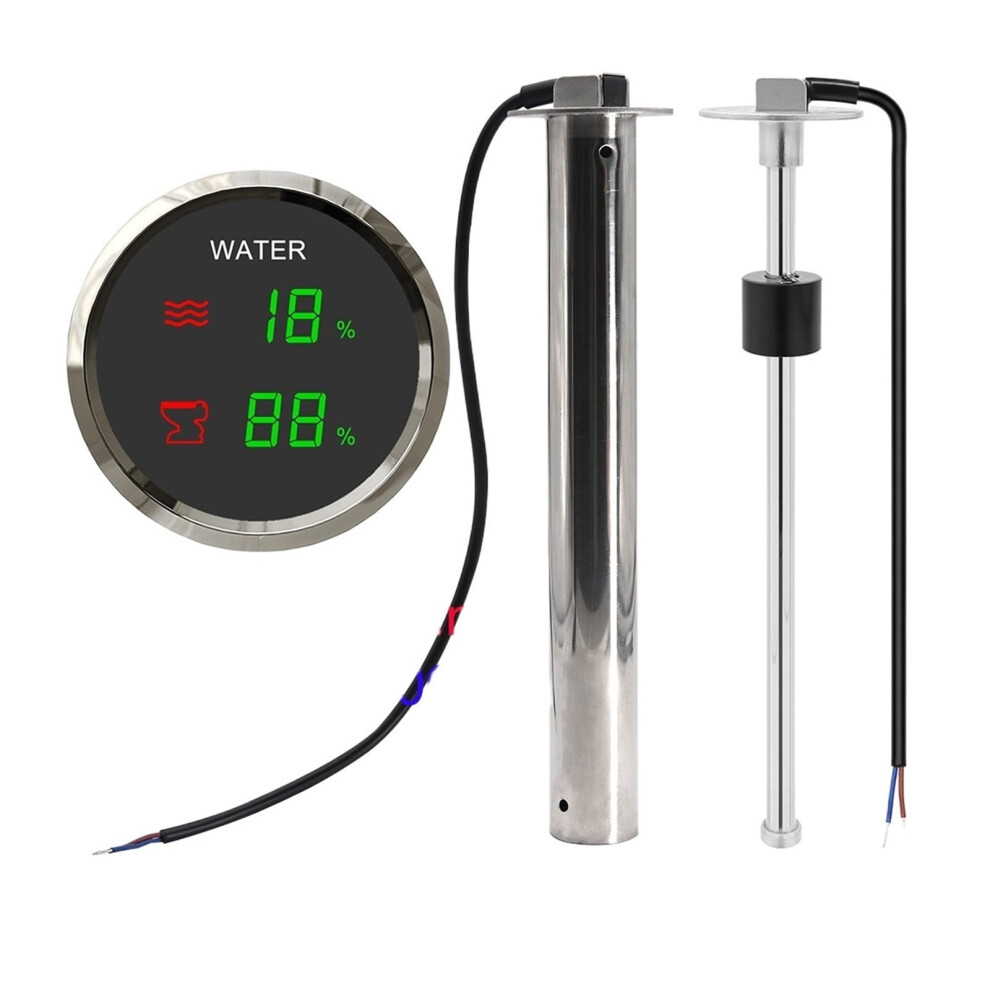

Digital Dual 52mm Gauge Water Level Sensor 0-190 Ohm
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£86.54
£173.09
50% off!
FREE Delivery
1%
Earn £0.87 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 1st - Thu 3rd Sep
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- - High Resolution View under sunshine
- - Installation Diameter: 52mm (2inch)
- - Reverse polarity protection and anti-fogging performance
- - Working Voltage:12V/24V
- - Working temperatures: - 40 to 85°C
Digital Dual 52mm Gauge Water Level Sensor 0-190 Ohm Description
Digital Dual 52mm Gauge With Warning Water Level Meter+Sewage Level Meter For Water Sewage Level Sensor 0-190ohm Boat Car 52mm Universal 2 in 1 Dual Gauge Application: Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators About the gauge: The device works, with a little delay (about 20 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank. Feature: - 52mm diameter Two in One Gauge show with easy installation - Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor 0-190, 0-180, 10-180, 240-33, 240-30 - High Resolution View under sunshine - Installation Diameter: 52mm (2inch) - Reverse polarity protection and anti-fogging performance - Working Voltage:12V/24V - Working temperatures: - 40 to 85C - IP66 Waterproof INSTALLATION GUIDE 1. Cut an 52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). Behind the panel. 2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I) 3. Connect cables according to the diagram/label. Setting Menu:"Unit" "R 1" "R 2" 1. Hold & Press the button Power On Gauge the LED screen will show Switch Show Unit, R1, R2 2. Unit Fuel Gauge, Water Level, HTG Sewage Level: % Water temperature: or 3. R1---Configure Top Row Signal Range Press Button to switch 000 ~006 For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting 4. R2---Configure Top Row Signal Range Press Button to switch 000 ~006. For example, LED will show "002", which means 10~180ohm, then release the button and wait digital flash to complete to save setting Package: 1PCS Gauge+Manual+Cable or 1PCS Sensor Related Products: water level gauge,tank level sensor,water tank level indicator,water tank level monitor,tank level gauge,fuel gauge,boat fuel gauge,marine fuel gauge,fuel gauge kitmarine fuel sending unit,marine gauges
Details
| OPC | PXTVHHC |
|---|---|
| Codes | 959110739358 (UPC) |
