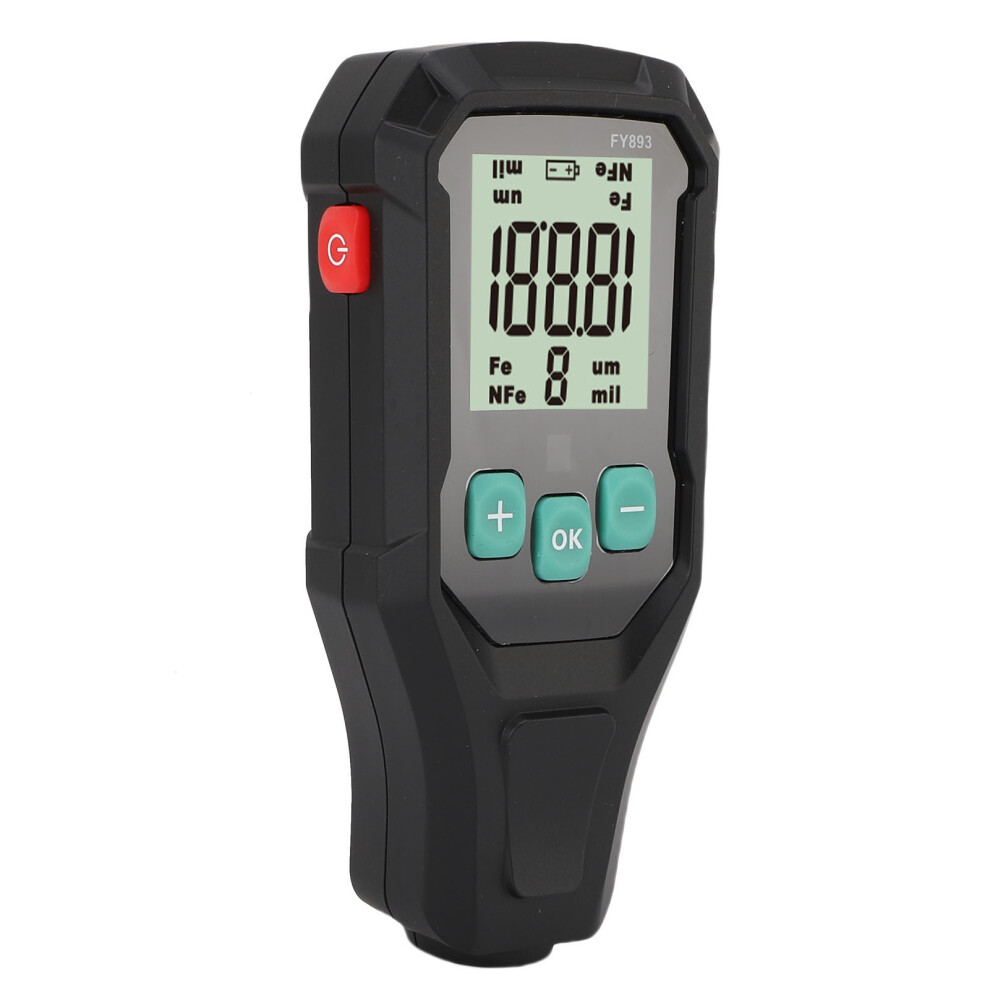

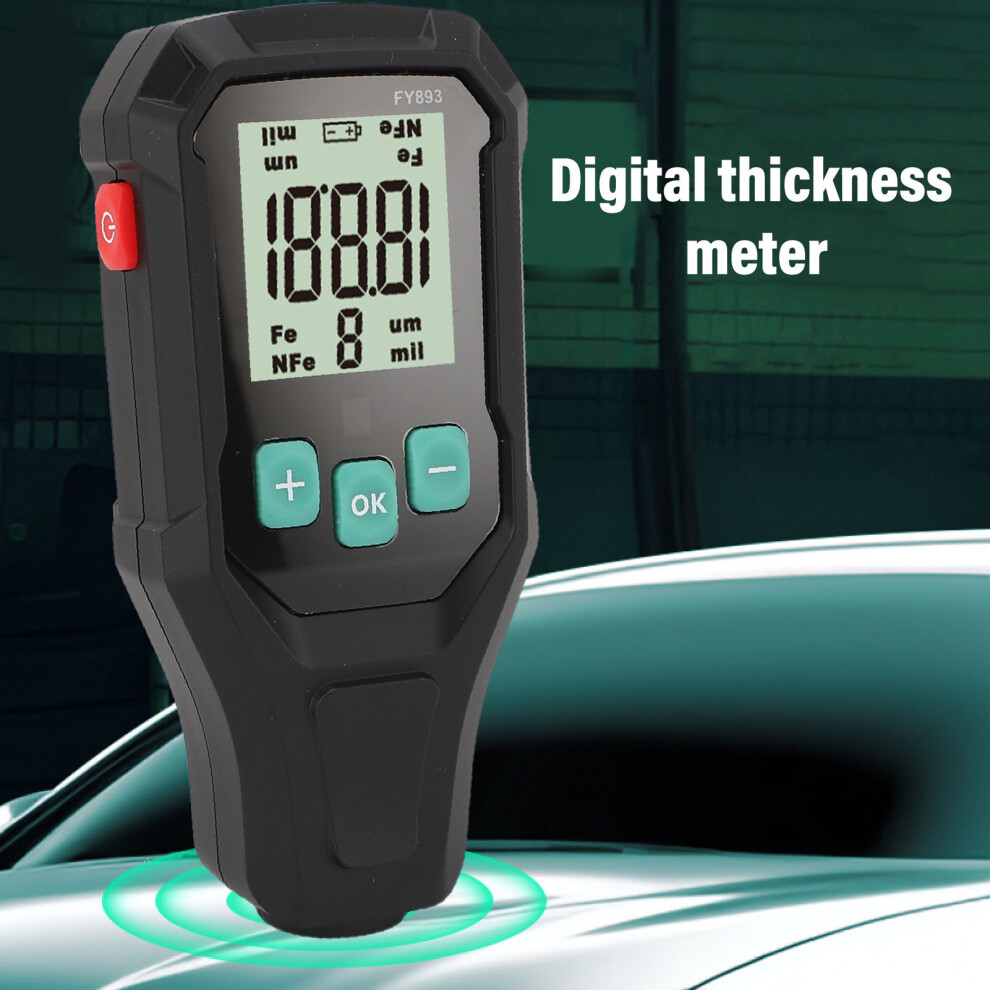

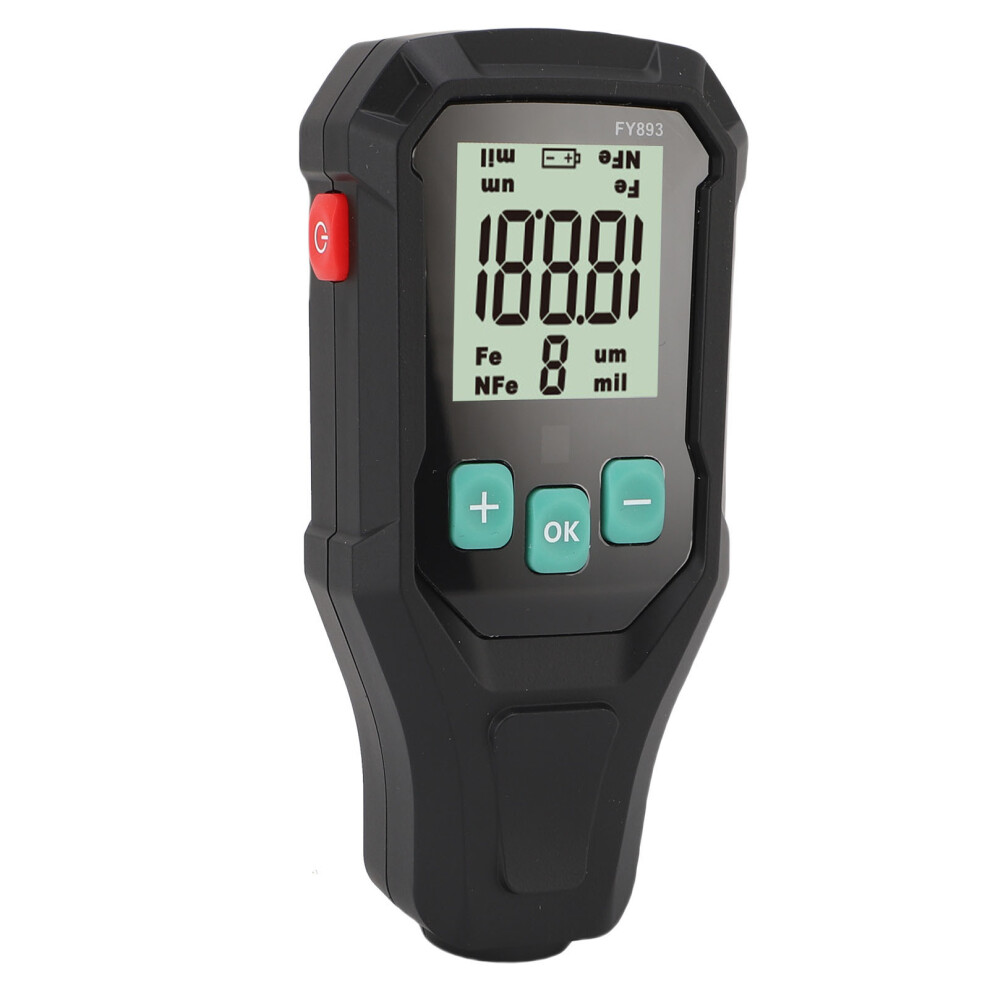

Digital Paint Thickness Meter Car Coating Depth Tester 0-1350μm
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£60.05
£76.01
21% off!
FREE Delivery
1%
Earn £0.60 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Paint Thickness Gauges
Description & Details
Summary

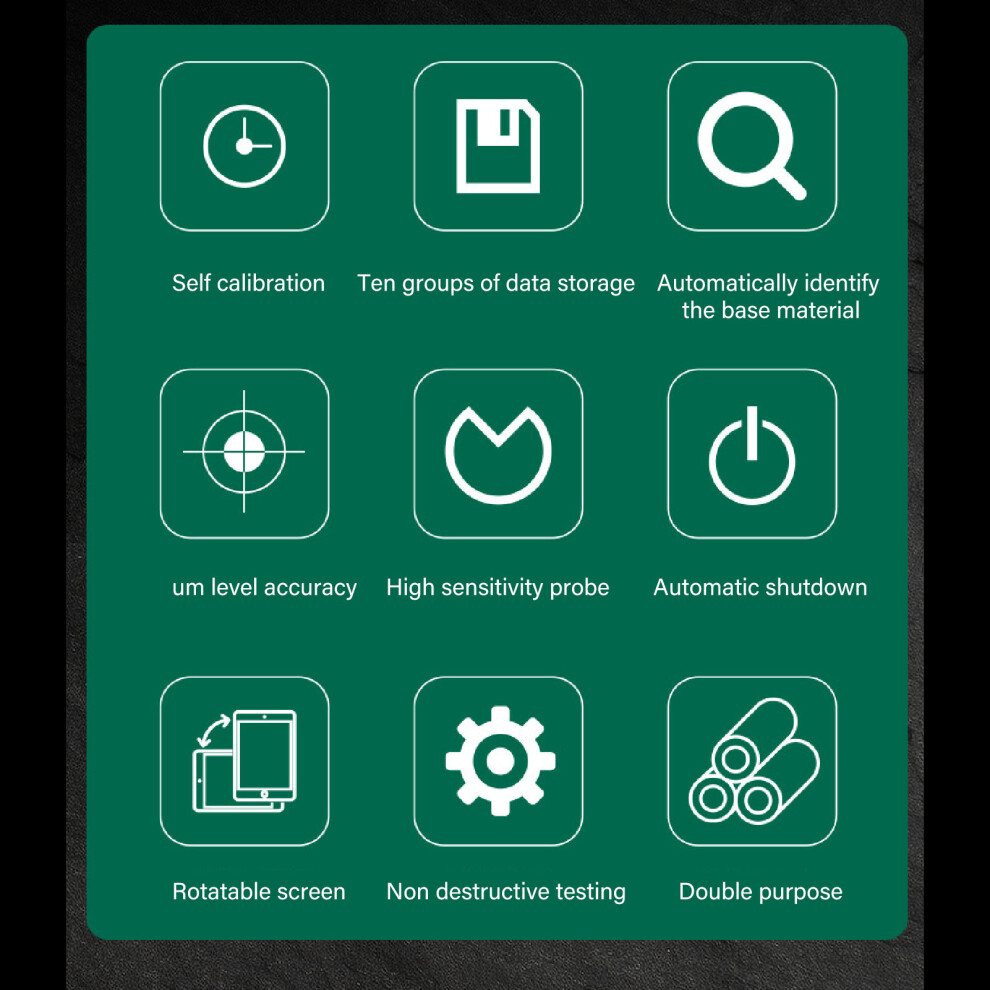

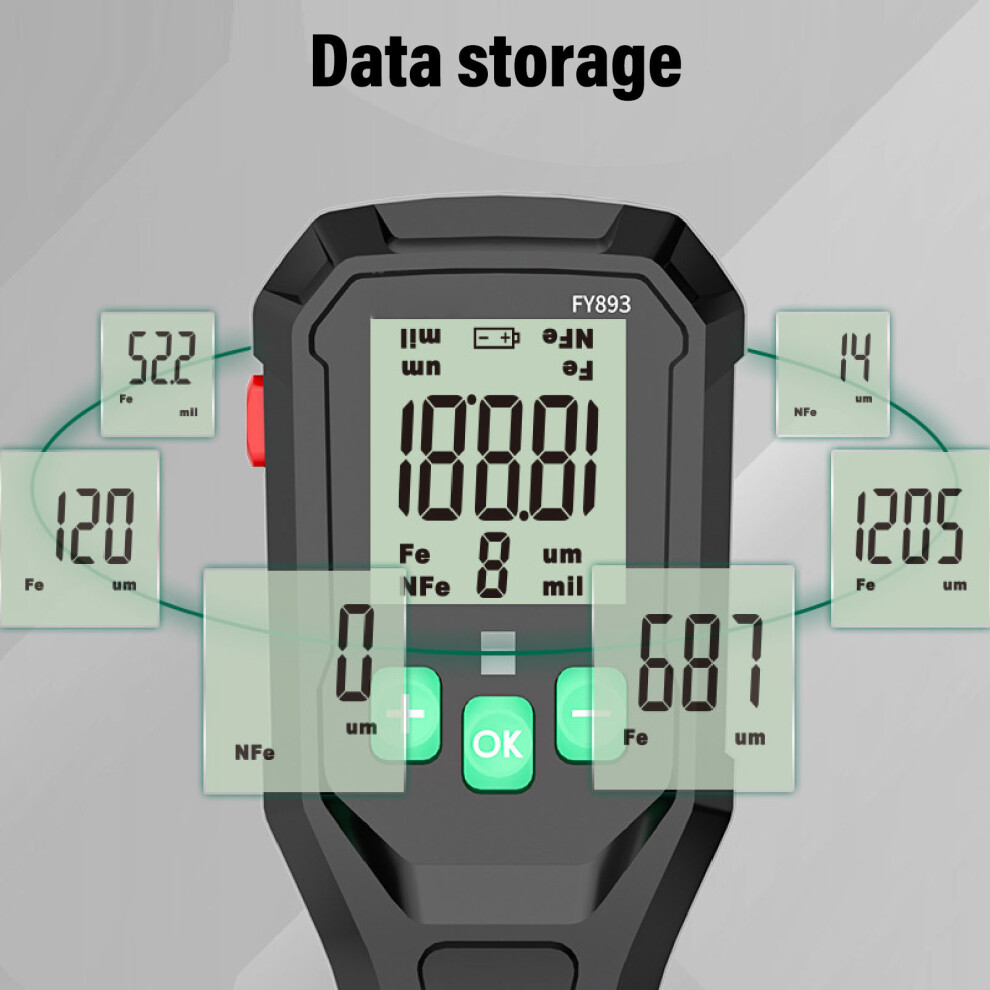

- DATA CAN BE CALIBRATED: Users can calibrate the paint thickness meter by themselves, and the measurement accuracy is guaranteed. Come with 10 sets of data storage and can be browsed

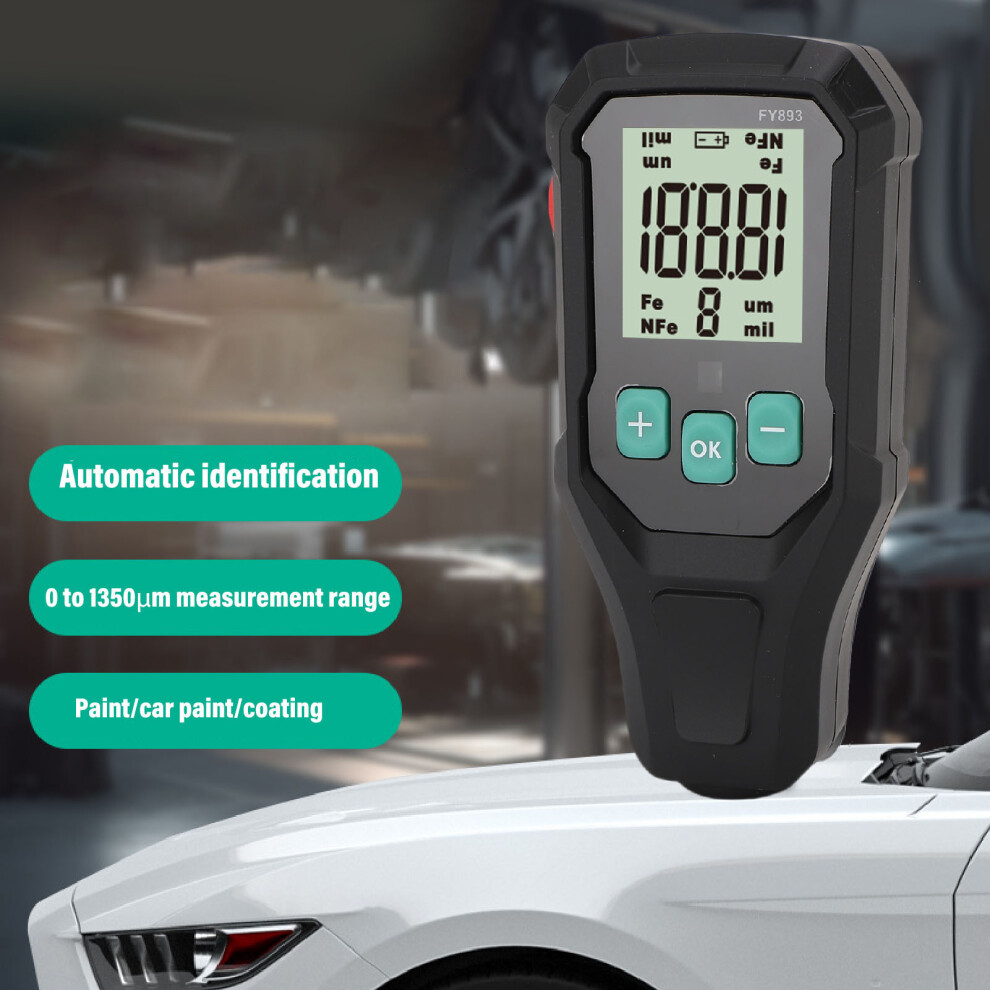

- AUTOMATIC NON DESTRUCTIVE IDENTIFICATION: The car coating depth meter measures and automatically identifies non magnetic or magnetic substrates. Non destructive testing is achieved through electromagnetic induction and eddy current effects
- ACCURATE MEASUREMENT: The cars paint mil thickness tester has micron level accuracy of μm and a measurement range of 0-1350μm, with accurate test and a large range
- SOUND AND LIGHT PROMPT: The car paint thickness meter comes with measurement prompts, including light and sound. After the measurement data is successfully obtained, the instrument will make a beep sound accompanied by a flashing green light

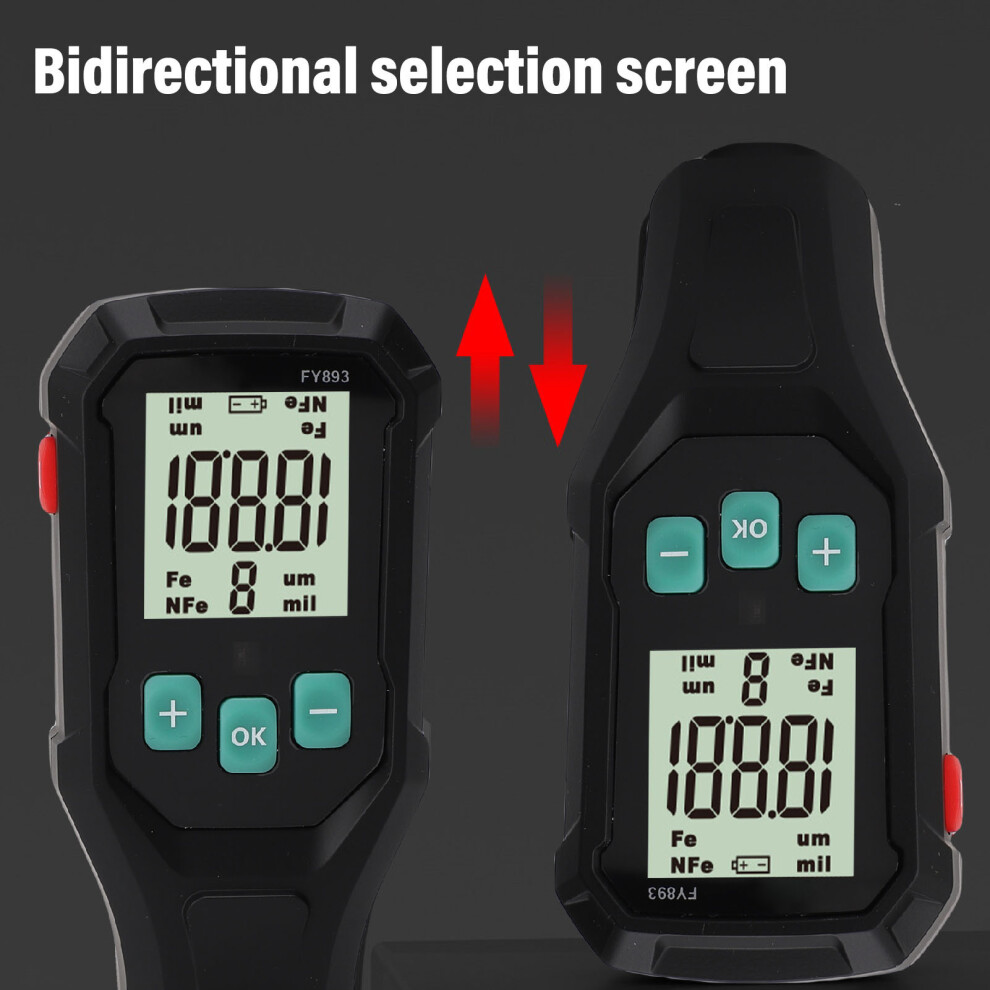

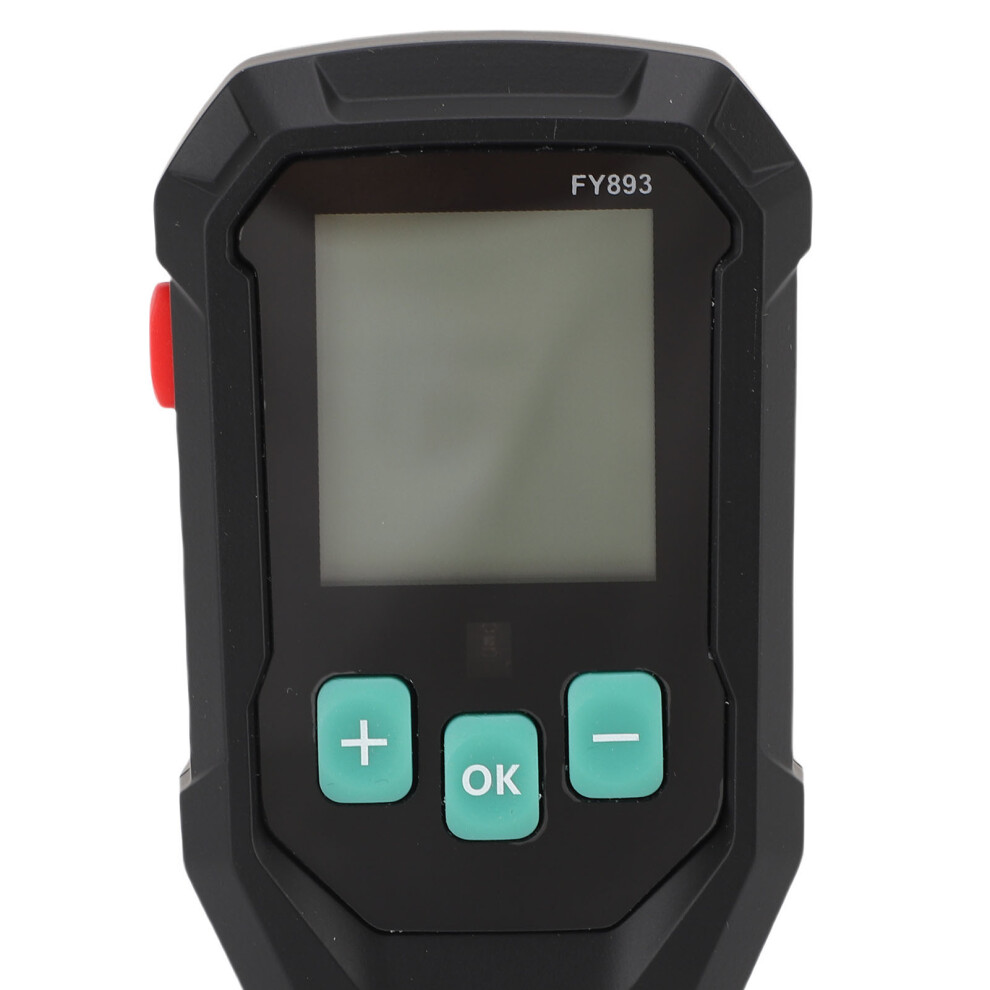

- ROTATING SCREEN: 0-1350μM digital paint meter supports bidirectional screen selection. Press the + key to switch the screen direction back and forth
Digital Paint Thickness Meter Car Coating Depth Tester 0-1350μm Description
Paint Thickness Meter Car Automotive Coating Depth Digital Mil Thickness Tester 0-1350μM
Item Type: Paint Thickness Meter

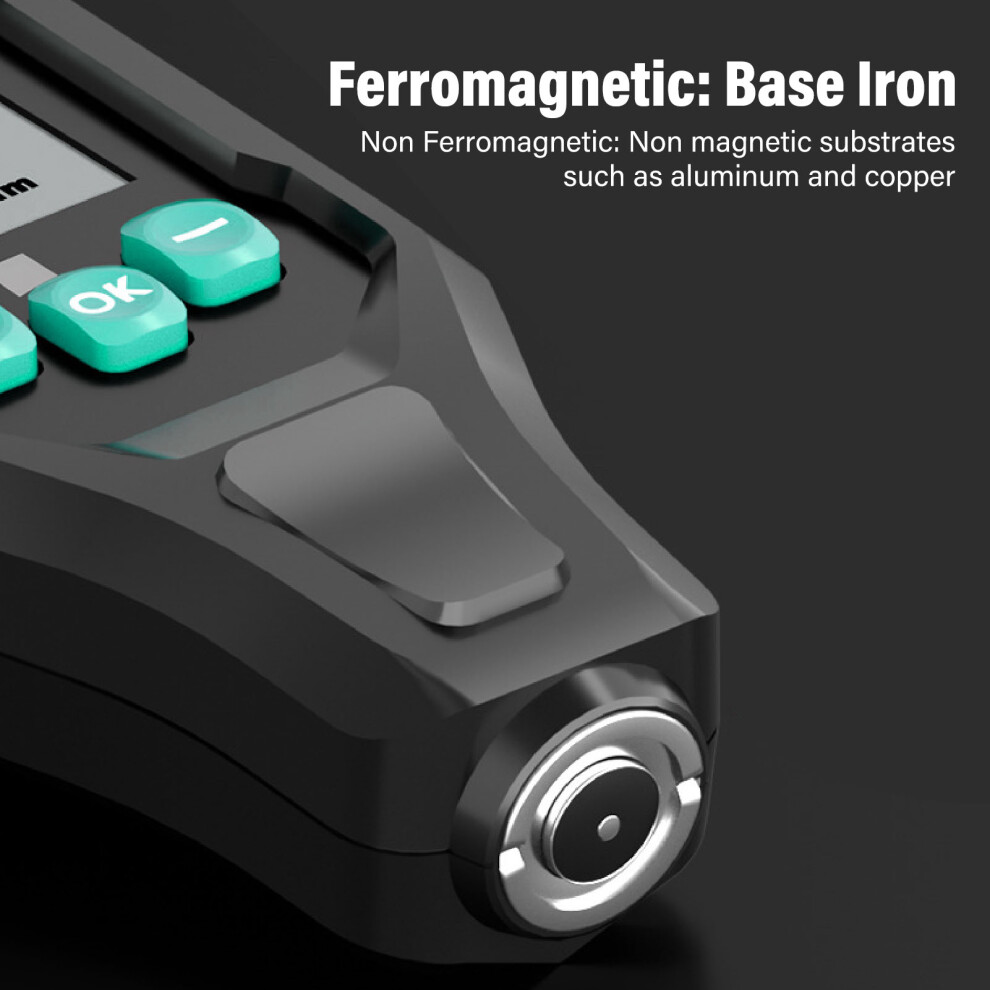

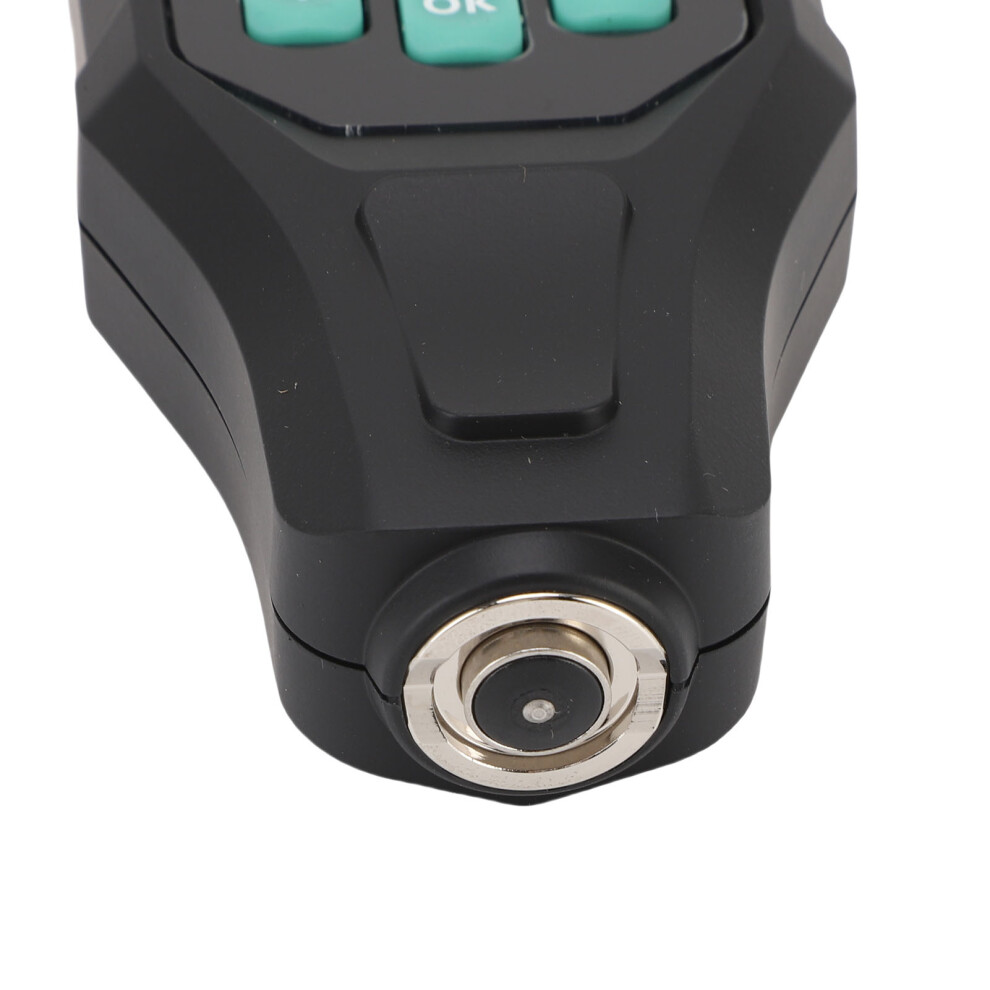

Sensor Probe: Ferromagnetic: Base Iron; Non Ferromagnetic: Non magnetic substrates such as aluminum and copper
Working Principle: Ferromagnetism: Magnetic Induction; Non Ferromagnetic: Eddy current
Measurement Range: Ferromagnetic: 0-1350μm; Non Ferromagnetic: 0-50mil
Measured Materials: Car paint, varnish, coating, ceramics, Cr, etc.
Error: Ferromagnetism: 3% reading +2μ; Non Ferromagnetic: 3% reading +0.08mil
Resolution: Ferromagnetism: 1μm; Non Ferromagnetic: 0.1mil
Measurement Units: Ferromagnetic: μm(micrometer), Non Ferromagnetic: mil(mille)
Calibration Points: 0μm, 50μm, 100μm, 250μm, 500μm, 1000μm, 1250μm
Minimum Radius of Curvature (convex): 1.5mm
Minimum Radius of Curvature (concave): 25mm
Minimum Measuring Area (diameter): Approx. 6mm / 0.24in
Minimum Measurable Thickness of Substrate: Ferromagnetic: 0.5mm(0.02); Non Ferromagnetic: 0.3mm)0.02)
Over Range Display: --
Automatic Shutdown: The machine will automatically shut down after 3 minutes of no operating
Operating Temperature And Humidity: 0 to 40(32 to 104) 20%~90%RH
Power Supply: 2 x 1.5V AAA batteries(not include)
Details
| OPC | PR852ZG |
|---|---|
| Codes | 6941383167901 (EAN) |
