Digital Push Button Remote All Channels ON/OFF CH1/CH2 Independent

Digital Push Button Remote All Channels ON/OFF CH1/CH2 Independent Description

1、It is made of quality plastics material, wear resistant and fall resistent, with long durability. 2、Rough surface design, anti-slip texture for fast battery replacement, and with comfortable hand feeling. 3、The remote controller is powered by A23 alkaline battery, 12 V, 23A (included). 4、Equipped with a remote controller bracket for easy installed on the wall or the side of table for easy storage. 5、And comes with a RF module.
Switch Module (optional):
This product is made from PC material, compact size design for quick and easy installation, will not occupy to much space. After correctly connecting to the Tuya APP, you can achieve remotes control the on/off of your home intelligent switches devices wherever you are. Support remotely control the product to close/open or set timing time to on/off it.
Remote controller+RF(optional):
The remotr controller is made of quality plastics material, wear resistant and fall resistent, with long durability. Rough surface design, anti-slip texture for fast battery replacement, and with comfortable hand feeling. The remote controller is powered by A23 alkaline battery, 12 V, 23A (included). Equipped with a remote controller bracket for easy installed on the wall or the side of table for easy storage.
Features:
Switch Module (optional):

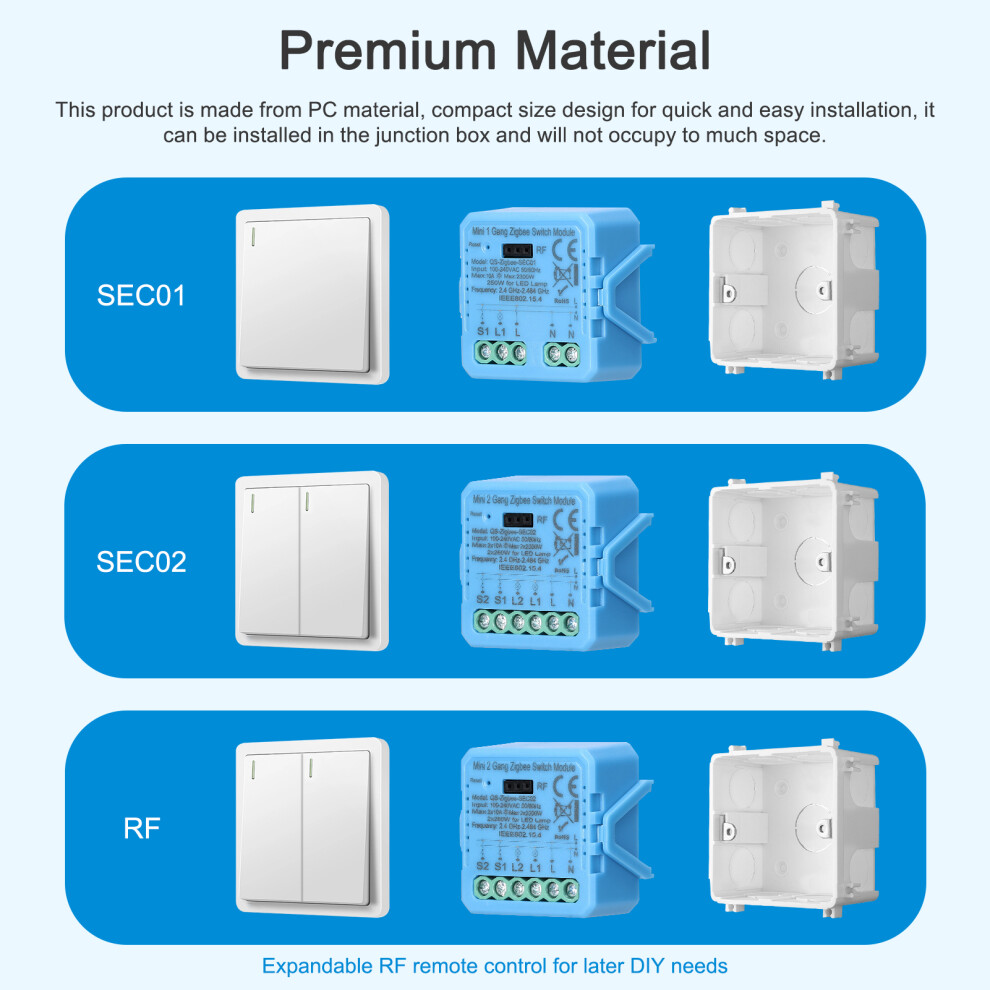

Premium Material: This product is made from PC material, compact size design for quick and easy installation, it can be installed in the junction box and will not occupy to much space.
APP Remotely Control: After correctly connecting to the Tuya APP, you can achieve remotes control the on/off of your home intelligent switches devices wherever you are.
Timing Function: Through the timing function, you can achieve turn the lights on/off automatically at the specific time, and also support count down and calendar function.
Family Sharing Function: One device can be shared to different family members to control, let your friends or family to control it together.
Hands-free Voice Control: Compatible with Alexa, Google Home for easy voice control, you can achieve voice control and enjoy the convenience of technology.
Wide Applications: With this switch module, you can make your traditional switch into intelligent switch module. It can be used in your home, office, hotel and so on.

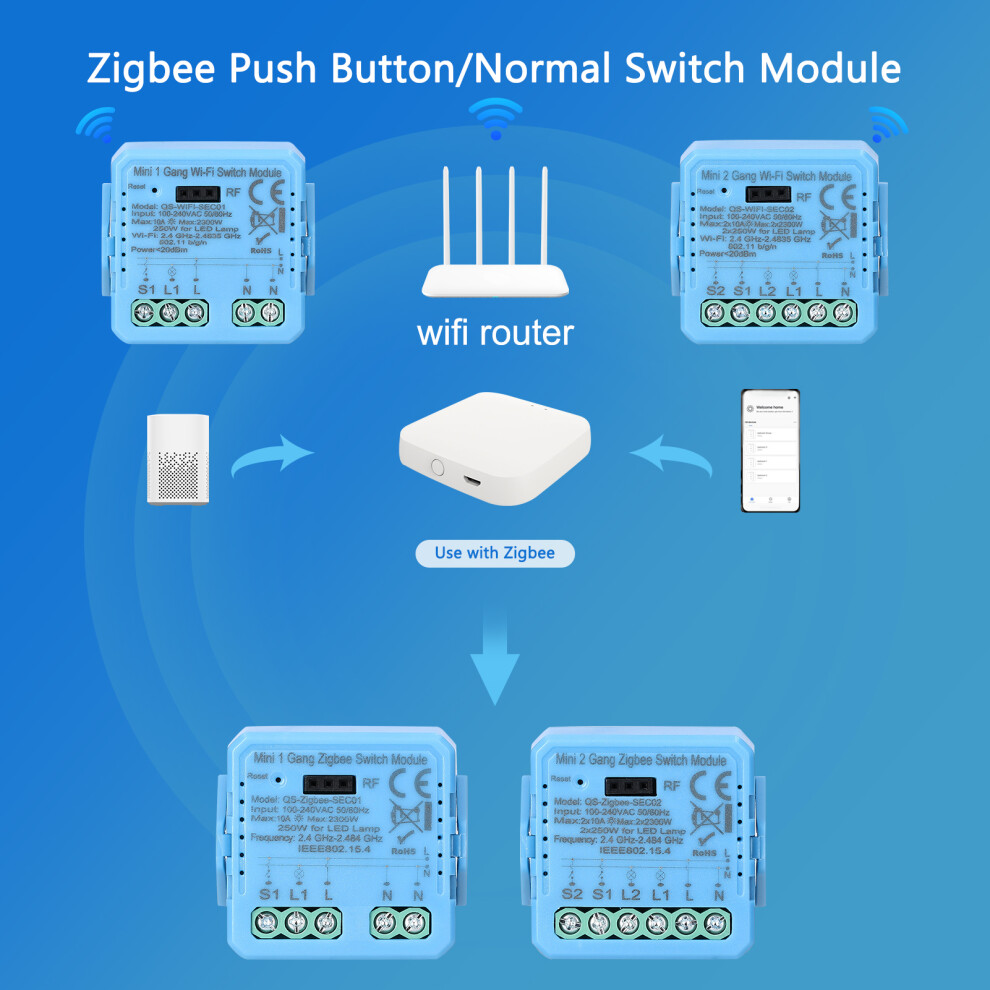

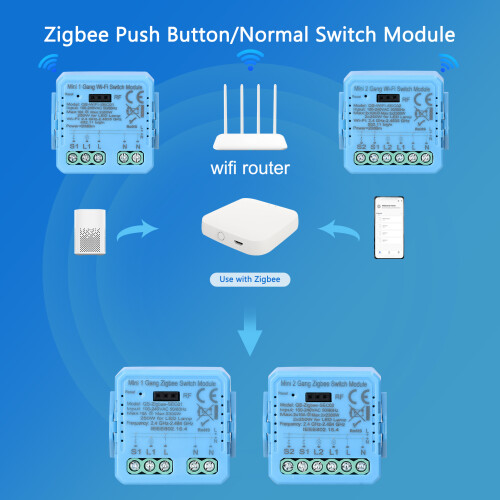

Four Models Optional: You can choose QS-WIFI-SEC01, QS-WIFI-SEC02, QS-Zigbee-SEC01, QS-Zigbee-SEC02, depending on your demands.
QS-WIFI-SEC01: 1Gang, no gateways needed
QS-WIFI-SEC02: 2 Gang, no gateways needed
QS-Zigbee-SEC01: 1Gang, needs to be used with gateways.
QS-Zigbee-SEC02: 2 Gang, needs to be used with gateways.
Remote controller+RF(optional):
It is made of quality plastics material, wear resistant and fall resistent, with long durability.
Rough surface design, anti-slip texture for fast battery replacement, and with comfortable hand feeling.
The remote controller is powered by A23 alkaline battery, 12 V, 23A (included).
Equipped with a remote controller bracket for easy installed on the wall or the side of table for easy storage.
And comes with a RF module.

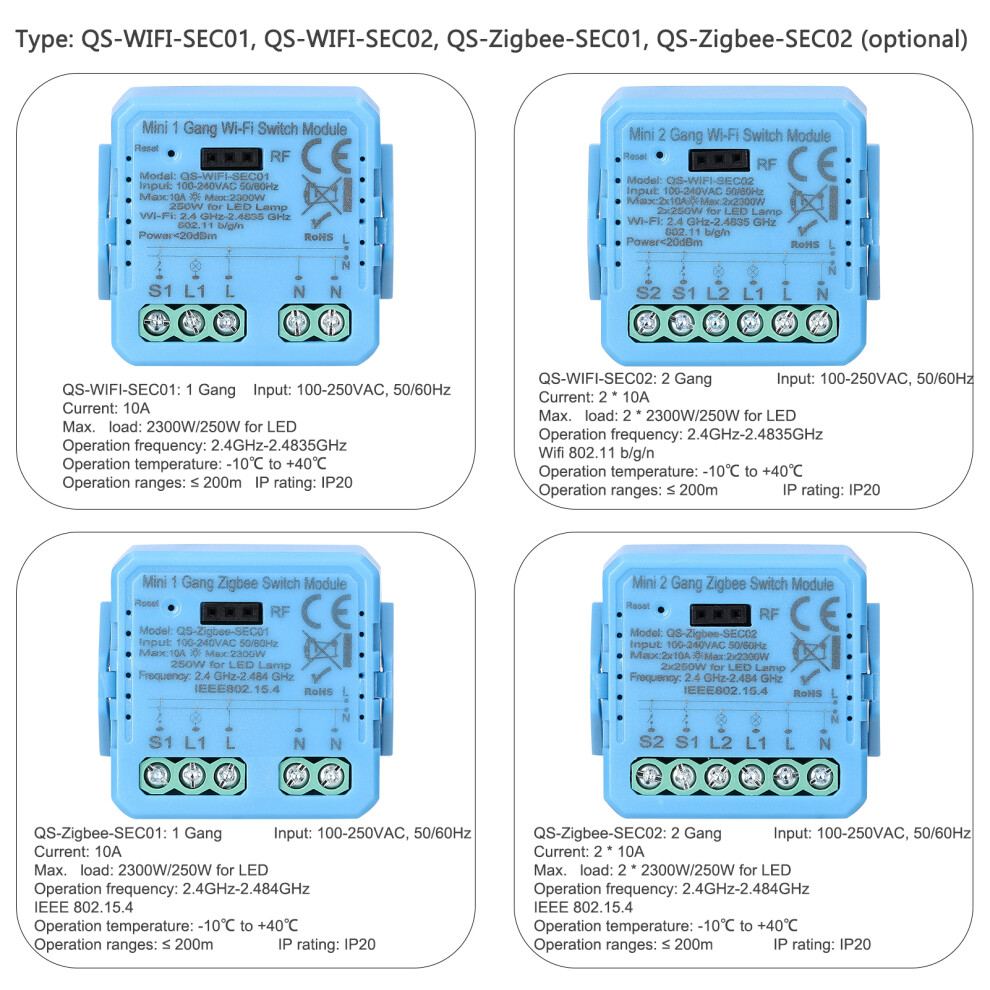

Specifications:
Name: Switch Module
Material: ABS+PC
Type: QS-WIFI-SEC01, QS-WIFI-SEC02, QS-Zigbee-SEC01, QS-Zigbee-SEC02, Remote controller+RF (optional)
QS-WIFI-SEC01: 1 Gang
Input: 100-250VAC, 50/60Hz
Current: 10A
Max. load: 2300W/250W for LED
Operation frequency: 2.4GHz-2.4835GHz
Operation temperature: -10 to +40
Operation ranges: 200m
IP rating: IP20
QS-WIFI-SEC02: 2 Gang
Input: 100-250VAC, 50/60Hz
Current: 2 * 10A
Max. load: 2 * 2300W/250W for LED
Operation frequency: 2.4GHz-2.4835GHz Wifi 802.11 b/g/n
Operation temperature: -10 to +40
Operation ranges: 200m
IP rating: IP20
QS-Zigbee-SEC01: 1 Gang
Input: 100-250VAC, 50/60Hz
Current: 10A
Max. load: 2300W/250W for LED
Operation frequency: 2.4GHz-2.484GHz IEEE 802.15.4
Operation temperature: -10 to +40
Operation ranges: 200m
IP rating: IP20
QS-Zigbee-SEC02: 2 Gang
Input: 100-250VAC, 50/60Hz
Current: 2 * 10A
Max. load: 2 * 2300W/250W for LED
Operation frequency: 2.4GHz-2.484GHz IEEE 802.15.4
Operation temperature: -10 to +40
Operation ranges: 200m
IP rating: IP20
Remote controller+RF: 1 * A23 alkaline battery, 12 V, 23A (included)
Item size:
Switch Module: 44 * 40 * 23mm / 1.73 * 1.57 * 0.91in
Remote controller: 94 * 44 * 18mm / 3.70 * 1.73 * 0.71in
RF: 27 * 24 * 11mm / 1.06 * 0.94 * 0.43in
Item weight:
QS-WIFI-SEC01: 28g / 0.99ounce
QS-WIFI-SEC02: 33g / 1.16ounce
QS-Zigbee-SEC01: 28g / 0.99ounce
QS-Zigbee-SEC02: 33g / 1.16ounce
Remote controller+RF: 41g / 1.45ounce
Package size:
Switch Module: 54 * 49 * 32mm / 2.13 * 1.93 * 1.26in
Remote controller+RF: 122 * 51 * 28mm / 4.80 * 2.01 * 1.10in
Package weight:
QS-WIFI-SEC01: 35g / 1.23ounce
QS-WIFI-SEC02: 40g / 1.41ounce
QS-Zigbee-SEC01: 35g / 1.23ounce
QS-Zigbee-SEC02: 40g / 1.41ounce
Remote controller+RF: 47g / 1.66ounce
Packing List (QS-WIFI-SEC01, QS-WIFI-SEC02, QS-Zigbee-SEC01, QS-Zigbee-SEC02):
1 * Switch Module
OR
Packing List (Remote Controller+RF):
1 * Remote Controller
1 * RF
(QS-WIFI-SEC01, QS-WIFI-SEC02, QS-Zigbee-SEC01, QS-Zigbee-SEC02):
1 * Switch Module
OR
Packing List (Remote Controller+RF):
1 * Remote Controller
1 * RF
