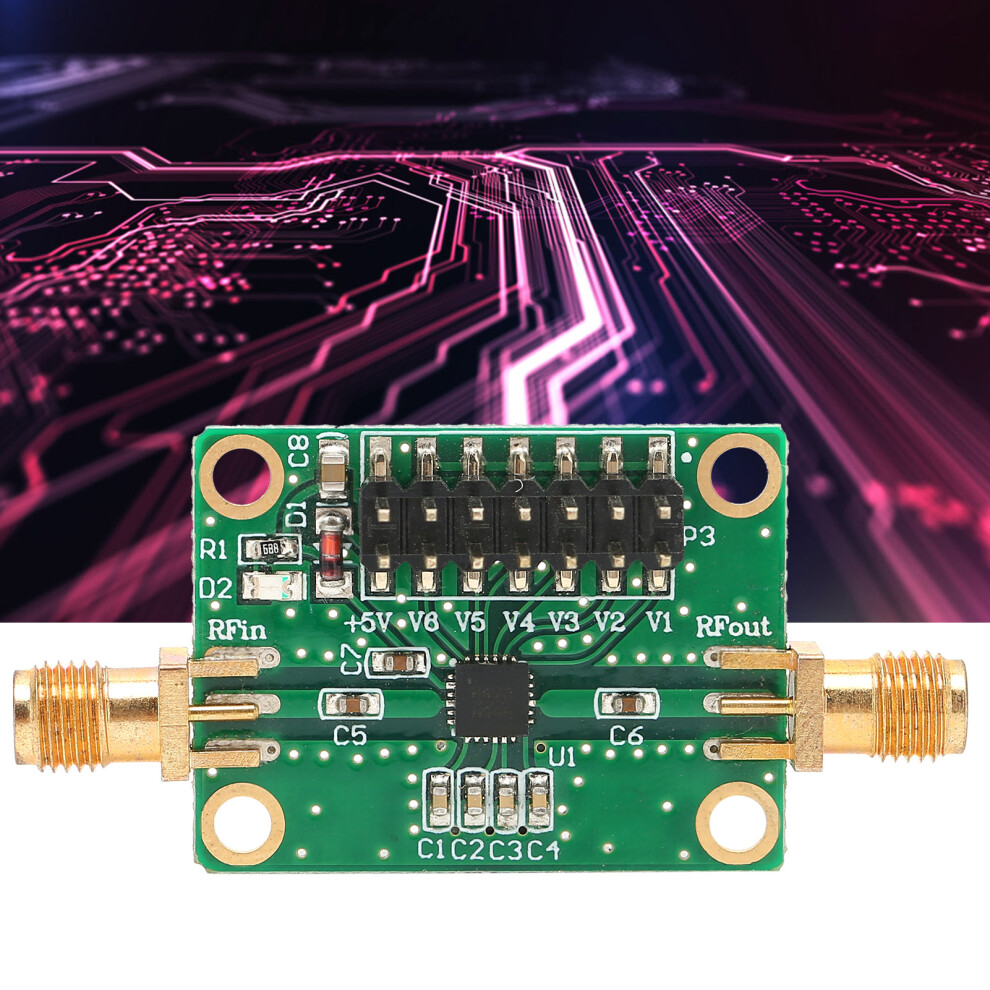

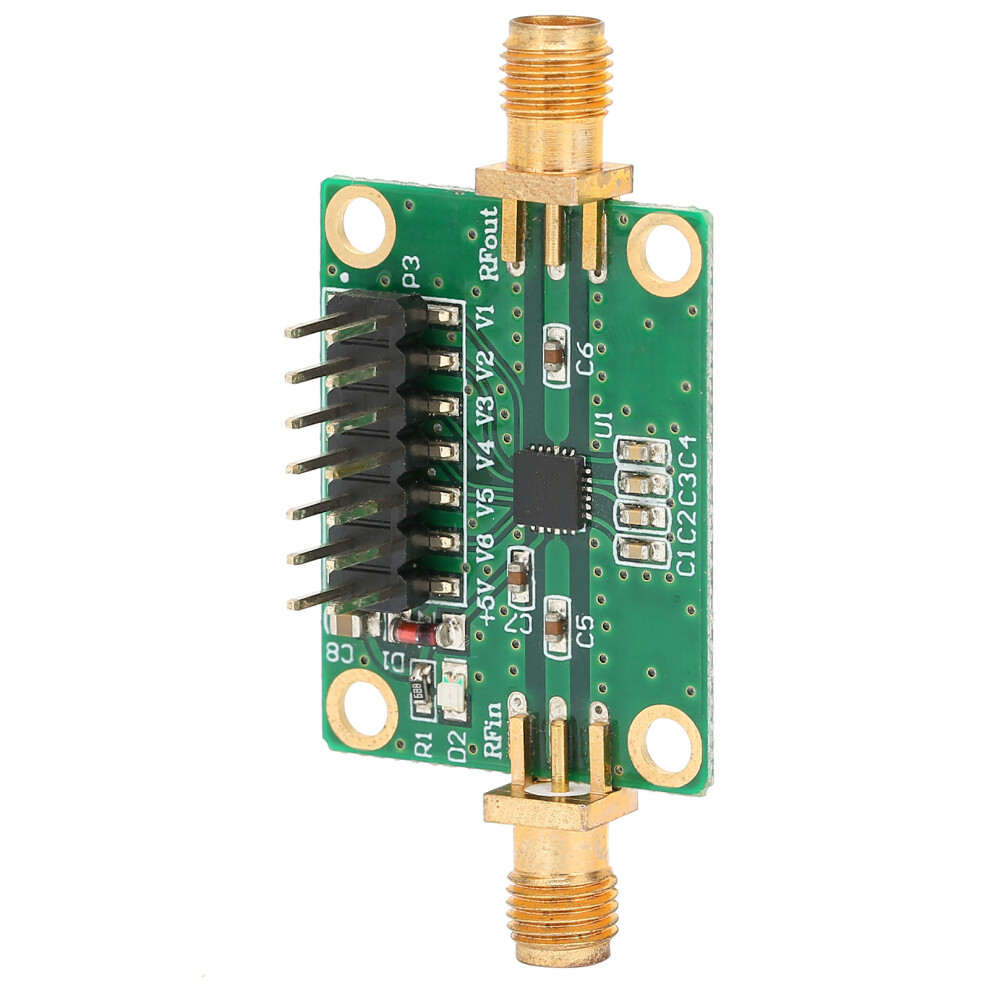

Digital RF Attenuator 0.5dB Step 1MHz-3.8GHz Programmable Control Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£13.03
£18.88
31% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Hardware
Description & Details
Summary
- The working frequency range of the RF attenuator module is 1M‑3.8GHz, with 0.5dB stepping and low insertion loss.
- Manually adjust the control through the 6‑position pin header on the board, digitally programmable.
- The use of 1.6mm thick double‑sided plates and the whole process of spraying tin to ensure good passing performance of large and small currents.
- Large heat dissipation area, has better service life, no need to worry about heat generation during operation.
- One‑piece design, the exterior of the module is glossy without burrs, smoother installation and use.
Digital RF Attenuator 0.5dB Step 1MHz-3.8GHz Programmable Control Module Description
RF Attenuator Module Digital Programmable Control Board 0.5dB Step 1M-3.8GHz HMC472
Item Type: RF Attenuator Module
Material: PCB
Operating Frequency Range: 1M-3.8GHz
Maximum Input Signal Power: 20dBm
Attenuation Multiple and Step Length: Attenuation multiple 0-31.5dB, step 0.5dB
Insertion Loss: Less than 2.0dB
Attenuation Control Interface: Manual adjustment control through the 6-pin header on the board
Input and Output Impedance: 50Ω
Power Supply: Typical value +5V, maximum cannot exceed +7V
Input and Output Interface: SMA interface female screw inner hole
Details
| OPC | PSVJ9FY |
|---|---|
| Codes | 7901391708977 (EAN) |
