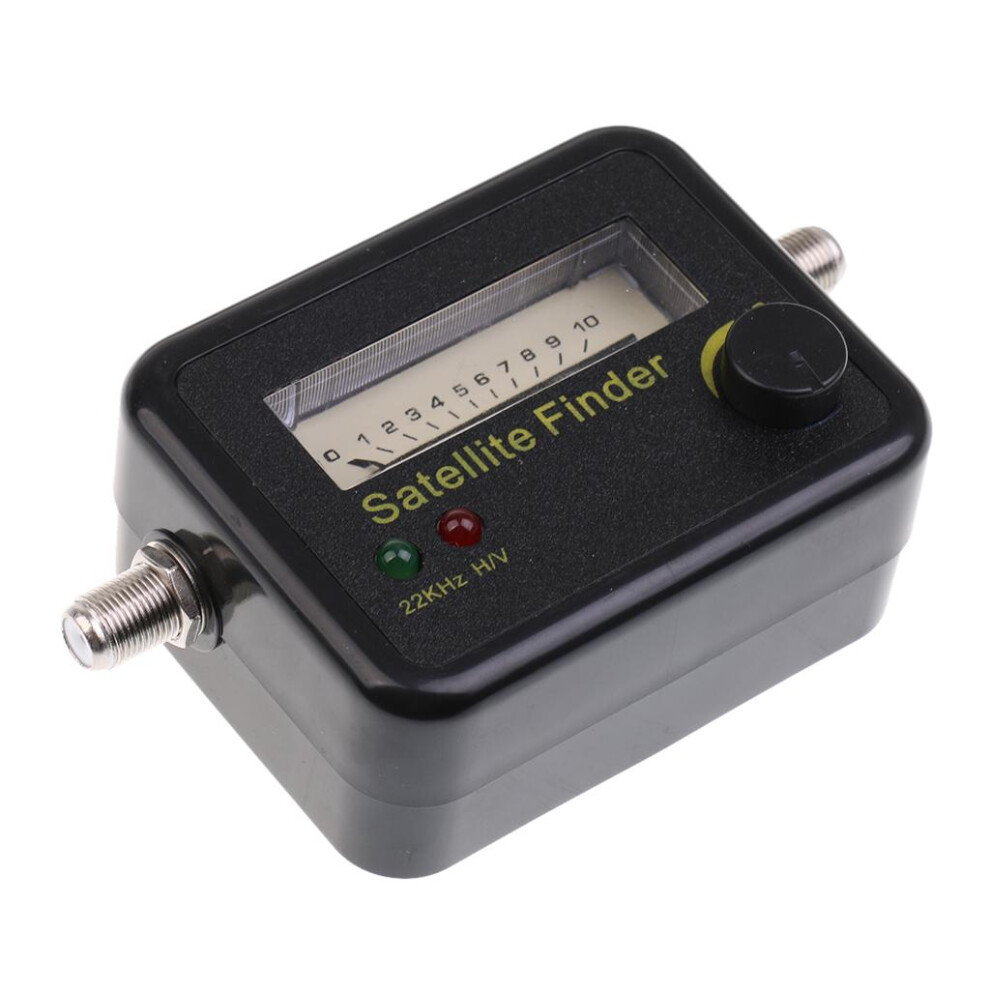

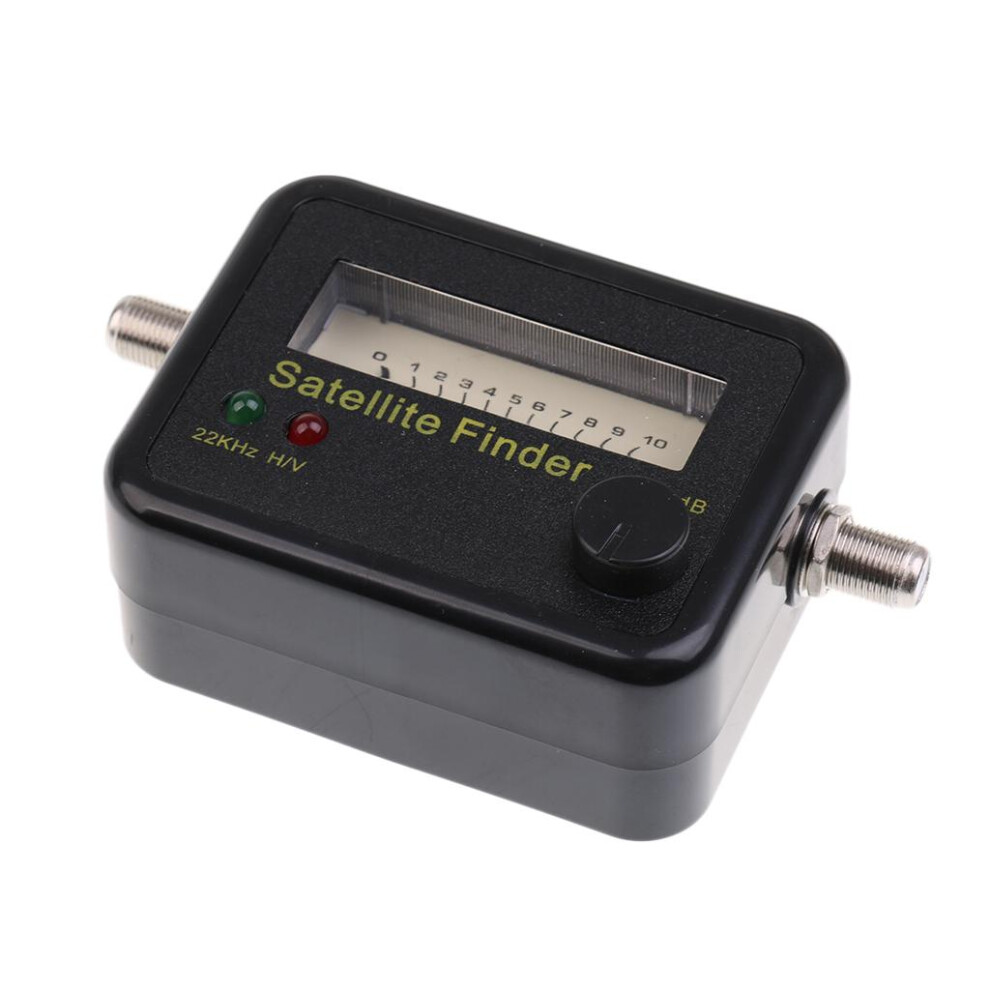

Digital Satellite Finder

Digital Satellite Finder Description

Description:

Connect the Satellite Finder between the star receiver and the antenna LNB.

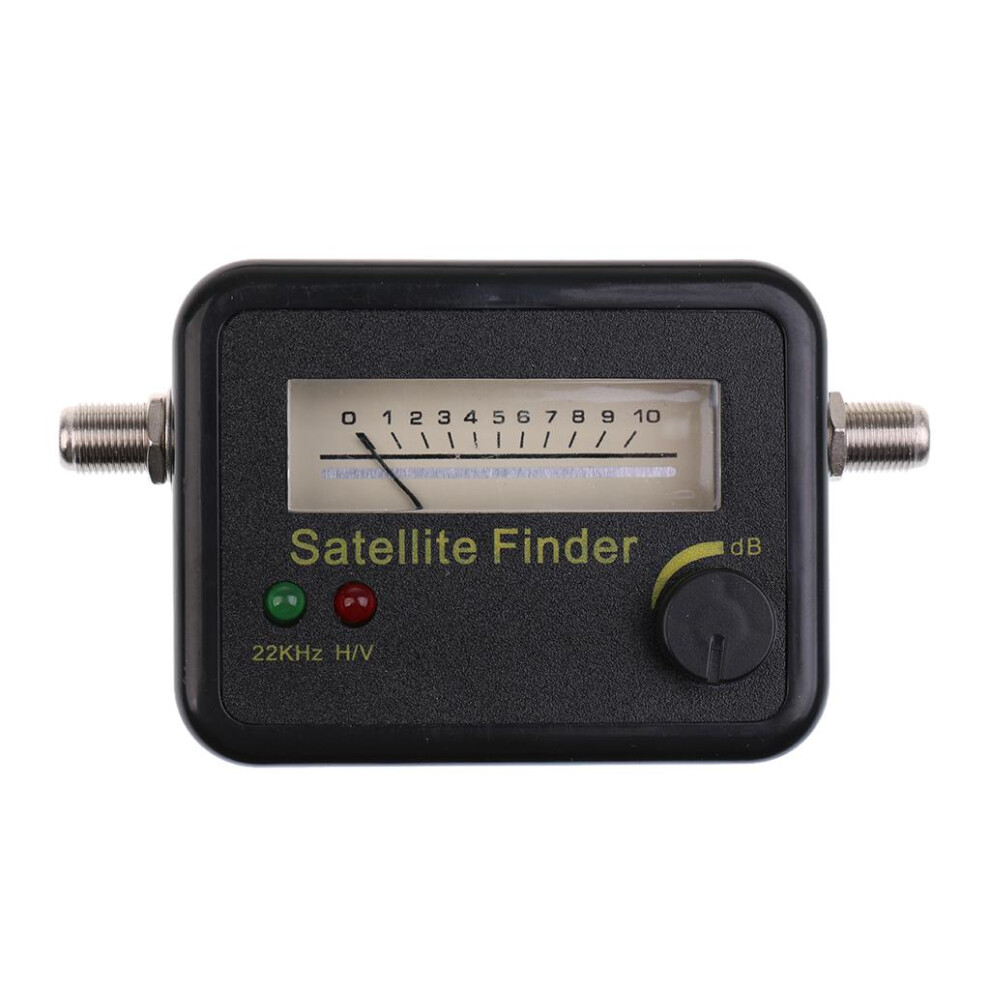

Adjust the knob on the front panel of the finder so that the pointer on the dial points to the "5" position.

Adjust the azimuth and elevation of the antenna. When the pointer is deflected to the maximum angle, adjust the knob on the front panel counterclockwise to attenuate the received signal and adjust the azimuth, elevation and polarization angle of LNB . Until the pointer of the Satellite Finder is no longer so far.

Combined with the satellite receiver to determine whether the signal is the required star signal. If it is, remove the finder and reconnect the receiver with the LNB. If the received signal is not the desired star signal, repeat the above work.

Satellite Finder is just an Auxiliary equipment,it is only a preliminary judgment whether the antenna direction exists in the presence of a star

Specification:

Size:Approx.110*60*33mm/4.33*2.36*1.3inch

Frequency Range:950-2150MHz

Input level Range:-40-10dBm

Impedance:75Ω

Insertion Loss:5.0dB

Power Supply:13-18V DC

Operating Temperature:040

Package Includes:

1 Piece Satellite Finder

1 Piece User Manual
