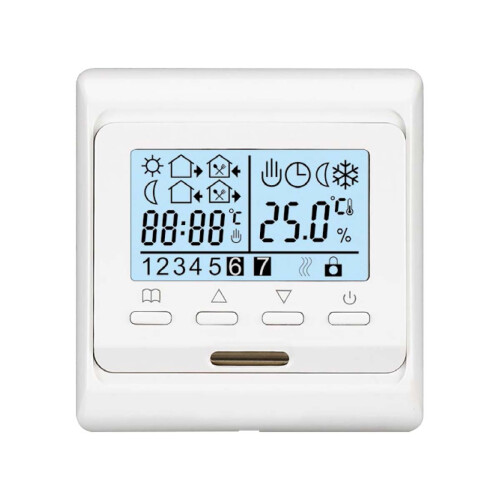

Digital Underfloor Heating Thermostat with Floor Sensor 16A Electric Heater

Digital Underfloor Heating Thermostat with Floor Sensor 16A Electric Heater Description

This 16A digital programmable thermostat is perfect for boiler water heating systems as well as electric underfloor heating with floor or air sensor options

These thermostats will acquire the room temperature with its air or floor sensor, and the heating contact will close when the room temperature falls below the selected set point.

Thermostats are used for the control of internal air temperature if connected to a boiler water heating system.

These thermostats work particularly well in mild weather where heating is often not fully required.

Technical

Manual or programme modes

Frost protection feature

Child lockout

Holiday Mode

Current temperature display

Heating on/off symbol

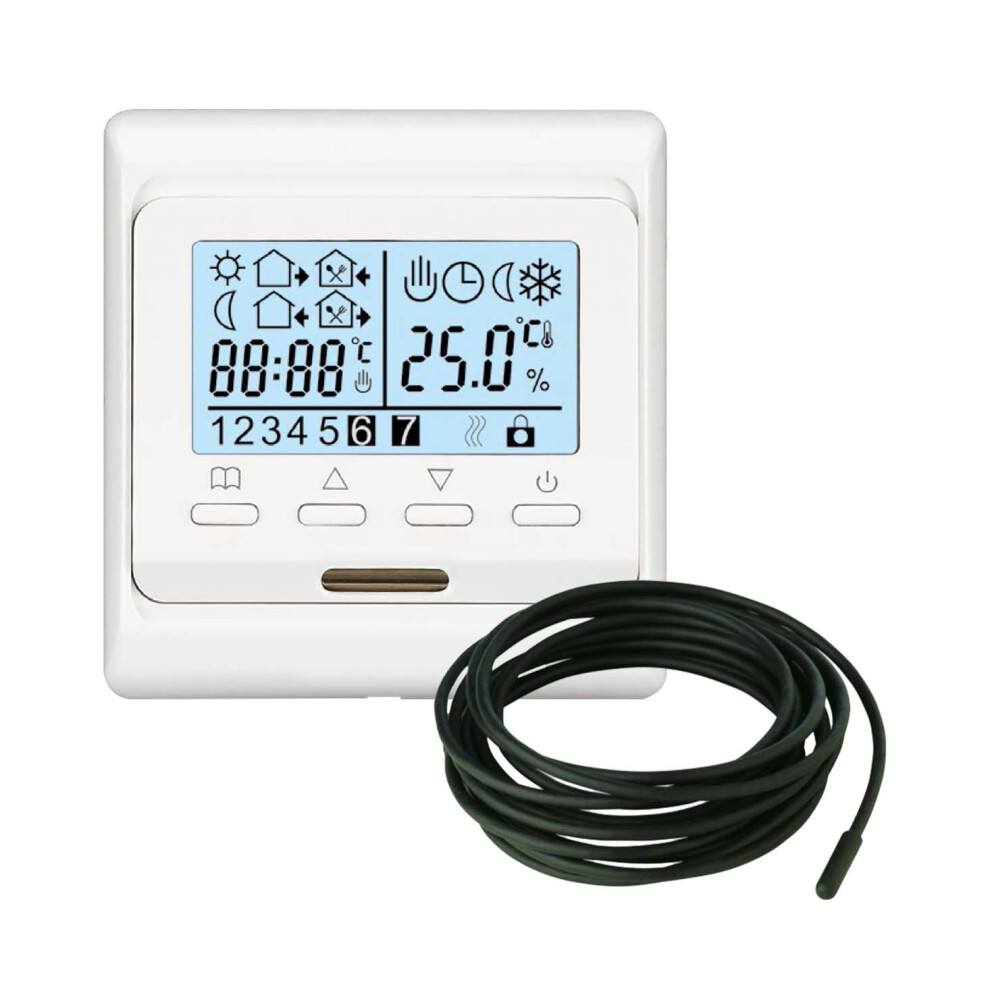

Includes NTC floor sensor with 3m cable

Voltage 240V AC

Power Consumption 5 watts

Max switch rating 16A (3.6KW) but is good practice to restrict load to 10-12A (2-2.4KW)

Setting Range 4 to 45 Deg C

Protective Housing IP20

Housing Material - Self-extinguishing PC

Dimensions - 86 x 86mm, will fit into a standard single switch back box 35mm deep.

Certifications CE & UKCA

Warranty - 1 year
