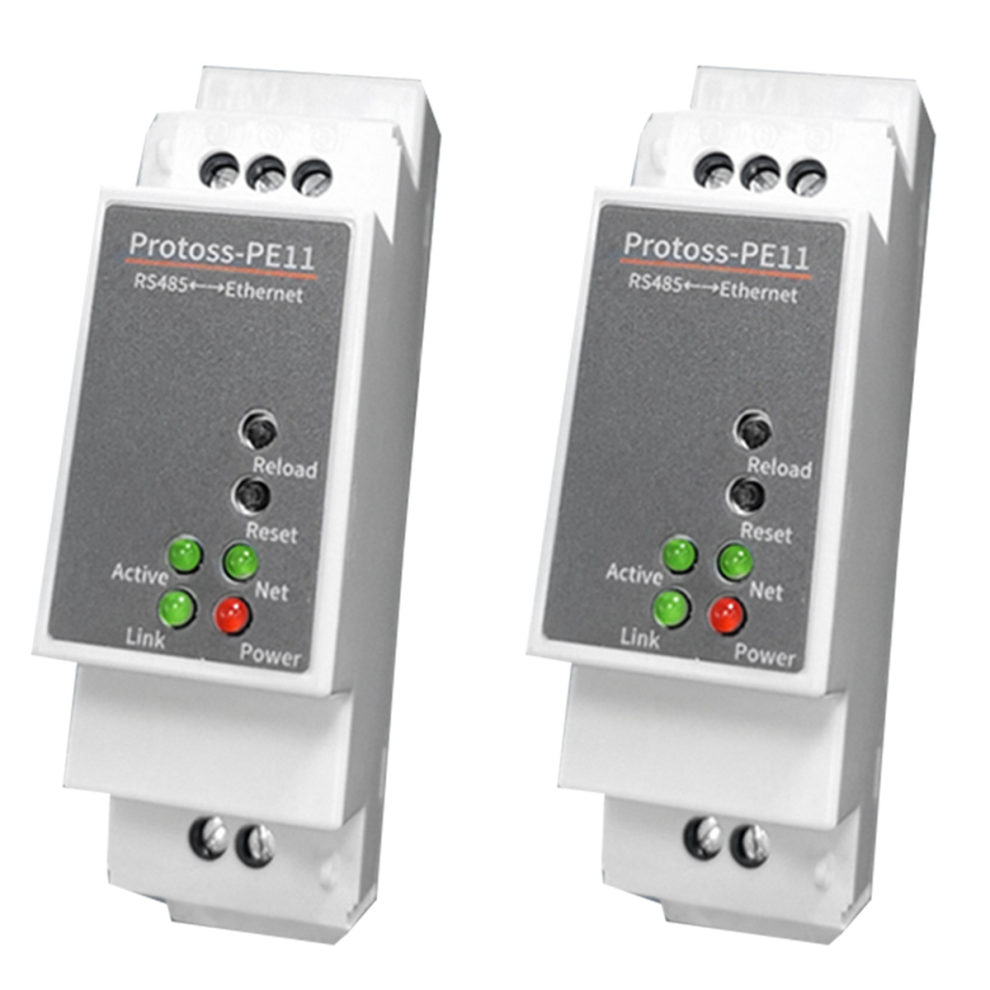

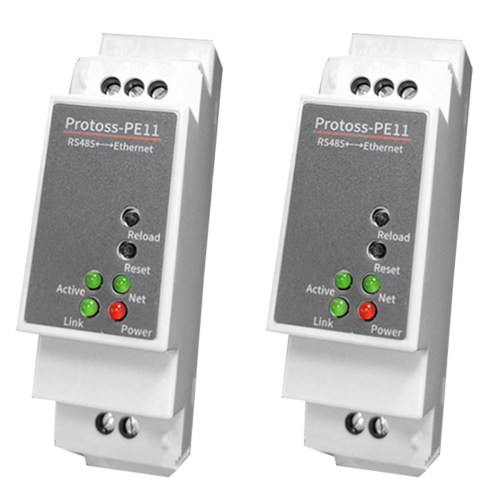

DIN-Rail Serial Port RS485 to Ethernet Converter Server

DIN-Rail Serial Port RS485 to Ethernet Converter Server Description

-M3 MCU with 2MB Flash and 128KB
Use FreeRTOS Operation System
Support /UDP/MQTT/HTTP/WebSocket Protocol
Support Modbus to RTU, Modbus Master Function

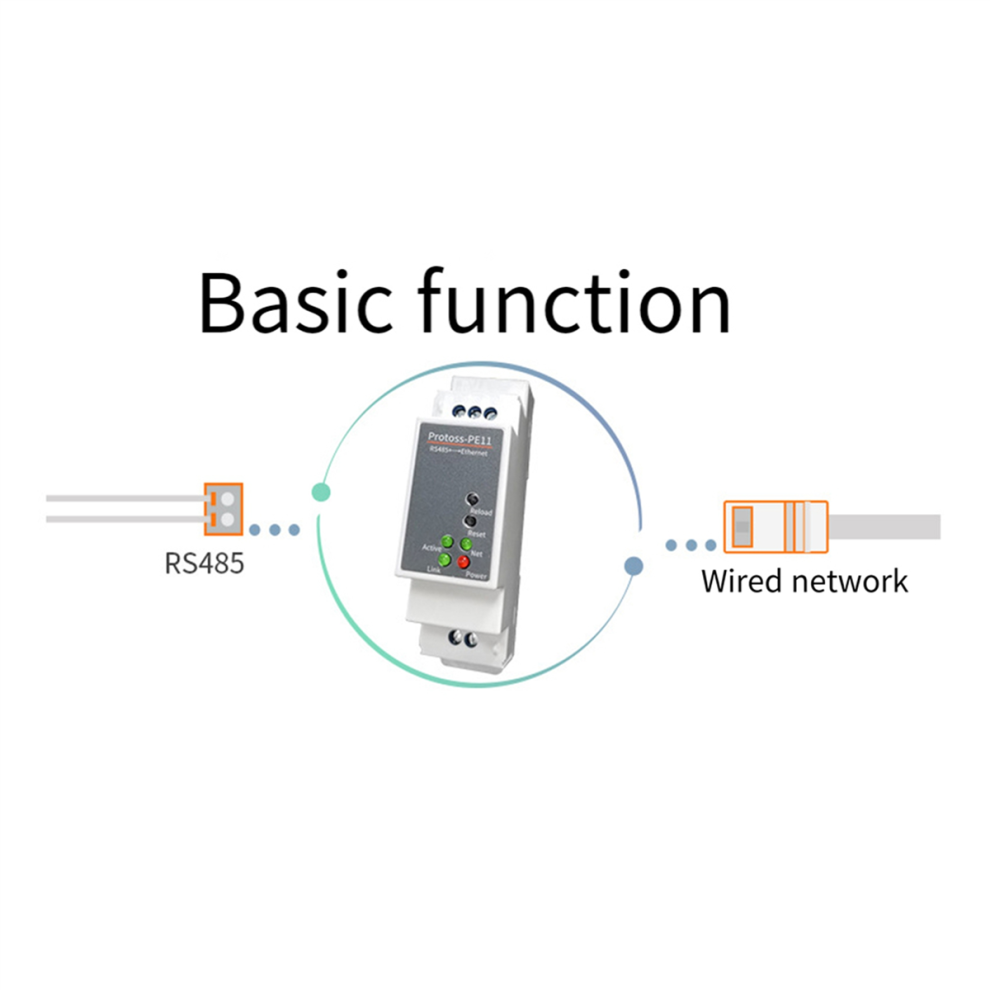

Support RS485 To 10/100M Ethernet Conversion, Serial to 460800 bps

Support 10/100M Ethernet Auto-Negotiation
Support Webpage Easy Configuration or PC IOTService Tool
Support Security Protocol Such As /DES3
Support Heartbeat and Resister Packet Function
Support Webpage OTA Wireless Upgrade
Support Industrial Temperature:-40 to +85
Multiple Type of Different Power Input:
Protoss-PE11-H:100-240VAC@50-60Hz
Protoss-PE11-M:9-48VDC@1A
Work Temp:-40-85
Network Transformer:Integrated
Processor:-M3
Basic Frequency:96MHz
Flash:2MB
SDRAM:128KB
:FreeRTOS
Ethernet:1
Interface Standard:10/100M Base-T Auto-Negotiation
Network Protocol:IP, , UDP, DHCP, DNS, HTTP Server/Client, , AutoIP, ICMP, Telnet, NTP, Modbus
Security Protocol: 1.2 128Bit DES3
Port Number:EE10:1 RS232 EE11:1 RS485
Data Bits:5,6,7,8
Stop Bit:1,2
Check Bit:None,Even,Odd
Baud Rate:TTL:600 bps-460800bps
Flow Control:No Flow Control Half Flow Control(RS485) Software Xon/ Xoff flow control
Storage Temp:-45- 105,5 - 95% RH
Input Voltage:Protoss-PE11-H:100-240VAC@50-60Hz Protoss-PE11-M:9-48VDC@1A
Power:Less than 400mW
Colour:White
Material:Plastic
Size:97.60 x 64.95 x 27.50 mm (L x W x H),C45 rail installation

Package Contents:
2 x DIN-Rail Serial Server

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
