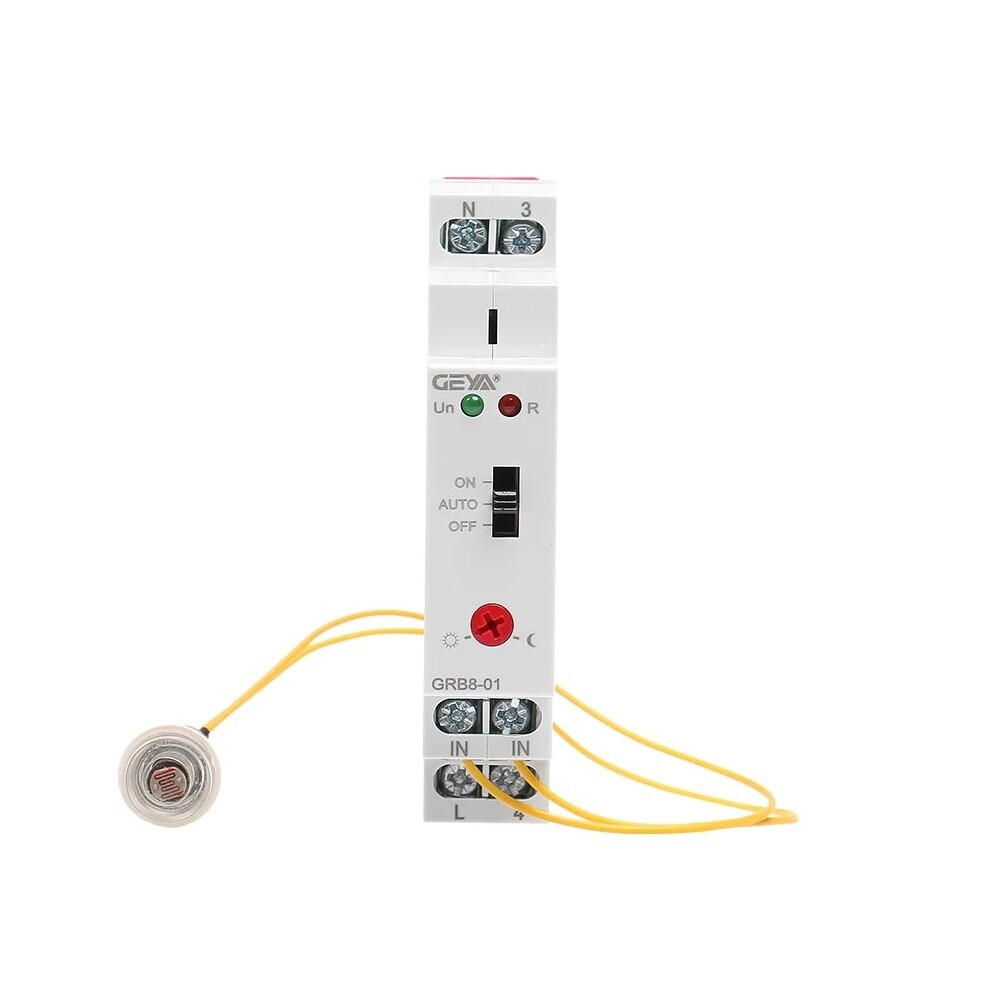

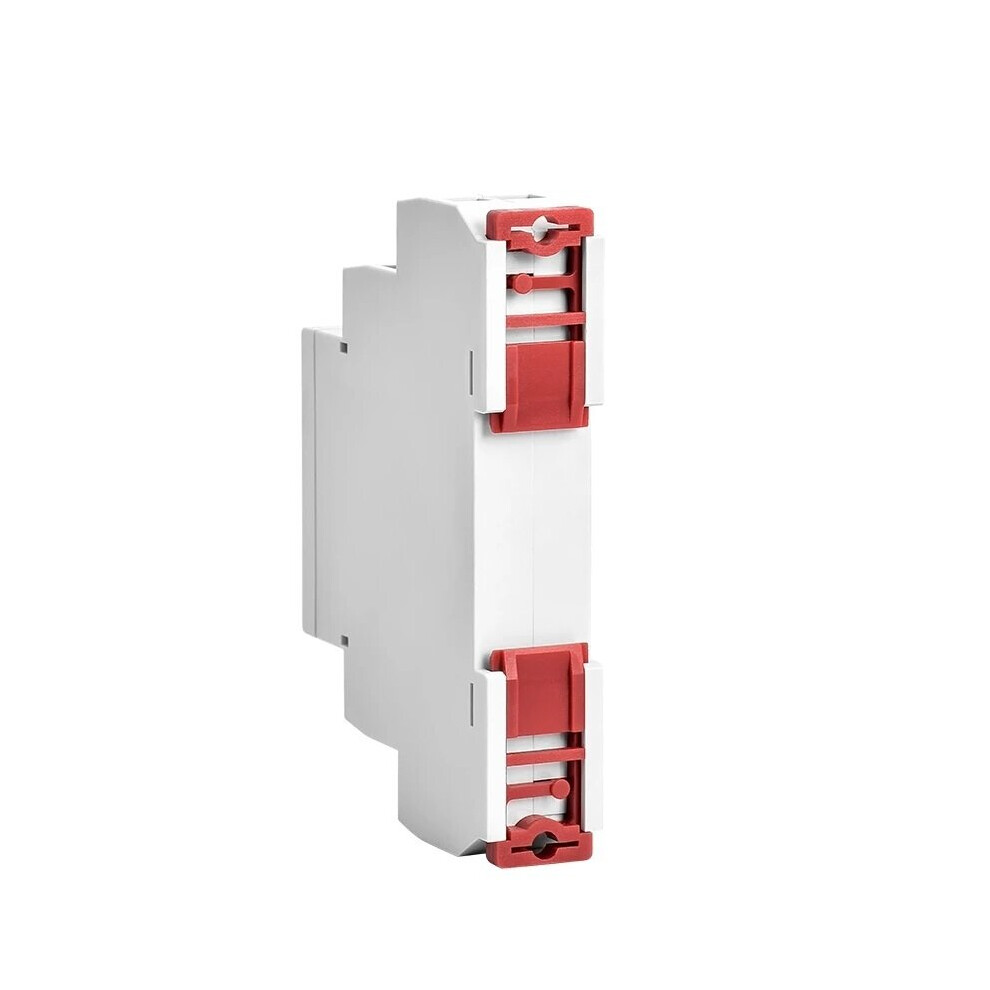

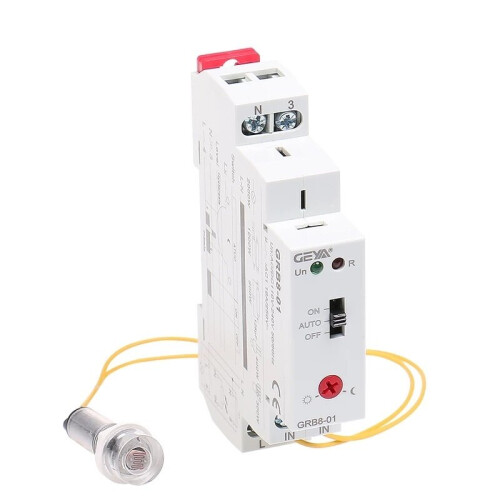

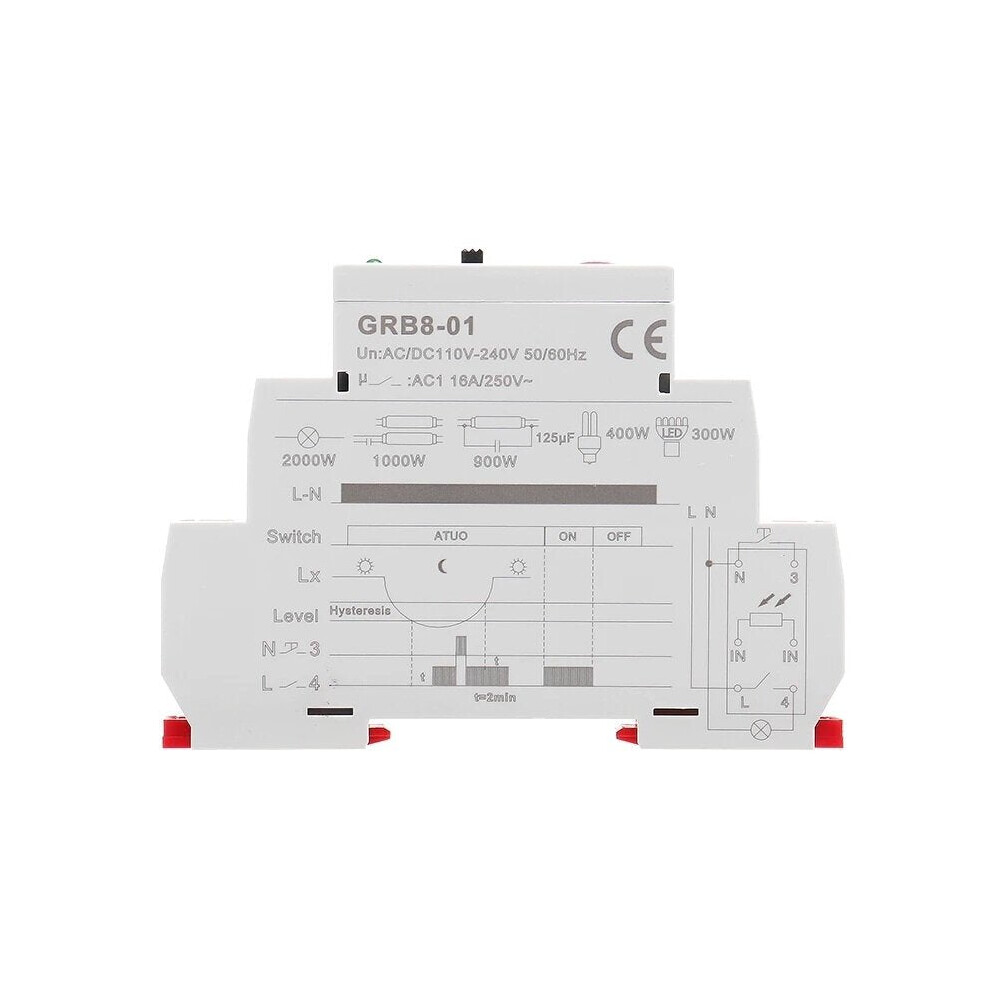

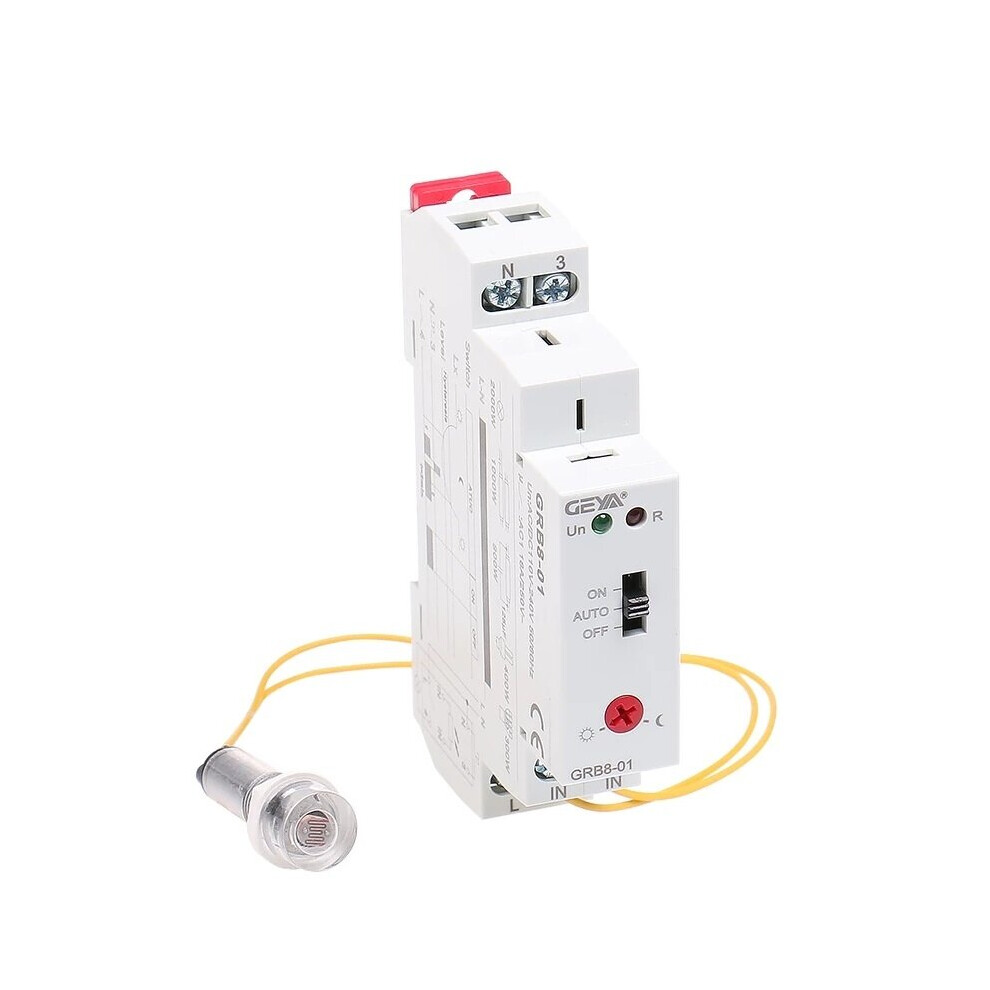

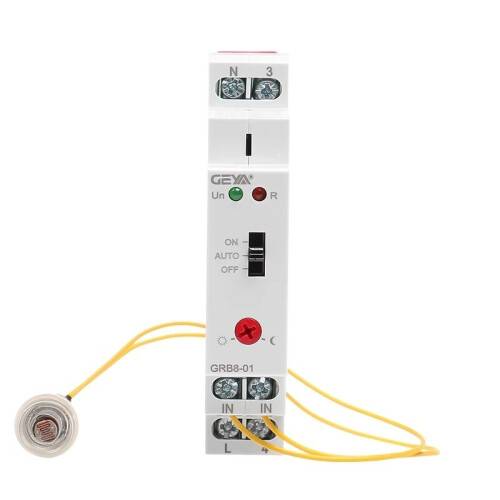

Din Rail Twilight Switch Auto ON OFF Photoelectric Timer Light Sensor Relay,AC110V-240V

Din Rail Twilight Switch Auto ON OFF Photoelectric Timer Light Sensor Relay,AC110V-240V Description

Function Features:
-Serves to control lights on the basis of ambient light intensity.
-Level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
-Control input for additional control.
- Illumination Rang 1-100Lx.
-Function ON-AUTO-PFF.
-Universal supply AC 110V- 240V.
-Output 1SPST 16A/AC1.
- Suply indicated by GREEN LED, Relay status is indicated by RED LED.
-1 MODULE, DIN rail mounting.

Specification:
Function: Twilight switch;
Supply terminals: L-N;
Rated supply voltage: AC 110V-240V;
Rated supply frequency: 50/60Hz;
Burden: max 2VA;
Supply voltage tolerance: -15%;+10%;
Illumination rang: 1-100Lx;
Function: ON-AUTO-OFF;
Supply indication: green LED;
Tolerance sensor: 35%;
Delay time: 2min;
Sensor cable length: max. 50 m (standard wire);
Output: 1XSPST;
Current rating: 16A/AC1;
Switching voltage: Min.breaking capacity DC;
250VAC/24VDC: 500mW;
Output indication Mechanical life: red LED 1X107;
Electrical life(AC1): 1X105;
Operating temperature: -20to +55(-4Fto131F);
Storage temperature: -35to +75(-22F to 158F);
Mounting/DIN rail: Din rail EN/IEC 60715;
Protection degree: IP40 for front panel/IP20 terminals;
Operating position: any;
Overvoltage cathegory: III;
Pollution degree: Max.cable size(mm) 2 olid wire max. 1X2. 5or2X1. 5/with sleeve max.1 X2. 5 (AWG12);
Dimensions: 90 x 18 x 64mm;

Applications:
Twilight switch with external fotosensor-Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.

Package included:
1 xDin Rail Twilight Switch
