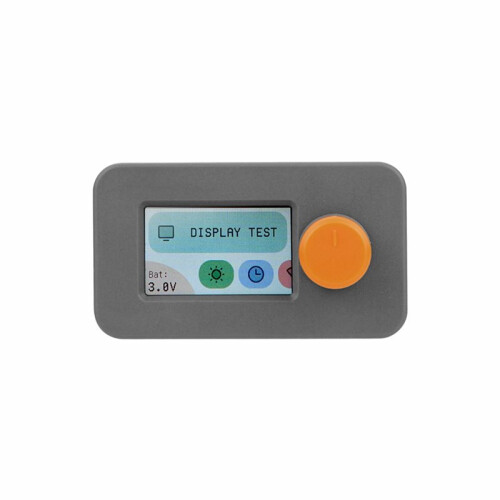

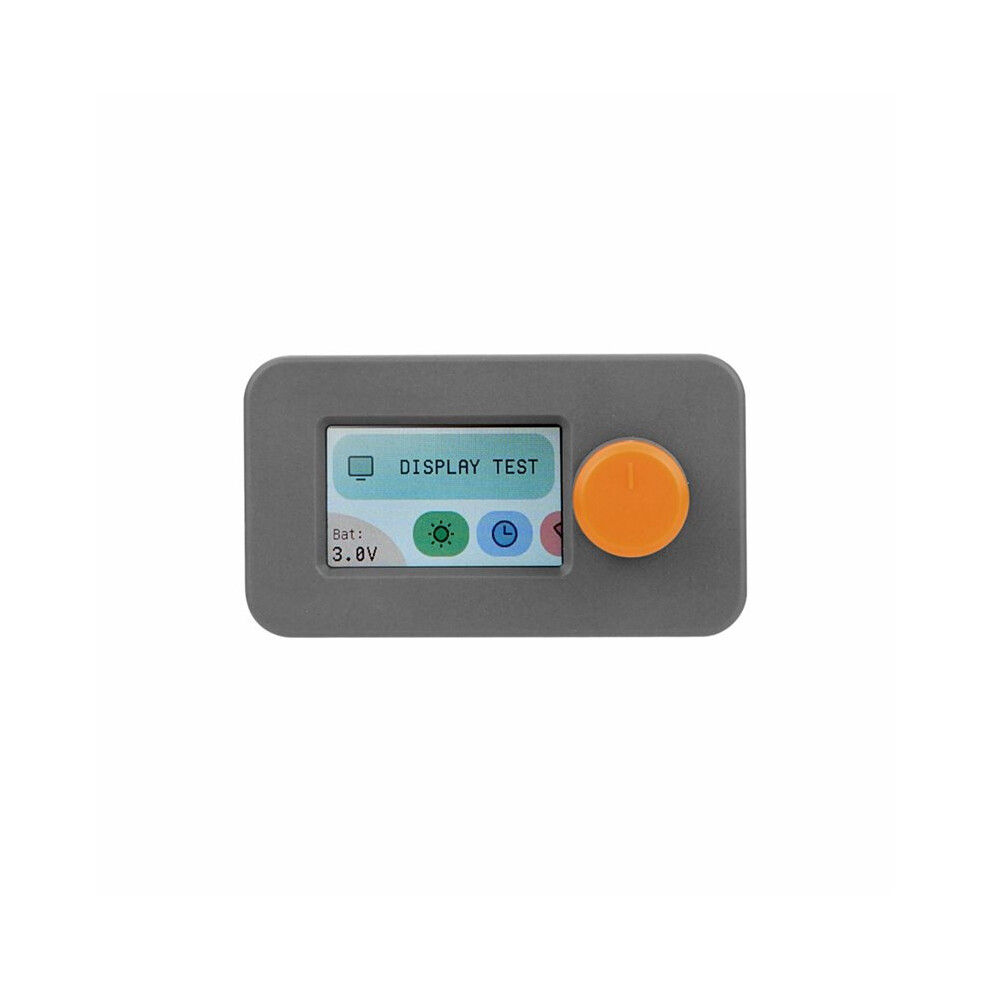

DinMeter V1.1 Dev Board Din Meter V1.1 Programmable 1/32 DIN Standard Development Board 1.14-Inch ST7789 Display
Brand Saudism
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£43.07
£50.27
14% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 7th - Mon 10th Aug
Returns: 30 days
180-day payment protection
Most Popular in Industrial Sous Vide Immersion Circulators
Description & Details
Summary

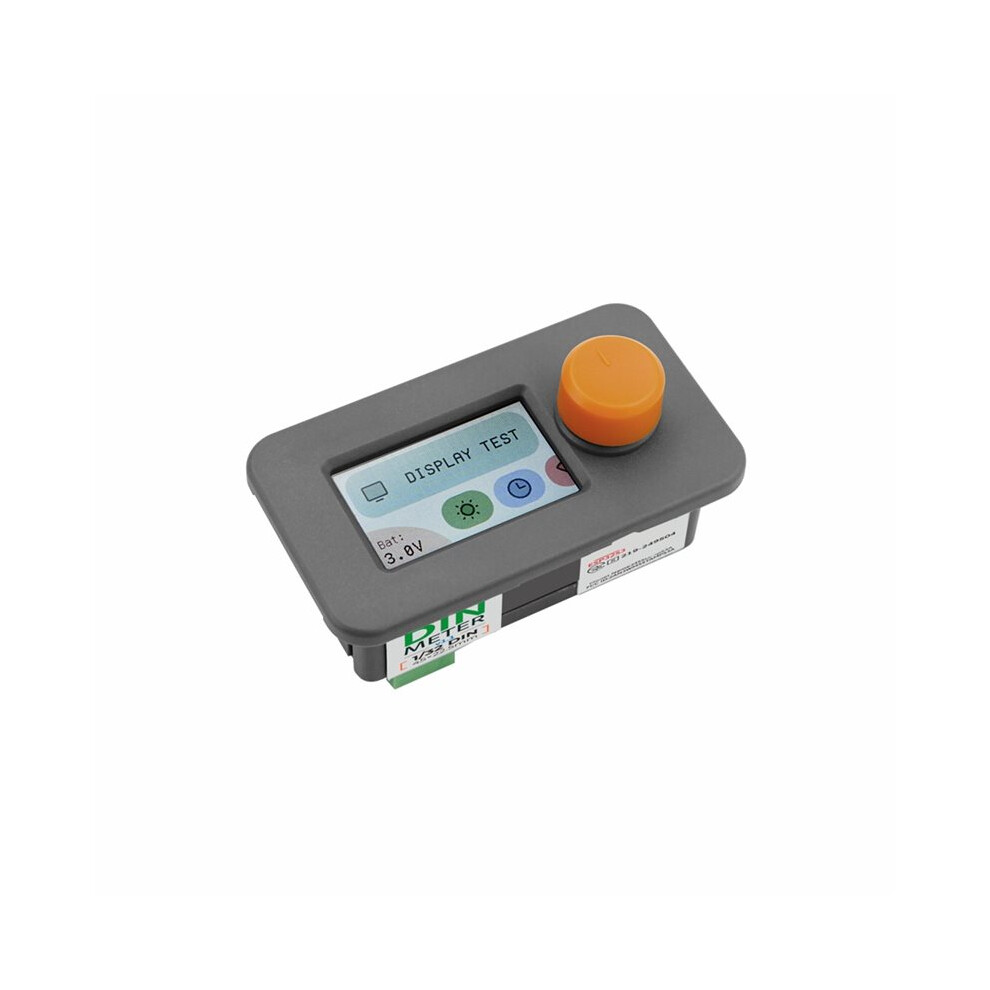

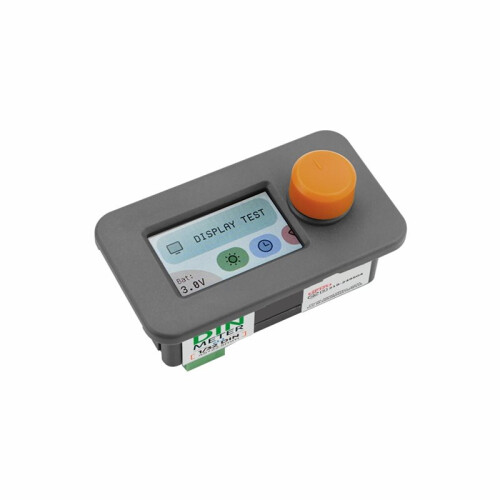

- DinMeter v1.1 is an iterative upgrade of the DinMeter product, with the core enhancement being the main control module upgraded from Stamp-S3 to Stamp-S3A. The product integrates a 1.14-inch ST7789 display and a rotary encoder with button, enabling precise knob position tracking and interactive operation.
- DinMeter v1.1 adopts the 1/32 DIN standard digital meter cutout size, allowing direct installation into reserved mounting openings of mainstream equipment such as industrial control cabinets and PLC control boxes, without the need for custom brackets or panel modifications. This significantly reduces integration cost and assembly time.
- An onboard RTC real-time clock, buzzer, and function buttons support scheduled reminders and wake-up functions. It supports two mounting methods-double-sided adhesive and screw hole fixation-to meet installation requirements in different scenarios.
- The power supply design is flexible, supporting a wide DC input range of 6 ~ 36V, and includes a lithium battery interface with charging circuitry to adapt to various power scenarios.

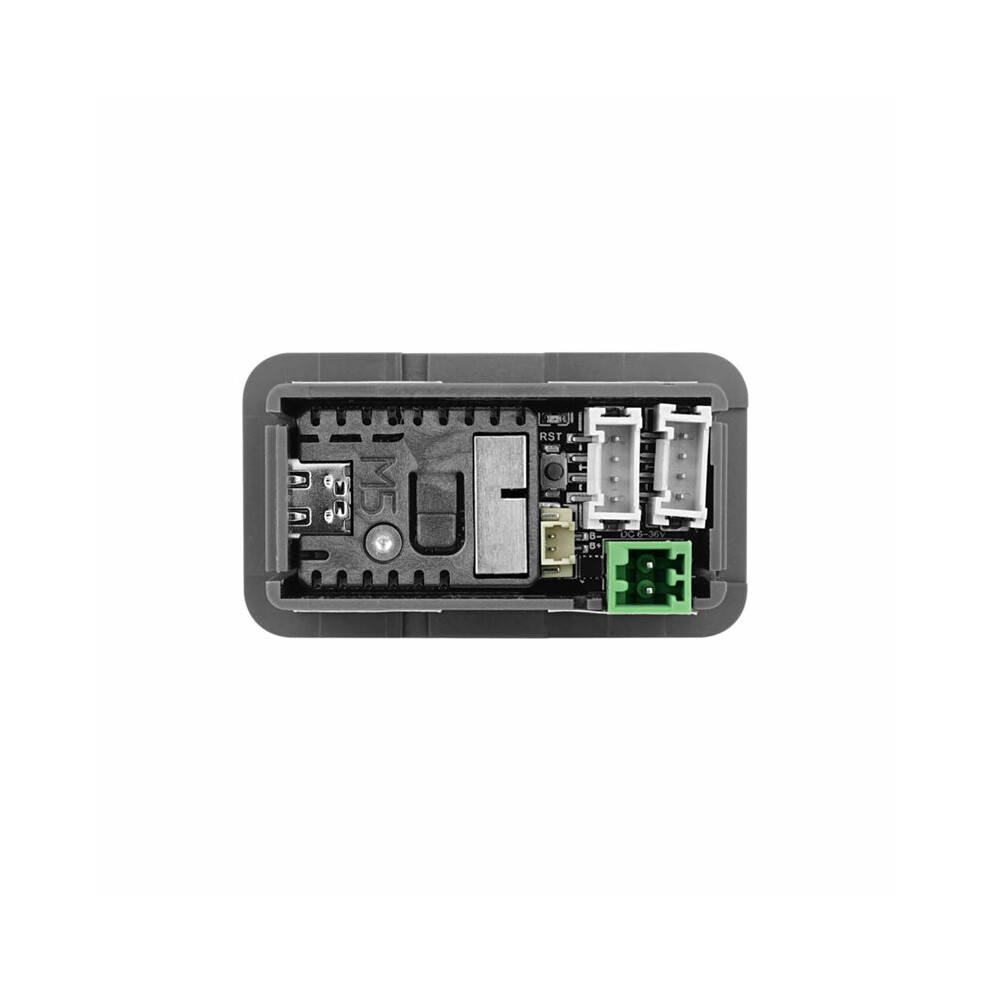

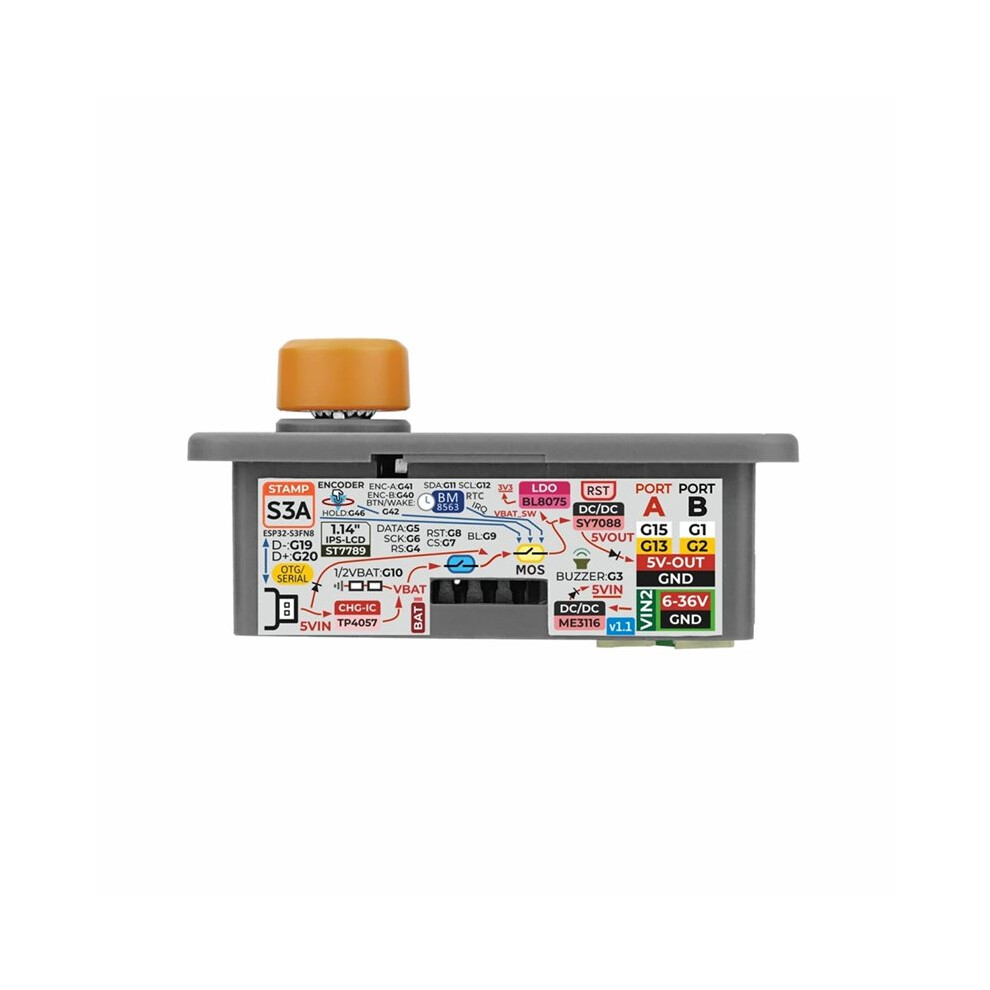

- In addition, the development board provides PORT.A and PORT.B expansion interfaces for easy connection of I2C and GPIO peripherals, making it suitable for various embedded instrumentation display and control input applications.
DinMeter V1.1 Dev Board Din Meter V1.1 Programmable 1/32 DIN Standard Development Board 1.14-Inch ST7789 Display Description
DinMeter v1.1 is an iterative upgrade of the DinMeter product, with the core enhancement being the main control module upgraded from Stamp-S3 to Stamp-S3A. The product integrates a 1.14-inch ST7789 display and a rotary encoder with button, enabling precise knob position tracking and interactive operation.
DinMeter v1.1 adopts the 1/32 DIN standard digital meter cutout size, allowing direct installation into reserved mounting openings of mainstream equipment such as industrial control cabinets and PLC control boxes, without the need for custom brackets or panel modifications. This significantly reduces integration cost and assembly .
An onboard RTC real- clock, buzzer, and function buttons support scheduled reminders and wake- functions. It supports two mounting methods-double-sided adhesive and screw hole fixation-to meet installation requirements in different scenarios.
The power supply design is flexible, supporting a wide input range of 6 ~ 36V, and includes a lithium battery interface with charging circuitry to adapt to various power scenarios.
In addition, the development board provides PORT.A and PORT.B expansion interfaces for easy connection of I2C and GPIO peripherals, making it suitable for various embedded instrumentation display and control input applications.

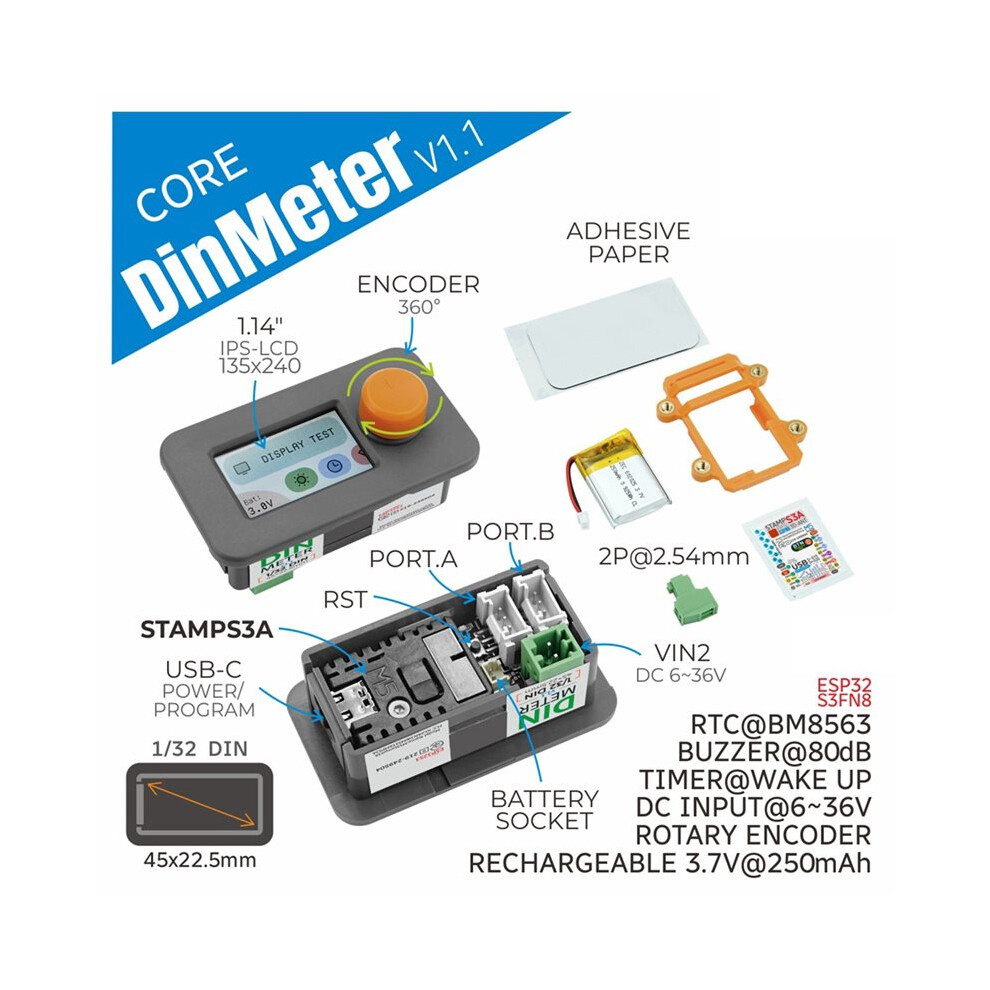

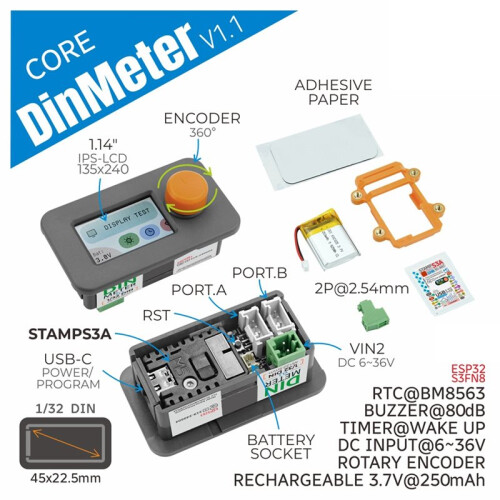

Features:
ST7789V display
Stamp-S3A as the main controller
Rotary encoder
Wide voltage input
Reserved PORT.A and PORT.B interfaces
Lithium battery interface (rechargeable)
1/32 DIN standard (45 x 22.5mm)
Two mounting methods:
Double-sided adhesive
Screw hole fixation
Development Platform: UiFlow2, IDE, ESP-IDF, PlatformIO
Specifications:
SoC: ESP32-S3FN8 @ Xtensa LX7 Dual-core, 240MHz
Flash: 8MB
Wi-Fi: 2.4 GHz Wi-Fi
USB: USB OTG, USB Serial/JTAG
Wide Voltage Input
Details
| OPC | PVMXQMG |
|---|---|
| Brand | Saudism |
| Codes | 6032371693851 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 9cm |
| Length | 13cm |
| Weight | 0.046kg |
| Colour | Gray |
| Material | Plastic |
