Diode Rectifier 12V 10A Module with BoltOn Connection for Solar Panel Blocking and Battery Protection

Diode Rectifier 12V 10A Module with BoltOn Connection for Solar Panel Blocking and Battery Protection Description

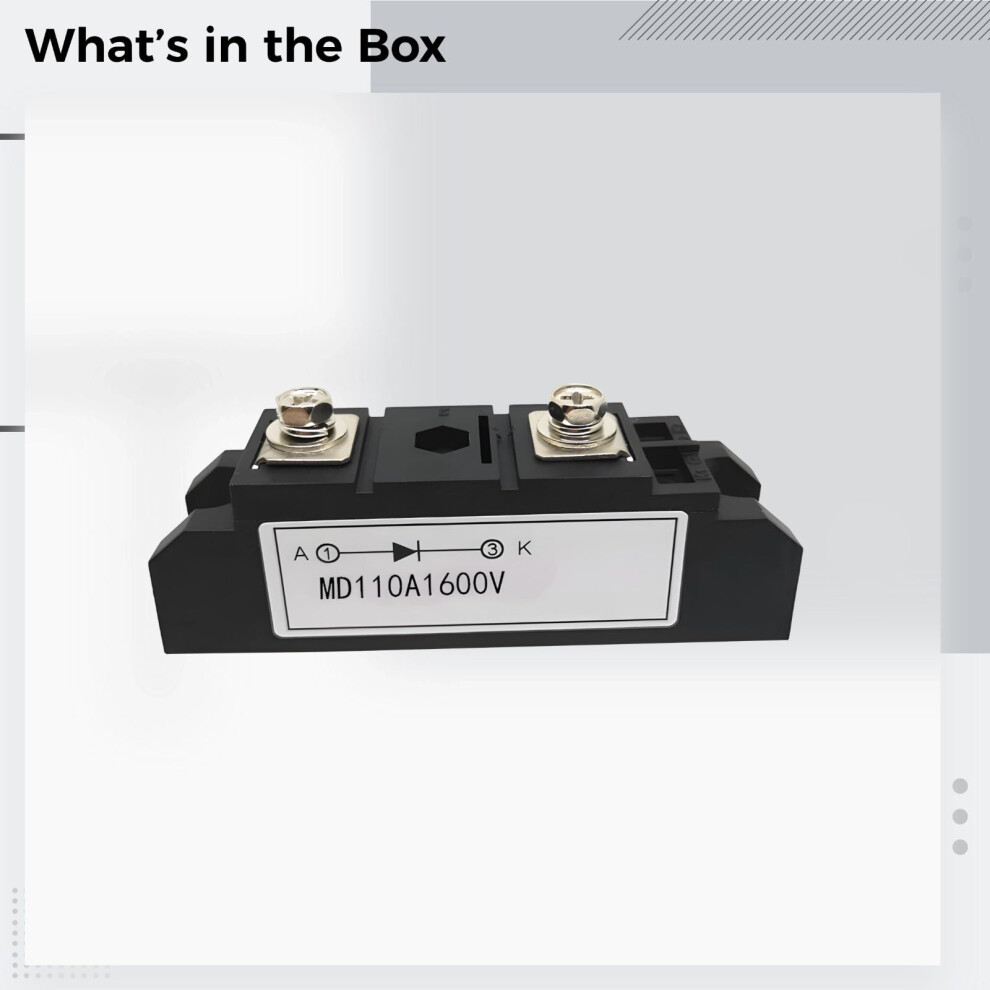

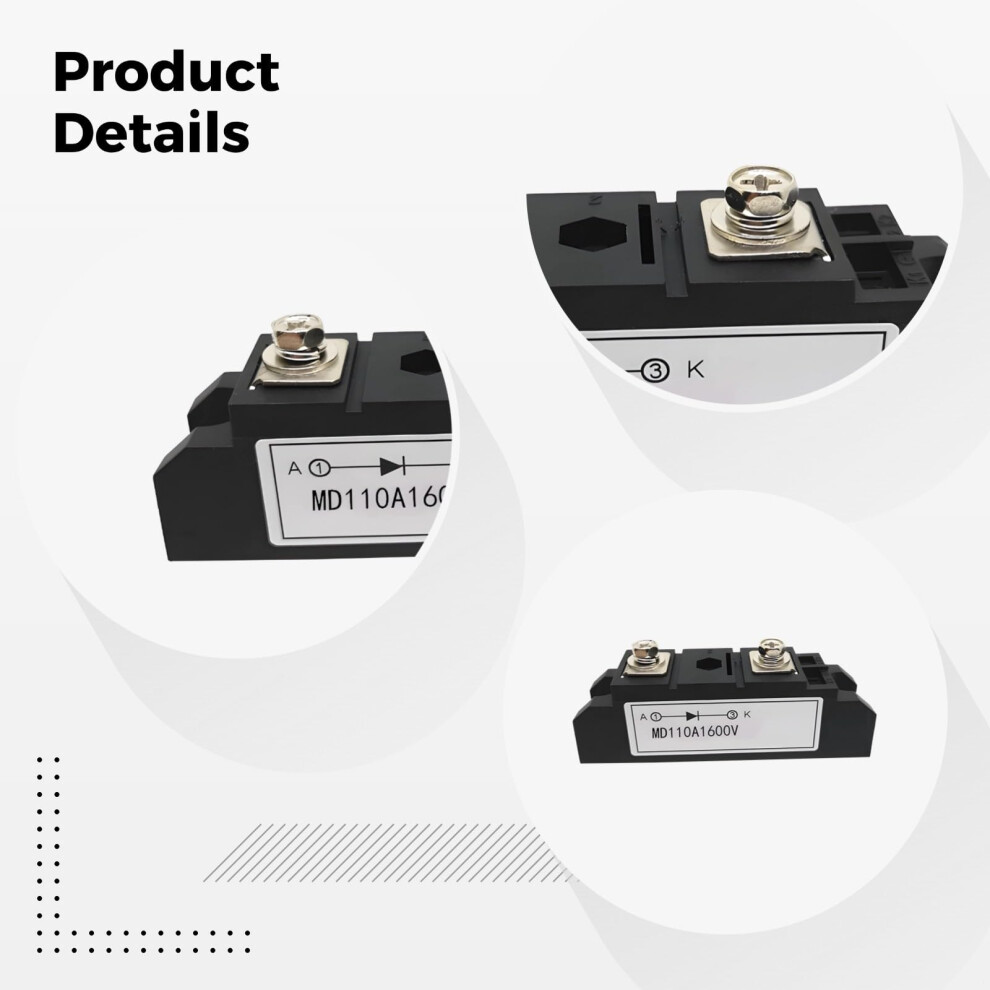

MD110A1600V Diode Rectifier Module 12V 10A, PlasticHoused, BoltOn Connection What this module does Oneway diode rectifier that allows current to flow in a single direction to prevent reverse current and backfeed in 12V DC systems. Model MD110A1600V, rated for 12 volt systems with a 10 amp continuous rating. Key benefits Prevents battery discharge: stops current from flowing back into solar panels or other power sources when the source is lower than the battery. Simple, secure installation: bolton connection lets you attach the module directly to chassis or bus bars with a reliable mechanical terminal. Durable housing: plastic enclosure provides electrical insulation and protects the diode assembly from dust and incidental contact. Compact and modular: designed for easy integration into small 12V circuits without major modifications. Important attributes Function: diode rectifier for singledirection DC current control. Electrical rating: 12V nominal system use, 10A continuous current capability. Model identification: MD110A1600V. Housing: plasticbodied module for insulation and basic protection. Connection type: bolton terminal for straightforward mechanical and electrical connection. How it solves common problems Eliminates reverse current that can drain batteries overnight in solar setups. Protects sensitive electronics and charging circuits from unintended backfeed. Replaces makeshift diode assemblies with a neat, mountable module that reduces wiring complexity. Practical applications Solar charge systems: install as a blocking diode between a panel array and battery to prevent battery discharge during low or no sun conditions. Automotive circuits: use in accessory or auxiliary power lines to prevent battery drains and to isolate circuits when multiple power sources are present. Small DC systems: suitable for caravans, boats, or off grid equipment where a compact, bolton diode module simplifies wiring and protection. Installation tips Mount using the provided bolt terminal and ensure solid mechanical contact. Use appropriately sized wiring and a system fuse or breaker sized for your installation. Place in a location protected from excessive heat and moisture for reliable long term operation. This MD110A1600V diode rectifier module provides a straightforward, serviceable solution for controlling DC current flow in 12V, 10A applications where a bolton, plastichoused oneway module is required.
