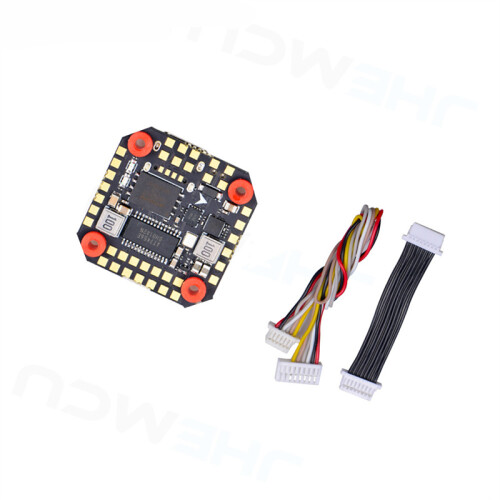

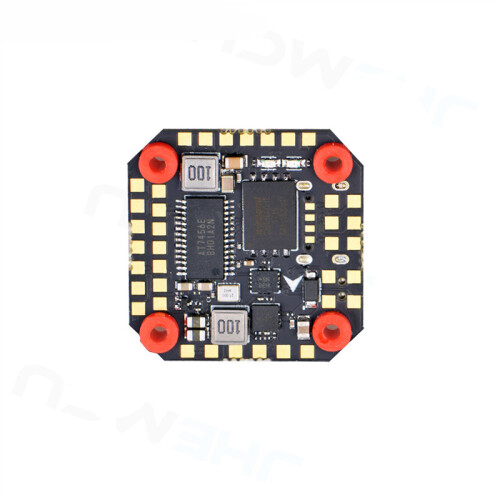

DIY BEC 10V OSD BlackBox 20x20mm F405 NOXE 3-6S Flight Controller

DIY BEC 10V OSD BlackBox 20x20mm F405 NOXE 3-6S Flight Controller Description

Specification:

Model:F405NOXE

MCU:STM32F405/168MHz

IMU:ICM-42688-P

OSD:AT7456E

Baro:Yes

Black Box:16MB

Input Voltage:3-6S Lipo(7.4-26V)

uart:uart1/2/3/4/5

IIC:IIC1

Led_Strip:Support

Buzzer:Support 5V,with edge YES

ESC signal

PWM/Oneshot42/One125/Multishot

Dshot150/300/600

USB:Micro USB

Current port/voltage sensor/DFU button:YES

Size:27*27MM

Mounting hole:20*20MM

Weight:4.9g

Package includes:

1*F405 NOXE flight controller

Note:

Specifications are measured by manual testing,there may be deviations

For reference only,please refer to the actual prevail,thank you!
