DIY replacement quartz movement parts for wall clocks

DIY replacement quartz movement parts for wall clocks Description

Features.

DIY clock quartz clock mechanism wall clock movement mechanism parts needed for repair and replacement

1.Metal hook for long axis quartz clock movement parts replacement, suitable for repairing, replacing or manufacturing clocks.

2.Suitable for cross stitch,3D embroidery,craft clocks,frameless picture clocks,etc.Description-Included in the movement.

Specification:

High torque I-axis movement

Appearance size:56*56*16mm

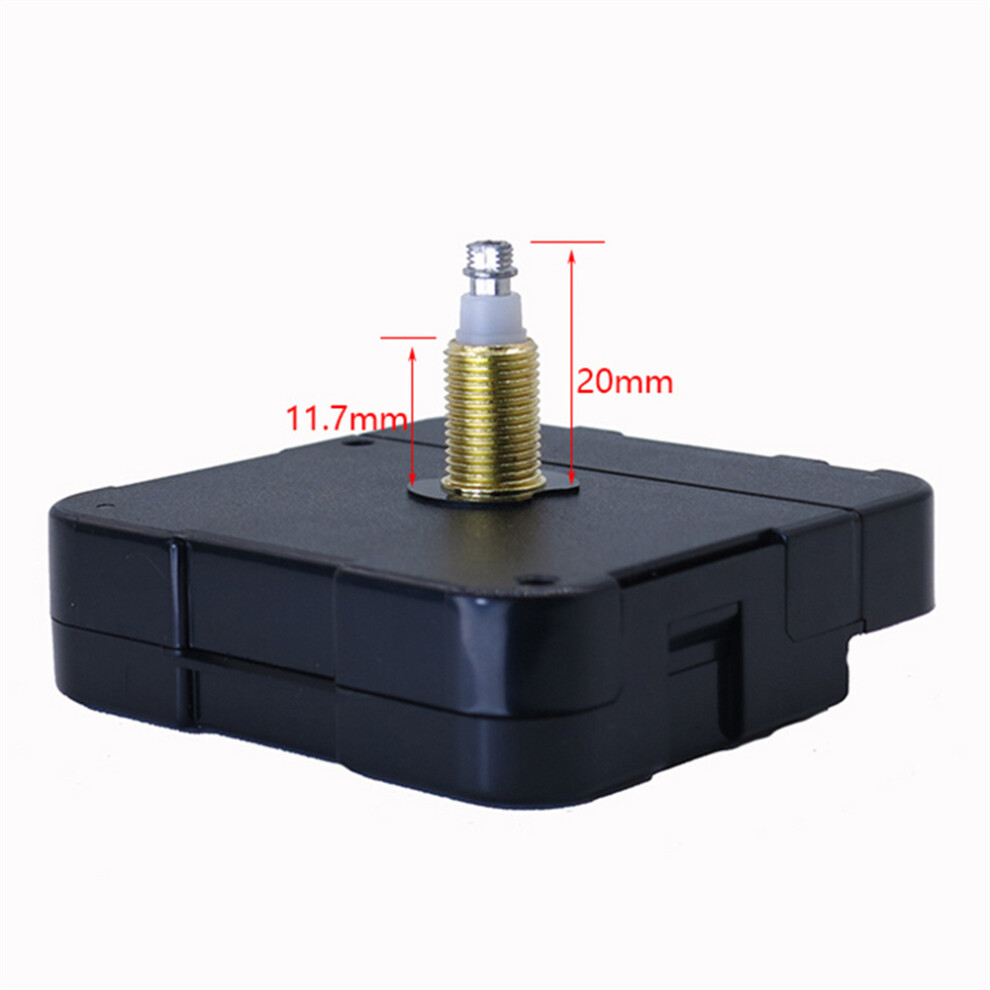

Shaft length:20mm

Copper wire size:11.7mm

Quartz crystal frequency:32.768KHz

Timing accuracy:??30Sec/month(1.5V DC.25??)

Current consumption:less than 120??A(1.5V DC.)

Operating voltage:13V to 1.7V

Operating temperature:-10?? to 50??

Power supply:1.5V

Weight: about:25g/PCS

Second hand output torque:??0.6gf-cm(1.5V)

Minute hand output torque:??30gf-cm(1.5V)

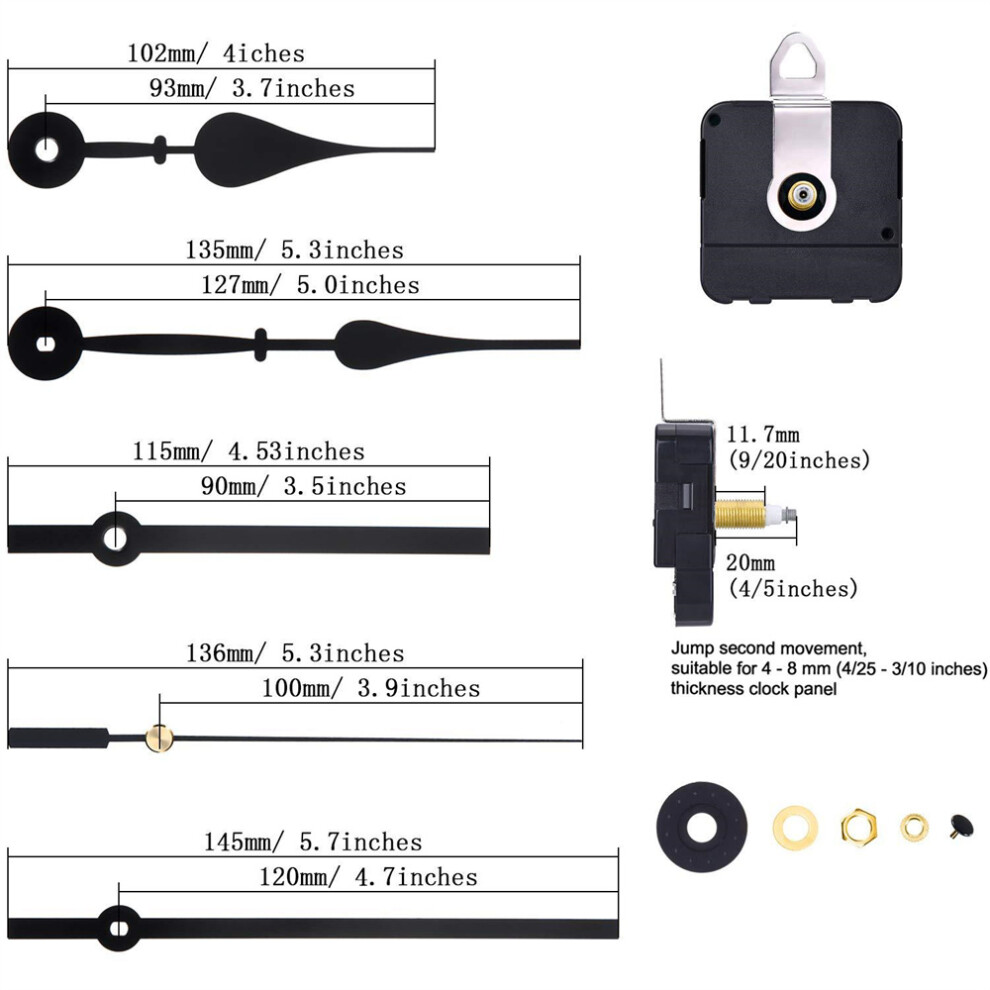

Pointer specification requirements

Length/weight of second hand:??130mm,??2g

Length/weight of minute hand:??200mm,??6g

Unbalance torque of second hand:??0.15gf-cm

Unbalance moment of minute hand:??6gf-cm

Suitable for use with clock panel products of 6-8mm thickness

Guests can choose needle sets DIY wall clock according to the style of the product

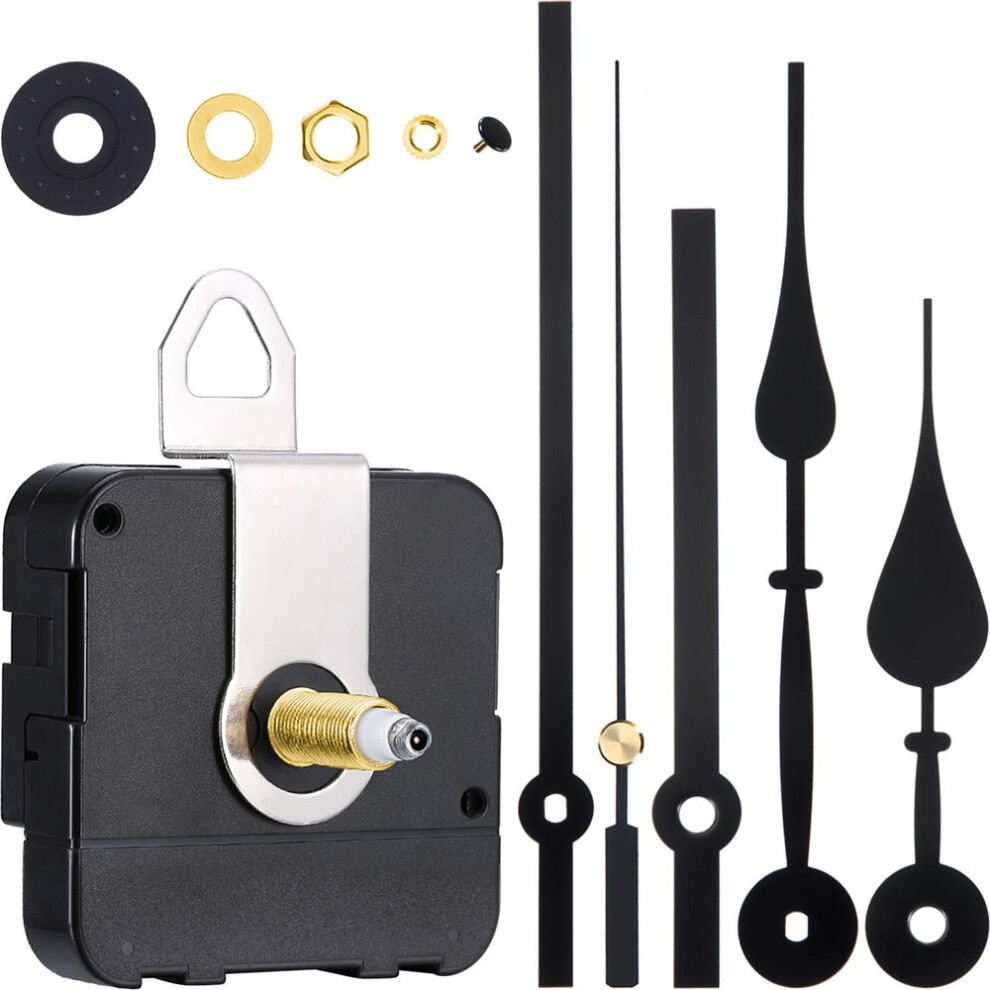

Package includes:

1*Wall clock set

2*hour hands

2*minute hands

1*Second hand

1*Accessories

Note:

If your quartz clock movement uses a carbon battery,then you need to replace the battery regularly to avoid bad battery leakage rotting the battery shrapnel of the movement,causing poor contact with the power supply of the movement and can not go time.

If your quartz clock movement using alkaline batteries,then be sure not to choose those with high discharge current to use,this battery is easy to burn the movement,is not recommended.
