DIY Set Soil Moisture Detection Automatic Watering Pumping Automatic Irrigation Module Automatic Watering Water Pump

DIY Set Soil Moisture Detection Automatic Watering Pumping Automatic Irrigation Module Automatic Watering Water Pump Description

About each part of the test:1. Test the relay module: connect the relay module VCC to 5V, GND to ground, IN to GND, the relay jumps, and when IN is suspended, the relay recovers, so you can hear the relay "Kaka" sound repeatedly;
2. Test the soil moisture sensor module: connect the fork probe and transmitter module with two DuPont lines, the transmitter module VCC is connected to 5V, GND is grounded, just after power-, the red power light is always , green () color indication The lamp flashes faintly once; the fork probe is directly inserted into the water, and the green () light is ;
3. Connect the red of the pump to 5V, the black is grounded, the pump works, pay attention to the test for 1 second, and it is not allowed to work in the air for a long ;

note:
1, this baby can be free of welding, but you need to peel the wire, twist the copper wire together, and protect it with black tape;
2. The pump cannot be operated in the air for a long ;
3, the system is connected, power , the pump has been working, it is correct, because in the air, the probe can not detect the humidity, so the pump has been working, there is no problem in the correct installation into the pot.
Colour:As shown
Material:plastic

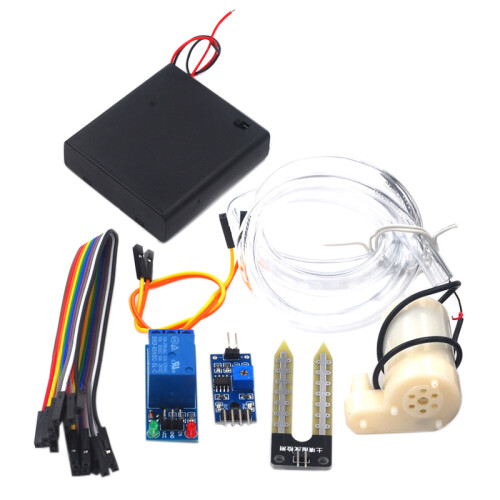

Package Contents:
1 * relay module
1 * soil moisture probe + comparison module
1 * small water pump
1 * battery case
1 * USB power cord
10 * 20CM DuPont (F-F)
1 * silicone water pipe
Note that water should not be poured directly the probe. Many people don't know that the humidity of the water will be rusted and destroyed soon.
