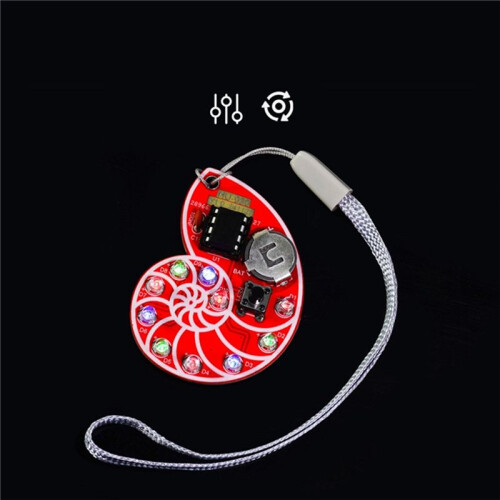

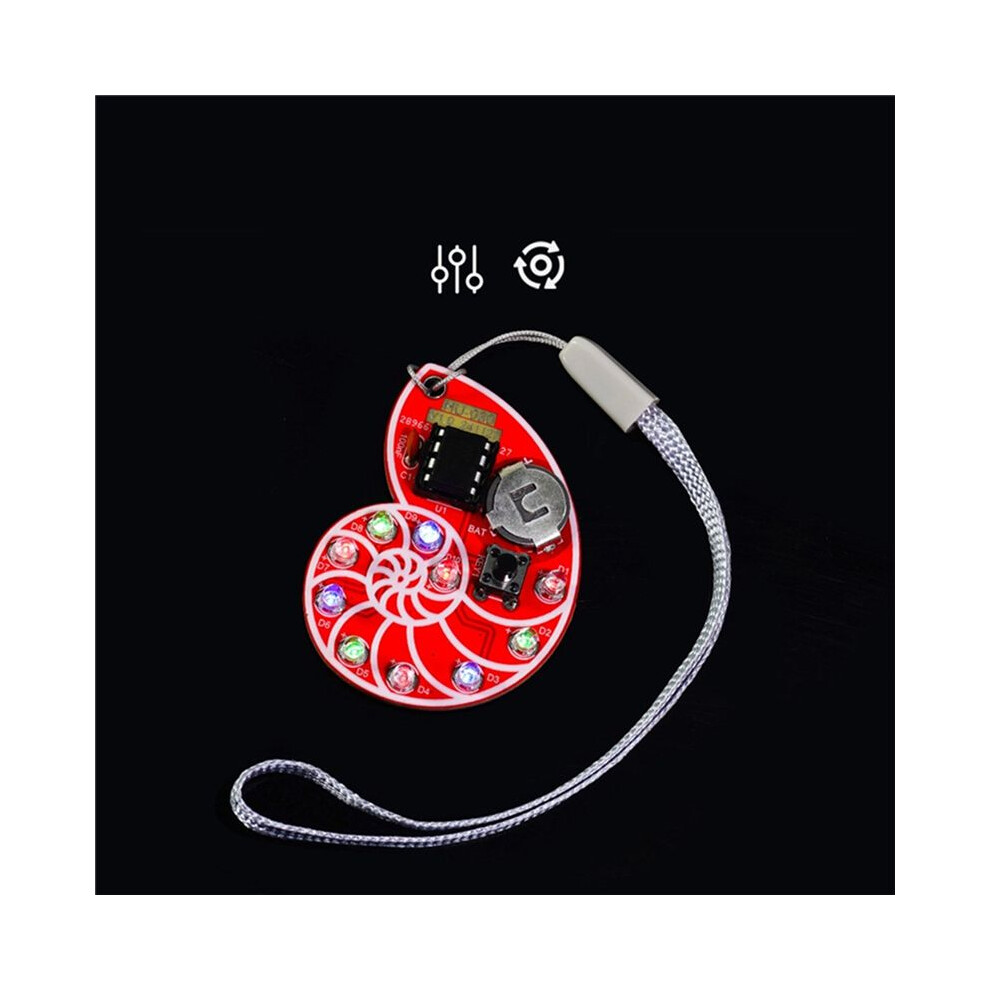

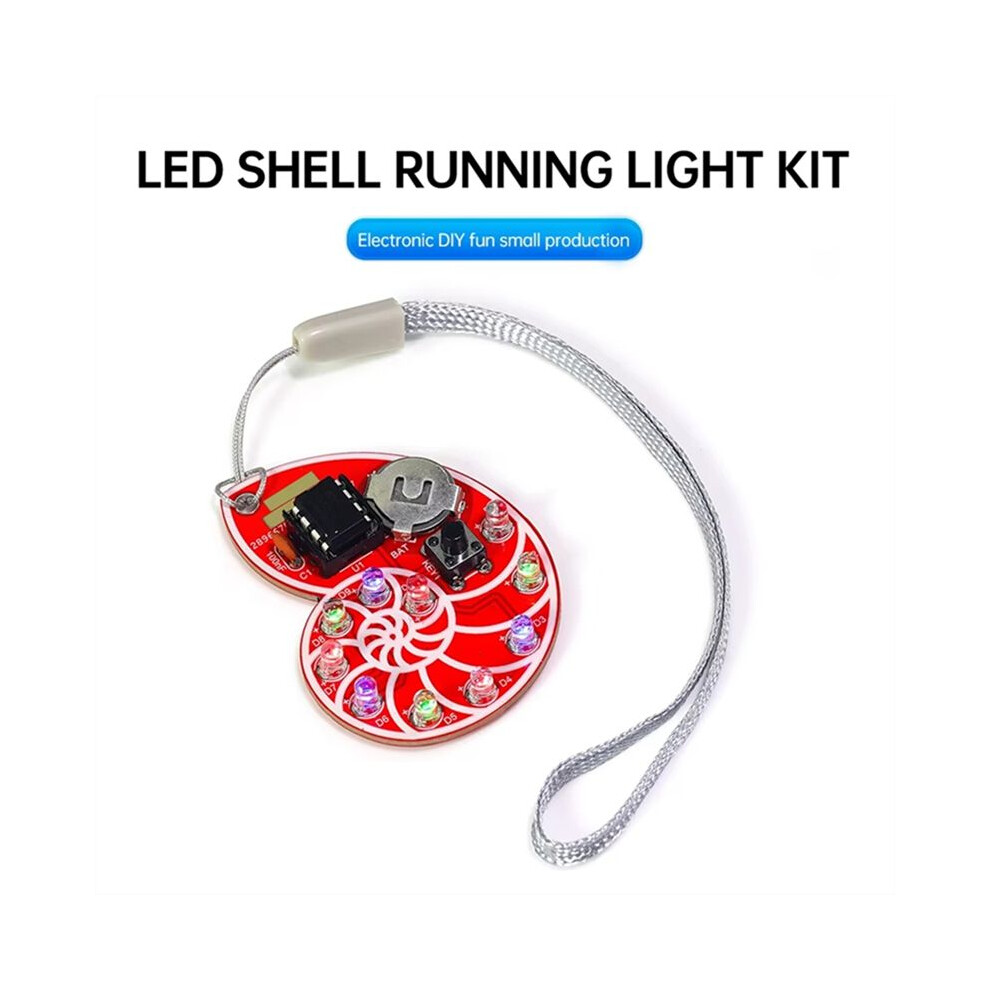

DIY Soldering Learning Kit LED Shell Flow Light Kit SMD SMT Learner Solder Kit for Electronic Soldering Practice

DIY Soldering Learning Kit LED Shell Flow Light Kit SMD SMT Learner Solder Kit for Electronic Soldering Practice Description

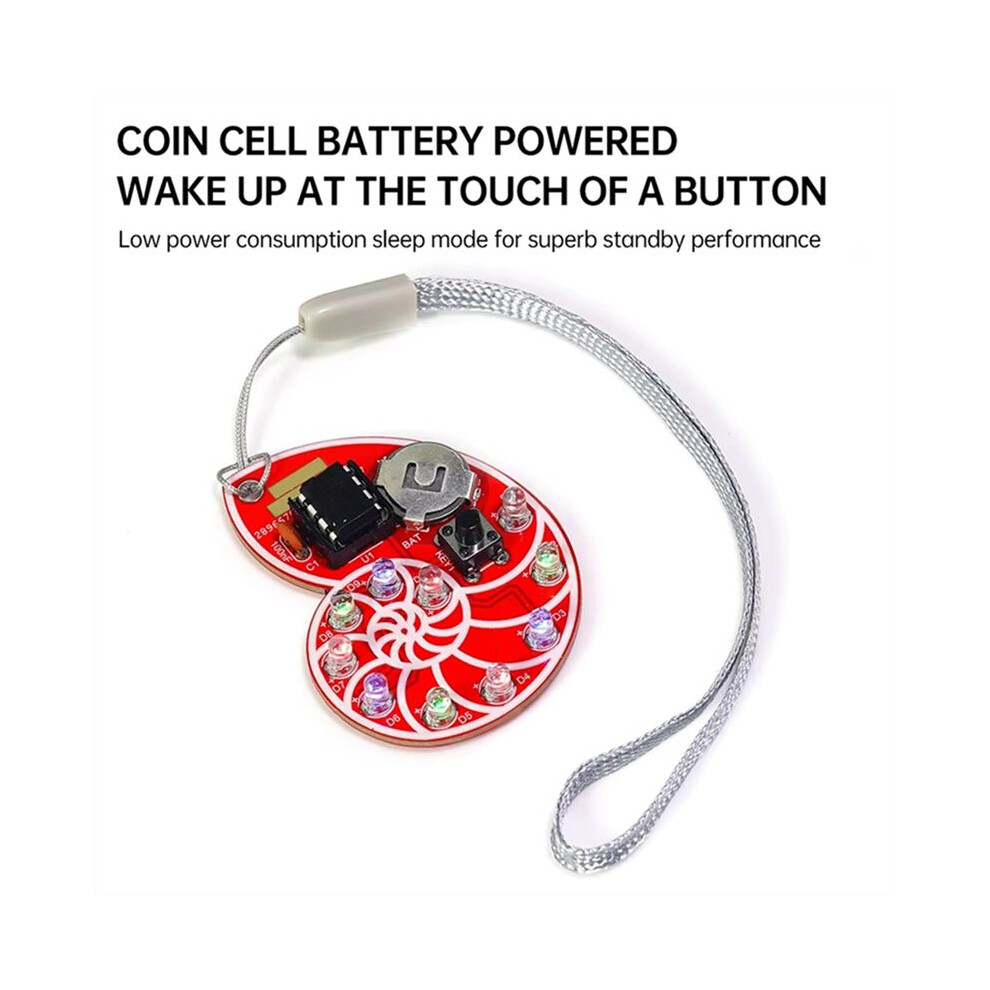

Choose from seven lighting modes at will. Button switching mode. Press the button to the light speed. Low power sleep mode achieves super standby capability. Key wake- function

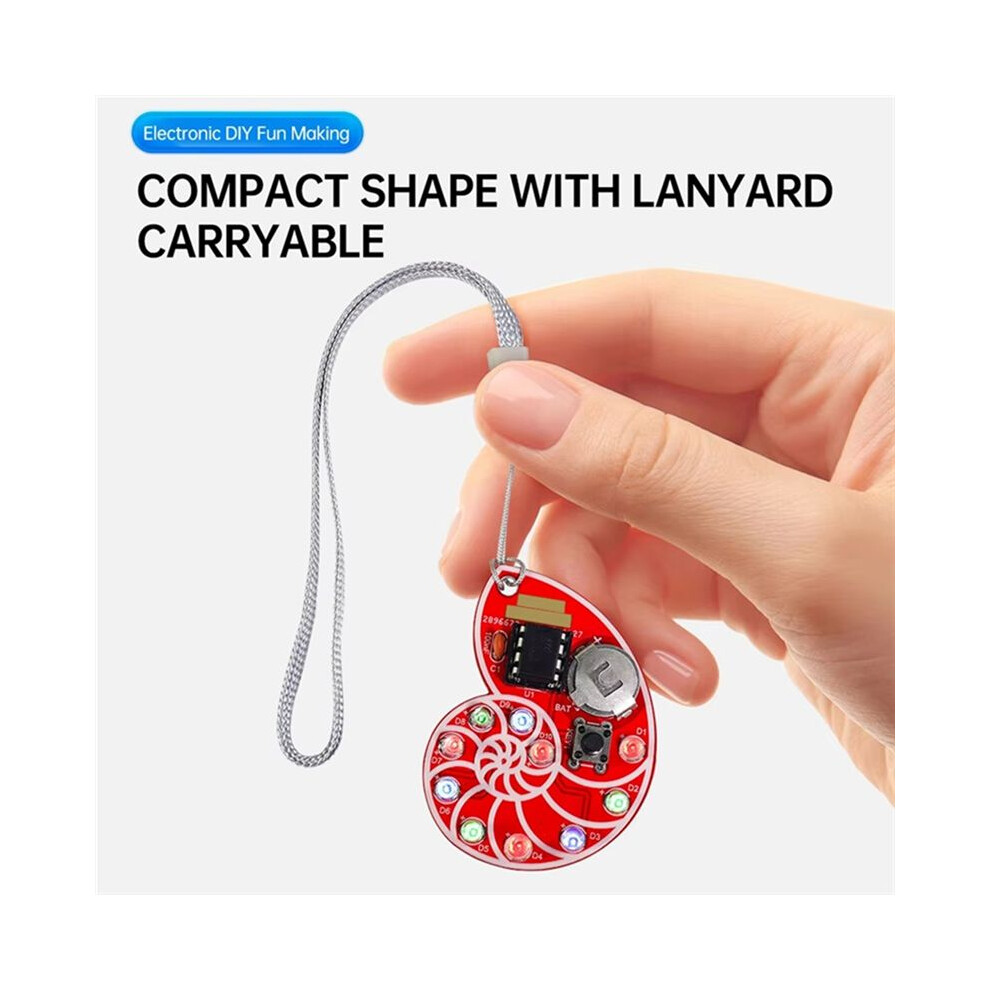

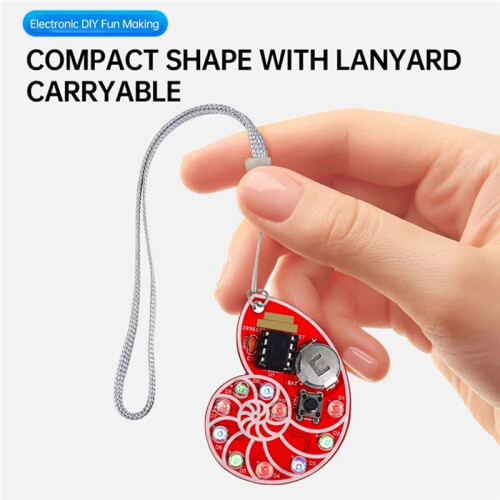

Exquisite and compact, paired with button batteries, can be carried around
Seven lighting modes and six lighting speeds, short press the button once to change the lighting speed, short press the button twice to change the lighting mode
Kit Name: LED Shell Flow Light Production Kit

Working current: 0.5mA@3V (All lights are ) 0.19mA@3V (One light is )
Maximum current: 1.5mA@3V (At startup)
Sleep mode current: 0.4uA@3V
LED display refresh rate: around 245Hz
PCB size: 38.5mm x 50.6mm
Six types of light speeds
Short press KEY1 to the speed of the light change. There are six gears for the speed change, which are: 1000ms, 500ms, 100ms, 50ms, 20ms, 10ms
The speed changes from high to low with each press of the button, and there is a power down saving function
Display of seven lighting modes: Short press KEY1 twice in a row to modes, with a total of seven modes and a power failure saving function
Mode 1: Switching between D1-D10 in sequence
Mode 2: Switching between D1-D10 in sequence, and then switching between D10-D1 in sequence
Mode 3: Red light (D1D4D7D10), green light (D2D5D8), light (D3 D6 D9) in sequence
Mode 4: The red light (D10) is always , and D9-D1 switches sequentially
Mode 5: Three lights D1-D10 light simultaneously and sequentially
Mode 6: Switching between D1-D10 in sequence, switching to the last light that stays and stays in sequence
Mode 7: Six modes. Each mode is displayed twice and then switched sequentially

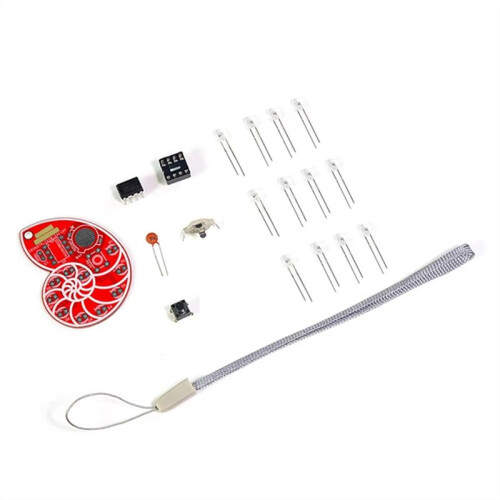

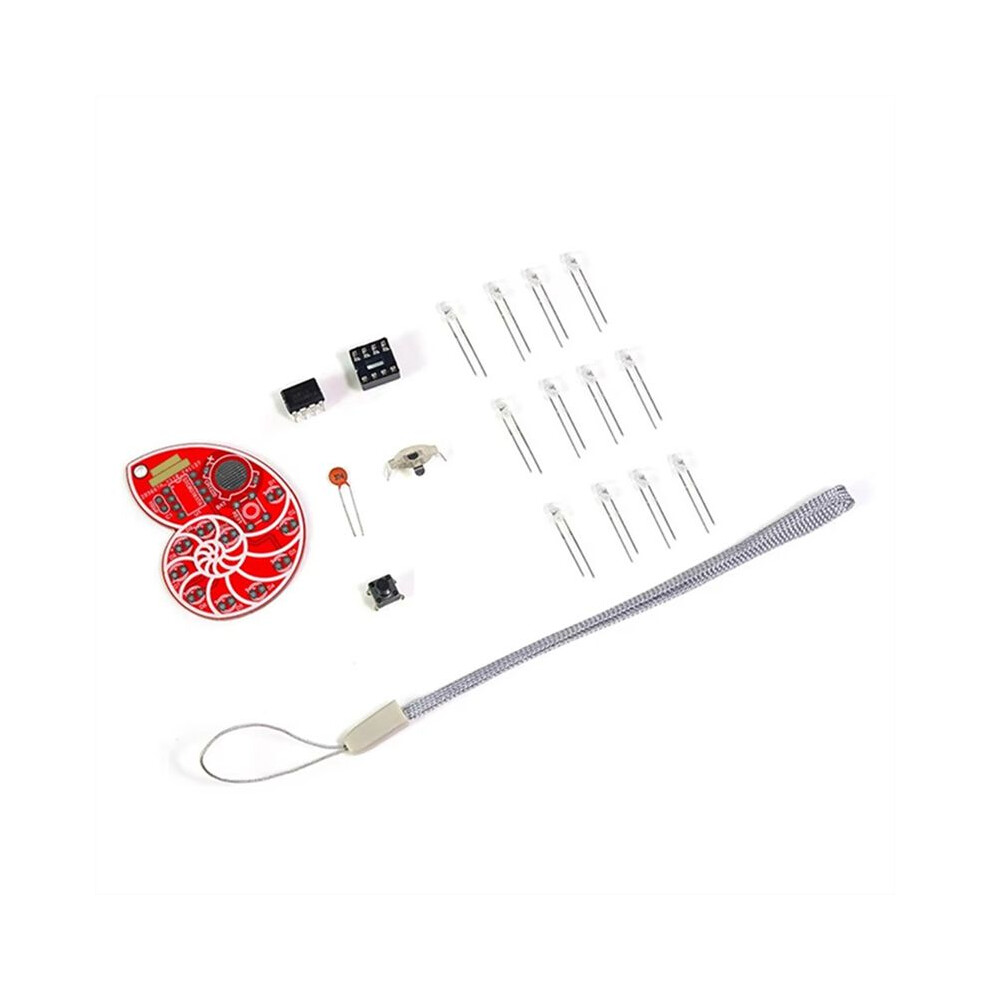

It's DIY kits, needs to finish by yourself.
Color: As Shown
Material: Plastic+Metal

Package Con
