DMX512 WS2812B WS2815 Led Strip Artnet-Pixel (SPI/) Controller(EU)

DMX512 WS2812B WS2815 Led Strip Artnet-Pixel (SPI/) Controller(EU) Description

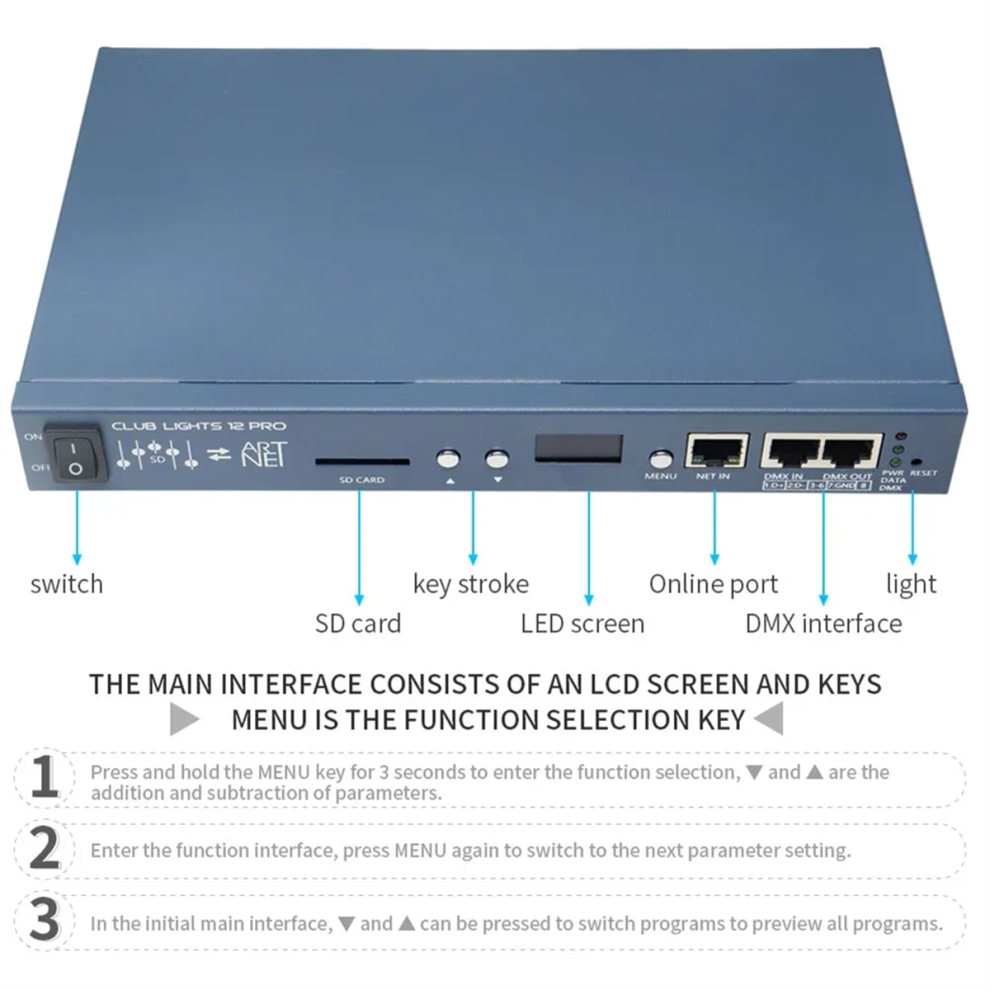

FPGA as the core processor, to achieve high load, high speed, high gray, highsynchronization control. Offline SD card controller, plug and play. OLED display screen, display parameters and address code, quick button settingaddress code and parameters. Support 12 port output, each port support 1024 pixels, single support 16Kpixels.
Can support a variety of lighting driver IC: DMX512, series, TM series, LXseries, GW series, series, MY series and so on. The output interface is compatible with RS485 signal and SPI (TTL) signal. Support RGBW four-color control and a variety of special control, RGBW can choose energy-saving mode and brightening mode. Up to 65536 gray level control, built-in user - defined gamma correction curve.
Support SD cards of capacities, such as 128M-32GB, and supports amaximum of 64 scenario files. Can be triggered by external DMX512 console for extended use. Support MIX,Grouping by external DMX512 console. Support online Preview, can record ARTNET scene files. Support LEDview online Preview, can Generate SD scene file.

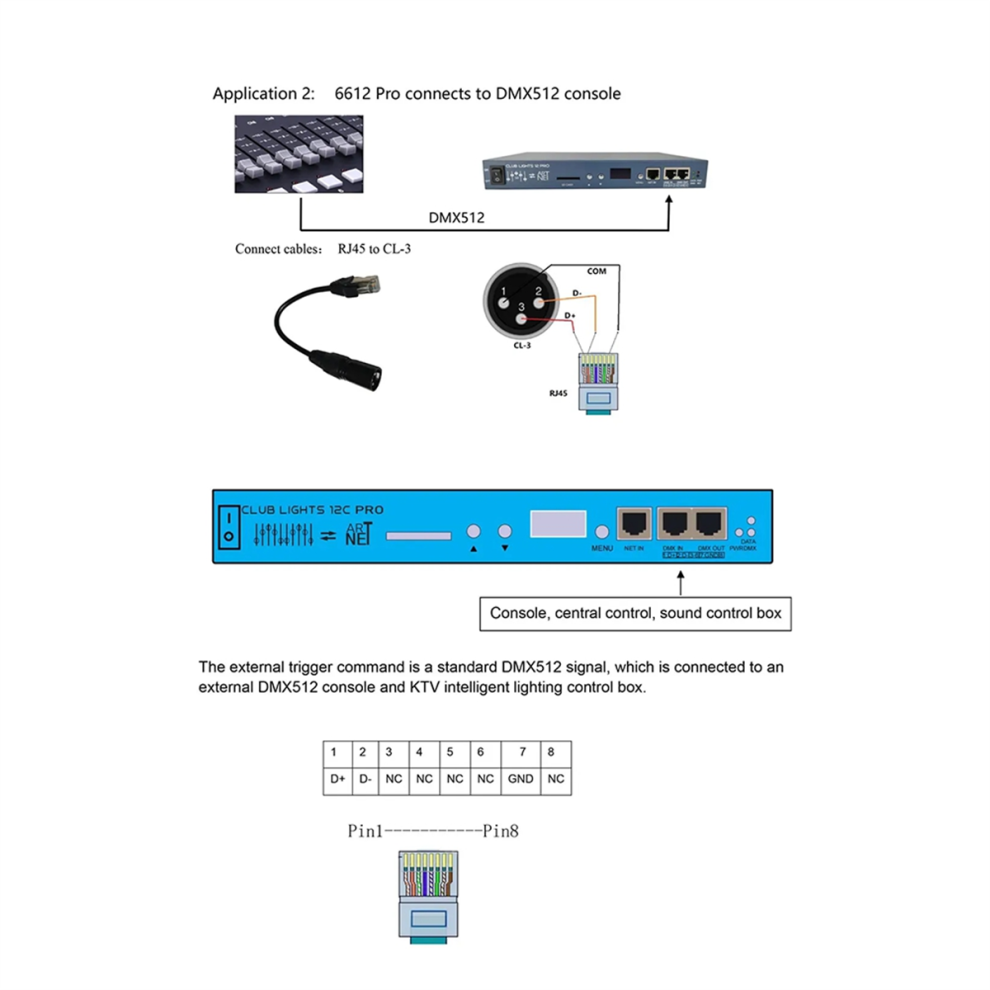

-6612 has external DMX512 trigger function, can access control console andKTV intelligent lighting control box, very suitable for bar, KTV room lighting control,accept the call program, adjust speed, brightness, special effects, supportup to 13 channels OF DMX512 instruction.
-6612 supports the multi-function editing "ShadowDraw" softwarein dependently developed by GlcO Technology, Color technology provides software tools that allow users to simply record MADRlX effect files for offline playback. -6612 has been widely used in KTv, bars, office buildings, hotels, shopsigns and other LED lighting projects.

Description:
-6612Pro is a 12-port SD card offline controller. With 12 groups of outputports, can support DMX512, SPl type lamps, such as: TM1812, WS2811, UCS2903UCS9812, SM17512 and other lC widely used in the industry. -6612Pro uses FPGAas the core processor, and realizes high load, high frame rate, high gray scale andhigh synchronization control with the super parallel data computing capability ofFPGA. The realization of a single station carrying 16K pixel point is very conducive tothe construction of the engineering site wiring.

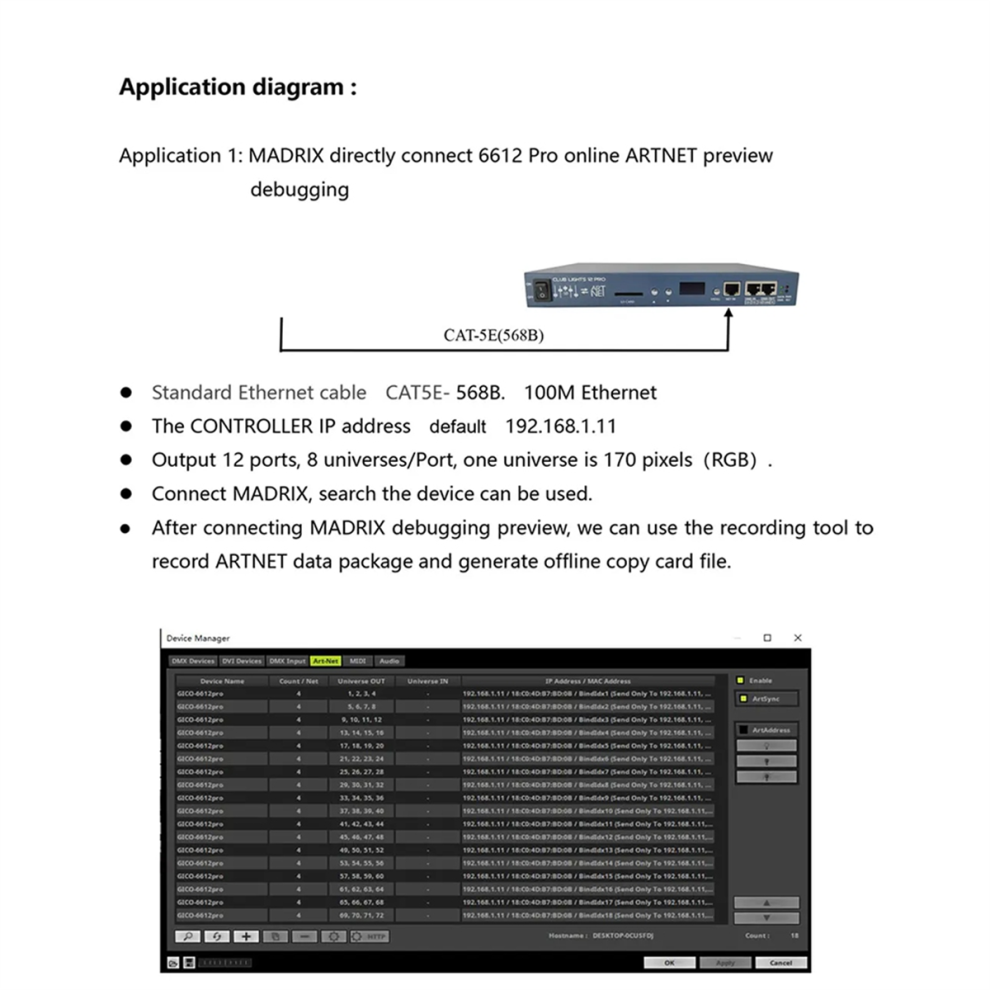

-6612Pro has an Ethernet interface, supportS ART-NET, -NETstandards,Users can connect to the controller via Ethernet and preview online. -NET mode, support 96 DMX512 universes.
Working Voltage: AC90-240V
Power Consumption: 3W
Input trigger interface: R45(DMX512)
Ethernet interface: Rj45(100M)

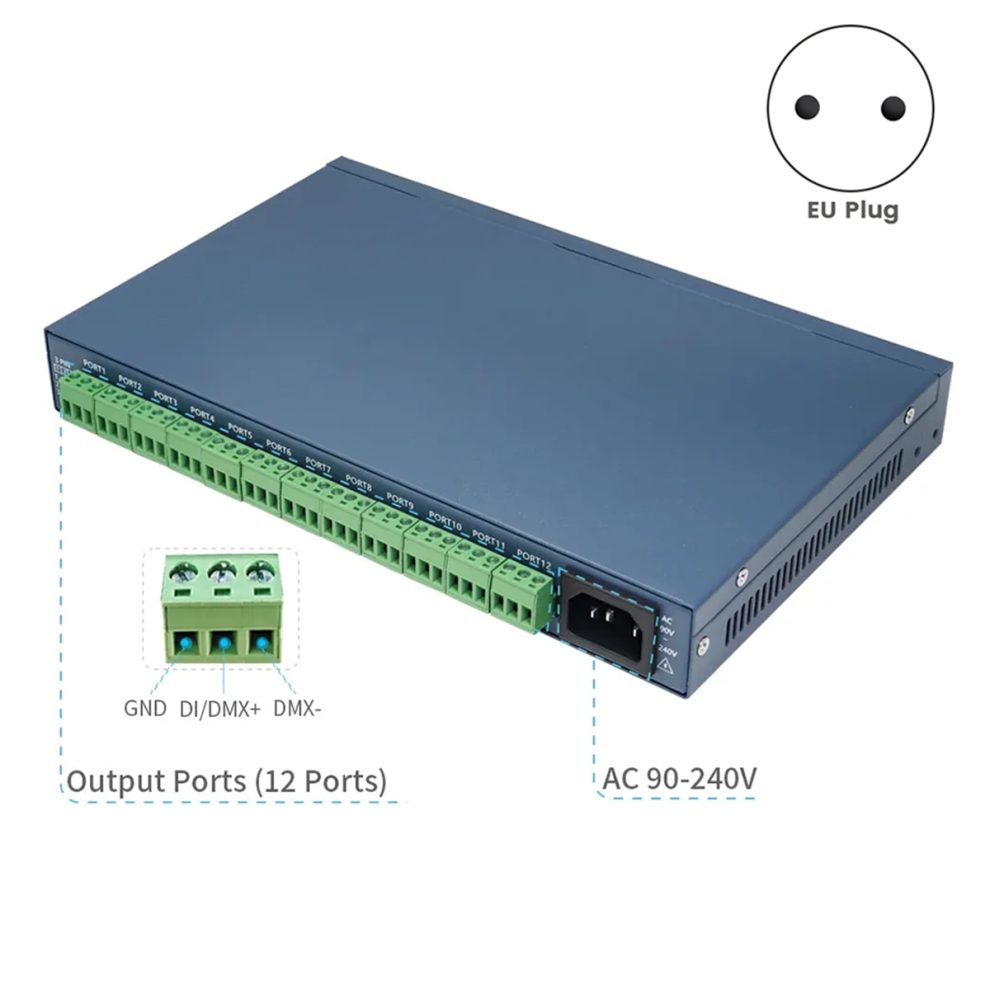

Output port: 12 ports
Control Qty/Port:1028Pixels
Output signal: DMX512/SPI(TTL)
Working Temperature: -20-65
Dimension:L250xW175xH35 mm
Due to different product batches, the words on the product may be different, which not affect the use.
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage:AC100-240V
Color:As shown
Material:Aluminum Alloy

Package Contents:
1 * Artnet-Pixel (SPI/) Controller
1 * 4G memory card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
