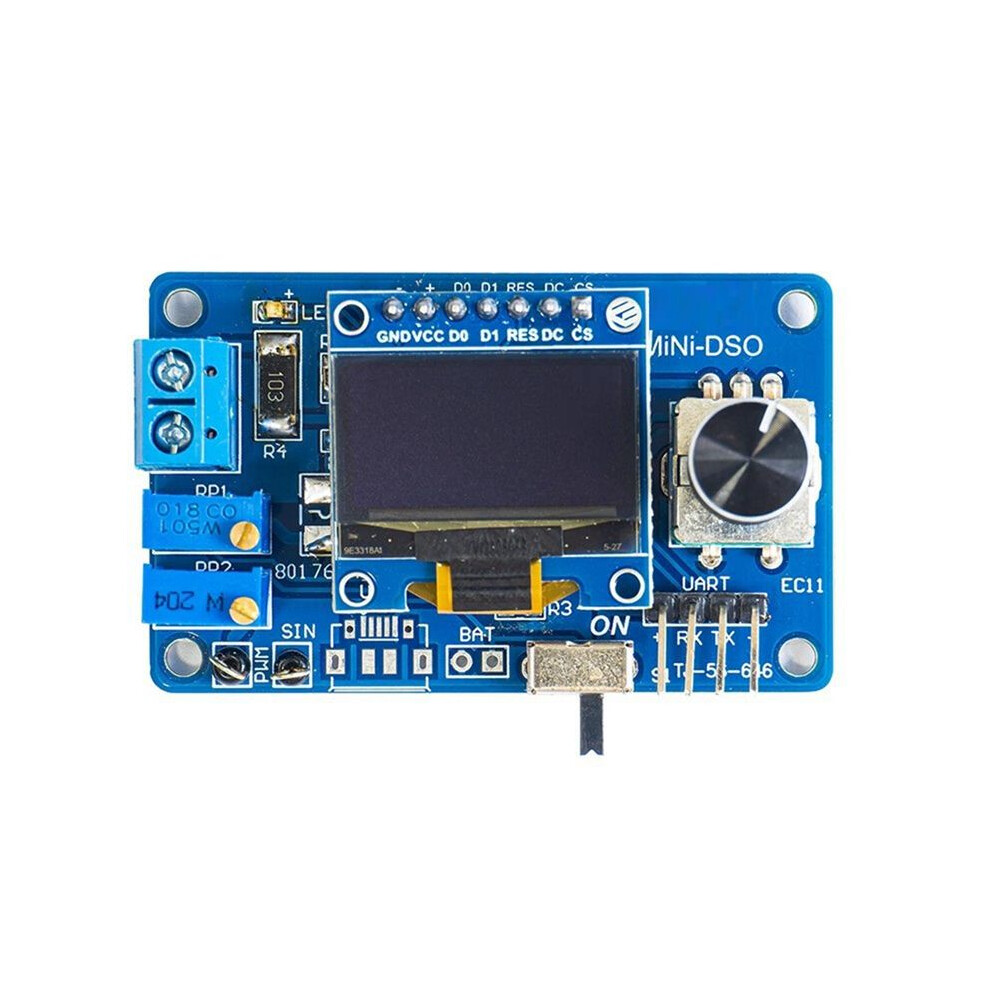

DOS LCD Oscilloscope Kit STC8K8A Single Chip Microcomputer Electronic Soldering Practice Loose Parts Without Shell
Brand Exogio
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£15.12
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 9th - Fri 11th Sep
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- This is a simple oscilloscope made with an STC8A8K microcontroller. It only requires a small amount of components and is easy to assemble.
- The function can cover simple measurements.
- This kit aims to build a basic oscilloscope model with the simplest possible principles and as little hardware as possible.
- The source code is easy to understand, and it is also very suitable for interested electronic enthusiasts to learn and research while using the product.
- Electronic Soldering Practice
DOS LCD Oscilloscope Kit STC8K8A Single Chip Microcomputer Electronic Soldering Practice Loose Parts Without Shell Description
This is a simple oscilloscope made with an STC8A8K microcontroller. It only requires a small amount of components and is easy to assemble.
The function can cover simple measurements.
This kit aims to build a basic oscilloscope model with the simplest possible principles and as little hardware as possible.
The source code is easy to understand, and it is also very suitable for interested electronic enthusiasts to learn and research while using the product.
Product name:-DSO microcontroller oscilloscope kit
Working voltage:4-5V
Single chip computer:STC8A8K64S4A12
Display:0.96 inch OLED display screen -7P, 128x64 resolution
Number of channels:single channel
Sec/div:500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us (100us only available in automatic trigger mode)
Voltage range:0-30V
Sampling level:10kHz@100us /Div
Trigger level:Trigger voltage level
Trigger slope: - rising , - falling trigger
Trigger mode:A-automatic mode, N-normal mode, S-single mode.
Note:Due to different production batches, the appearance is different, which does not affect the use.
Colour:
Material:PCB+electronic components

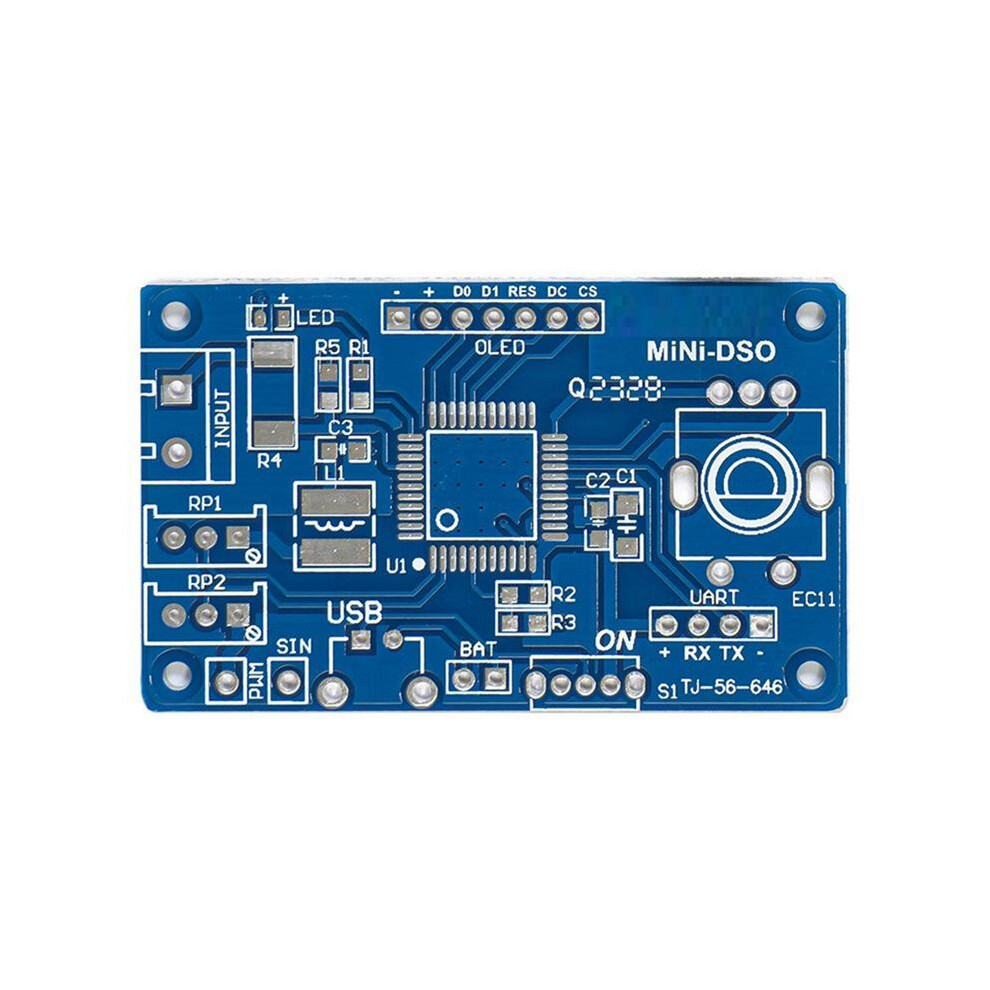

Size:PCB size:57x34mm
Package Contents:

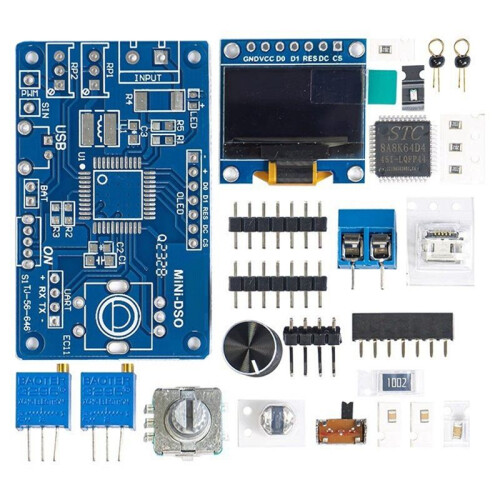

1 * DOS LCD Oscilloscope DIY Kit
Details
| OPC | PT9C6JT |
|---|---|
| Brand | Exogio |
| Codes | 4711401683391 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 10cm |
| Length | 16cm |
| Weight | 0.058kg |
| Colour | Blue |
| Material | PCB+electronic components |
