Double Balanced Mixer Module RF 1.5-3.8GHz | PCB Passive Mixer
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£10.06
£14.37
30% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Wed 22nd Jul
Returns: 30 days
180-day payment protection
Most Popular in Radio Oscillators
Description & Details
Summary

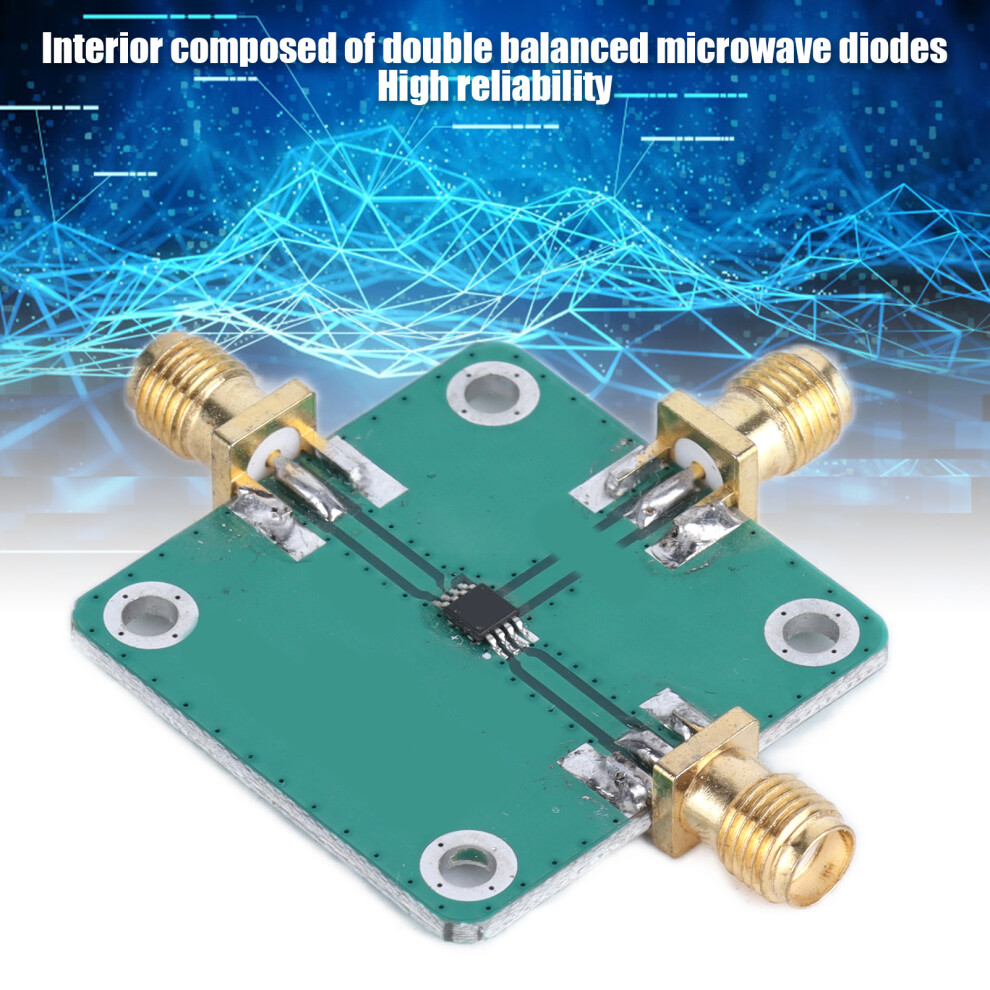

- The interior is composed of double balanced microwave diodes, come with high reliability
- Typical 38dB port isolation between local oscillator and RF, which is stable and reliable
- Using 1.6mm thick PCB double sided board, sturdy and durable, come with long service life
- The product have large heat dissipation area, possess stable operation and long running time
- The conversion loss is only 8.0dB, and the noise figure is as low as 8.0dB (SSB). This is a passive device and does not require power supply
Double Balanced Mixer Module RF 1.5-3.8GHz | PCB Passive Mixer Description
Double Balanced Mixer Module Microwave RF Mixing Transducer RFin=1.53.8GHz RFout=DC1.0GHz
Item Type: Double Balanced Mixer Module
Material: PCB
Purpose: Mixer
Power Supply: Passive mixer (no power supply required)
RF Input: 1.5-3.8GHz
Intermediate Frequency Output: DC-1.0GHz
Conversion Loss: 8.0dB
Noise Figure: 8.0dB (SSB)
Local Oscillator Input: +18dBm
Port Isolation:
Local Oscillator to RF: 38dB (typical)
Local Oscillator to Intermediate Frequency: 28dB (typical)
High Input 1P3: 18dBm
High Input P1dB: 8dBm
Connector Model: Standard SMA female
RF Input: RFin port
Local Oscillator Input: LOin port (recommended signal strength 13dBm)
IF Output: IFout port
Maximum Input Value of RF Local Oscillator: 22dBm
Maximum Input of Local Oscillator: 27dBm (0.5W)
Details
| OPC | PSSVF55 |
|---|---|
| Codes | 3251390701320 (EAN) |
