Double Balanced RF Mixer RFin 1.5-4.5GHz Ultimate Performance with LO 312

Double Balanced RF Mixer RFin 1.5-4.5GHz Ultimate Performance with LO 312 Description

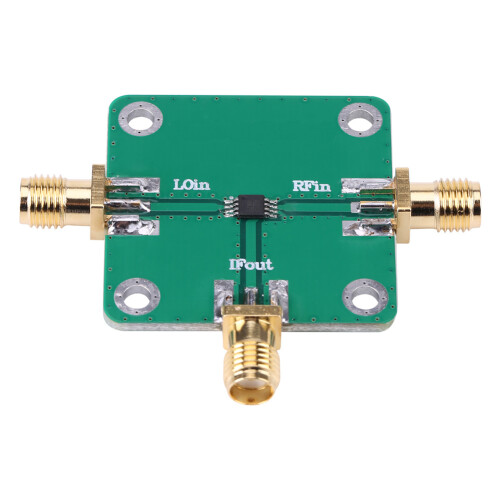

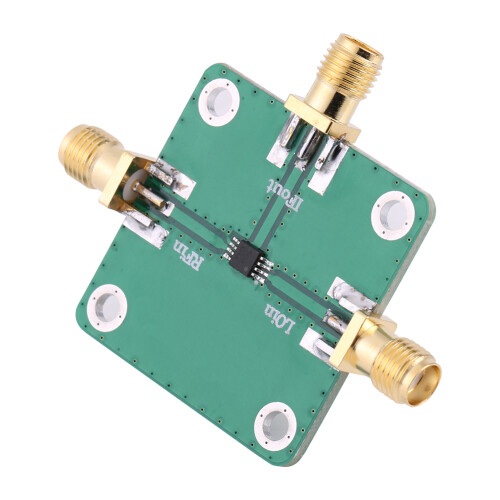

Microwave Radio Frequency Double Balanced RF Mixer RFin=1.5--4.5GHz RFout=DC--1.5GHz LO=312

Features:



This is a double-balanced radio frequency mixer of RFin=1.5--4.5GHz, RFout=DC--1.5GHz, LO=312.


It has both its inputs applied to differential circuits, so that neither
of the input signals and only the product signal appears at the output.


Double balanced mixers are more complex and require higher drive levels than unbalanced and single balanced designs.


This mixer has good isolation at RF and IF ends relative to LO end, so it does not demand more about IF filter.



Standard SMA female connectors are suitable for connecting most devices.








Specifications:


RFin=1.5--4.5GHz


RFout=DC--1.5GHz


LO=312


Noise Factor: 0.6dB


LO/RF Isolation: 40dB


Frequency Conversion Loss: 8.5dB


1dB Compression Point: 10dbm


RF/IF Max. Input Power: 13DBM


LO Max. Input Power: 27DBM


Connector: Standard SMA-female






Package Includes:


1 x Frequency Mixer
