Double Bowl Quartz Resin Composite Kitchen Sink with Waste Kit

Description
Make everyday kitchen tasks easier with this sleek double-bowl kitchen sink. Featuring two separate basins, it makes washing and rinsing effortless while food prep stays organised and uninterrupted. An integrated drainer on the right provides a convenient space for drying plates, cutlery and freshly rinsed ingredients. Smooth rounded corners keep water flowing and reduce hard-to-reach grime, so cleaning feels quicker after busy cooking. A complete waste kit Included for straightforward, easy installation and a hassle-free setup.

Specifications
Overall Dimensions: 115cm (W) x 49cm (D) x 21cm (H)
Pre-Drilled Faucet Hole Diameter: 35mm
Overflow Hole Diameter: 30mm
Material: Quartz Resin Composite + 201 Stainless Steel
Colour: Graphite Grey
Shape: Rectangular
Type: Double Bowl
Number of Tap Hole(s): 1
Tap Included: No
Installation Type: Under-mount
Assembly Required: Yes

Package Content
1 x Double Bowl Sink

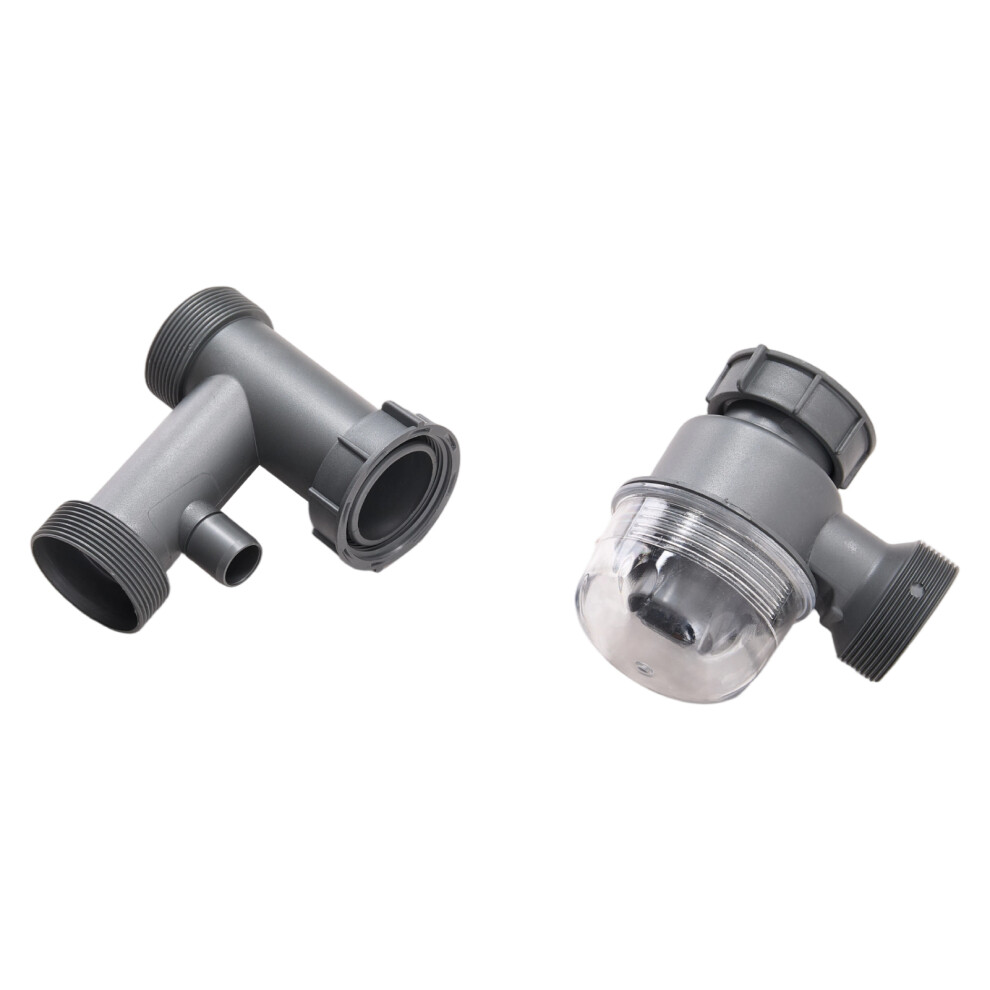

1 x Waste Kit

Package Specifications
Package Dimensions(W x D x H): 126cm x 60cm x 33cm
Gross Weight: 31kg

Notes
- Lift with care. The sink is heavy. Use proper lifting techniques or seek assistance to avoid back strain or injury.
- Always wear eye protection and cut-resistant gloves when cutting the countertop or drilling holes. Flying debris or tool slips can cause serious injury.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.

Installation Instructions
- Turn the sink upside down and place it in exactly the place on the countertop where you want to install it.
- Measure the width, length and depth of the sink.
- Make sure the new sink will be sufficient space to install a battery outlet located under the sink.
- Mark the location of the sink by tracing its perimeter. Then remove the sink from the countertop.
- Draw a cut line inside the perimeter that will copy the original wrap around the sink, but it will be shifted by 12 mm.
- If the sink comes with a template for the sink cutout, use the template for tracing.
- In this case, make sure you have a template placed in the right way.
- When you are sure of the placement, at any point along the cut line, drill a hole big enough to accept the blade from your jigsaw. With a jigsaw, cut the opening along the cut line (the line inside the sink's perimeter line).
- Before stamping the faucet's hole, check the place of the predrilled hole at the bottom.
- Using the drill with a dill bit ø3 mm drill holes around the edge of the pre-drilled hole. Hold a sharp pointed object (in any case, a screwdriver) and a hammer and strongly wallop in the middle of the predrilled hole. Then cleans up the hole fine with rasps.
- Before installing the sink, apply sanitary silicone (not included) on its inner edge.
- Carefully flip the sink and insert it into the hole of the countertop. Then install the other parts of the siphon.
