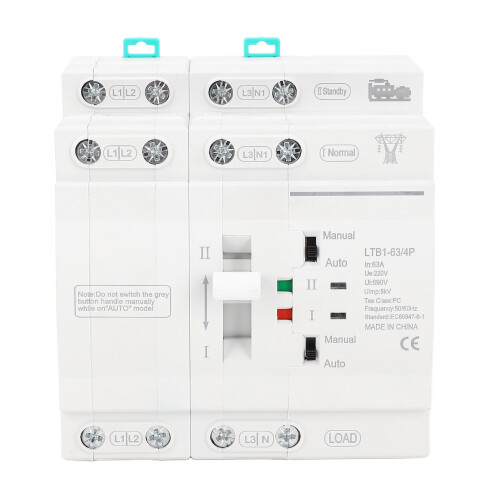

Double Power ATS 4P 63A Uninterrupted Power 35mm Din Rail Mini

Double Power ATS 4P 63A Uninterrupted Power 35mm Din Rail Mini Description

1、UNINTERRUPTIBLE POWER: The automatic transfer switch is mainly used for testing whether normal or spare power is normal or not, which can switch power supply in 50ms to build uninterruptible power supply 2、CONTINUOUS POWER SUPPLY: When the normal power is abnormal,the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply 3、FAST RESPONSE: When the normal power supply is normal, double power automatic transfer switch will automatically switch back from the backup power to the normal power supply 4、APPLICABLE SCENARIO: The product is specially designed for household orbit type installation and specially use in PZ30 power distribution box. This series automatic transfer switch is suitable for the double power grid with 50/60Hz 5、COMPACT AND STABLE: ATS is compact in structure, trusted in transfer, convenient in instabllation and maintenance, and has long lif expectancy, which is specially designed for household orbit type installation
Item Type: Double Power Automatic Transfer Switch
Material: PC flame retardant, silver
Rated Current Le: 63A
Insulation Voltage Ui: AC690V
Withstand Voltage: Uimp: 8KV
Frequency: 50/60HZ
Level: PC level(can be opened under load without generating short circuit current)
Specifications: 4P
Rated Short Circuit Current: 50kA
Rated Short Circuit Current(fusing): RT16-00-63A
Rated Impulse Withstand Voltage: 8kV
Rated Control Voltage: 220VAC 50HZ, Normal Working Conditions: 85%Us-110%Us
Auxiliary Circuit: AC220V 50HZ le=5A
Life: Electrical: 1500 Times; Mechanical: 5000 Times
Touch Time:
