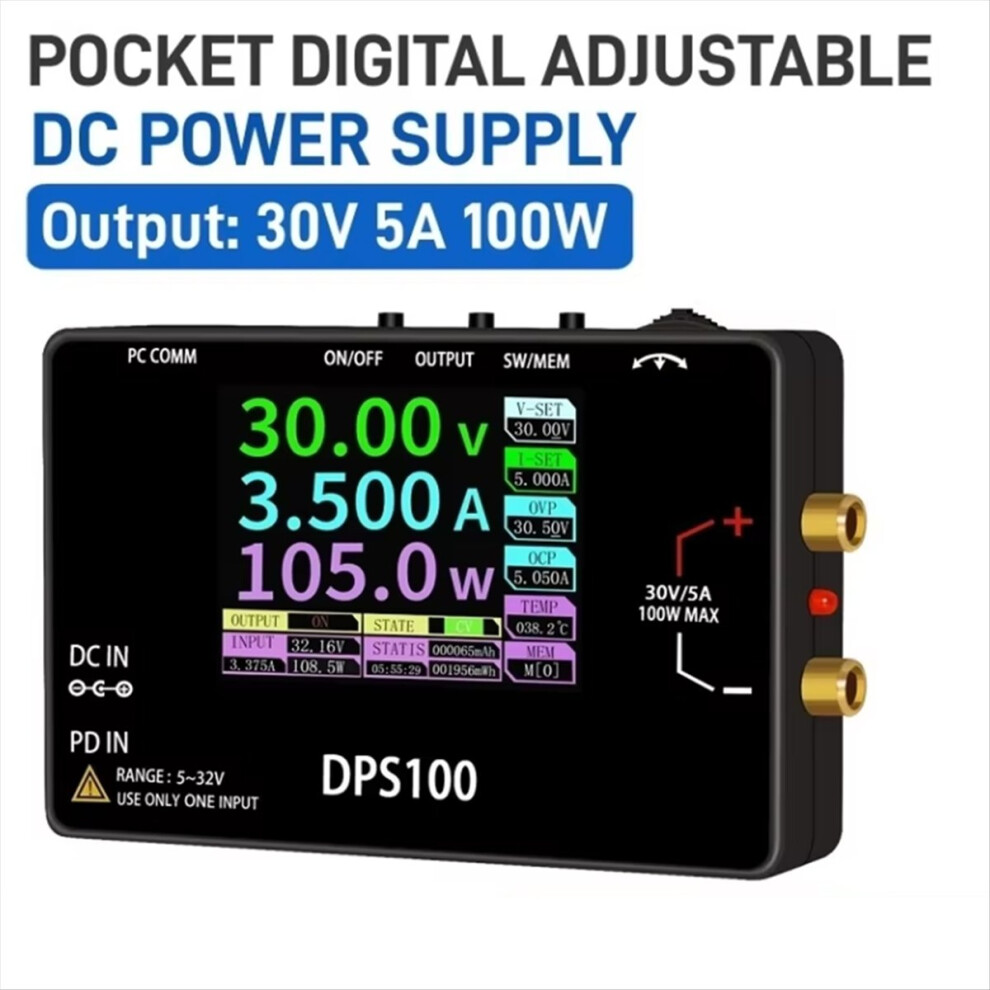

DPS100 30V 5A Portable DC Power Supply 100W Output Digital CNC Adjustable Stabilized Type-C Input

DPS100 30V 5A Portable DC Power Supply 100W Output Digital CNC Adjustable Stabilized Type-C Input Description

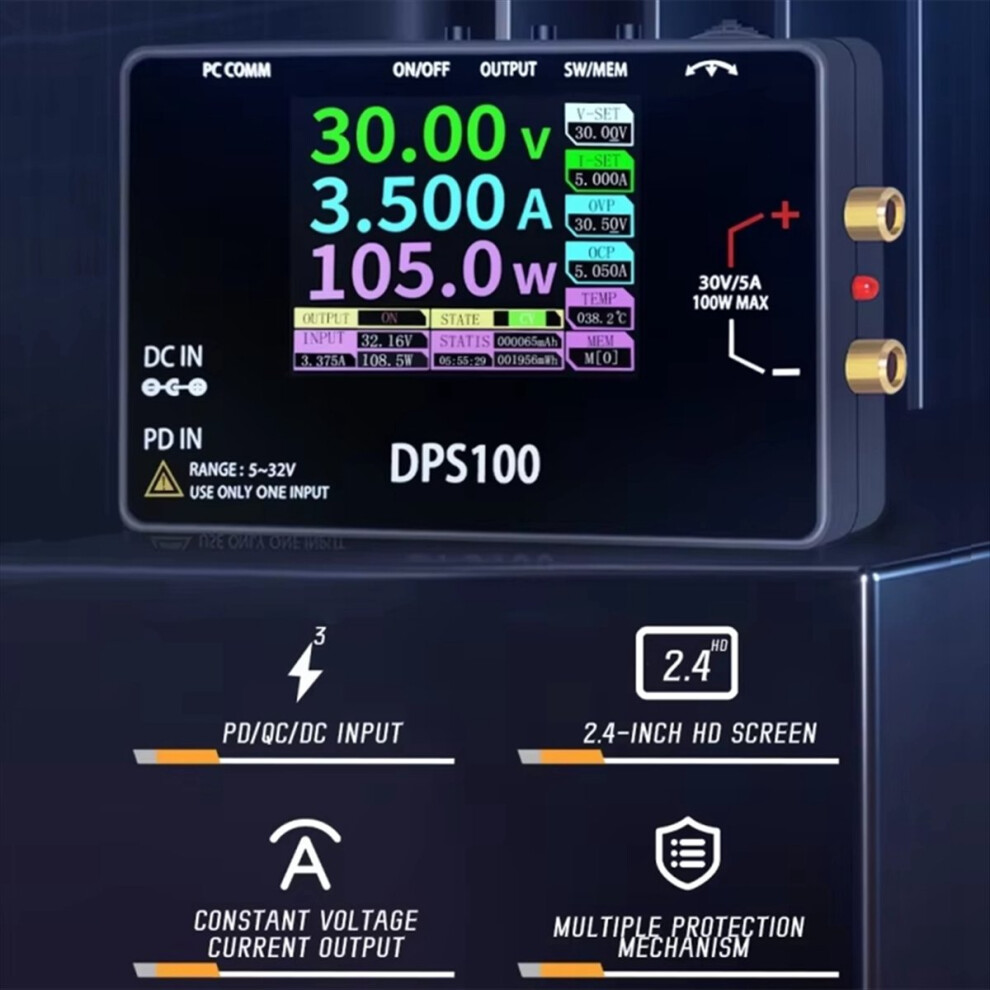

Built-in TYPE-C interface and DC interface, which can support PD/QC/DC input respectively. Support DC 5-32V wide range power supply, output voltage adjustable from 0V, constant current adjustable from 0A. Low temperature wave, high efficiency, supports up to 100W output.

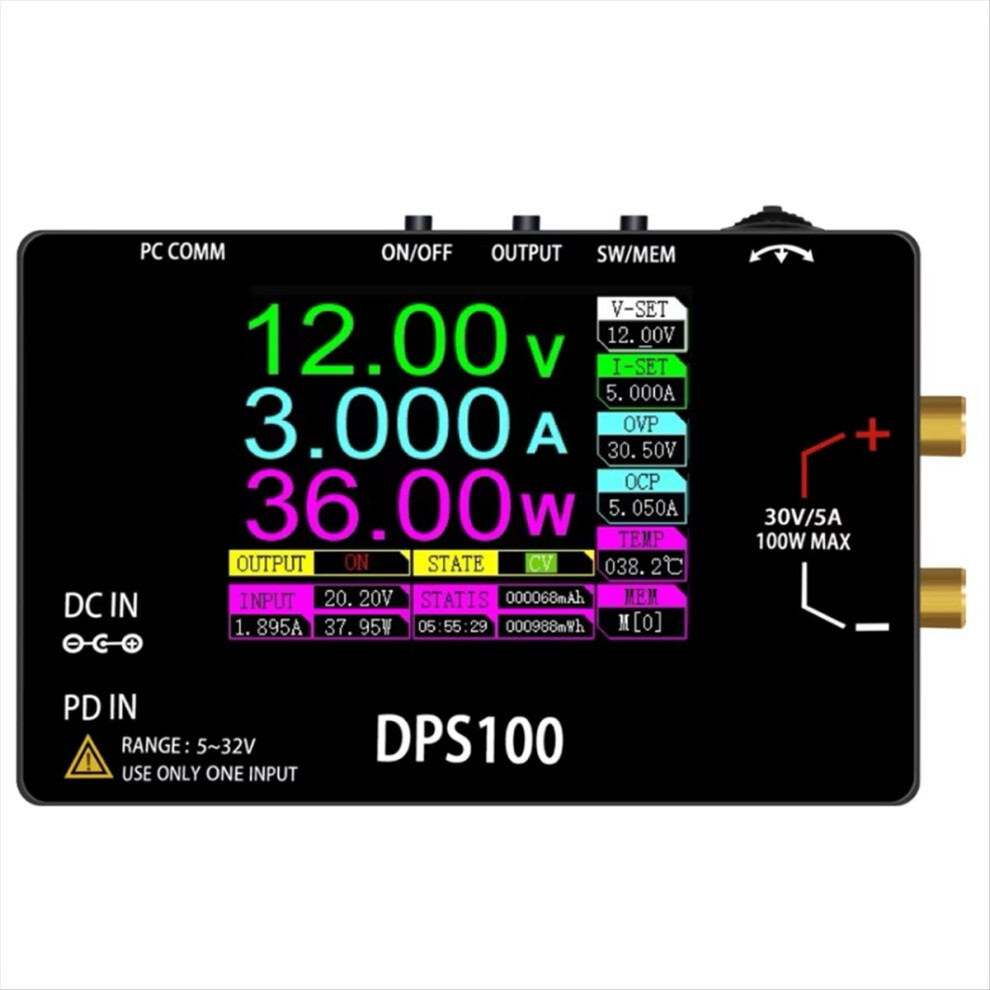

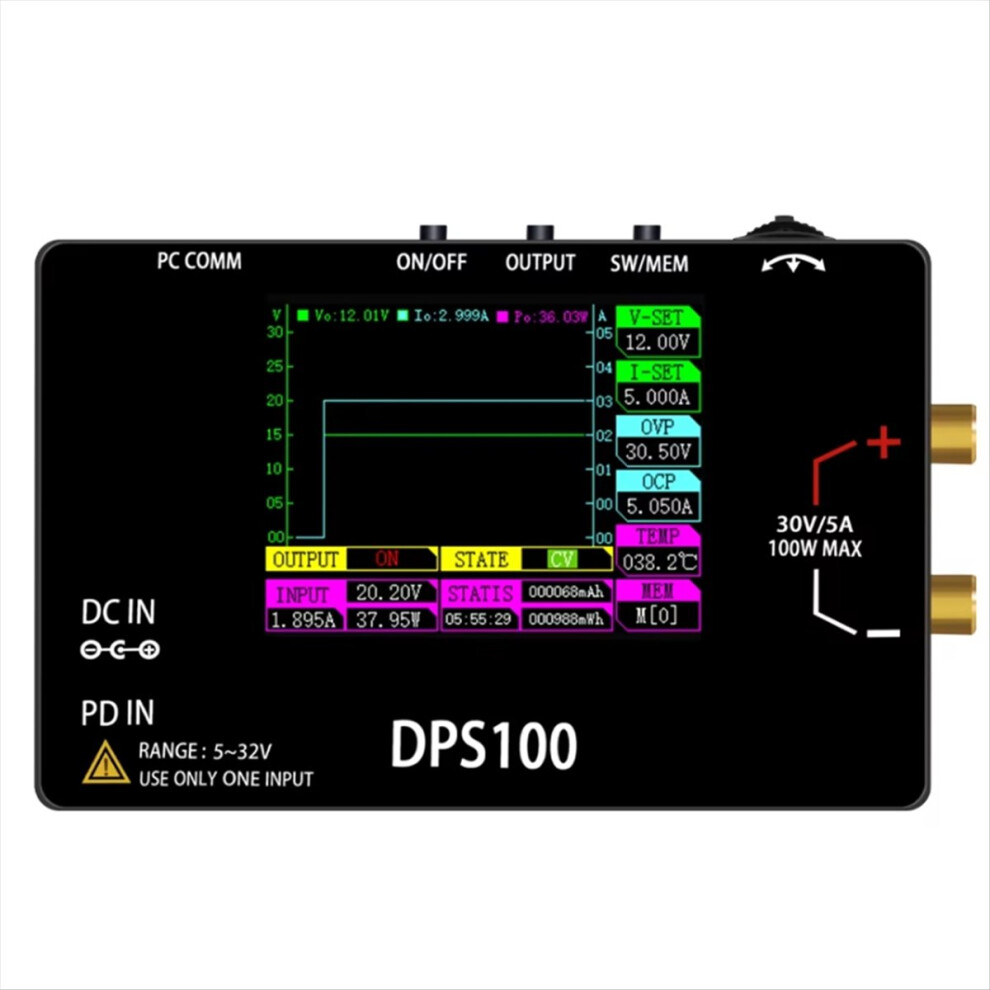

2.4-inch high-definition color screen, and supports digital mode and waveform mode switching. Built-in perfect input/output protection mechanism (8 types). Support 10 sets of preset outputs, direct call, convenient and fast.
Support input voltage and input current measurement, convenient to monitor input status. Multi-button and dial operation, more convenient setting. 110x70mm pocket size, easy to carry.
Perfect protection mechanism: 1. Input supports undervoltage protection and reverse connection protection. 2. Output supports overvoltage, overcurrent, overload, overheating, reverse connection and other protections, 3. Output supports anti-backflow protection to avoid damage to power supply equipment.
Screen:2.4-inch color screen. Input parameters:DC5.0-32V,30mA-5A. Protocols supported by Type-C ports:PD 3.0/2.0, BC 1.2 etc. Interface of output:4.0mm banana head connector.

Name:DPS100 CNC Adjustable DC Step-down Regulated Power Supply
Output range:Voltage:0-30V / Current:0-5A / Power:100W(Max)
Resolution of settings:Voltage:10mV / Current:1mA
Accuracy of settings:Voltage:less than equal 0.1%5mV / Current:less than equal 0.1%3mA
Load regulation rate:Output voltage:less than equal 0.05%5mV / Output current:less than equal 0.1%3mA
Power regulation rate:Voltage:less than equal 0.05%5mV / Current:less than equal 0.1%3mA
Ripple and noise:Voltage:less than equal 2mVrms, 10mVp-p / Current:less than equal 1mArms, 3mAp-p
Output temperature coefficient:Voltage:less than equal 200ppm / Current:less than equal 200ppm
Full load efficiency:less than equal 97% @100W(30V,3.334A)
Working environment:0-40,0-75%RH
Size/weight:110mmx70mmx20mm/100g
Resolution of measurement:
Input voltage:10mV
Input current:1mA
Output voltage:10mV
Output current:1mA
Accuracy of measurement:
Input voltage:less than equal 0.2%10mV
Input current:less than equal 0.1%5mA
Output voltage:less than equal 0.1%10mV
Output current:less than equal 0.1%5mA
Note:The printed labels vary from batch to batch, and the cable colors are random and cannot be specified, but not affect use.
Colour:Black
Material:Metal+Plastic

Package Contents:
1 x Host
1 Pair x Test Clips

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
