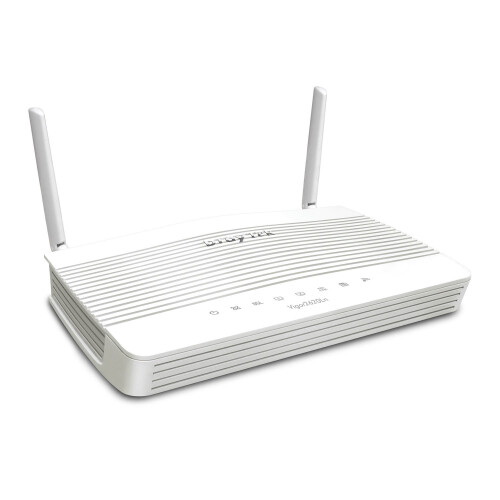

DrayTek V2620LN-K Vigor 2620Ln V2620LN-K

DrayTek V2620LN-K Vigor 2620Ln V2620LN-K Description

The DrayTek Vigor 2620Ln is a unique product with VDSL and LTE modems in one box, with 2 embedded SIM card slots for 4G/LTE failover and versatile Multi-WAN Failover for guaranteed ultra-resilient service.



Multi-WAN Router with Failover


4G/LTE with dual-SIMs for second backup telco


VDSL/ADSL Port for wired broadband


Ethernet (RJ45)


IPv4/IPv6 Dual-Stack


2 Gigabit LAN Ports


Removable LTE/4G Antenna


Built-in Wireless LAN (802.11n)


Quality of Service Assurance


Dial-out LAN-to-LAN VPN


Incoming SSL VPN


VLANs (Port, 802.1q & Wireless)


Optional VigorCare Available


Can be centrally Managed by VigorACS



LTE 4G/3G Modem - Up to 150Mbps

Integrated LTE 4G/3G (Category 4) modem, with speeds up to 150Mbps Downstream and 50Mbps Upstream. Compatible with EE, Vodafone, O2 and Three mobile networks and any MVNOs on those networks. High speed Mobile Broadband. Versatile Connectivity.

VDSL2 & ADSL2+ Modem

Connect the Vigor 2620Ln to Fiber to the Cabinet (FTTC) VDSL2 or ADSL, with support for VDSL2 Vectoring. Openreach MCT approved & SIN498 compliant. Compatible with all ISPs in the UK and Ireland

Constant Connectivity - Dual-SIM LTE

For primary and backup mobile broadband connections. Automatically switches to the backup SIM if the main SIM's connection drops, or experiences significant delays. Safeguard against mobile network outages. Ensures high availability

Virtual Private Networking

Create a secure LAN-to-LAN VPN tunnel your remote office to the main office. Supports Ipsec IKEv1, IKEv2, DrayTek SSL Tunnel and L2TP with Ipsec. Dial-In to the Vigor 2620Ln's network with DrayTek SSL VPN. Securely encrypted network access.

Versatile Multi-WAN Failover

Connect the Vigor 2620 to 4G mobile broadband, ADSL2+, VDSL2 or Ethernet. If the primary connection fails, the Vigor 2620Ln automatically resumes connectivity with its Failover connections. Highly adaptable. Ensures high availability.

SMS Monitoring & Control

SMS text messages through the web interface that will help you check the connection status, its current Internet IP, uptime & data usage. Easily manage the Vigor 2620Ln and its SIMs remotely.

Gigabit LAN Ports and VLANs

Attach Computers, Servers and Network Attached Storage to the Vigor 2620Ln, with 2 Gigabit (10/100/1000Mbps) LAN ports. Use VLANs to supply broadband & VPN connectivity to 2 networks. Separate private & guest networks. Make full use of LTE 4G bandwidth

Designed for Centralised Management

Configure and manage the Vigor 2620Ln remotely through the VigorACS central management platform. Saves time and money

Specifications

LAN Ports (Switch)

2 x Gigabit Ethernet (1000Mb/s) Ports (P2 switchable to WAN2 port)


WAN Ports (one as primary, others as failover)

WAN1 : ADSL/VDSL - RJ-11


WAN2 : Gigabit Ethernet - RJ-45


LTE : 3G/4G/LTE modem - Dual-SIM Slot


2 x Removable LTE Wireless antennas


Wireless On / Off / WPS button


Recessed Factory Reset button


Performance

Firewall: Up to 300Mb/s


NAT Sessions: 30,000


Wireless LAN: Up to 300Mb/s (2 Spatial Streams @ 40MHz)


Wireless LAN: Up to 300Mb/s (2 Spatial Streams @ 40MHz)


SSL VPN: Up to 25Mb/s


4G LTE Modem Features

Dual SIM


LTE Category 4


Unlocked to any network (BT, EE, 3, O2, Vodafone, Eircom)


LTE FDD


Supported Frequency Bands: 1, 3, 7, 8, 20


Max Data Rates:
0Mbps Downlink


50Mbps Uplink


2 Standard-Size SIM Slots (primary & backup)


Removable SIM slot cover


2 Removable LTE Wireless Antennas (SMA connector fitting)


SMS Inbox - Send & Receive SMS text messages


SMS Router Commands - Status Report, Reboot via text message


Wireless LAN Features

2.4GHz - 802.11b/g/n Wireless


Wireless LAN On/Off button


2 Internal Wireless Antennas


Up to 4 SSIDs


Whitelist / Blacklist individual wireless clients per SSID (by MAC address)


Time Scheduling for Wireless radio and/or individual SSIDs


Active Client list in Web Interface


Station Control, limit wireless client access time per day


Wireless Rate-Control


Wireless Client Isolation per SSID


WPA/WPA2 Encryption


Access Point Discovery


WDS (Wireless Distribution system) for WLAN Bridging and Repeating


WMM (Wi-Fi Multimedia) support


Firewall & NAT Features

40 Port Redirection rules


40 Open Port rules (10 port ranges per rule)


DMZ Host


Configurable SIP (VoIP) & RTSP Application Layer Gateway (ALG) services


Policy-Based Firewall


MAC Address Filter


SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism


DoS / DDoS Protection


IP Address Anti-spoofing


E-Mail Alert and Logging via Syslog


Bind IP to MAC Address


Object-based Firewall to apply rules to Objects / Groups as well as subnet/network addresses


Content Security Management (CSM) Features:
Part of the DrayOS Object based Firewall system


Apply Content Filtering to specific IP ranges and subnets


Apply different Content Filter profiles to different groups


Schedule restrictions to specific times of day


URL Keyword Filtering:

Whitelist or Blacklist specific sites or keywords in URLs


Prevent accessing of web sites by using their direct IP address (thus URLs only)


Web Content Filtering:

Block Web sites by category e.g. Adult, Gambling etc.


Includes free 30-day trial


App Enforcement:

Block access to services and applications passing through the router


Block popular P2P (Peer-to-Peer) file sharing programs


Control access to Instant Messaging programs such as Skype, Whatsapp and Facebook Messenger


Block VPN connections and other Tunneling services being established through the router


Control access to Streaming services such as Youtube


Bandwidth Management

Temporary (5 minute) Quick Blocking of any LAN Client


Bandwidth Limit (Shared or individual limit)


Smart Bandwidth Limitation (Triggered by Traffic / Session)


Session Limit


Quality of Service (QoS)

Guaranteed Bandwidth for VoIP


Class-based Bandwidth Guarantee by User-Defined Traffic Categories


Layer 2&3 (802.1p & TOS/DCSP)


DiffServ Code Point Classifying


4-level Priority for each Direction (Inbound / Outbound)


Bandwidth Borrowing


Dial-in (Host) VPN Facilities

SSL VPN (TLS) connections


2 Concurrent active Remote Dial-In User VPN Tunnels


LAN-to-LAN Dial-Out VPN Facilities

2 Concurrent active dial out VPN Tunnels


VPN Pass-Through


Tunnelling Protocols:

PPTP


IPSec


L2TP


L2TP over IPSec


DrayTek SSL


IPSec Features:

Internet Key Exchange : IKEv1 (Main and Aggressive mode) & IKEv2


Security Protocols : AH mode, ESP mode


IKE Authentication : Pre-shared Key or X.509 Digital Signature


DHCP over IPSec


NAT-Traversal (NAT-T)


Dead Peer Detection (DPD)


Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts


DiffieHelman (DH) Groups


IKEv1 : 1,2,5,14


IKEv2 : 1,2,5,14,19,20,21


Encryption


DES / 3DES (168bits)


AES (128/192/256bits) - Hardware-Accelerated


Authentication - Hardware-Accelerated:

MD5


SHA-1


SHA-256


Network Features

2 LAN Subnets with NAT/Routing modes (IPv4)


IPv6 Subnet (as provided by your ISP)


LAN Clients : Up to 253 per subnet


Multi Subnet DHCP Servers with DHCP Relay


Port-Based VLAN (Inclusive/Exclusive Groups)


802.1q VLAN Tagging


Custom DHCP Option support


Port Mirroring


Dynamic DNS


DrayTek DrayDDNS Support


DNS Transparent Proxy


DNS Caching


NTP Client (Synchronise Router Time)


Maximum MTU 1534


Router Management

Web-Based User Interface (HTTP / HTTPS)


CLI ( Command Line Interface ) via Web Console, Telnet or SSH


Administration Access Control


SMS Alert Service


Brute Force Protection


Configuration Backup / Restore


Built-in Diagnostic Function (ping, traceroute)


Firmware Upgrade via Web Interface, TFTP, VigorACS


Logging via Syslog


SNMP v2 & v3 Management with MIB-II


TR-069


TR-104


Access Point Management: Centrally Manage 2 DrayTek VigorAP wireless access points


WAN Features

WAN Connection Fail-over


WAN1 Service & Customer (double-tag) VLAN support


IGMP Proxy - for compatibility with IPTV services


Multi-PVC/VLAN virtual WAN interfaces for Management / IPTV services


WAN Protocols

DHCP Client


Static IP


PPPoE


PPTP/L2TP (Ethernet WAN only


ADSL & VDSL Compatibility

BT Infinity Option 1 & Option 2 Compatible


BT SIN 498 MCT Approved


Support for G.INP & Vectoring


ADSL Standards

ANSI T1.413 Issue2


ITU-T G.992.1 G.dmt (ADSL)


ITU-T G.992.2 G.lite


ITU-T G.992.3 ADSL2


ITU-T G.992.5 ADSL2+


Annex L (READSL)


Annex A


Annex M


ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)


DSL Forum : TR-048/67 & TR-100


VDSL Standards

ITU-T VDSL2 G.993.2


ITU-T G.993.1, G.997.1


Band Plan: G.998, G.997


Annex A, Annex B, Annex C


VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a


OLR, UPBO, DPBO Supported


US0 Supported


Loop Diagnostic Mode


DSL Forum WT-114


ATM Protocols

RFC-2684/RFC-1483 Multiple Protocol over AAL5


RFC-2516 PPP over Ethernet


RFC-2364 PPP over AAL5


PPPoE pass through LAN/WLAN


PPPoE/PPPoA Relay


Transparent bridge for MPoA


Multiple PVC support for Triple Play Applications (up to 8 simultaneous)


Support for RFC4638 for MTU up to 1500


Operating Requirements

Wall Mountable


Operating Temperature : 0 °C
45 °C


Storage Temperature : -25 °C
70 °C


Humidity 10%
90% (non-condensing)


Power Consumption: 12 Watt Max


Dimensions: Length: 207mm, Width: 131mm, Height: 39mm


Weight: 440g (without antenna)


Operating Power: DC 12V 1A (via external PSU, supplied)


Warranty : Two (2) Years RTB


Power Requirements : 220-240VAC
