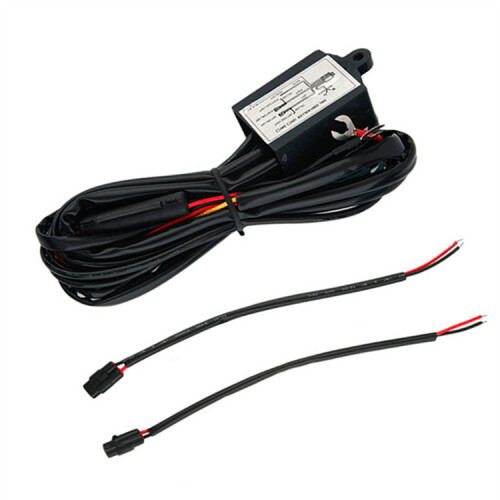

DRL Controller Auto Car LED Daytime Running Light Relay Harness Dimmer On/Off

DRL Controller Auto Car LED Daytime Running Light Relay Harness Dimmer On/Off Description

Features:

Small size and light weight.

Applicable to all models that use modified LED daytime running lights.

Easy to install, no need to replace any wires.

Specifications:

Voltage: DC 12V

Current: 2.5A

Light source power: 30W

Function: steering, flash, delay, dimming or dimming (can be customized for dimming and dimming in the same group)

Wiring:

The red and black wires are directly connected to the positive and negative poles of the car battery;

The blue line is connected to the ACC, and the time-out delay light is turned on (the daytime running light is turned on when the car is started, and it is turned off after a delay of 28 seconds for the convenience of lighting the home function);

White line for headlights (when the headlights are turned on at night, the brightness of daytime running lights is halved; this is an EU standard and safety performance is improved);

Green line flashing (usually connected to the speaker, when the speaker is pressed, the daytime running light flashes, if this function is not needed, you can not connect this line);

Two yellow lines are connected to the left and right turn signals (turn lights, flashing in synchronization with the original car's turn lights, and there is a reminder to the other vehicle to change the driving direction)

Package Included:

1x DRL Controller Switch Harness

Notes:

The colors may be a little difference for the different monitor display.

Please allow minor deviation due to manual measurement.
