DRV2605L Haptic Motor Driver Module Motor Drive Controller for for

DRV2605L Haptic Motor Driver Module Motor Drive Controller for for Description

DRV2605L Haptic Motor Driver Module Motor Drive Controller for for
High compatibility: The module is equipped with STEMMA QT/Qwiic interface, supports plug-and-play, no soldering required, and can be directly connected to for , for , for , for (for Qwiic compatible devices), ensuring seamless integration and operation.
Universal voltage range: It can work efficiently within the 2-5V DC voltage range, suitable for a variety of electronic applications. Advanced tactile feedback: Adopts DRV2605L driver to provide precise tactile feedback and enhance user interaction experience. Compact design: The module is compact and , making it an ideal choice for DIY electronics and robotics projects.
Vibration feedback: The motor drive controller designed for tactile feedback (Haptic) adopts IC interface, built-in LRA (Linear Resonant Actuator) and ERM (Eccentric Rotor Motor) drive algorithm, which can provide rich and real-time vibration feedback.
Multiple motors supported: LRA (Linear Resonant Actuator): Precisely control vibration frequency; ERM (Eccentric Rotor Motor): Traditional vibration motor driver
Efficient drive: Output current up to 800mA (can drive high-power motors); Working voltage 2V-5.2V (compatible with 3V/5V system)
Core features:
Built-in effect library:
Pre-stored 123 tactile effects (click, vibration, pulse, etc.)
Support real-time PWM input custom vibration mode
Intelligent control:
Automatic resonance tracking (Auto-Calibration): Optimize LRA performance
Low power mode: Standby current is only 1A

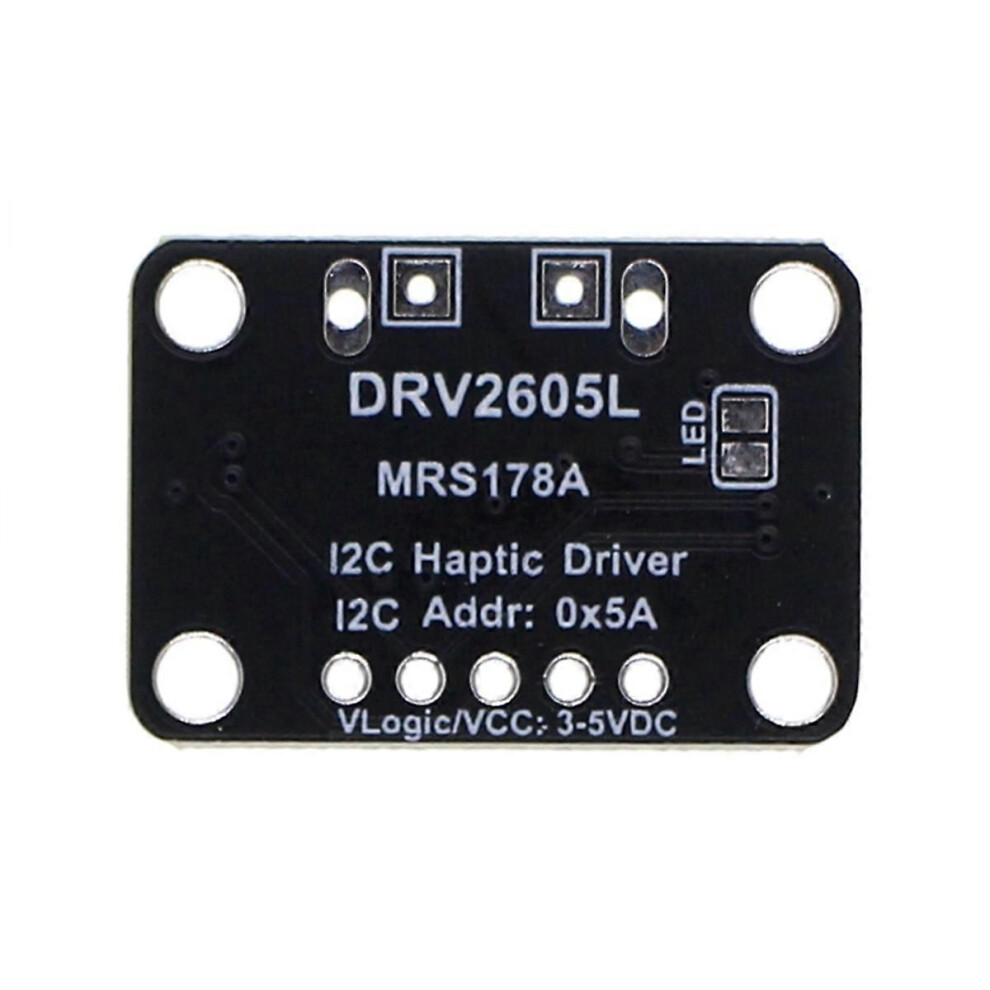

Plug and play interface: STEMMA QT/Qwiic (IC interface, default address 0x5A)
Technical parameters:
Working voltage 2V - 5.2V (recommended 3.3V or 5V)
Maximum output current 800mA (instantaneous)
Control interface IC (Qwiic), PWM input
Built-in effect library 123 preset effects
Motor type support LRA, ERM

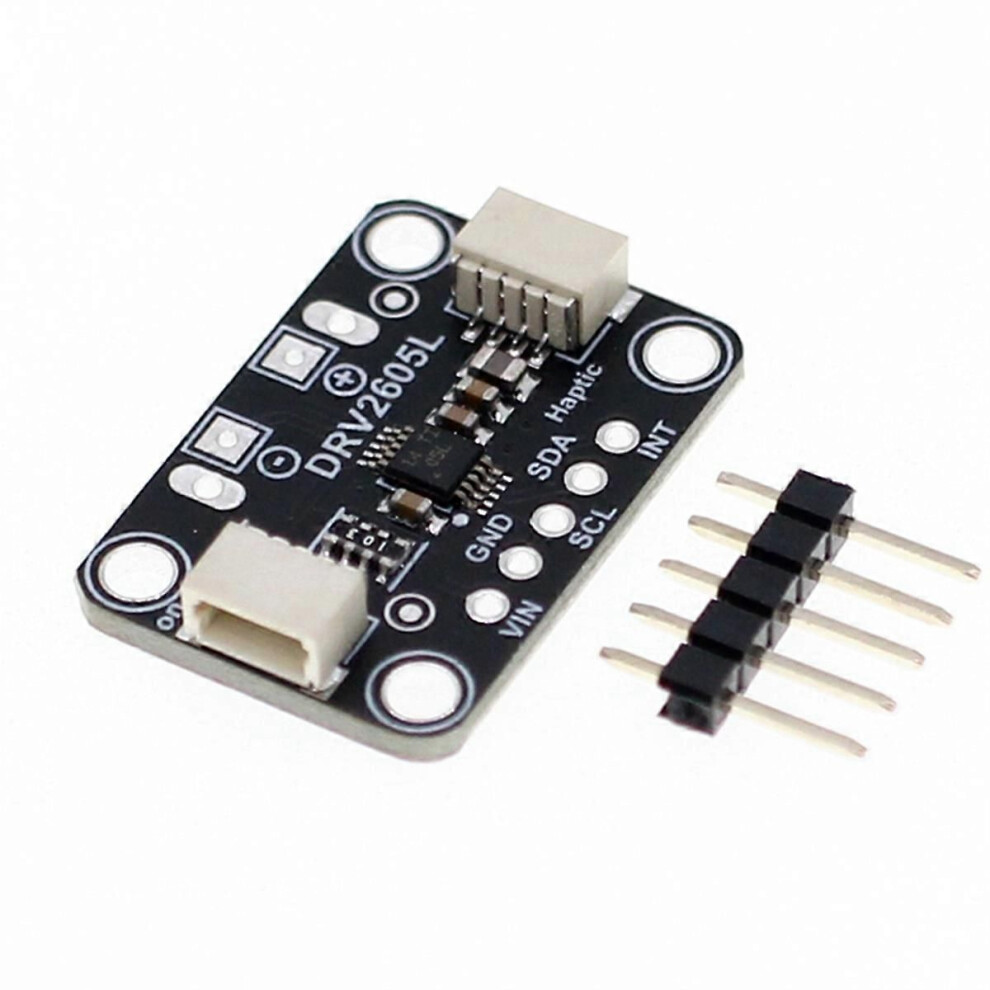

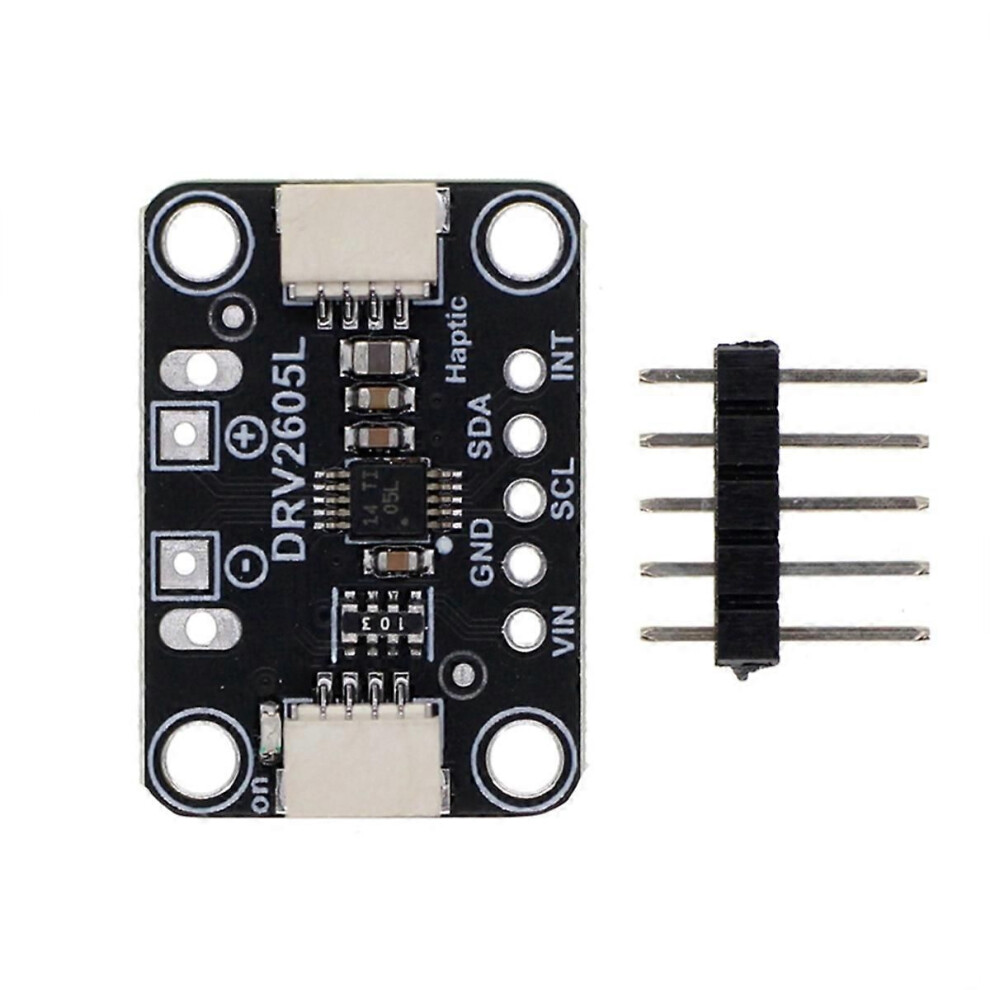

Interface description (STEMMA QT/Qwiic)
Pin Function Color (Qwiic line sequence)
GND Ground Black
VIN Power input (2V-5.2V) Red
SDA IC data line Blue
SCL IC clock line Yellow
Note:
M+ / M- Connect to the motor (external terminals of some modules).
pin (interrupt output, optional).
Typical application scenarios
Haptic feedback device (game controller, VR gloves)
Intelligent interactive interface (touch screen vibration feedback)
Braille display (dynamic tactile prompts)
IoT alarm (vibration reminder)
Color:As Shown
Material:PCB
Package Contents:

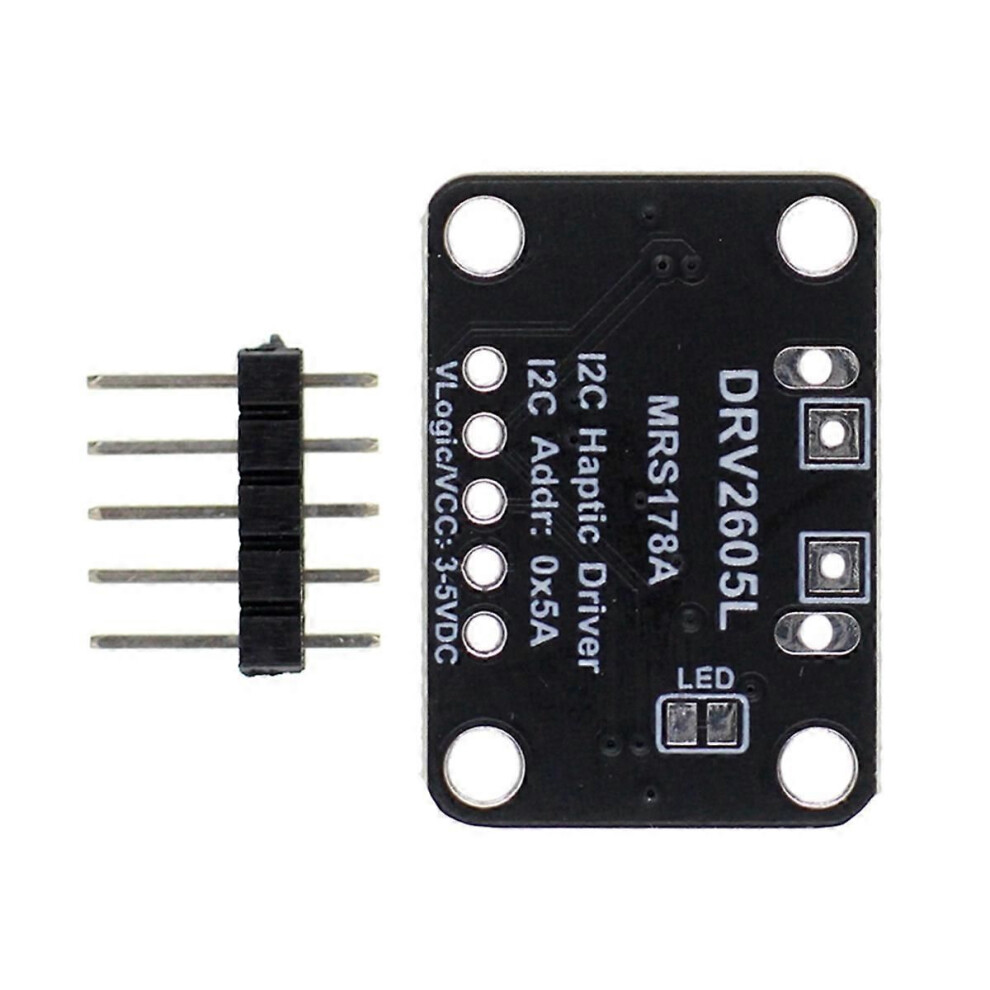

1 * DRV2605L Module
1 * pin header (need to be soldered)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
