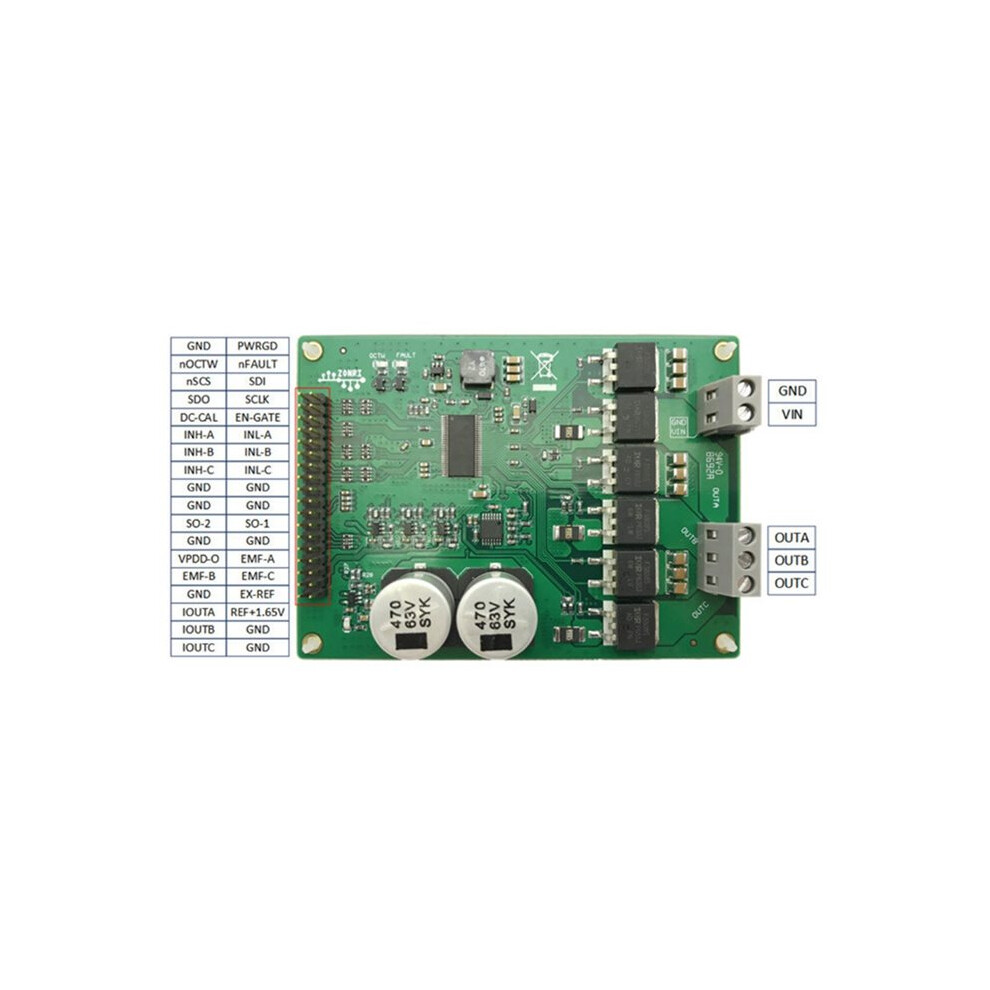

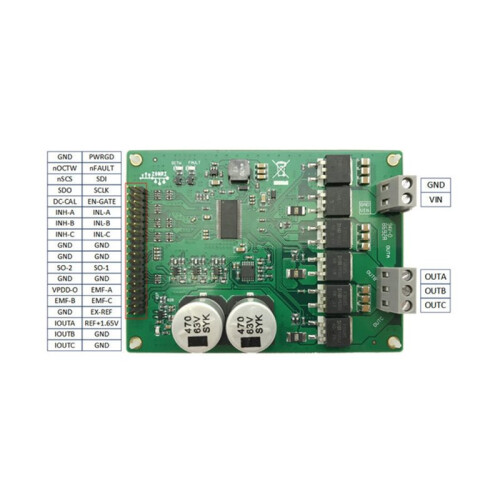

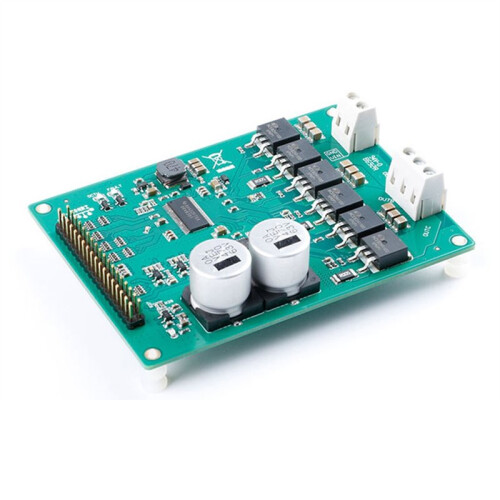

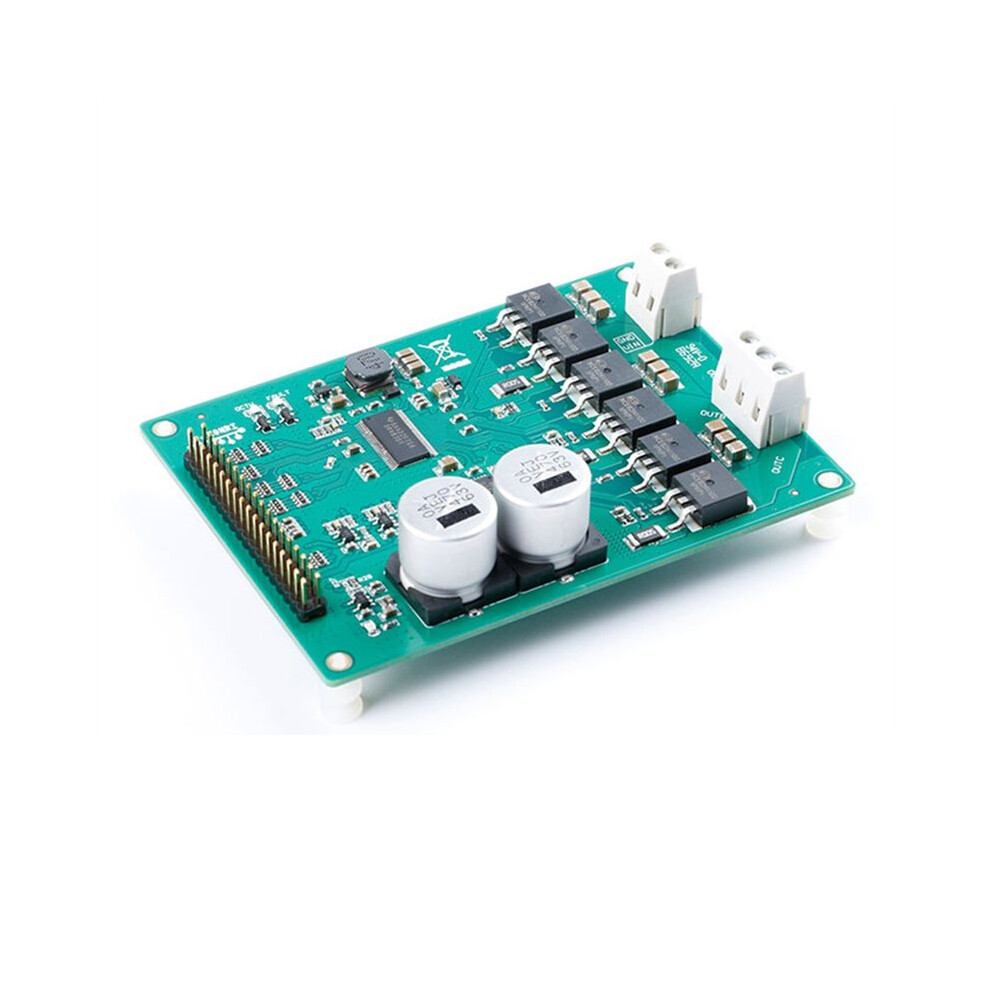

DRV8301 High Power Motor Driver Board Module for ST FOC Vector Control 5.5-45V Brushless/PMSM Drive
Brand Exogio
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£55.19
£67.31
18% off!
FREE Delivery
1%
Earn £0.55 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 8th - Sat 10th Oct
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Rated Power Supply: 5.5V-45V DC.
- Rated Output Drive Current: 15A (Without heat sink at room temperature).
- On-board three-phase external current amplifier circuit with a gain of 12.22 and a full-amplitude current of ±27A.
- Support BLDC non-inductive brushless motor drive application and development.
- DRV8301 Module
DRV8301 High Power Motor Driver Board Module for ST FOC Vector Control 5.5-45V Brushless/PMSM Drive Description
Rated Power Supply: 5.5V-45V .
Rated Output Drive Current: 15A (Without heat sink at room temperature).
-board three-phase external current amplifier circuit with a gain of 12.22 and a full-amplitude current of 27A.
Support BLDC non-inductive brushless motor drive application and development.

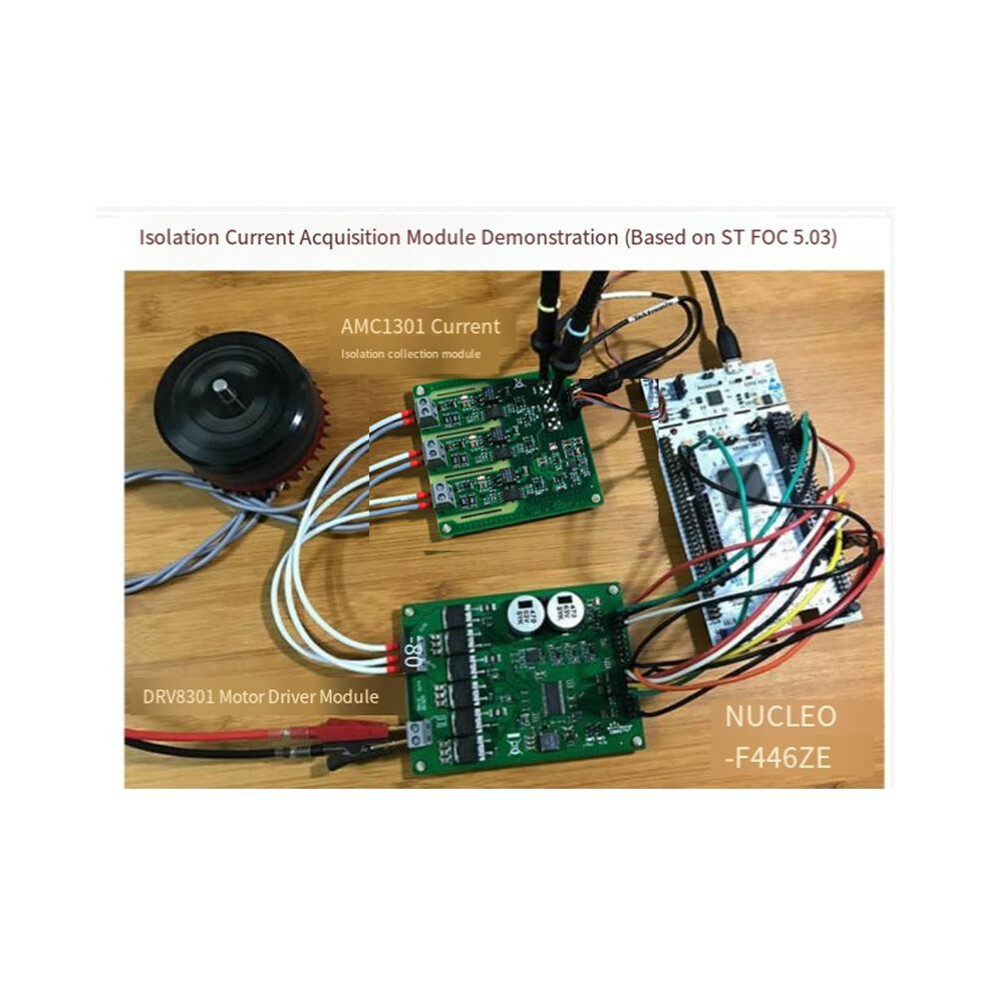

-board three-phase back emf sampling circuit and power sampling circuit, the signal attenuation ratio is 5.1/73.1. Optional three-phase differential current amplifier reference level for connection to 5V or other level systems. Reserved and equipped with DRV8301 internal dual-channel amplifier output. Three-channel external current differential amplifier for ST FOC library applications.
Color: As Shown
Material: PC
Package Contents:
1*Module
Details
| OPC | PTDRBBK |
|---|---|
| Brand | Exogio |
| Codes | 4712970381565 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 9cm |
| Length | 12cm |
| Weight | 0.0955kg |
| Colour | As Shown |
| Material | PC |
