DSE5110 Engine Controller Module LCD

DSE5110 Engine Controller Module LCD Description

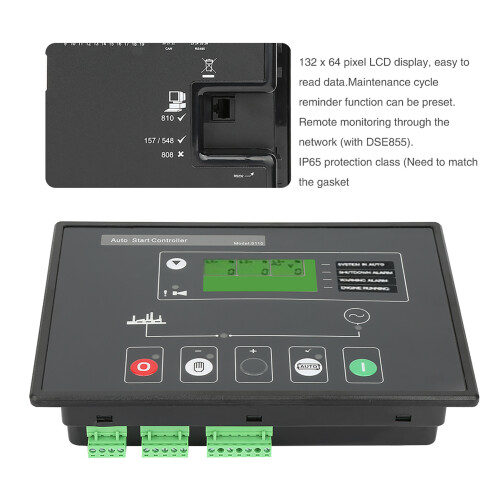

This DSE5110 engine controller module features a 132 x 64 pixel LCD display. It accurately displays and records time. Multiple start and stop cycles can be preset, and a maintenance cycle reminder function is available. Remote network monitoring is supported with the DSE855. The module is compatible with BMS systems and offers IP65 protection (with gasket). The microprocessor controller shows generator parameters such as three-phase voltage, three-phase current, frequency, oil pressure, water temperature, engine speed, battery voltage, and cumulative running hours. It provides protection for overspeed/underspeed, low oil pressure, high water temperature, start failure, emergency stop, speed signal loss, and charging failure. The power supply is DC 8~35V, with an operating temperature range of -30 to +70C. The auxiliary relay output is 5Amp. The package list includes one controller. Please note that the new or old type will be sent randomly.
