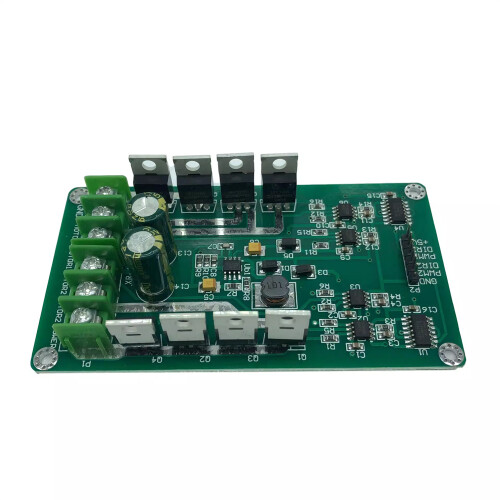

Dual Motor Driver Module H-Bridge, IRF3205 MOSFET, 3-36V, 10A Continuous, 30A Peak

Dual Motor Driver Module H-Bridge, IRF3205 MOSFET, 3-36V, 10A Continuous, 30A Peak Description

Features:

The drive performance of these non-L298 motor driver chip can be compared

The driver focus on current and efficiency,effectively motor power and battery life

Can withstand high current overload,the maximum current up to 30A

This drive also has a brake function can be quickly stopped the motor,brake quickly,braking obvious,easy to implement this feature

The drive uses the full two half-bridge driver chip+low resistance N-channel MOSFET components

Completer two half-bridge driver chip reliable drive mode

The MOSFET switching losses to a minimum.Improve power utilization

MOSFET driver chip comes with hardware brake function and power feedback

This drive is superior integrated low power chip solution

And the other half-bridge power margin in the coordinated combination

Of programs and complex issues and complementary drive problems

N-channel MOSFET IRF3205 MOSFET,use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor

So that the tube has enough drive voltage of the MOSFET channel can be opened quickly

Improve motor acceleration curvature,but also quickly for the motor brake.This allows the trolley can quickly start can quickly kill the car

The driver can operate at 0-99% of the duty cycle of the PWM modulation,the motor driving voltage can be obtained sufficiently

Specification:

Motor forward:DIR=1 PWM=PWM

Motor reversal:DIR=0 PWM=PWM

Parking brake:DIR=X PWM=0(X is an arbitrary state)

Motor and power connections

POWER connected to the positive power supply,GND power supply is negative.Two motors were connected MOTOR1,MOTOR2

Rated voltage:3V-36V(can be customized according to the user)

Rated Current:10A

Peak current:30A

Dimensions:108mm*58mm

Package Included:

1*Dual Motor driver module board H-Bridge DC MOSFET IRF3205 3-36V 10A

Note:

Please note that the diameter meets your needs before purchasing

Only include the above packaging products

Specifications have been manually tested and are for reference only

Please refer to the actual situation,thank you
