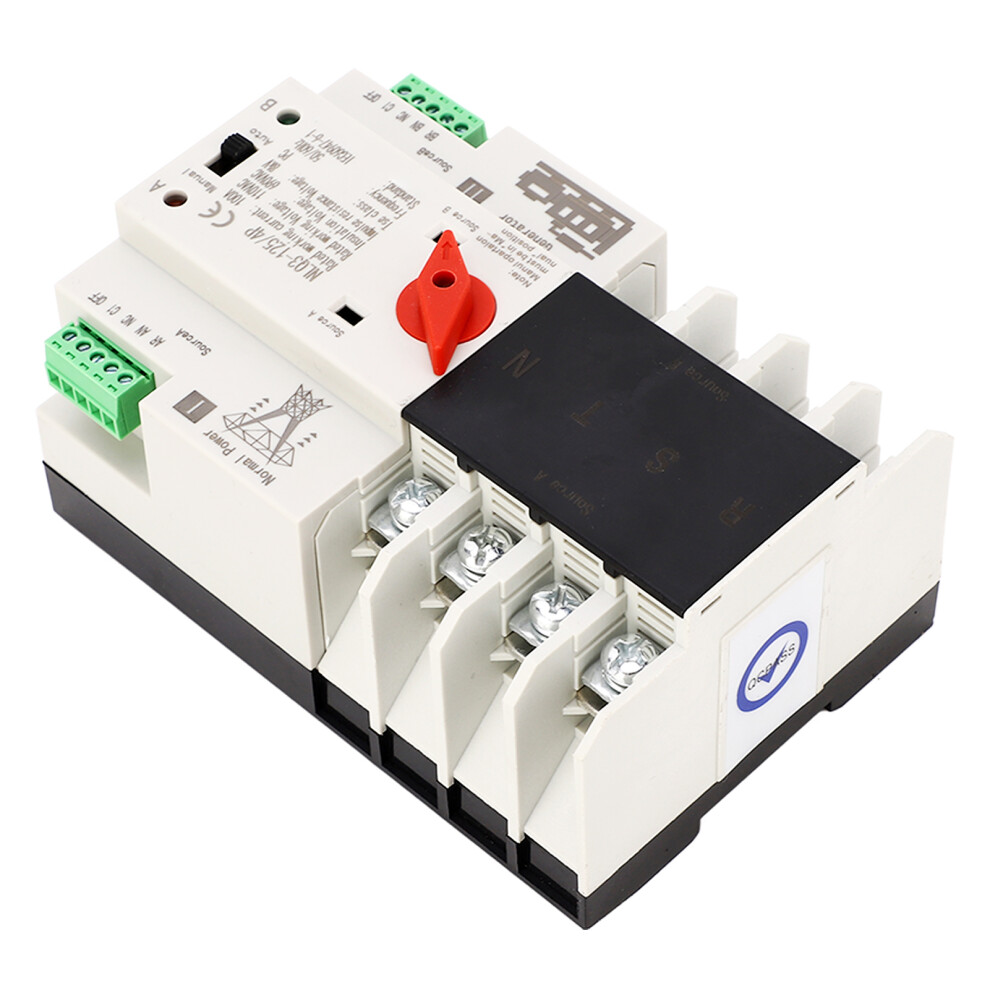

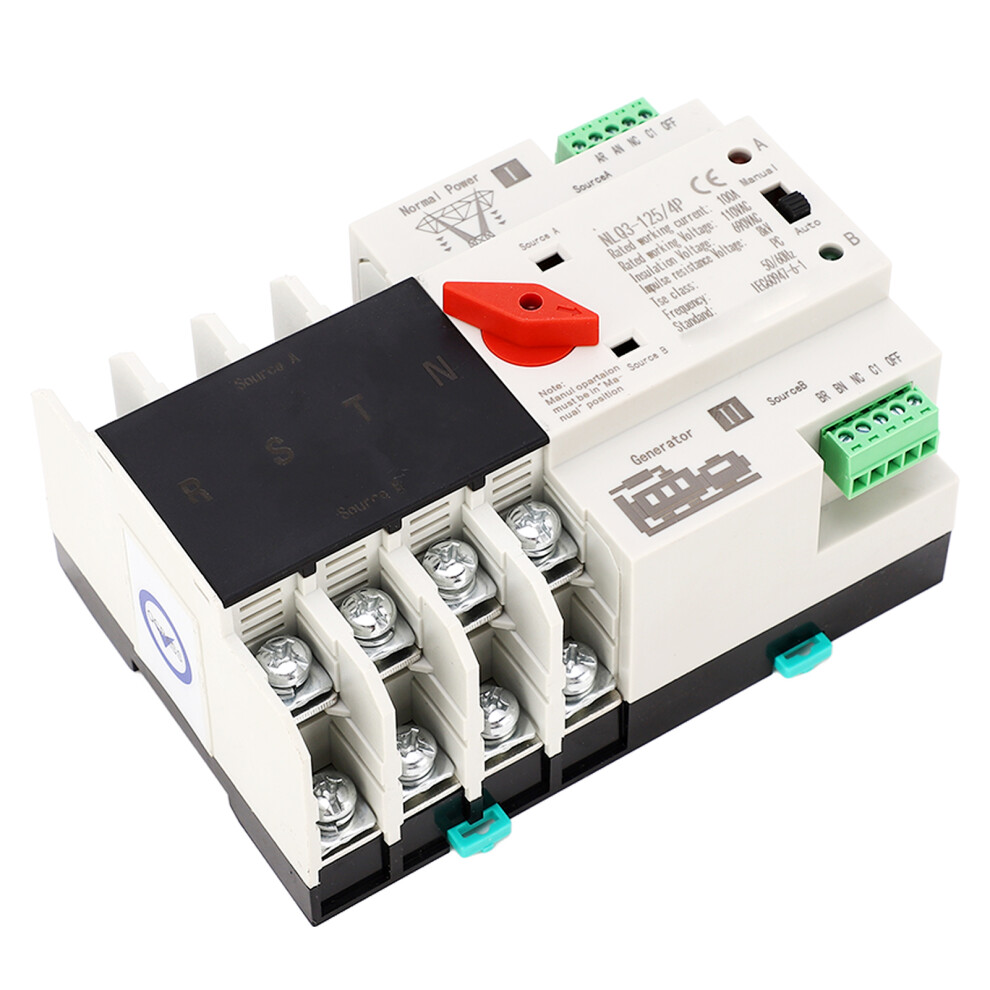

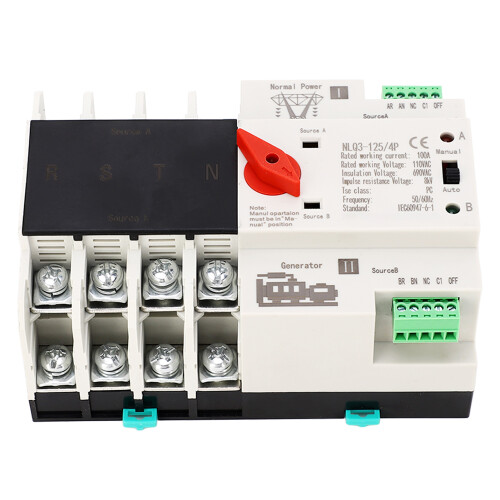

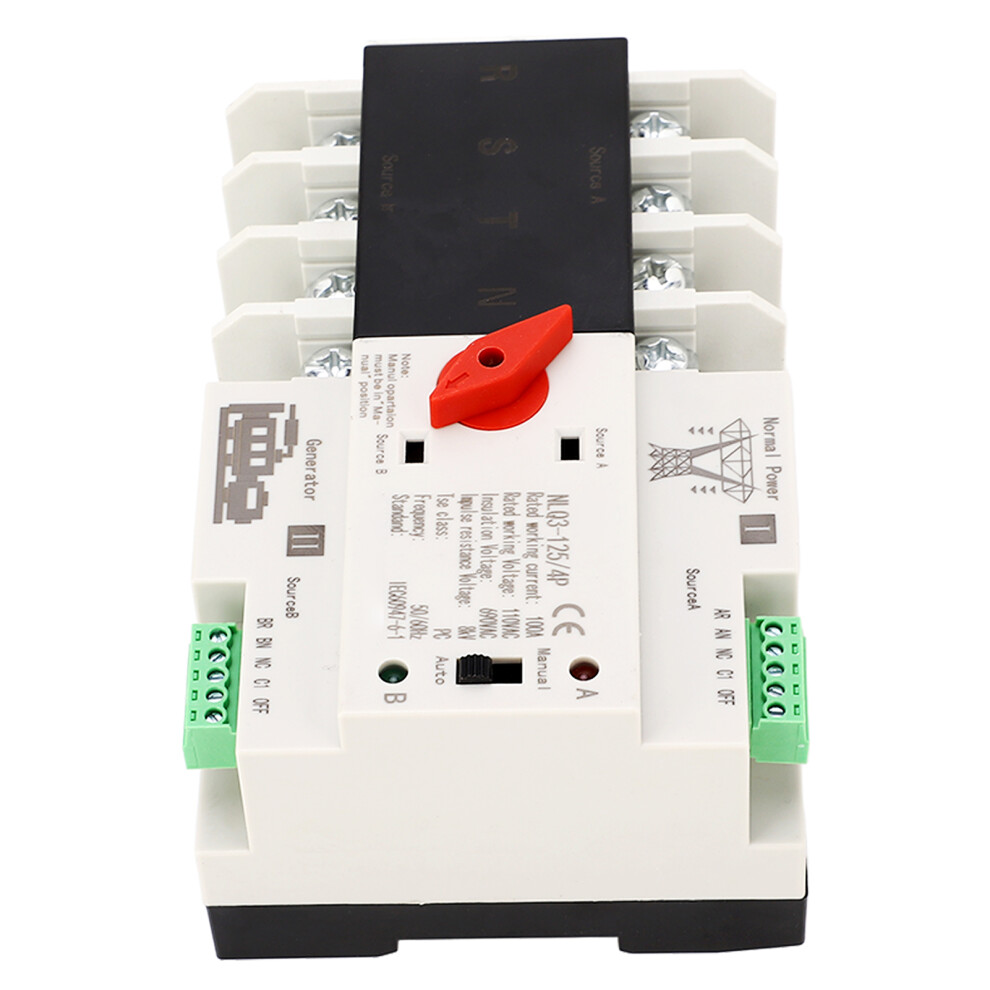

Dual Power Automatic Transfer Switch 4P 100A 110V AC

Dual Power Automatic Transfer Switch 4P 100A 110V AC Description

1、2 Operation Modes: Dual power automatic transfer switch can be operated automatically or manually, the millisecond switching is uninterrupted, the structure is compact, the transmission is reliable, the installation and maintenance are convenient, and the service life is long. 2、Continuous Power Supply: When the normal power supply is abnormal, the backup power supply works immediately to ensure the continuity, reliability and safety of the power supply. 3、Rail Mounted: This automatic transfer switch is suitable for emergency power supply systems rated 110V 100A at 50 or 60Hz AC, which is specially designed for domestic rail installation and is specially designed for PZ30 distribution boxes. 4、Wide Application: This automatic transfer switch is used in various occasion where continuous power outages are not allowed, such as homes, shopping malls, factories, laboratories, farms, etc. 5、Reliable Material: The changeover switch is made of excellent flame retardant PC material, with excellent insulation, high temperature resistance, silver contacts anti aging, safe and reliable.
Item Type: Dual Power Automatic Transfer Switch
Material: PC and silver
Model: NLQ3 125 4P
Rated Current le: 100A
Insulation Voltage Ui: AC690V
Rated Voltage Ue: AC110V
Frequency: 50 or 60Hz
Rated Control Voltage US: 110VAC 85% Us to 110% Us
Level: PC level
Specification: 4P
Service Life:
Electrical: 2000 times
Mechanical: 5000 times
Rated Short Circuit Current: 50kA
Fuse: RT16 00 63A
Rated Impulse Withstand Voltage: 8kV
Auxiliary Circuit: 2 relays, each with two sets of contact capacity: AC110V50HZ le=5y
