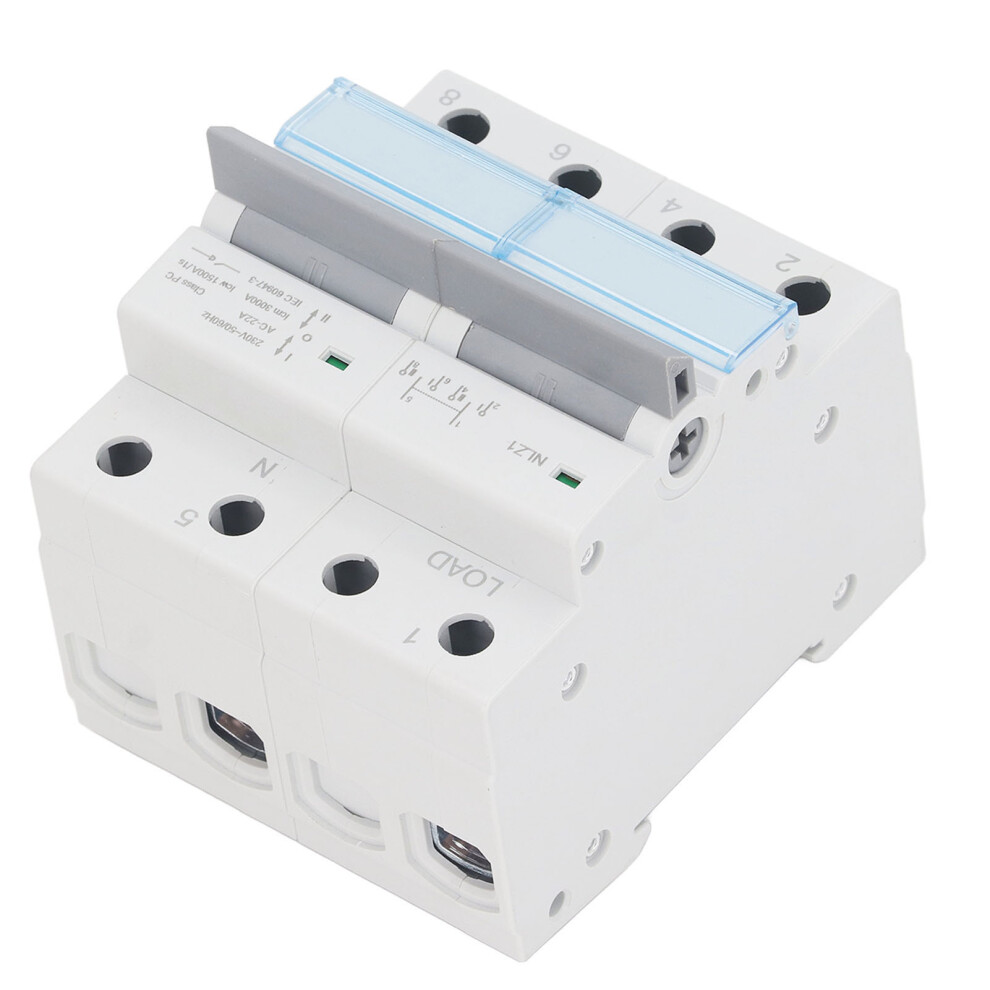

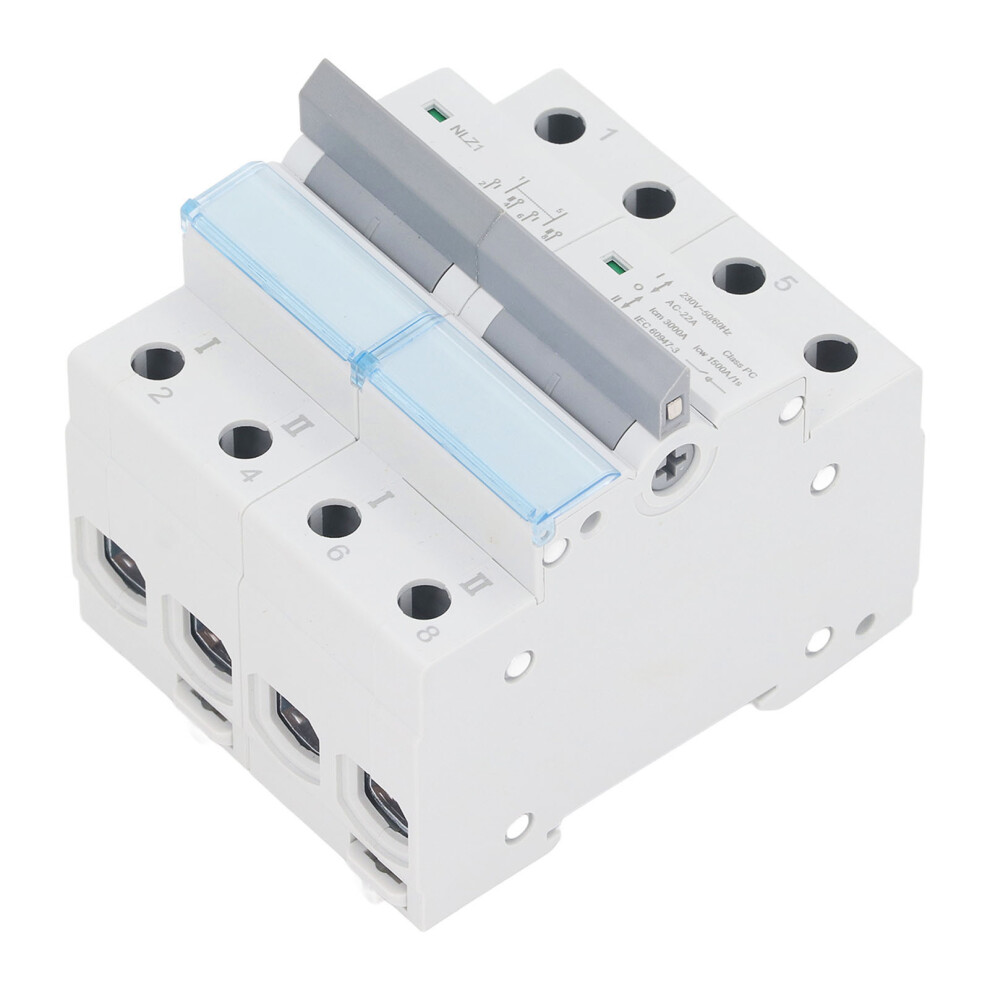

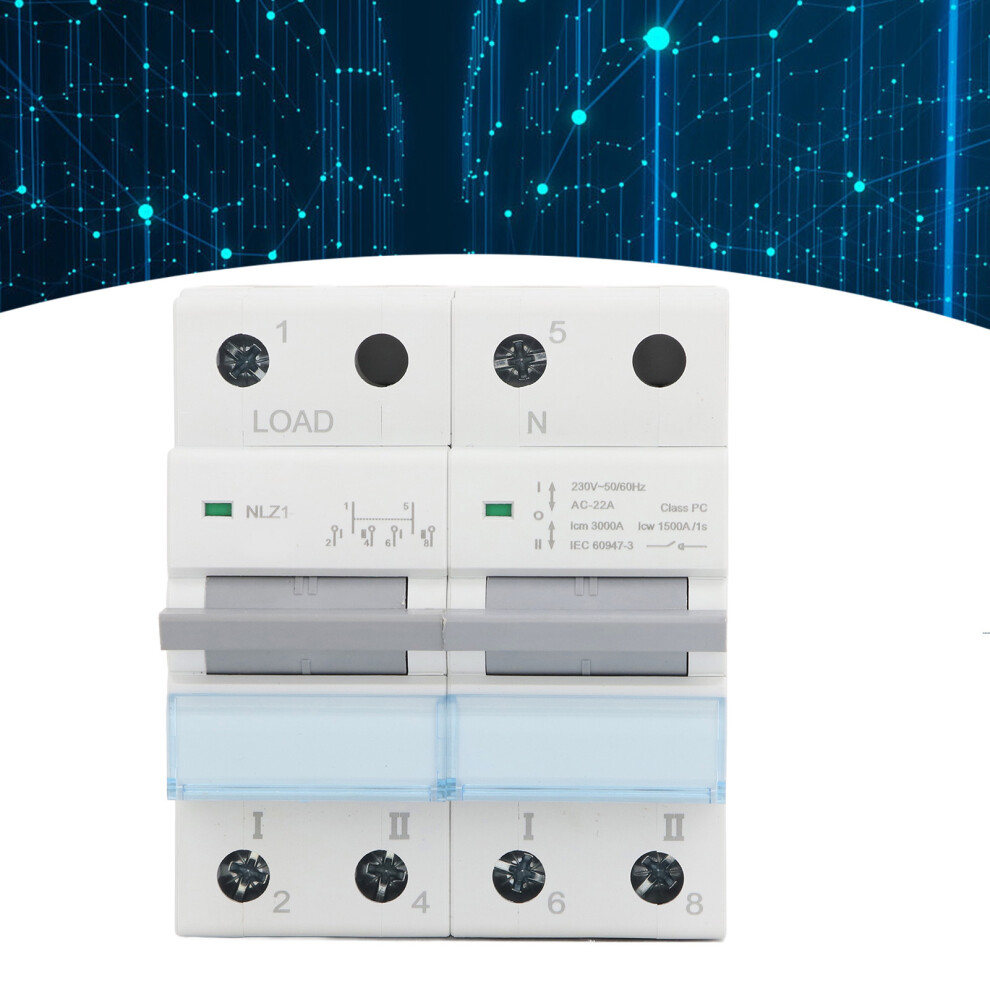

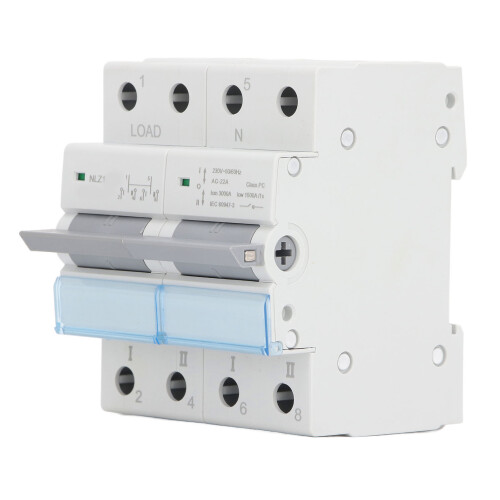

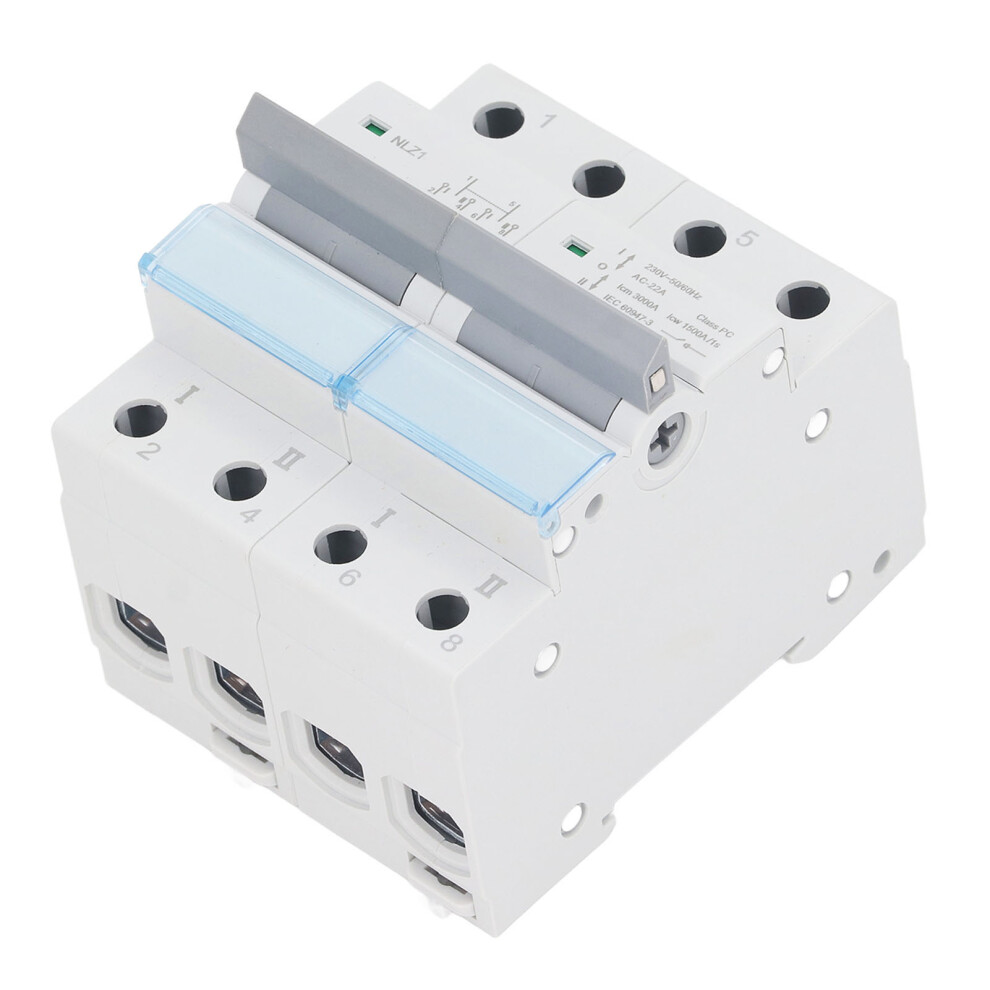

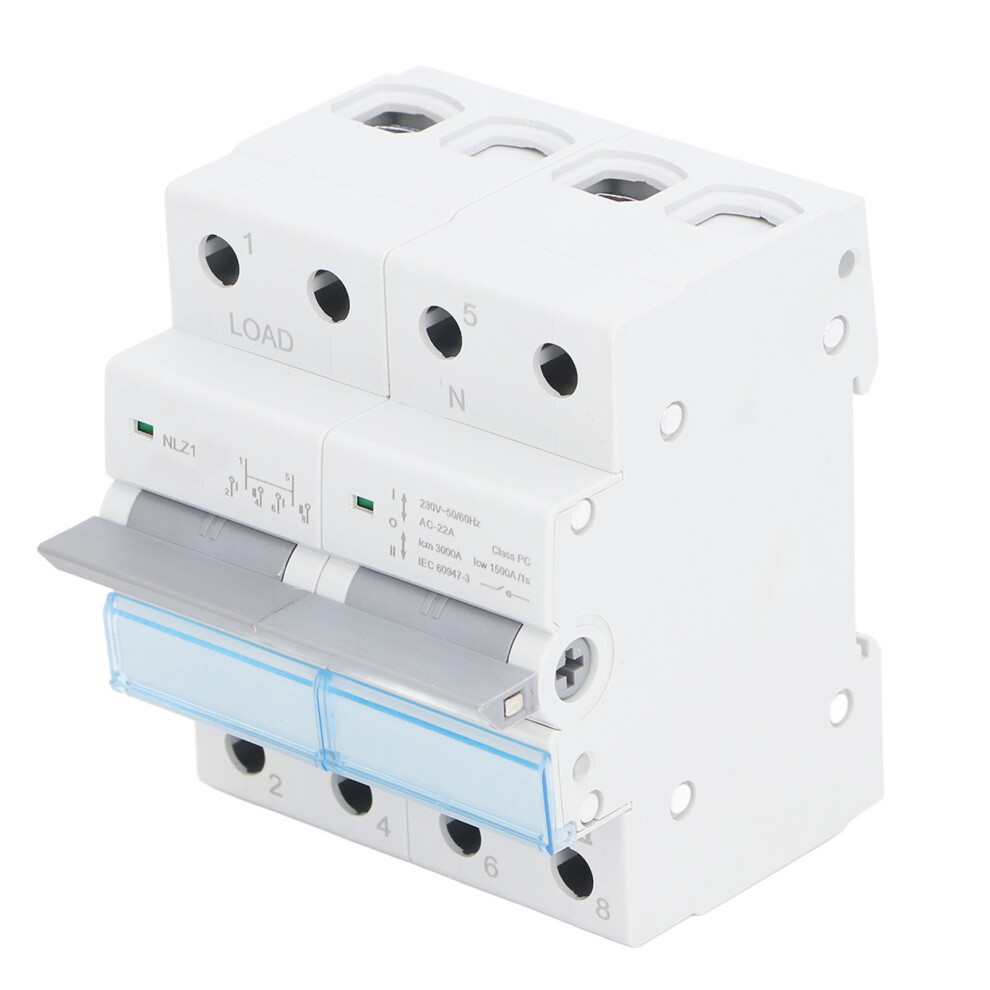

Dual Power Manual Transfer Switch 230VAC 2 Poles

Dual Power Manual Transfer Switch 230VAC 2 Poles Description

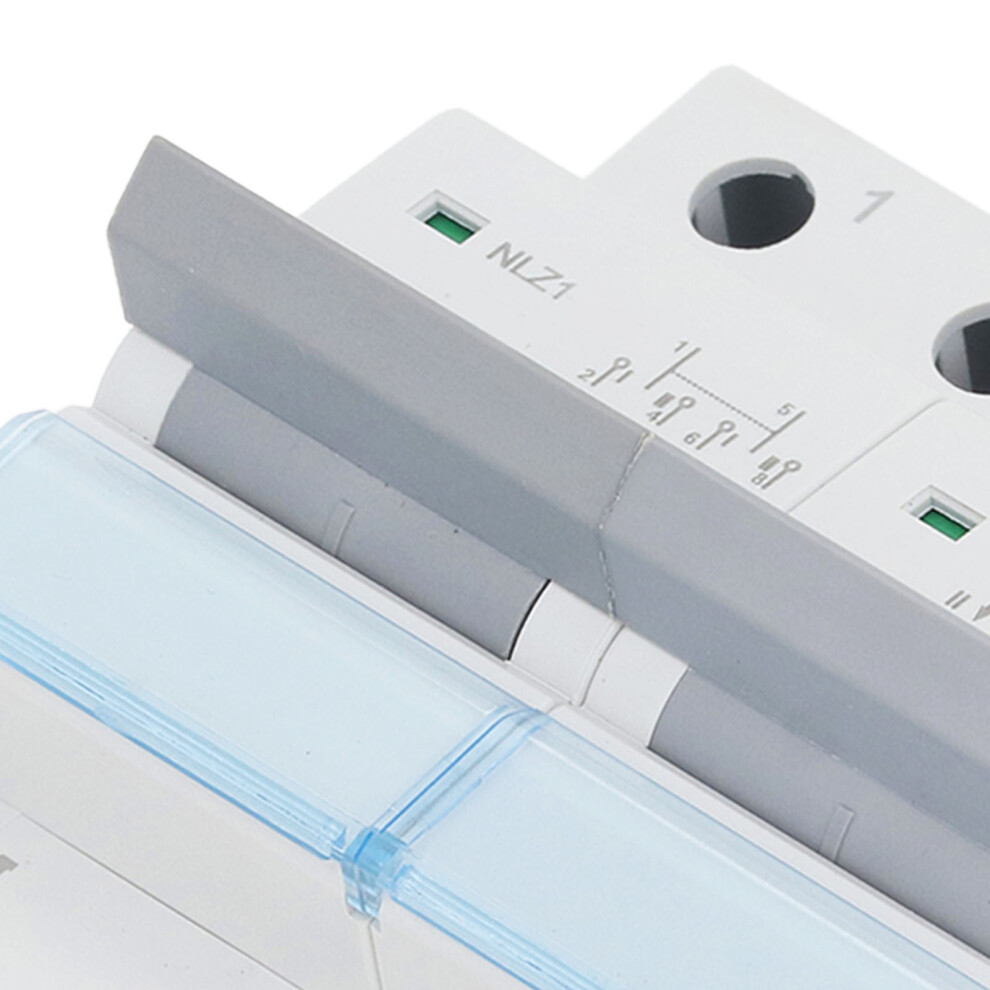

Dual Power Manual Transfer Switch 230VAC 2 Poles DIN Rail Mounting Single Side Interlock Power Transfer Switch 100A



1、Safe And Reliable: This dual power manual transfer switch is safe and reliable for manually switching dual power circuits with overload and short circuit protection. 2、Single Side Interlock: This power manual transfer switch utilizes a single side interlock, where the handle of the right side circuit breaker is interlocked with the internal striker mechanism of the left side circuit breaker. Therefore, opening the right side breaker will trip the left side breaker. 3、Silver Alloy Contacts: This PC material DIN rail mount RV transfer switch uses silver alloy contacts for good conductivity and sensitive switching. 4、PC Flame Retardant Material Shell: The shell of this manual transfer switch is made of excellent PC material, which is sturdy, wear resistant, not easy to be damaged and flame retardant. 5、Wide Application: This back up generator transfer switch has a wide range of applications and can be used for RV, home, generator or other dual power systems.

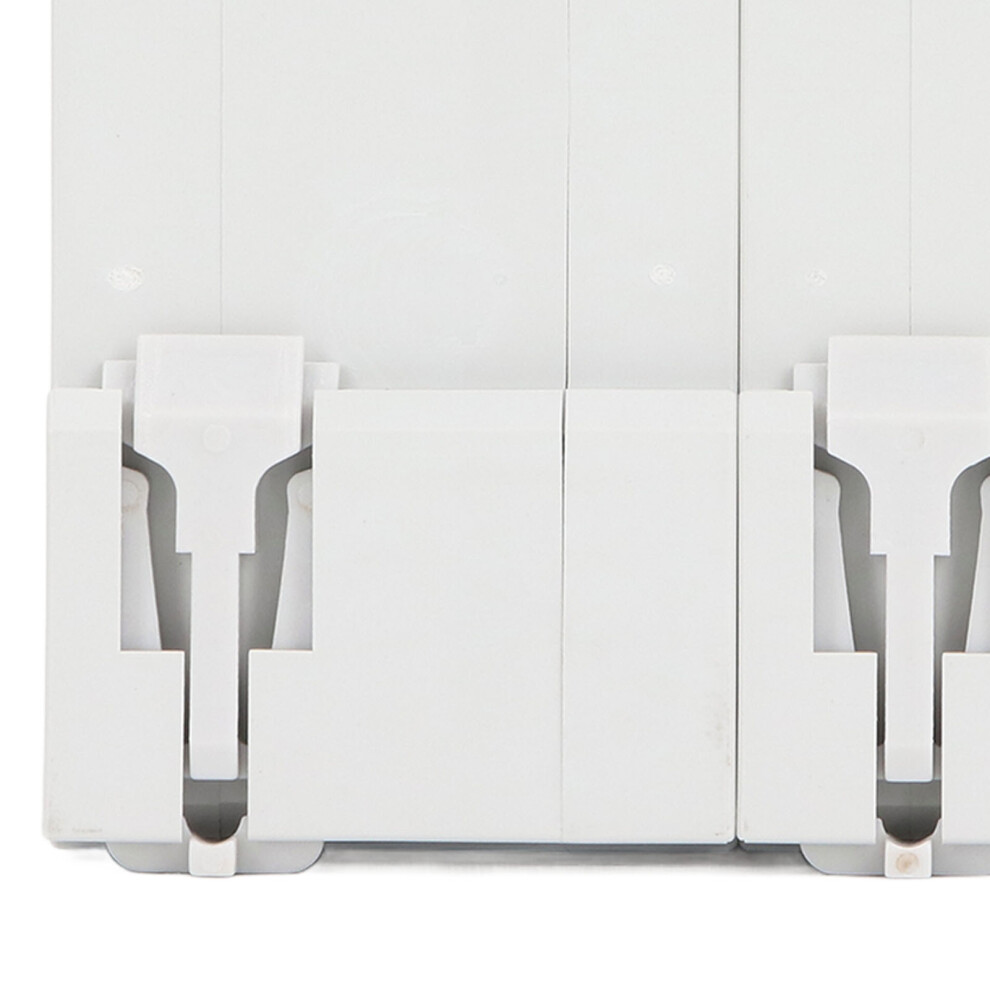

Item Type: Dual Power Manual Transfer Switch Model: NLZ1-125 Material: PC Flame Retardant, Silver Rated Voltage: 230VAC Rated Frequency: 50, 60HZ Pole Number: 2P Short Circuit Turn On Capacity: 3000A Short Time Withstand Current: 1500A/1s Electrical Life: >1500 Times Mechanical Life: >8500 Times Protection Grade: IP20 Ambient Temperature: -5-40 Terminal, Cable Size: 16mm² Mounting: 35mm Rail 3 Color Windows: Red (Trip), Yellow (Overload Protection), Green (Normal Work)



1 x Dual Power Manual Transfer Switch
