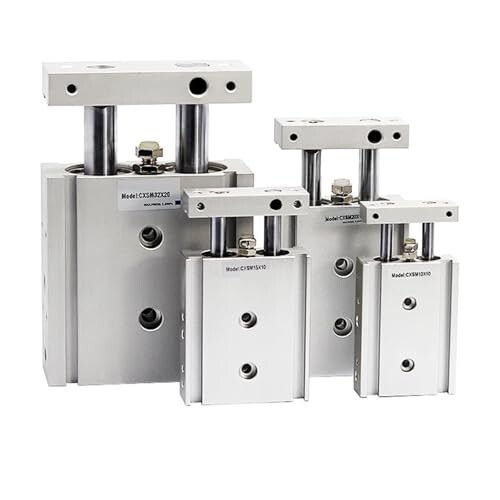

Dual Rod Pneumatic Cylinder 150mm Stroke Double Axis Design for Stable Linear Motion

Dual Rod Pneumatic Cylinder 150mm Stroke Double Axis Design for Stable Linear Motion Description

Product overview A dual rod pneumatic cylinder designed for stable linear motion and balanced pushing and pulling on two parallel axes. Compact double axis construction minimizes rotation of the load and delivers consistent stroke control. Supplied as a single unit for integration into pneumatic systems. Key specifications Type: Dual rod pneumatic cylinder, CXSM design Model number: CXSM1025 Size: CXSM6 Stroke length: 150 mm Quantity: 1 piece Key benefits Stable, lowrotation output: Dual rod configuration provides symmetric guidance to reduce torque on the load and keep movement aligned. Balanced push and pull: Two rods share the load, improving repeatability when applying force from either side. Spaceefficient double axis design: Provides guided linear motion without the need for additional external guide rails, saving space in compact assemblies. Easy integration: Standard cylinder form factor and mounting options support straightforward connection to common pneumatic systems and accessories. Reliable control of stroke: Positive mechanical guidance helps maintain consistent positioning over repeated cycles. Function and compatibility Function: Converts pneumatic pressure into controlled linear motion with two parallel output rods for guided actuation. Compatibility: Intended for use with standard pneumatic equipment and control valves sized for CXSM series cylinders. Ensure system pressure and fittings match the model requirements before installation. Practical attributes to consider Size and stroke: Size CXSM6 with a 150 mm stroke provides a midlength travel suitable for many positioning and ejection tasks. Model reference: CXSM1025 identifies this specific configuration for ordering and system matching. Quantity: Single unit, suitable for replacement or individual installation. Typical applications Assembly fixtures: Provide synchronized pushing and alignment of parts from both sides in automated assembly stations. Material handling and pick and place: Actuate grippers, stops, or transfer gates where controlled, lowrotation linear travel is required. Machine tooling and jigs: Serve as guided actuators for presses, clamps, or positioning devices that benefit from dualaxis stability. Installation and use tips Confirm matching pneumatic fittings and pressure ratings before connecting to your system. Mount securely to maintain rod alignment and avoid side loads that exceed the cylinder guidance capability. Regularly inspect rod surfaces and seals for wear to maintain consistent performance. This dual rod pneumatic cylinder offers a practical solution when guided, lowrotation linear motion is required in automated or manual industrial setups.
