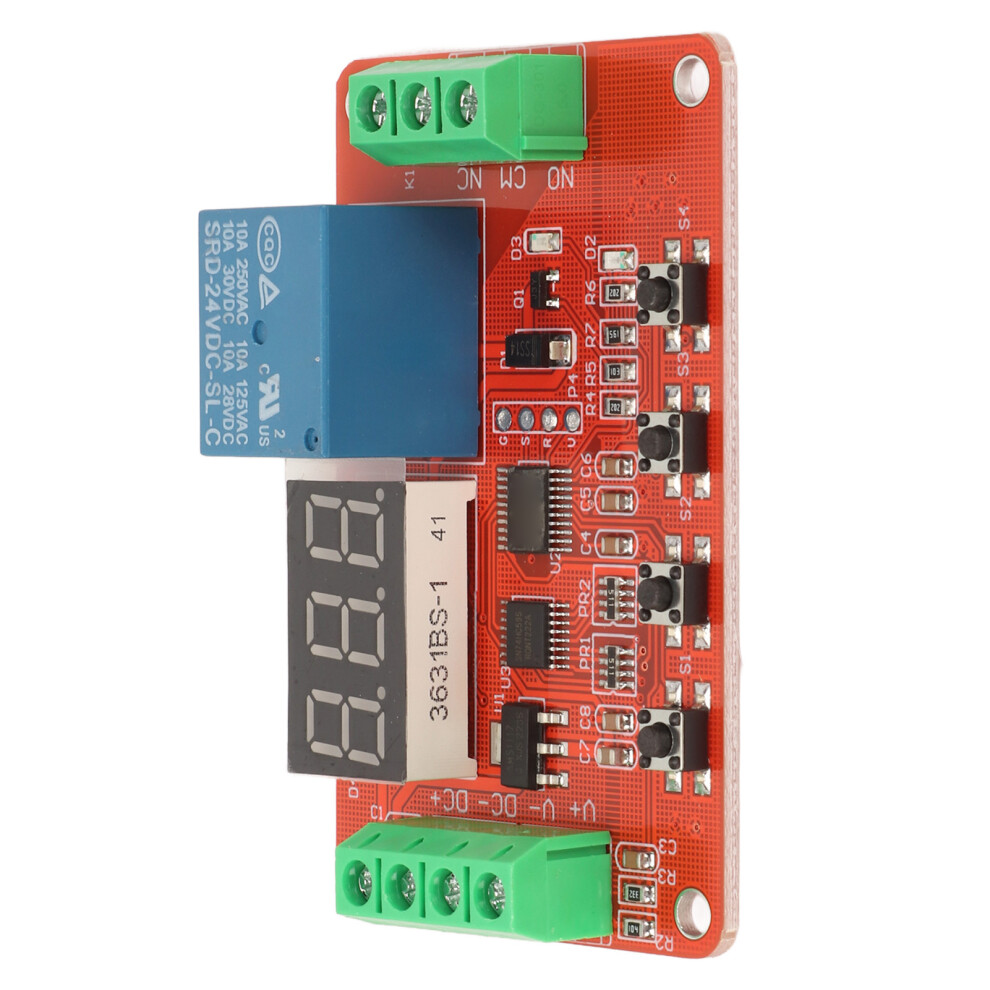

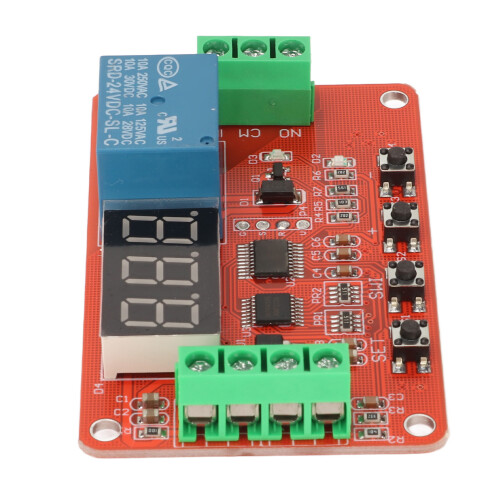

DVB01 Digital Voltage Comparator Module 24V Over/Undervoltage Protection

DVB01 Digital Voltage Comparator Module 24V Over/Undervoltage Protection Description

DVB01 Digital Voltage Comparator Voltage Measurement Charge Discharge Overvoltage Undervoltage Overload Protection Module 24V
Item Type: Digital Voltage Comparator
Material: PCB
Working Current: Less Than 90mA at 5v (less Than 12mA when the Relay Does Not Act, Less Than 3mA when the Display is Closed)
Less Than 50mA at 12v (less Than 12mA when the Relay Does Not Act, Less Than 3mA when the Display is Closed)
Less Than 35mA at 24v (less Than 12mA when the Relay Does Not Act, Less Than 3mA when the Display is Closed)
Working Temperature: - 20 to 60 (limit Range - 30 to 70 )

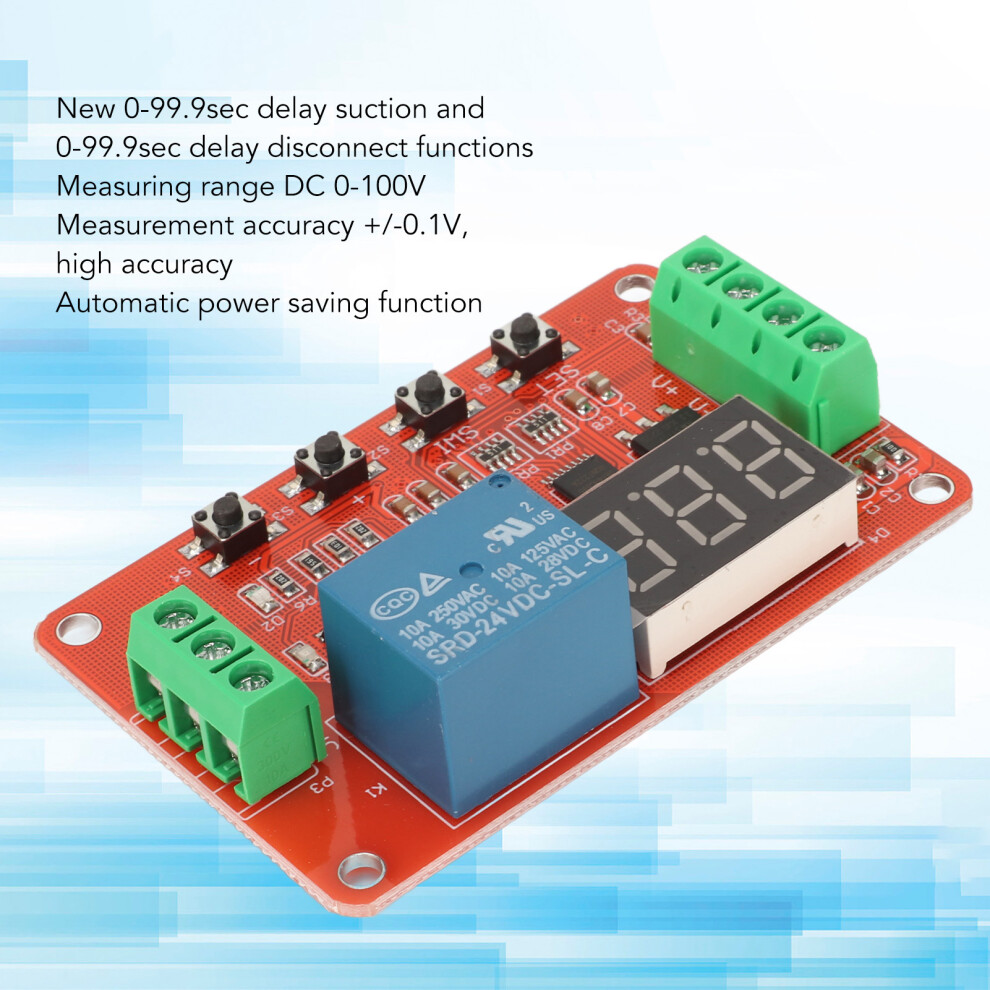

Measuring Range: 0-99.9v
Load Capacity: Maximum Load Capacity of Normally Open Port of Relay: Dc 0-30V/10A, Ac 0-250V/10A
Maximum Load Capacity of Normally Closed Port of Relay: Dc 0-28V/10A, Ac 0-125V/10A

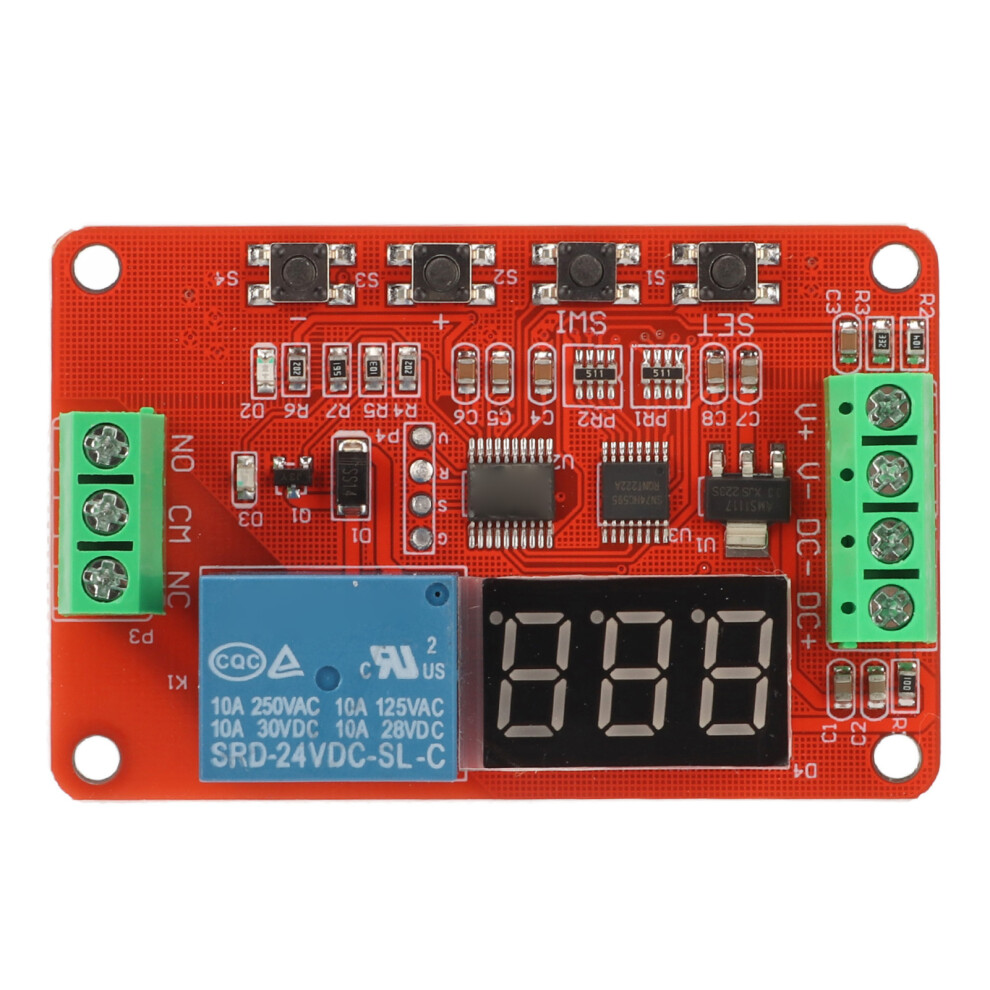

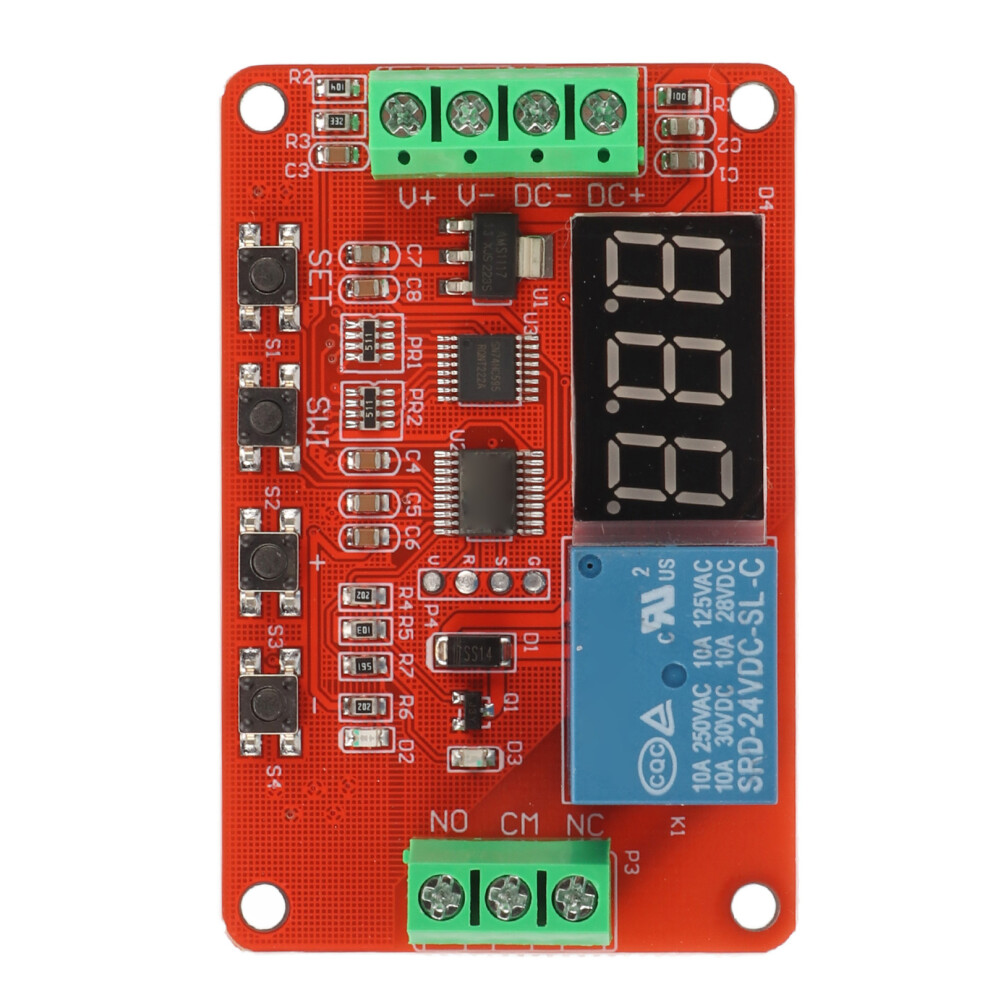

Module Interface:
Module Voltage Input Terminal: There Are 4 Wire Interfaces, and All Interfaces Are Equipped with Terminal Blocks, Which Are Convenient for Users
DC+: Positive Pole of DC Power Supply
DC-: Negative Pole of DC Power Supply
V+: Measuring Voltage Positive Pole
V-: Measuring Voltage Negative Pole

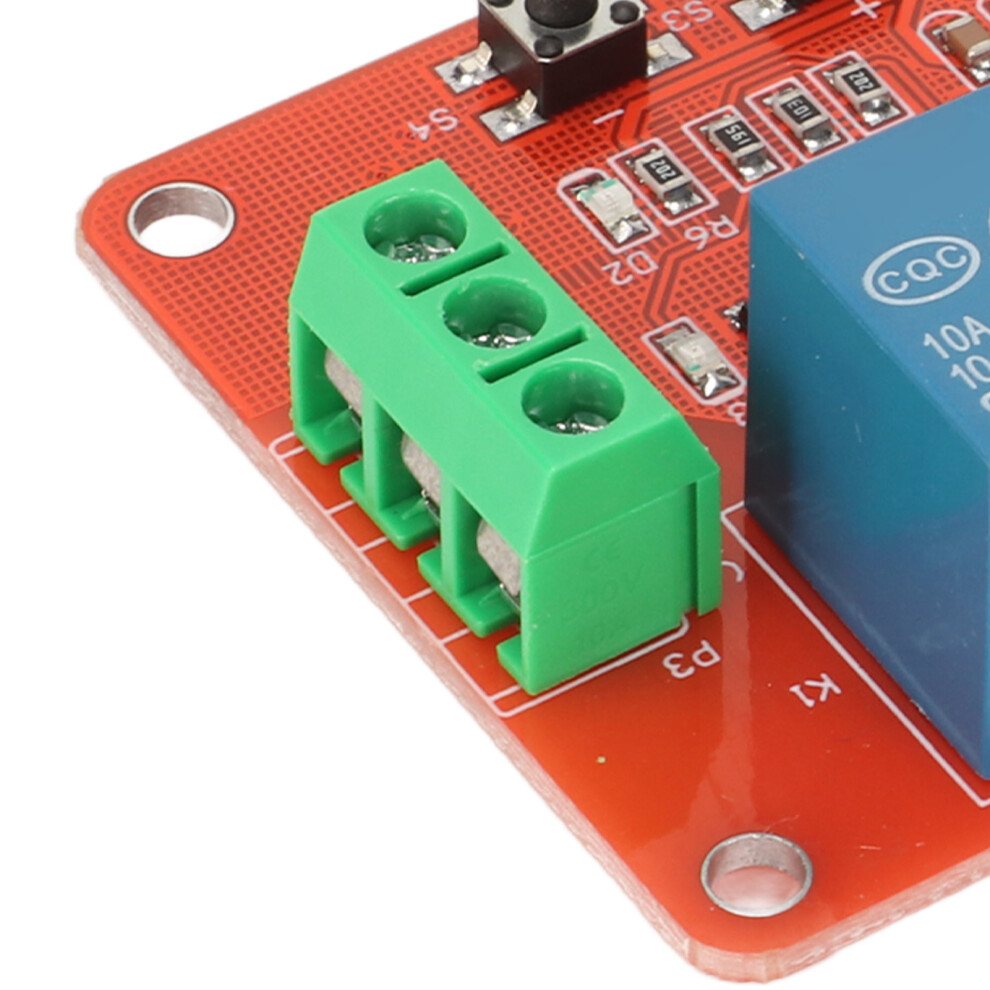

Load Output Terminal of Relay: There Are 3 Wire Interfaces, and All Interfaces Are Provided with Terminal Blocks
NO: Normally Open Interface of Relay; The Relay is Suspended Before Suction, and is Short Circuited to Com After Closing
COM: Relay Common Interface
NC: Normally Closed Interface of Relay, Short Circuited with Com Before Relay Closing, Suspended After Closing
