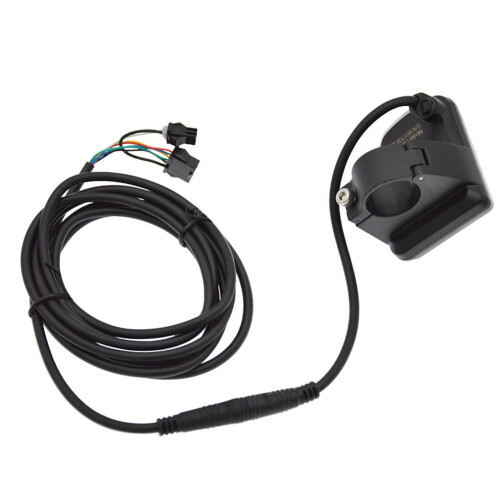

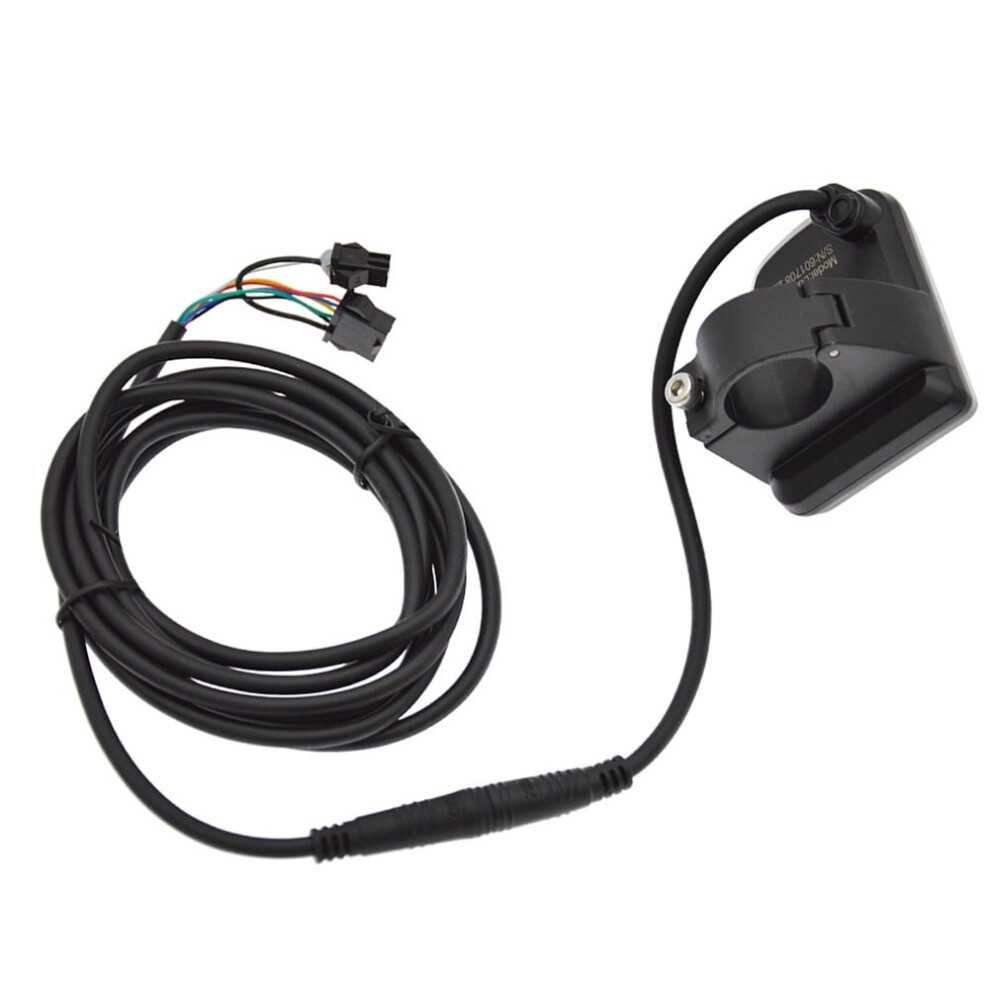

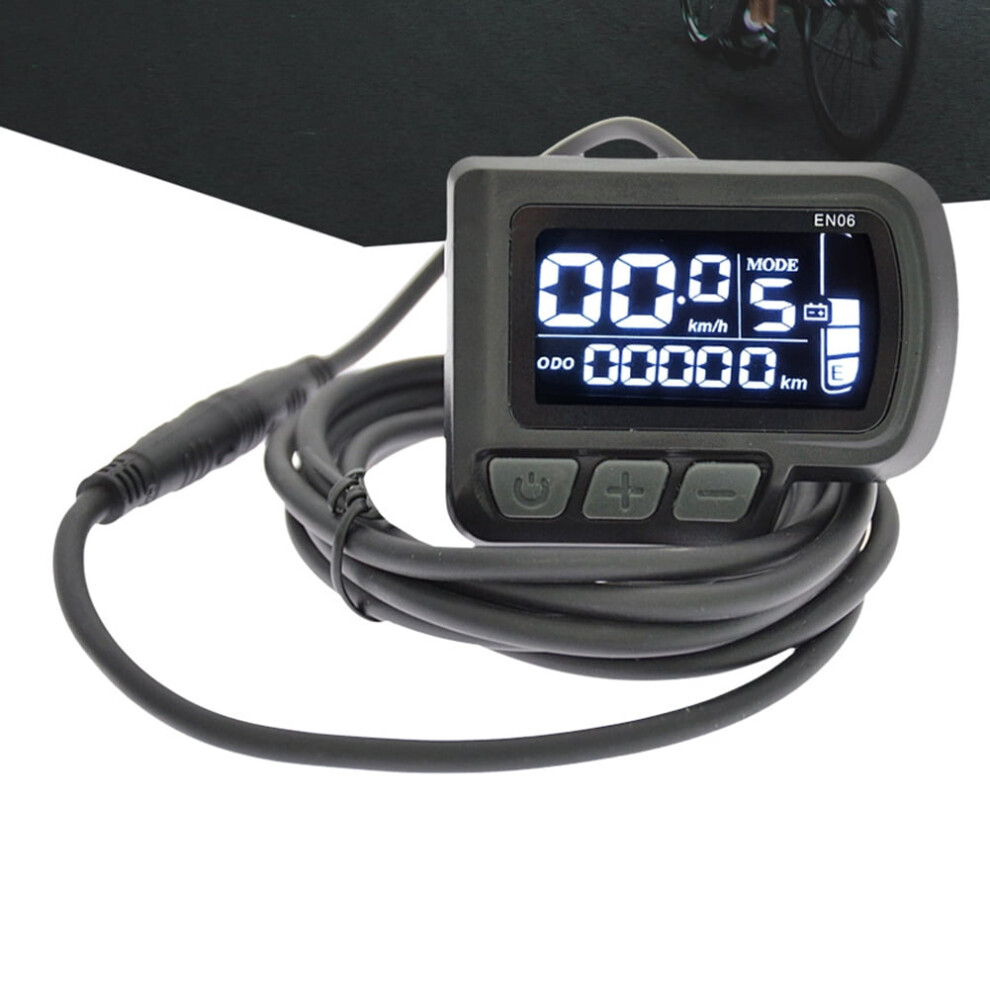

E-bike LCD display control panel 24-48V 6-pin

E-bike LCD display control panel 24-48V 6-pin Description

Description: *Brand new and high quality *Made of high quality material, durable and practical to use *Can be automatically identified and compatible 36V and 48V Voltage. *It will show the true reflection of the battery charge, real time recording of the power consumption to ensure riding mileage. *The individual joints are clearly set up to help with cost-effective installation. *When connected to a bicycle, this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature. *Agreement 2 Instrument settings P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest; P02: mileage unit, 0: KM; 1: MILE; P03: voltage level: 24V, 36V, 48V, default 36V; P04: sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute; P05: Power gear position: 0, 3 gear mode: 1 gear 2V, 2 gear, 3V, 3 gear, 4V; 1, 5 gear mode: 1 gear 2V, 2 gear, 2.5V, 3 gear, 3V, 4 gear, 3.5V, 5 gears, 4V; P06: wheel diameter: unit, inch; precision: 0.1; P07: Number of speed measuring magnets: range: 1-100; P08: Speed limit: range 0-50km/h, 50 means no speed limit, 1, non-communication state (instrument control): when the speed is greater than the set speed, turn off the PWM output; when the speed drops below the set speed, automatically Turn on the PWM output, the driving speed is the current speed 1km/h; (only for the power assist speed limit, the speed is not limited for the handlebar) 2. Communication status (controller control): the driving speed is maintained at the set value, the error: 1km/h h; (power-assisted and handlebar average speed limit) Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically convert to the correct value in miles. The speed limit value data set in this menu is not converted, and it is inconsistent with the actual displayed mile speed limit value; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start; P10: Drive mode setting 0: Assist drive (the output power is determined by the assist gear, and the handle is invalid at this time). 1: Electric drive (driven by turning the handlebar, the power-assisted gear is invalid at this time). 2: Power-assist drive and electric drive coexist at the same time (the electric drive is invalid in zero-start state). P11: Assist Sensitivity Setting Range: 1-24; P12: Power boost start strength setting range: 0-5; P13: Power-assisted magnetic steel plate type setting: 5, 8, 12 grains of magnetic steel three types P14: Controller current limit value setting default 12A range: 1-20A P15: The function is not activated yet P16: ODO reset setting Long press the up button for 5 seconds to reset ODO Specification: Material: ABS Color: Black (As Pictures Show) Weight: About 100g Model: 6pin Voltage: 24V/36V/48V Package Includes: 1 x Bike LCD Display 1 x Adapter cable Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data
