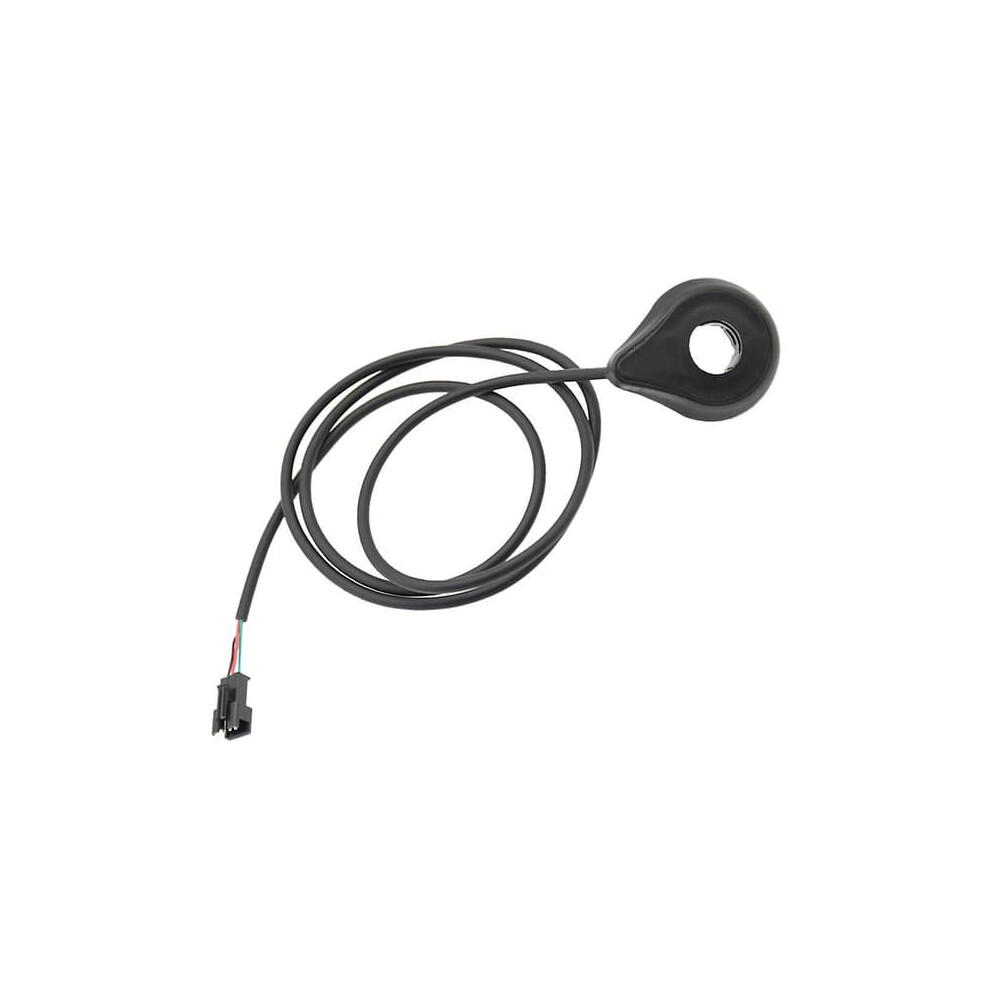

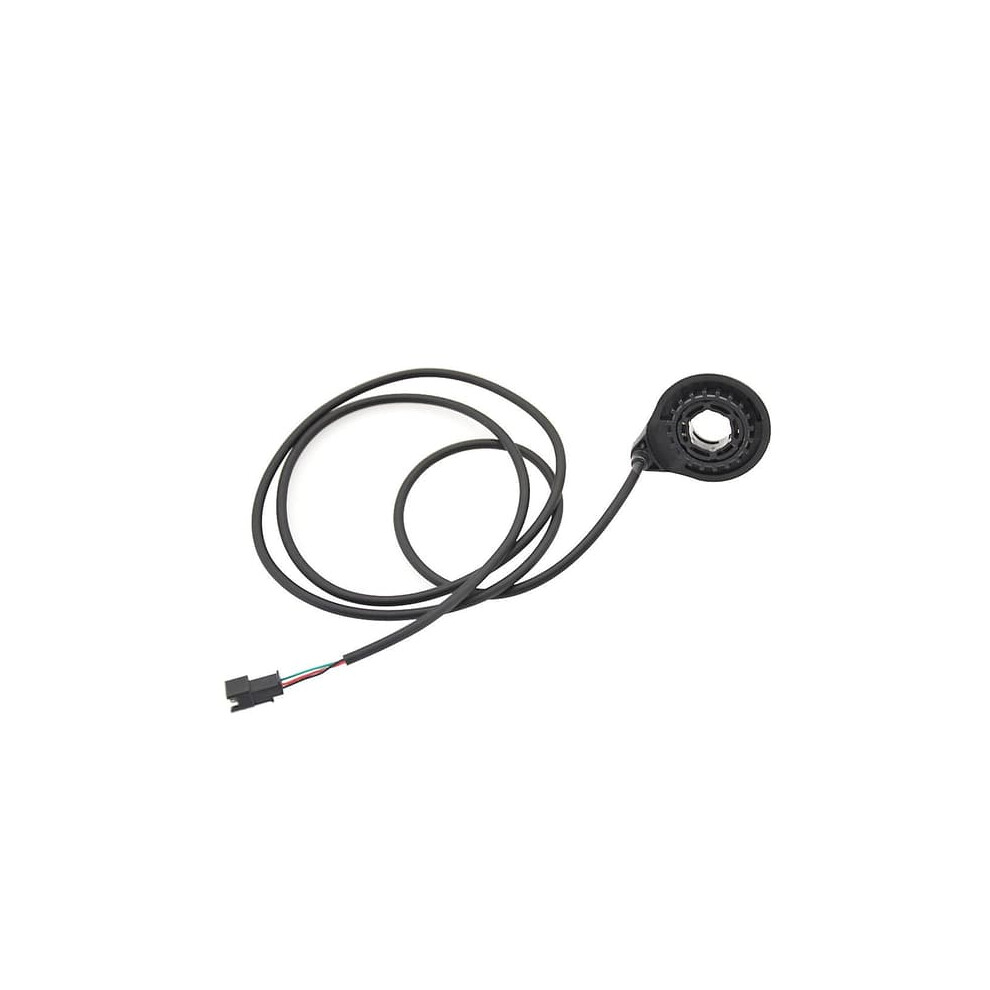

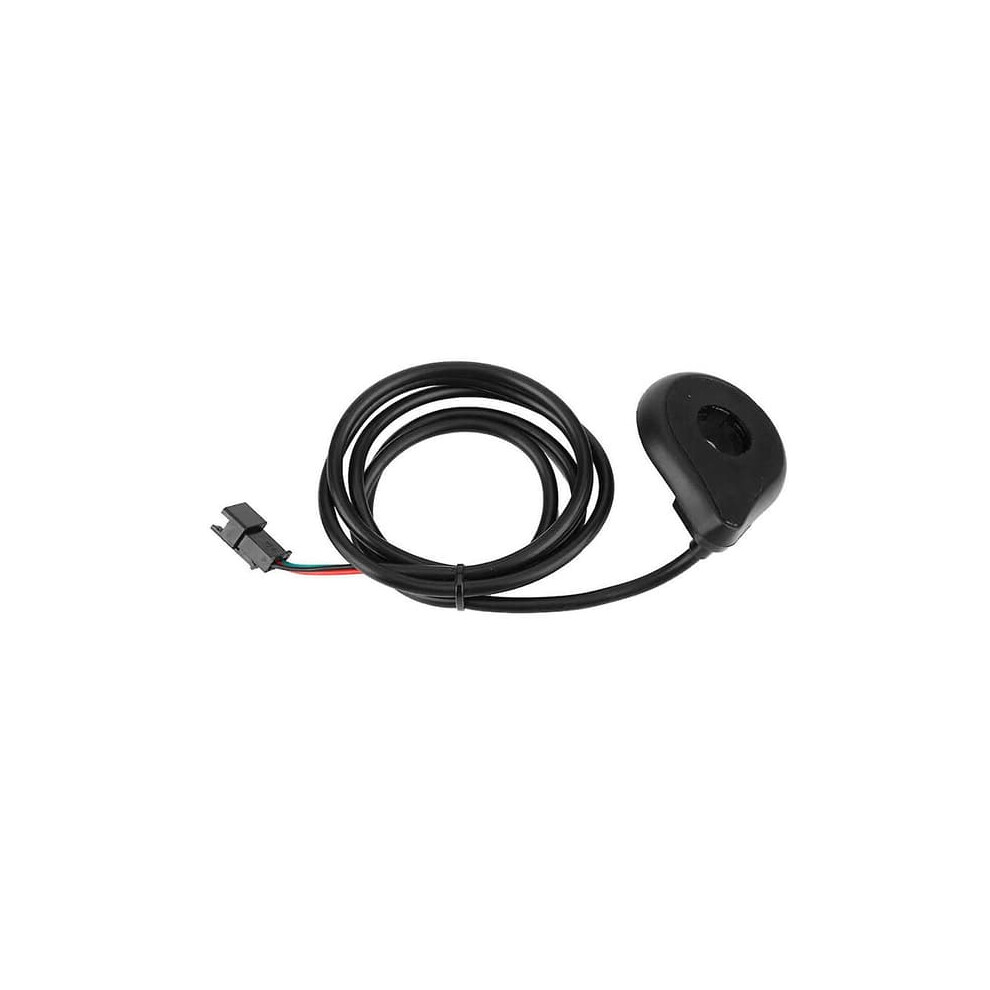

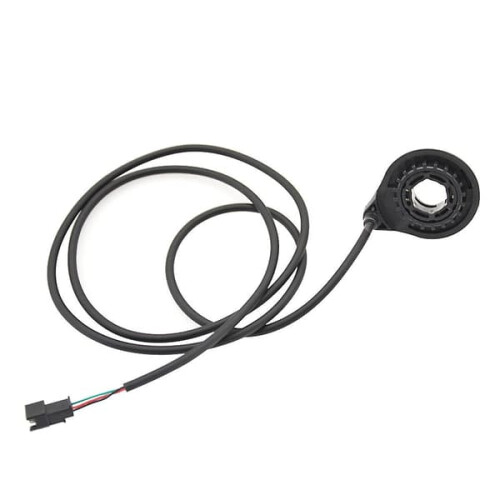

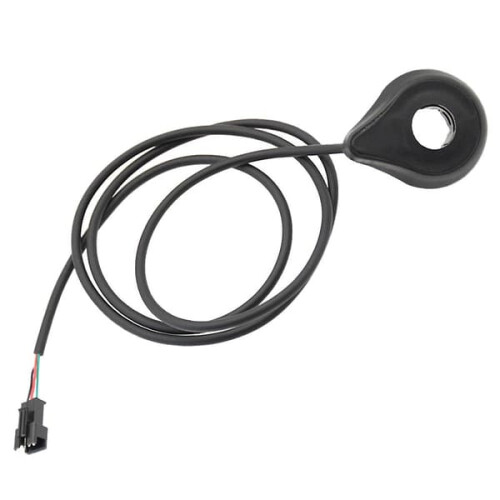

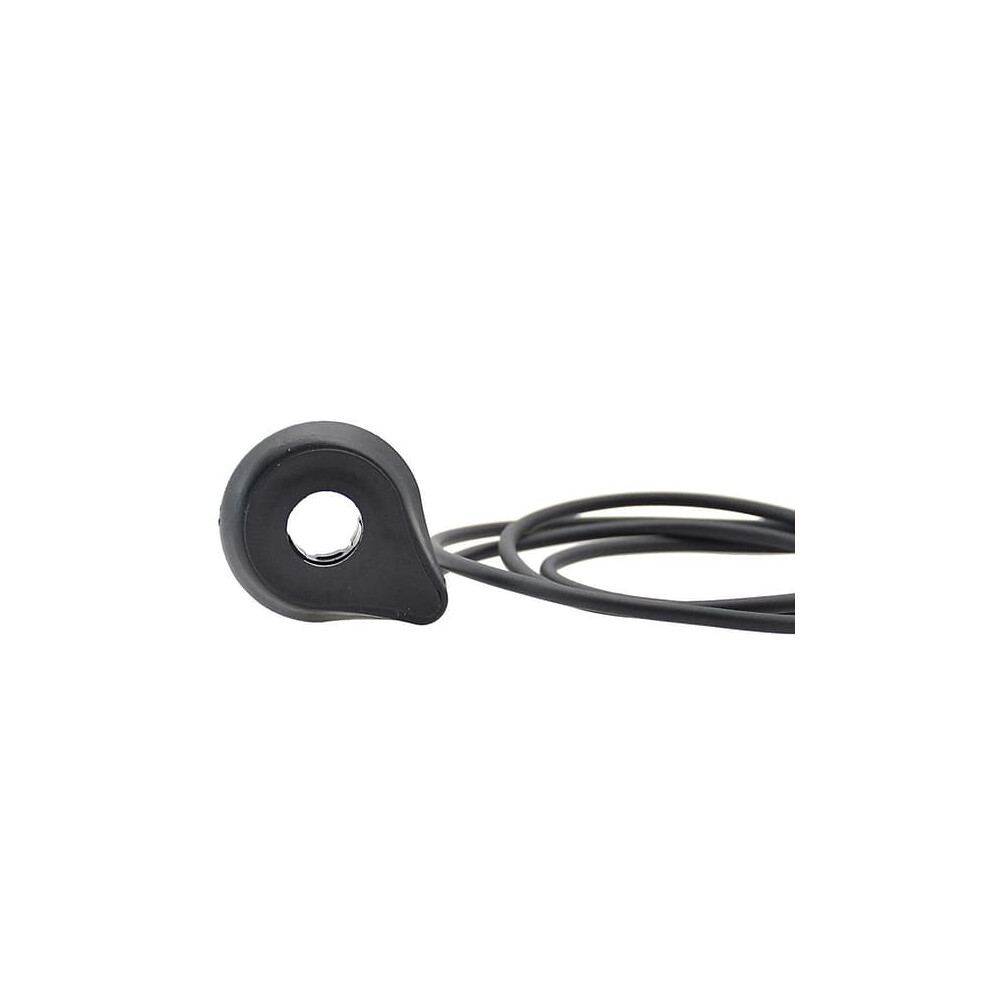

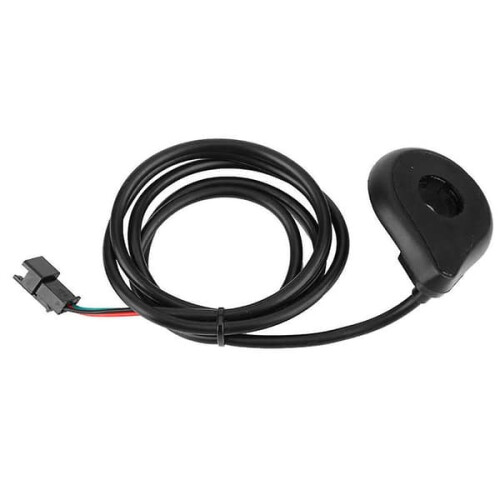

E-Bike Pedal Assist Sensor Hall Effect 12-Magnet

E-Bike Pedal Assist Sensor Hall Effect 12-Magnet Description

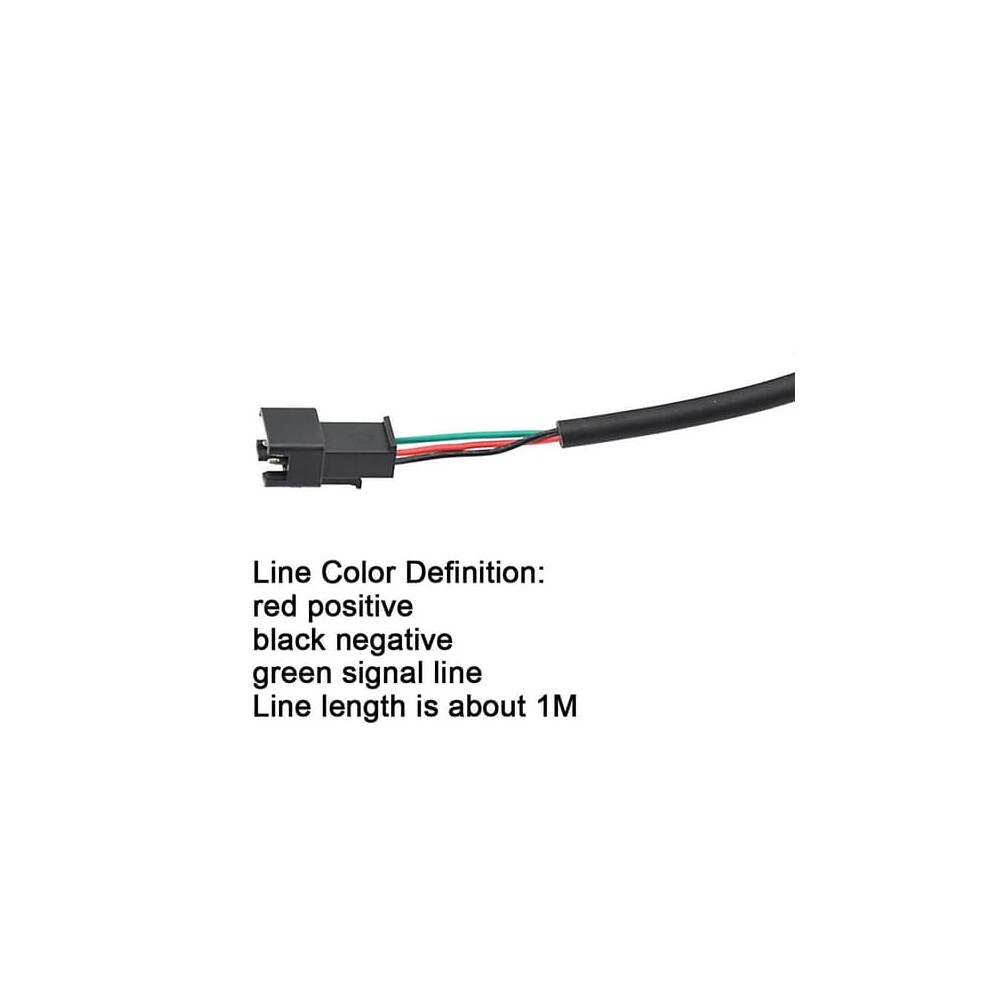

This product is made of high-quality ABS material, which is durable and not easy to wear. The Hall sensor has the advantages of small size, light weight, shockproof, anti-corrosion, dustproof, etc. It is suitable for use in electric bicycles. Precision machining, precision assembly, excellent quality. This auxiliary sensor is suitable for pedal-assisted electric bicycle drive system, saving time and effort. Applicable to almost all electric bicycles on the market, it is a good helper for electric bicycles. Condition: Magnets: 12 Line color definition: 1. Red 5V 2. Green power source 3. Black GND Installation and use: The intermediate shaft short track rotates after the intermediate shaft, and the outer casing sensor is fixed. There is no need to disassemble the intermediate shaft, as long as the inner ring is caught in the intermediate shaft and the outer casing is fixed on the frame, it is convenient to install, stable and reliable. Right installation: Step on the output pulse signal and reverse to not output. Left installation: output pulse signal, reverse step will not output. Color: black Material: ABS Size: Length: 100cm Package Contents: 1 x Bicycle Pedal Assist Sensor Only the above package contents, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
