E220-900T22D LoRa Wireless Module 22dBm 5km

E220-900T22D LoRa Wireless Module 22dBm 5km Description

Use chips LLCC68. Compared with the SX1278/SX1276 solution, the transmission distance is longer,the speed is faster ,and the power consumption is lower.

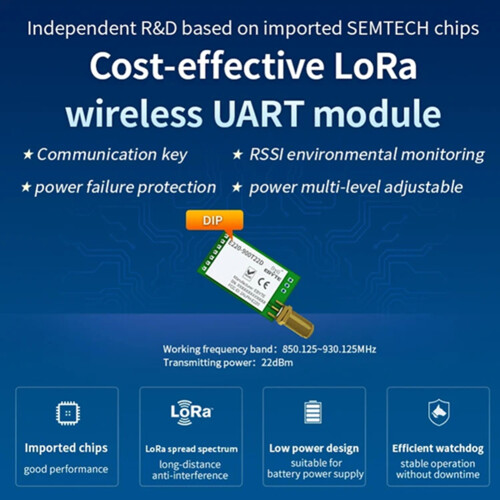

Cost-effective LoRa wireless UART module.
Communication key. RSSI environmental monitoring.
Power failure protection.
Power multi-level adjustable.

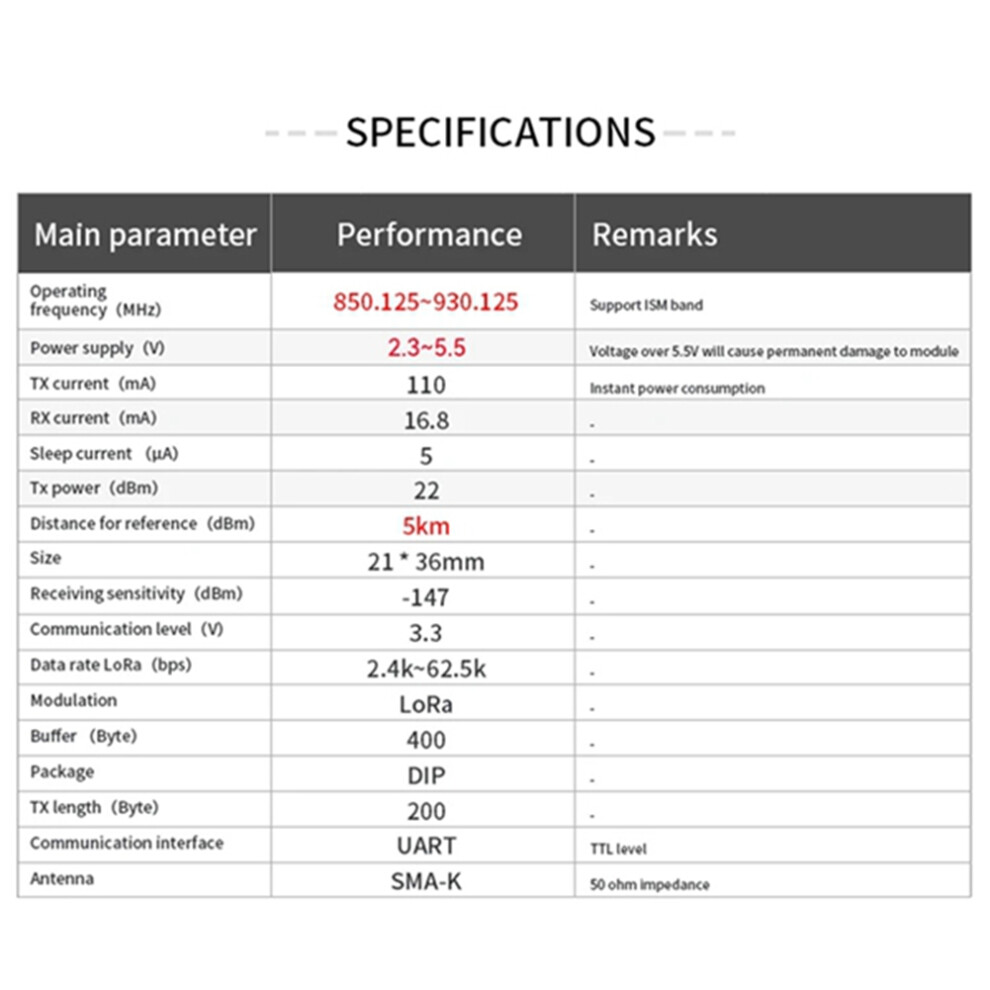

Working Frequency band:850.125-930.125MHZ (Support ISM band)
Transmitting Power:22dBm
Air rate: 2.4k-62.5kbps (user-configured)
Reference distance: 5000m
Transmitting current: 110mA (instantaneous power consumption)
Receiving current: 16.8mA
Operating voltage: 3.0-5.5V ( 5.0V can output power)
Operating temperature: -40C-+85C (industrial grade design)
Communication interface: UART serial port (TTL level)
Color: As Shown
Material: Plastic+Metal

Package Contents:
1 * E220-900T22D Module
1 * 868MHz Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
