Ebike Thumb Throttle with LCD Display, Speed Control Handlebar Grips

Ebike Thumb Throttle with LCD Display, Speed Control Handlebar Grips Description

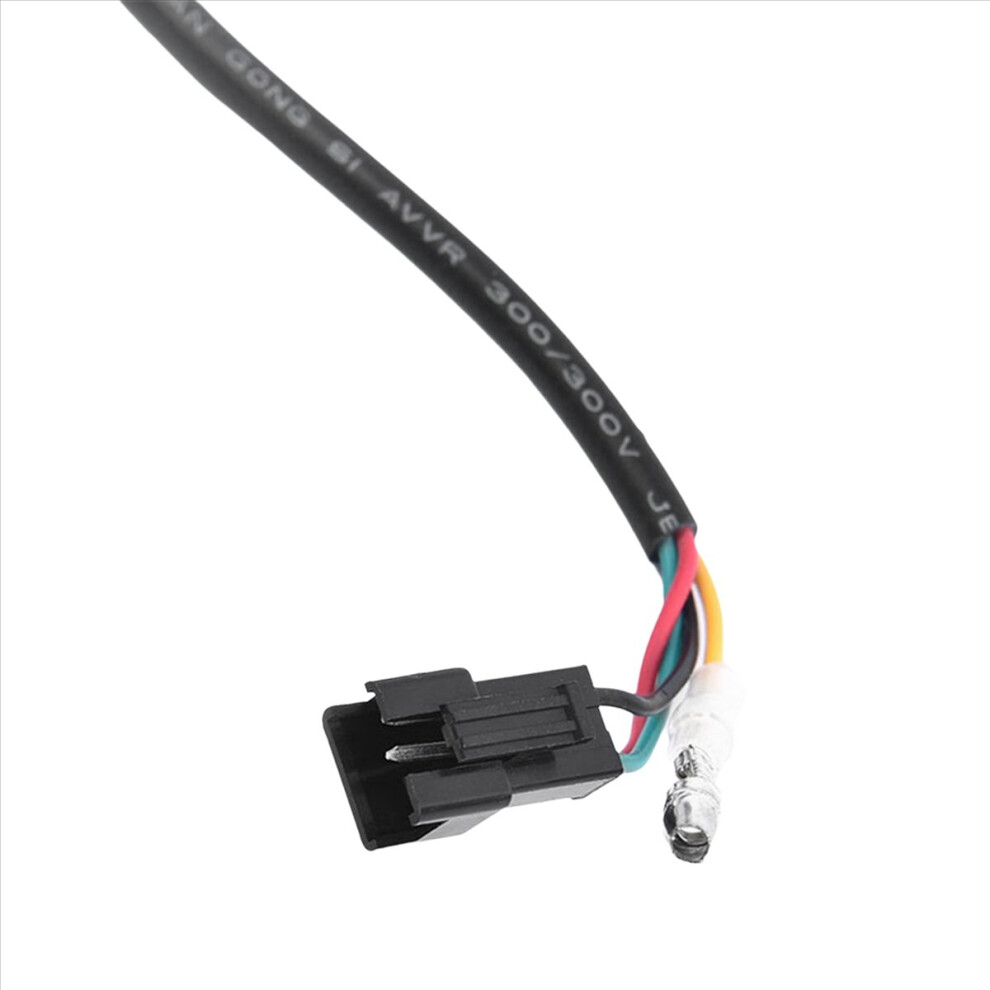

Green is for throttle hall signal, red wire is for throttle +5V, black is negative wire; please connect according to controller function wire, can not just match same color wire, if wrong connected that damage your controller and throttle.
4 wires: yellow is for voltage display wire, connect with electric bike power positive. 5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive.
6 wires: yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on). 7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
Battery common sense: For this display Battery is measured by voltage. this throttle can work for any electric bike under 84v with acid battery, lithium battery, water battery,dry batter and so on.The throttle with automatically identify voltage.Due to the difference of battery material, battery conditions (new or old),controller data, the battery voltage reaction be different, so the data bellow have deviation.Customers please check according to your battery to get your battery data.
The real-time voltage value can be used to accurately judge the remaining amount of electricity, which is convenient for customers to drive! Automatic identification voltage under 100V electric vehicles, can be general, convenient for factory procurement, save the cost of capital and management costs! There are only 4 wires for ordinary electric display, which is convenient for workers to install and save time.

Name:Thumb Throttle
Size:2m
Model:S series(5V-99V automatic identification of electric vehicle voltage)
Efficiency: equal 98%
Hall level:Linear Hall, high-quality rubber, LED digital display lights
Working voltage:Turn DC0.8V-4.2V
Power display:regardless of lead-acid battery, lithium battery, regardless of voltage, can be automatically identified (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be used directly, and some 84V electric vehicles can also be used)
Terminal length:1.8 meters
Basic parameters:according to different battery materials,old and new,different batch,the number of voltage v be different, please test a few times, you can get your electric vehicle battery parameters.
For 12v electric bike, maximum voltage is about 12.6v,mini is about 9v or higher
For 24 electric bike, maximum voltage is about 29.4v,mini is about 21v or higher
For 36v electric bike, maximum voltage is about 42v,mini is about 29v or higher
For 48v electric bike, maximum voltage is about 54.6v,58.8v, mini is about 40v or higher
For 60v electric bike, maximum voltage is about 72v,mini is about 49v or higher
For 72v electric bike, maximum voltage is about 84v,mini is about 60v or higher
For other electric bike with higher voltage there should be a voltmeter installed
Colour:Black
Material:Plastic

Package Contents:

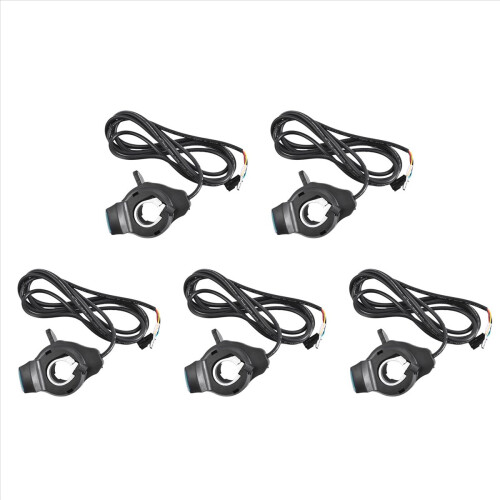

5 x Ebike Thumb Throttle

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
