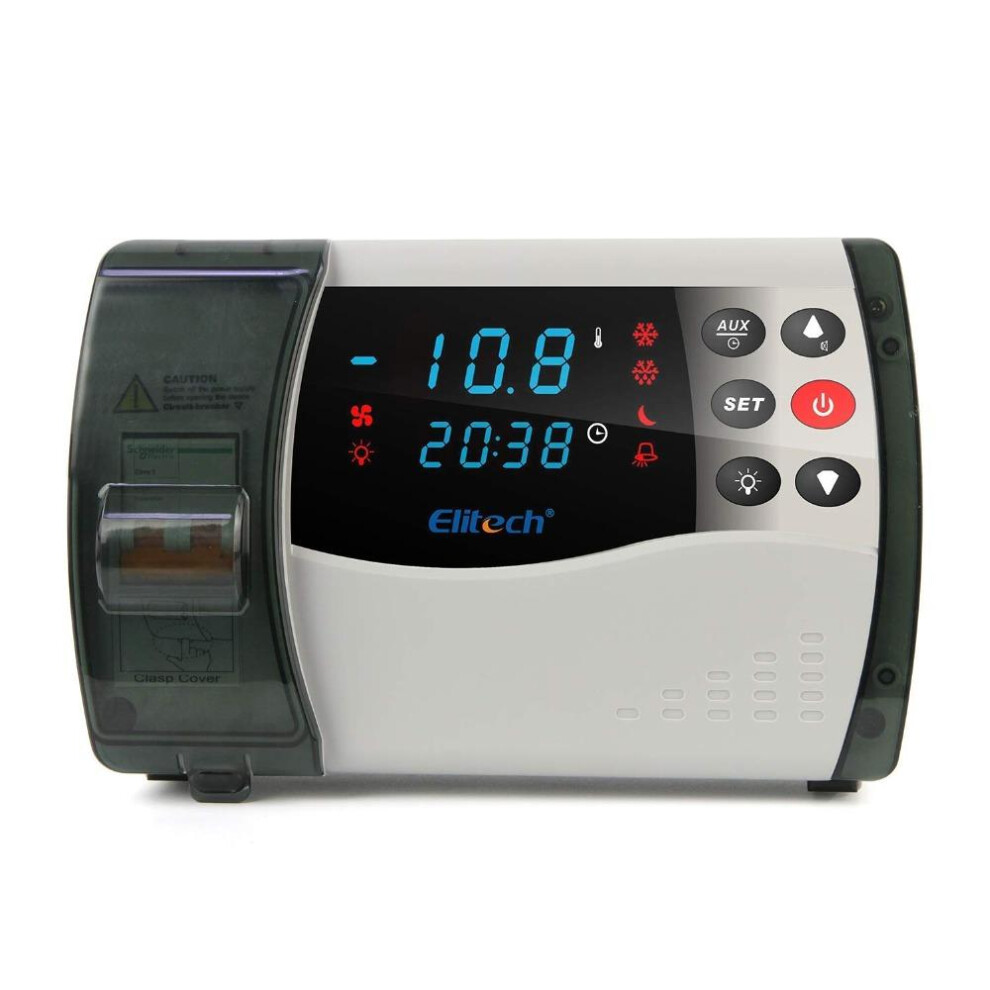

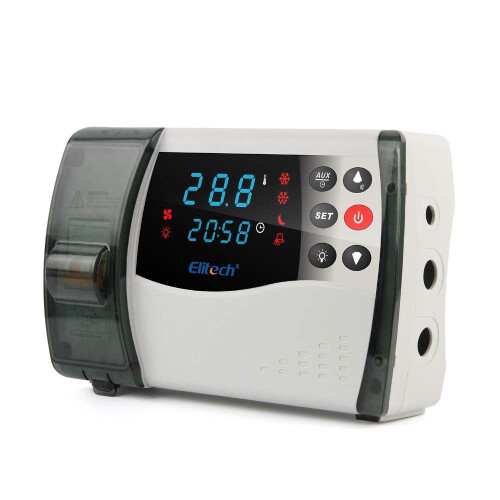

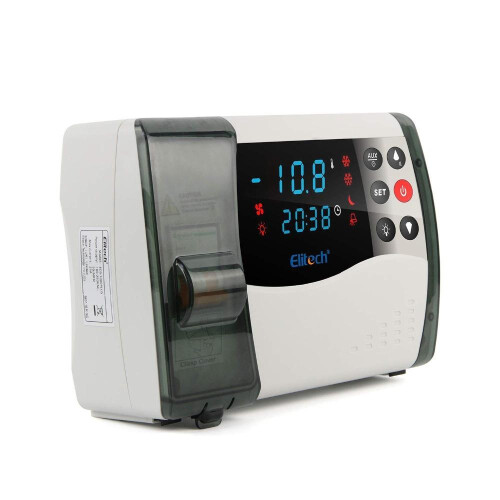

ECB-1000Plus Multi-Purpose 220V Electrical Equipment Control Cabinet, Suitable for Small Medium Size Cold Storage Cooler Box

ECB-1000Plus Multi-Purpose 220V Electrical Equipment Control Cabinet, Suitable for Small Medium Size Cold Storage Cooler Box Description

Description:  About ECB-1000 PLUS The controller is suitable to the following machines: dispenser systems, blast chillers, buffet displays, chest display coolers/ freezers, cold room, fish fridges, freezer counters, half height chillers/freezers, ice cream freezers, mini bars, serve over counters, storage chest freezers, topping shelves, top loading bottle cooler, upright display coolers/ freezers, upright storage freezers/ coolers, wall site freezers, display chillers and back bar coolers.  This Electric Control Panel ECB-1000Plus is widely used for the small and medium size cold storage, with the function of refrigeration, defrost, fan, light control, alarm and time display.  Large display area shows all necessary information directly controls heavy loads with up to 3HP relay Icon LEDs status display password protection avoids accidental tampering by personnel .  Real-Time-Clock really schedules and fixes defrost time defrost force function energy save function at night.  Features:  1.Multi-Function: Integrated design with temperature measurement, display, control, cooling, defrosting, fan, lighting control 2.Powerful Drive: The ECB-1000Plus support the compressor up to 2HP Easy to Wiring: Unique interior design for easy wiring 3.Safe and Reliable: Euipped with ABS flame-retardant molded case, while water-proof protection grade is up to IP65 4.Widely Application: The controller is suitable to the following machines: dispenser systems, blast chillers, buffet displays, chest display coolers/ freezers, cold room, fish fridges, freezer counters, half height chillers/freezers, ice cream freezers, mini bars, serve over counters, storage chest freezers, topping shelves, top loading bottle cooler, upright display coolers/ freezers, upright storage freezers/ coolers, wall site freezers,display chillers and back bar coolers.  Specifications:  1) Technical parameters: Power Supply: 220VACÂ10%,50/60Hz 2) Power Consumption: Less than 5W 3) Temperature Measuring Range: -45ÂC~119ÂC 4) Accuracy: Â1ÂC 5) temperature Controlling Range -40ÂC~90ÂC 6) Resolution: 0.1ÂC/1ÂC or 1F 7) Relay Capacity of Compressor: Compressor 50A/240VAC Max. 8) capacity of controlling the compressor: 3P Defrost 8A/220VAC Fan 5A/220VAC Max. 9) capacity of controlling the fan: 500W Light 5A/220VAC Max. capacity of controlling the light: 300W 10) Alarm 5A/220VAC Storage Temperature: -20ÂC~75ÂC 11) Work Temperature: -5ÂC~60ÂC 12) Sensor Type: NTC(10KÎ/25ÂC,B-3435K) Package includes:  1 x Control Cabinet Details Pictures: Â
