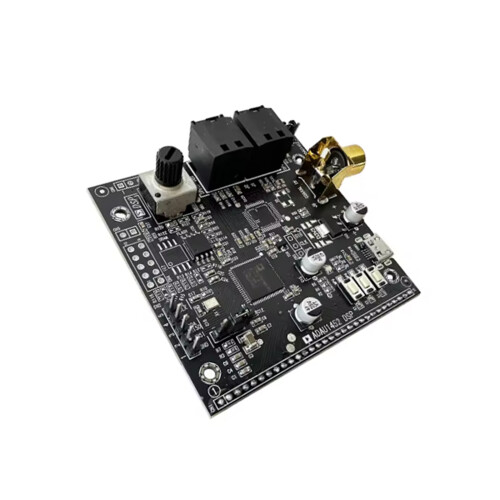

Efficient Audios Signal Processing ADAU1452 DSP Development Board for Single motherboard
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 8th - Mon 14th Sep
Returns: 30 days
180-day payment protection
You might also like
Summary
- The SPI address is SPI 0x1 ADR0, and the I2C address is: I2C 0x16 (118), E2Prom are SPI 0x1 ADR0, do not need to change
- USBi and targets board (ADAU1452dsp board) link mode definition
- For ADAU1452 series routines, the configuration page can freely choose the communication mode (SPI or I2C) between SIGMASTUDIO and the targets board
- I2C communication mode: 2/4/6 (GND/SCL/SDA) on the USBi end of the emulator corresponds to 1/5/3 of CN2 on the targets board (ADAU1452dsp board) respectively
- SPI communication mode: 1/3/5/7/9(CLK/CS/MISO/MOSI/GND) at the USBi end of the emulator corresponds to 5/4/3/2/1 of the targets board (ADAU1452dsp board) CN2 respectively. Just in order
Efficient Audios Signal Processing ADAU1452 DSP Development Board for Single motherboard Description
Features: For ADAU1452 series routines, the configuration page can freely choose the communication mode (SPI or I2C) between SIGMASTUDIO and the targets board. The SPI address is SPI 0x1 ADR0, and the I2C address is: I2C 0x16 (118), E2Prom are SPI 0x1 ADR0, do not need to change. USBi and targets board (ADAU1452dsp board) link mode definition: SPI communication mode: 1/3/5/7/9(CLK/CS/MISO/MOSI/GND) at the USBi end of the emulator corresponds to 5/4/3/2/1 of the targets board (ADAU1452dsp board) CN2 respectively. Just in order. I2C communication mode: 2/4/6 (GND/SCL/SDA) on the USBi end of the emulator corresponds to 1/5/3 of CN2 on the targets board (ADAU1452dsp board) respectively. Specifications: Component:Metal Size:Approx.65x65MM/2.56x2.56inch Model Number:ADAU1452_DSP Option Type:1pc ADAU1452 DSP Development Board,1pc ADAU1452 DSP Development Board+1pc USBi CODEC; SPI Address:SPI 0x1 ADR0 I2C Address: I2C 0x16(118) E2Prom is SPI 0x1-ADR0 and does not need to be changed Package Includes: Package A 1pc ADAU1452 DSP Development Board Package B 1pc ADAU1452 DSP Development Board 1pc USBi CODEC note: Please allow 1mm errors due to manual measurement. Due to the differences between different monitors, the picture may not reflect the actual item color.
Details
| OPC | PXKWTDW |
|---|---|
| Codes | 7695001606394 (EAN) |
Product Data
| Product Packaging Length | 14.0cm |
|---|---|
| Product Packaging Width | 10.0cm |
| Product Packaging Height | 3.0cm |
| Weight | 90.0g |
