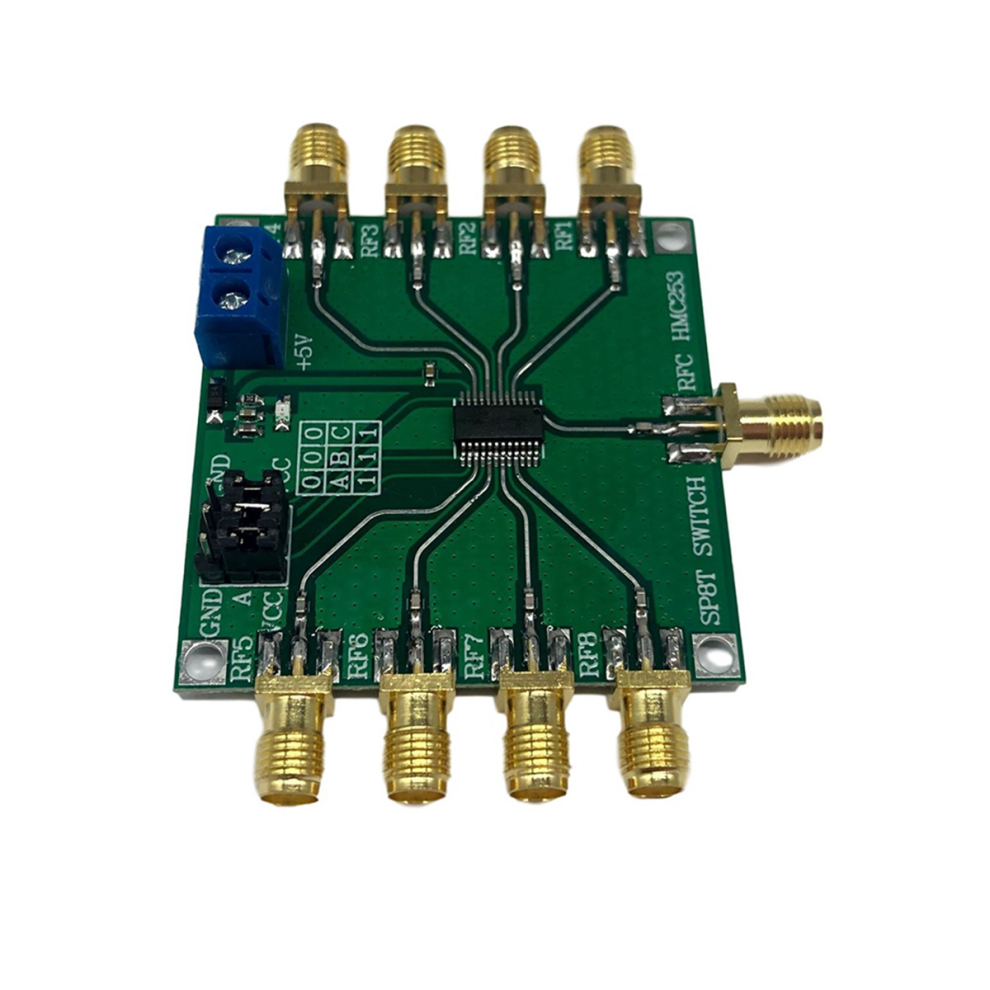

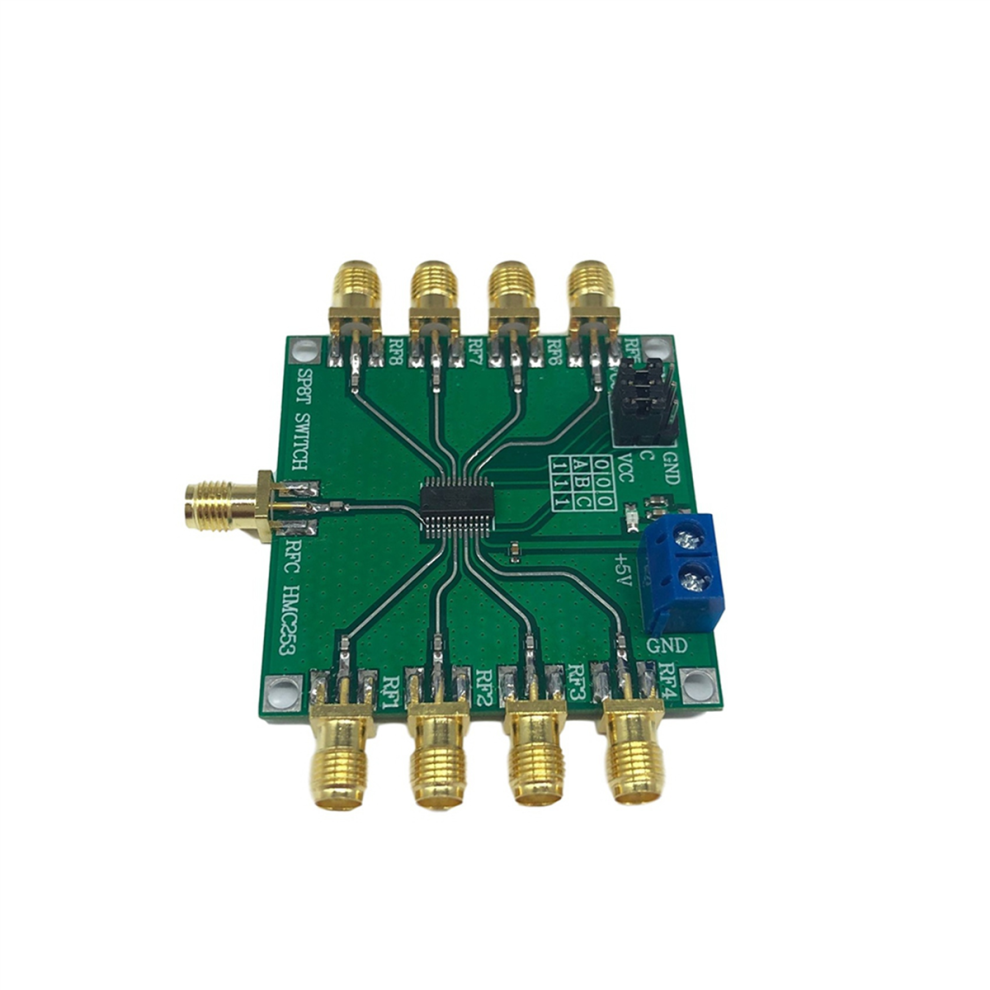

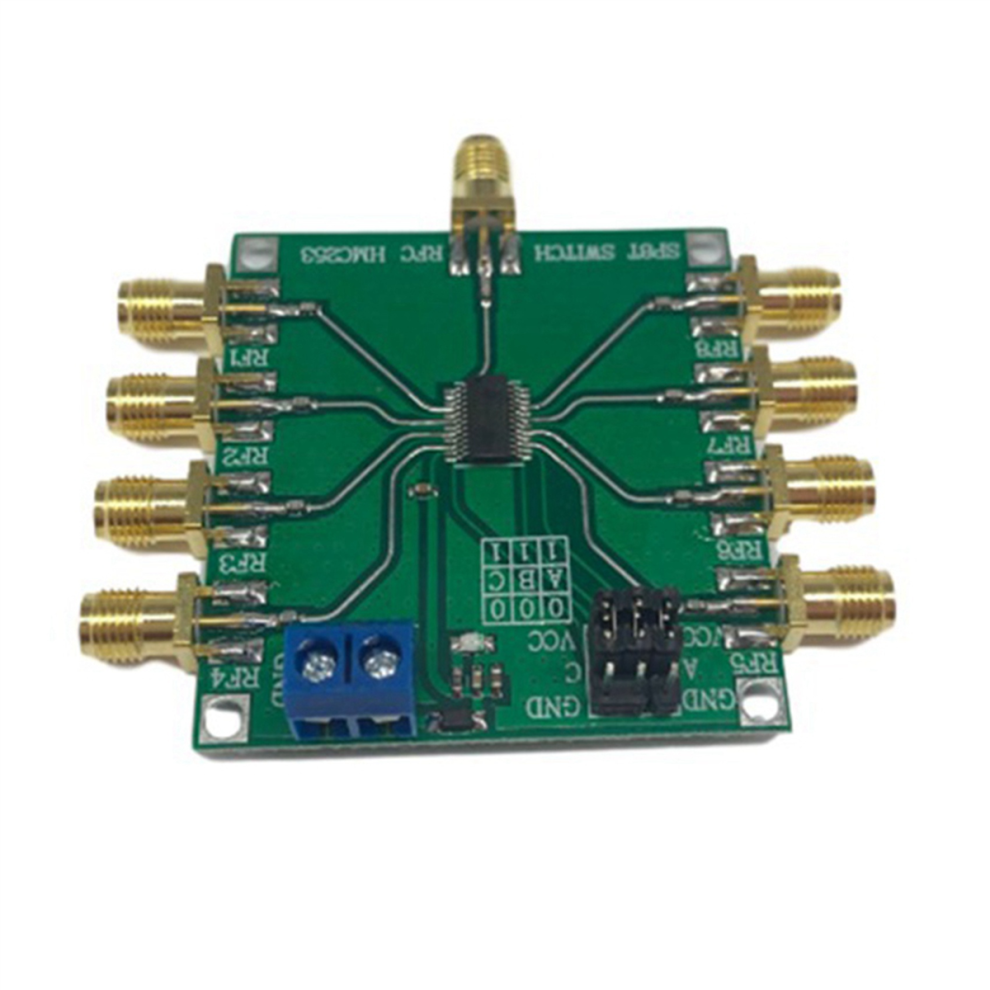

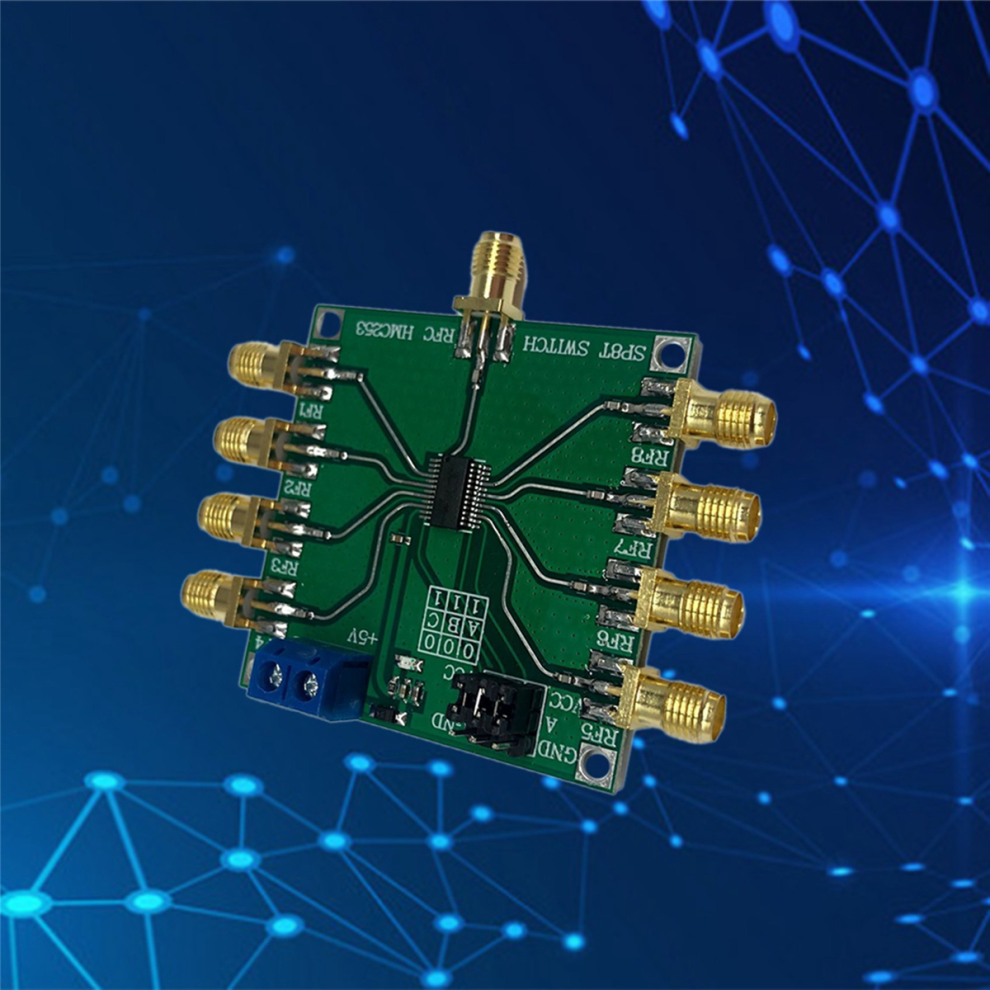

Eight Throw Switch Switch Channel Select Antenna Module

Eight Throw Switch Switch Channel Select Antenna Module Description

1. The HMC253AQS24E Is A Low-Cost Non-Reflective Sp6t Switch In A 24-Pin Qsop Package With Wideband Operation From Dc To 2.5 Ghz.
2. The Switch Offers Single Positive Bias And True Ttl/Cmos Compatibility.
3. A 3:6 Decoder Is Integrated On The Switch, Requiring Only Three Control Lines And A Positive Bias To Select Each Path
4. The HMC253AQS24E SP8T Can Replace SP4T And SPDT Mmic Switches And Logic Drivers In Multiple Configurations.
5. Single-Pole Eight-Throw Switch Switch Antenna Selection Channel Selection Module

Function
1. Low Insertion Loss (2 Ghz): 1.0 dB
2. Single Positive Power Supply: = +3V To +5V
3. Integrated 3: 6 Ttl Decoder
Application
1. Base Station
2. Catv/
3. Mmds And Wlan
4. Test Equipment
Circuit Description
Power Supply Voltage: 3V-5V
Frequency: DC-3GHZ
PVB Size: 50x50mm
Colour: green
Material: PCB

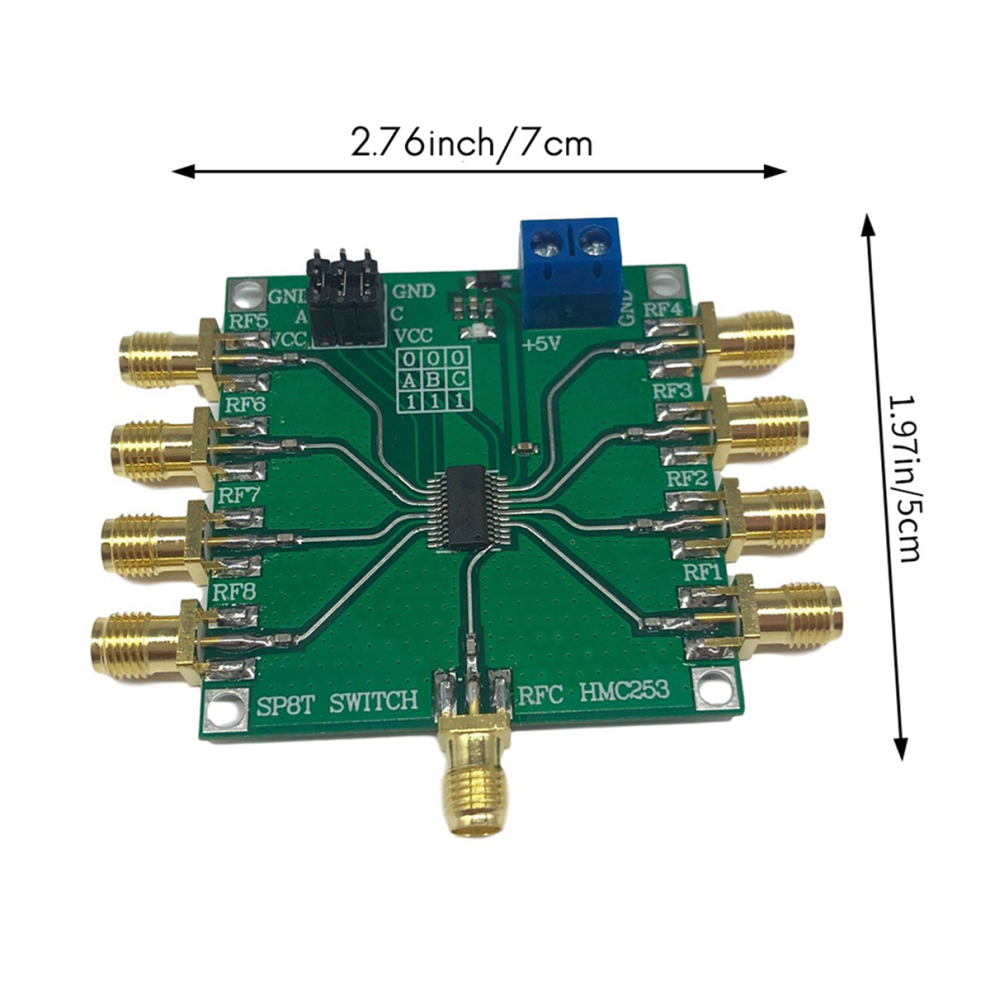

Size: about 7 x 5cm

Package Contents:
3 x Antenna Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
