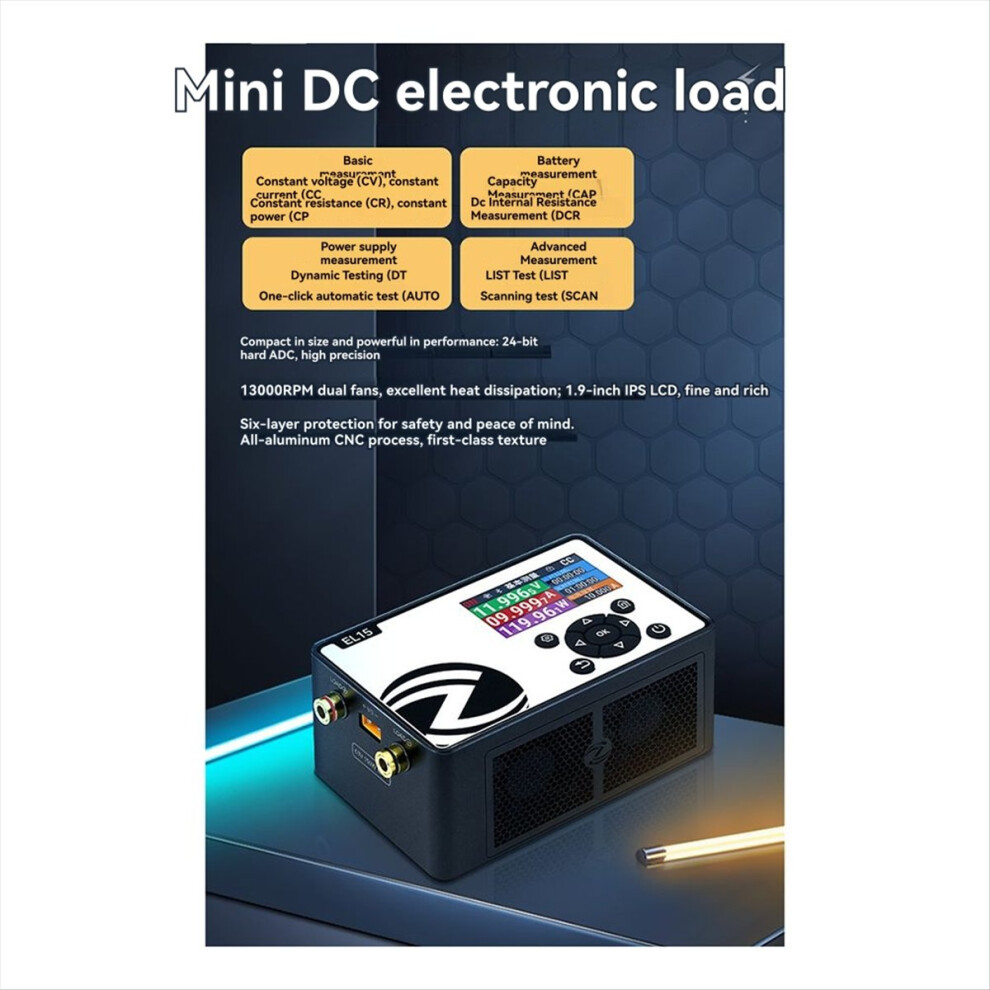

EL15 DC Electronic Load Meter Programmable Tester Battery Capacity Internal Resistance Measurement High

EL15 DC Electronic Load Meter Programmable Tester Battery Capacity Internal Resistance Measurement High Description

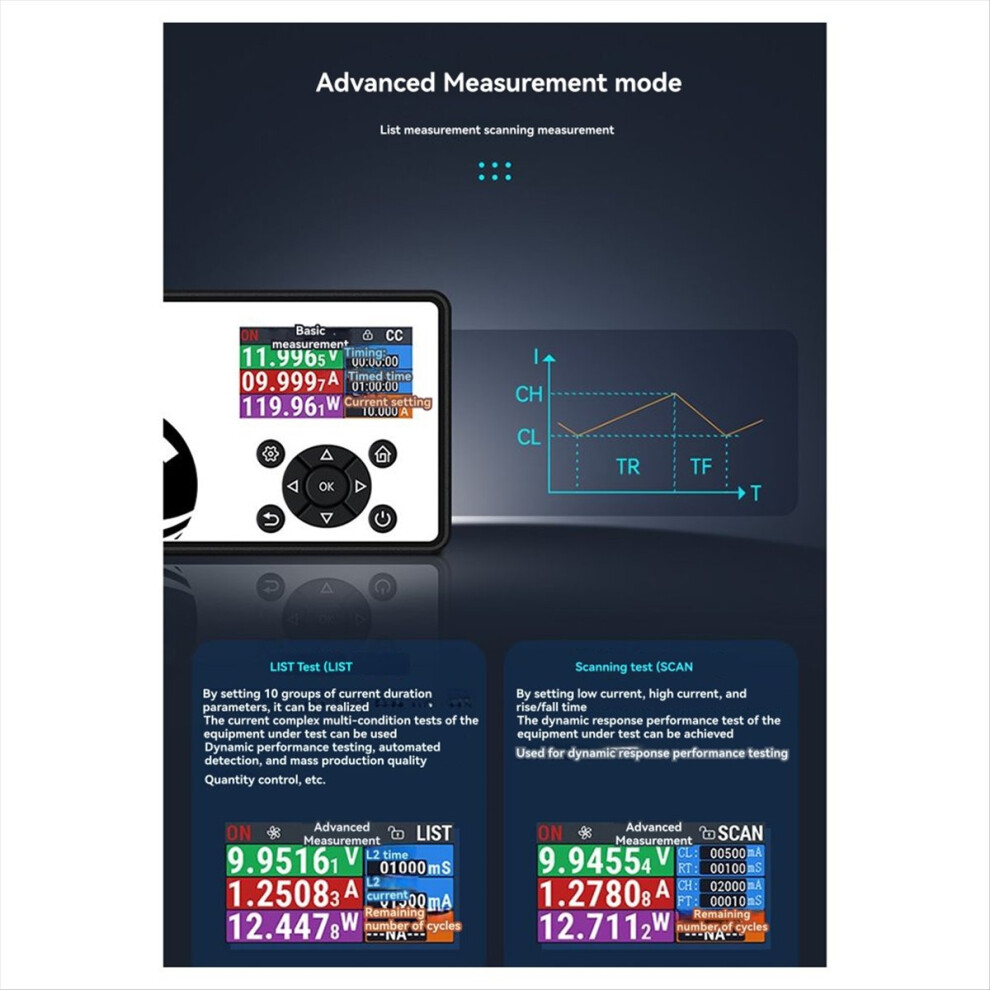

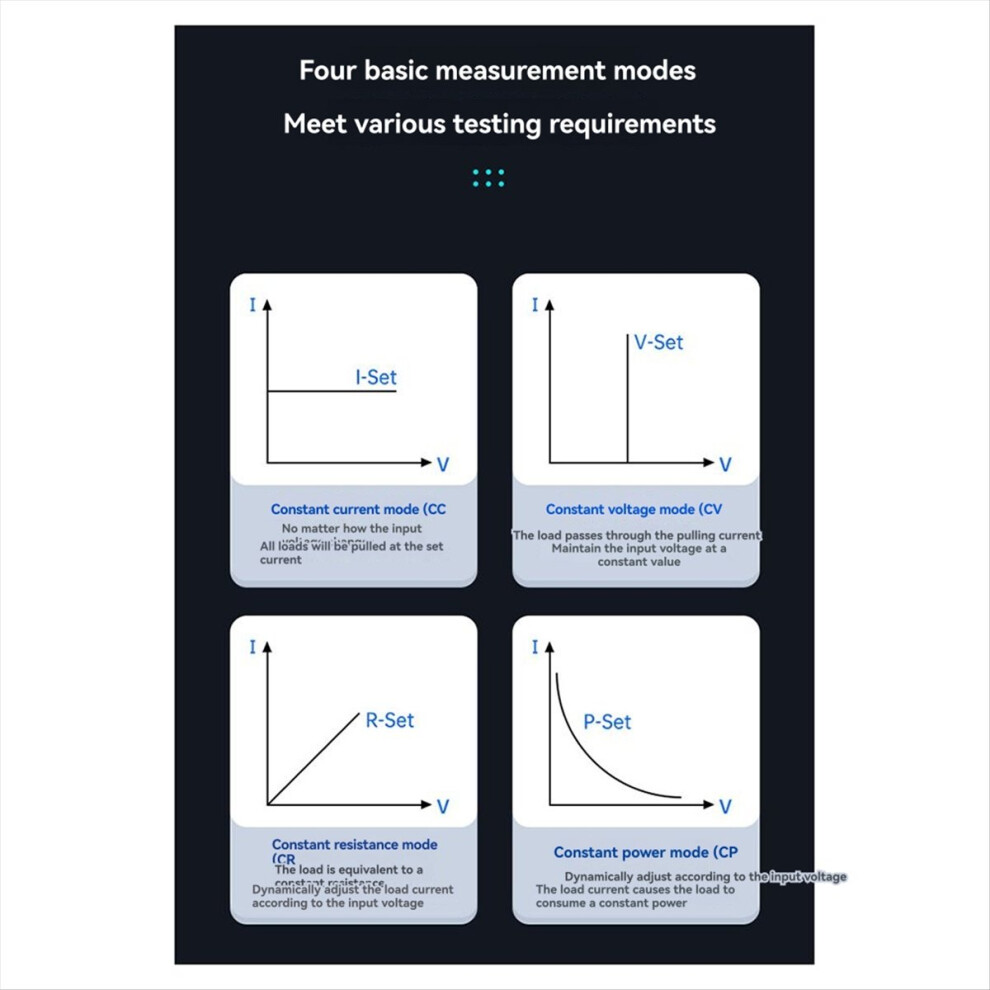

Four basic measurement modes meet various testing needs.
150W high power, only 1/20 the size of traditional electronic loads.
24-bit high-performance ADC with excellent readback accuracy.
1300ORPM dual fans with a dense-tooth heat sink full load performance.
Low-noise, high-speed 3510 dual fans optimal heat dissipation.

Aluminum dense-tooth heat sink for excellent heat dissipation.
Intelligent PID control for optimal noise and heat balance.
1.9-inch IPS LCD with a 320 * 170 resolution provides a detailed display and rich content at a glance.
Six-layer protection for comprehensive measurement security.
Supports local and remote measurement.
Local measurement: Ideal for fast measurements.
Remote measurement: Ideal for high- measurements.
Note: Switching between remote and local measurement requires selecting the corresponding option in the system settings.
Applications:
Power supply performance/aging test, charger performance/aging test.
Power bank capacity/internal resistance test, battery capacity/internal resistance test.
Model: EL15
Input: 4mm banana jack + XT30 male connector
Power: Type-C (5V/2A)
Resolution: 1mV/1mA
Net Weight: Approximately 300g
Display: 1.9inch IPS LCD 320 * 170
Load Power: 150W (Max)
Voltage Range: 0.1V-60V
Current Range: 0A-12A
Dimensions: 106mm x 65mm x 48mm
Color: Black
Material: Aluminum Alloy

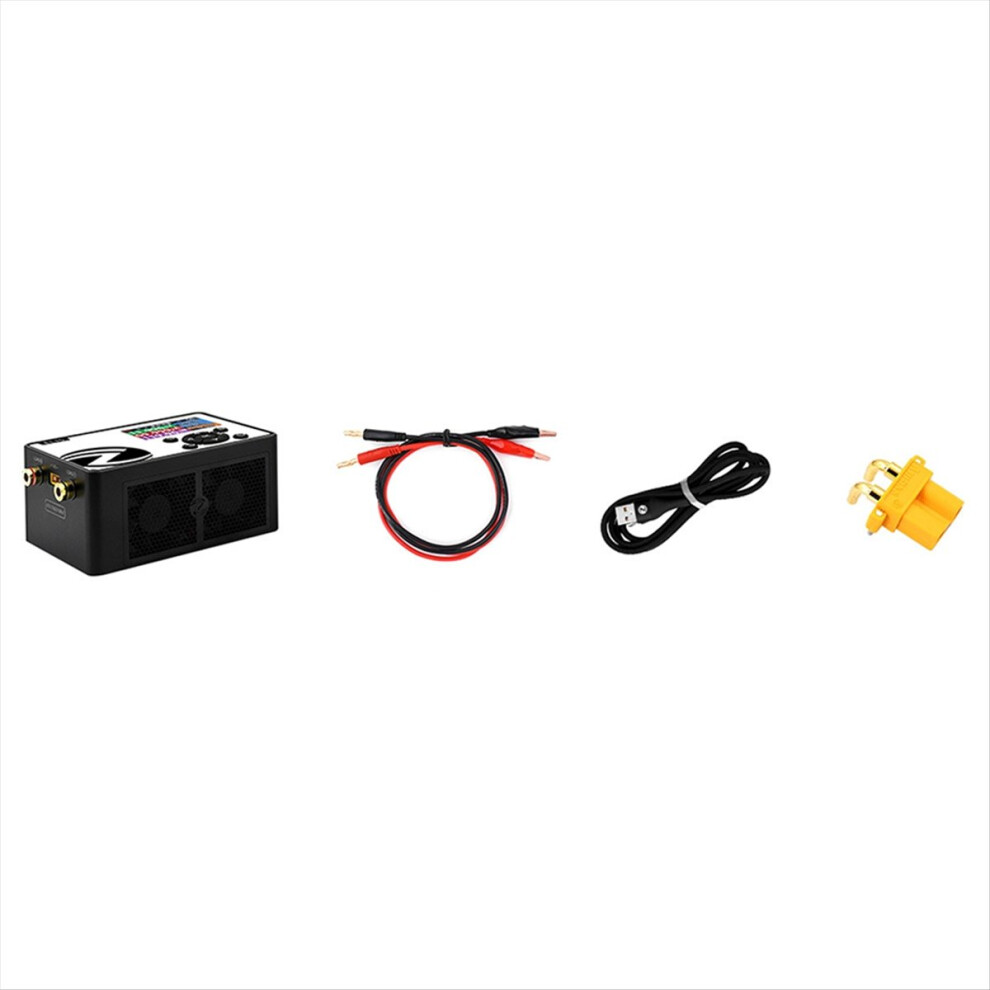

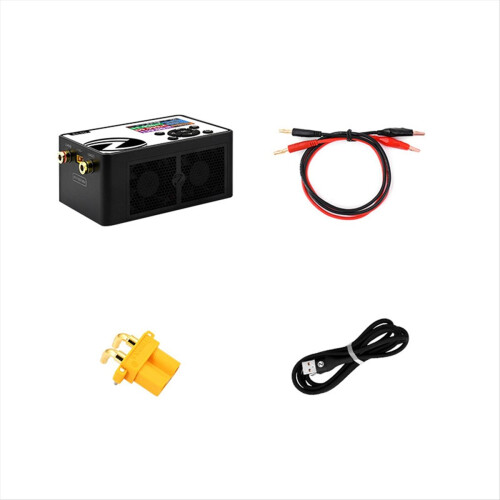

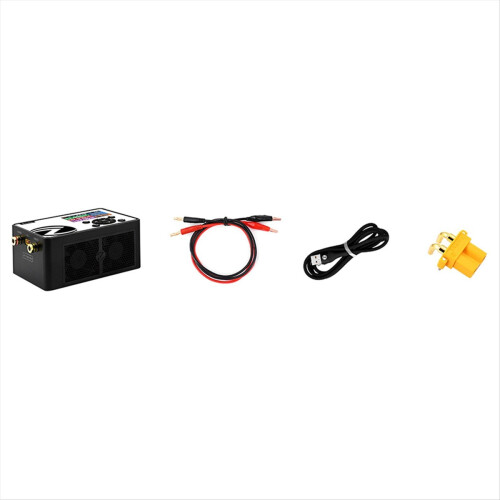

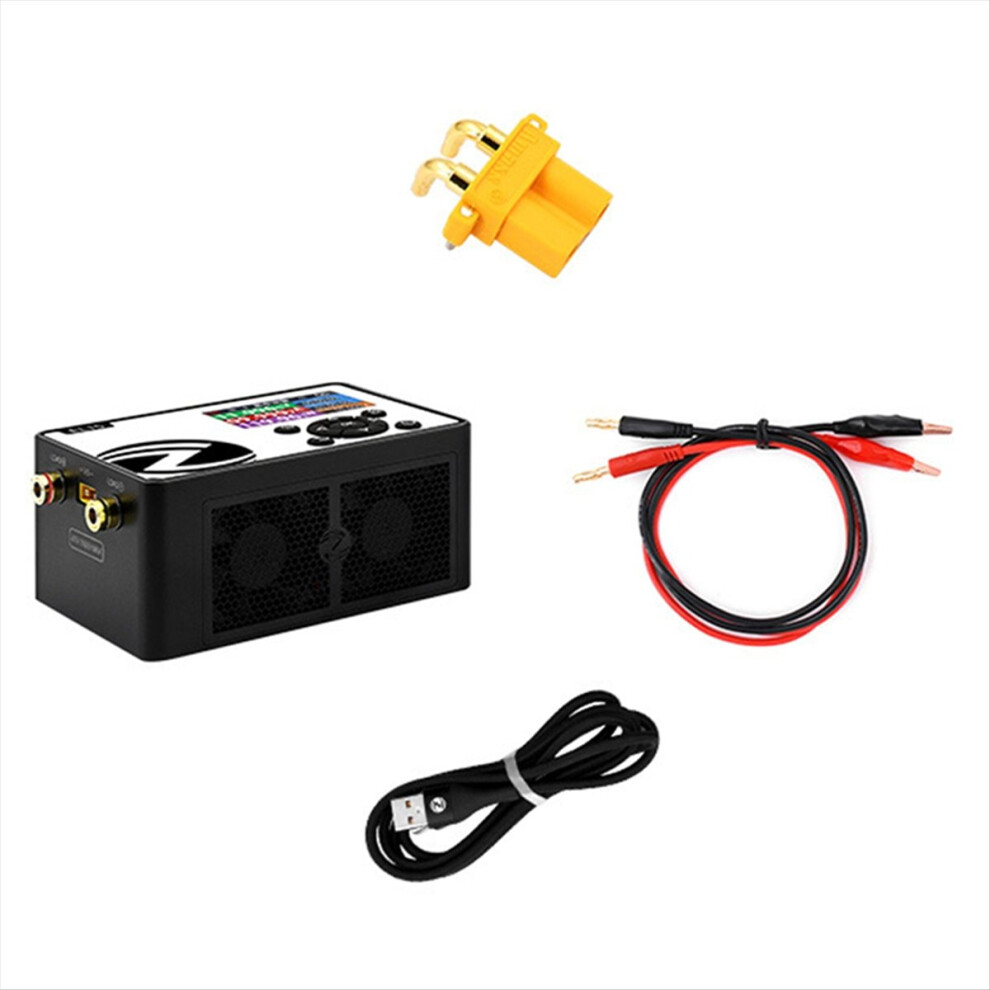

Package Contents:
1 set * tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
