Electric Bike Conversion Kit 15A Controller LED S800 36V/48V Compatible
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£46.18
£68.93
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 6th - Wed 8th Jul
Returns: 30 days
180-day payment protection
Most Popular in Motorbike ECU's
Description & Details
Summary

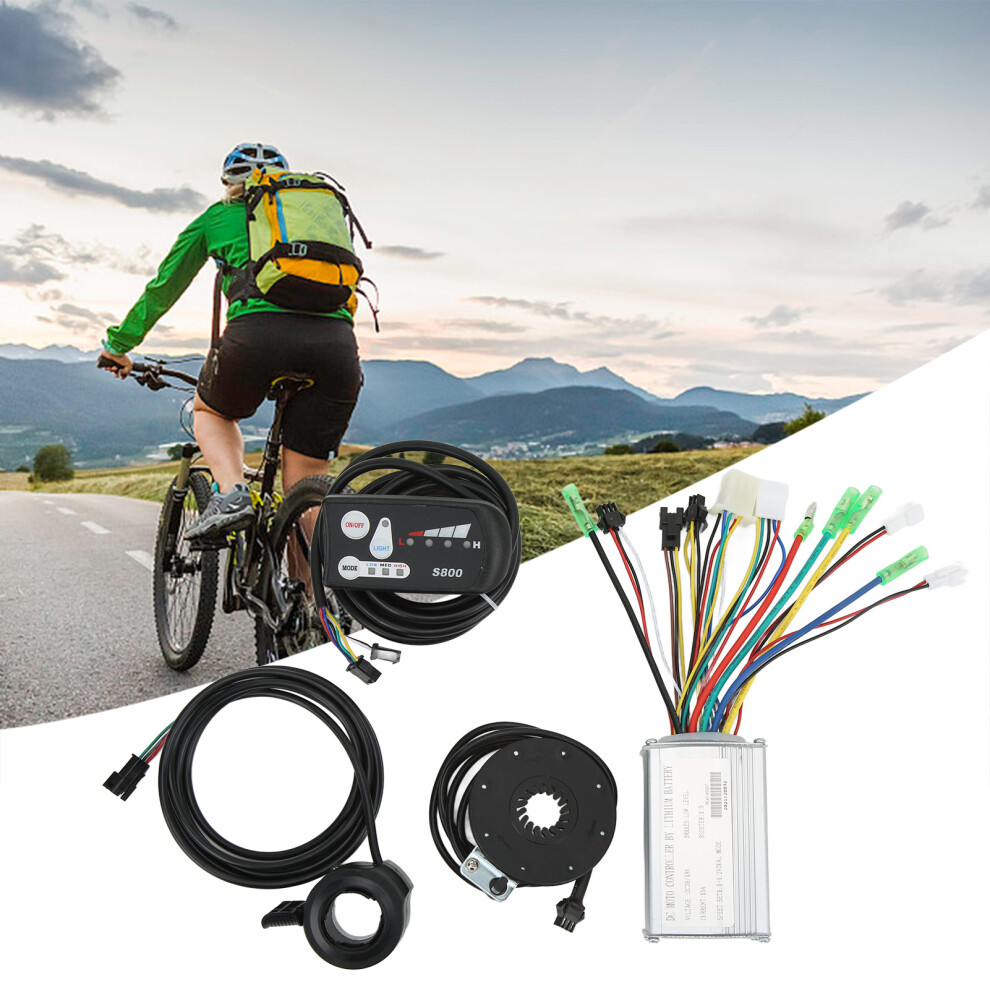

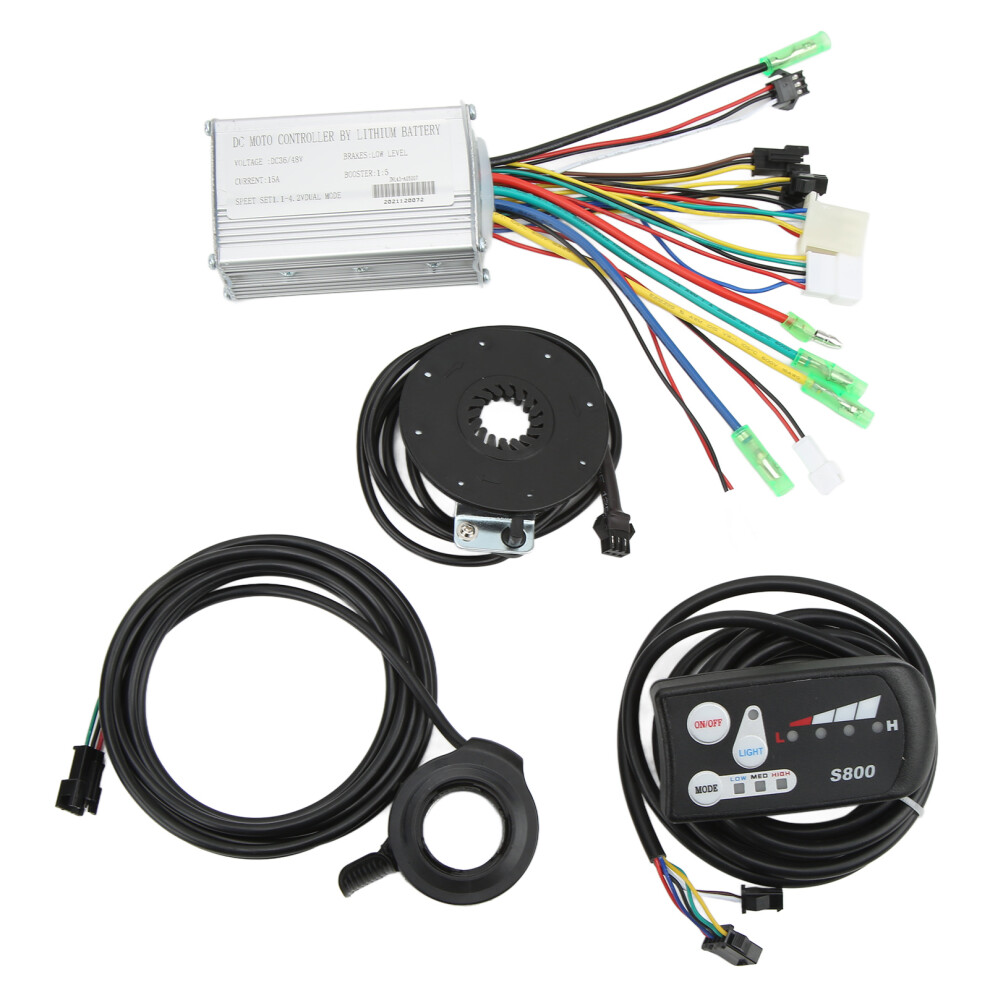

- Packing List: Electric bike conversion kit include 15A controller, LED S800 instrument, 130X thumb throttle, 8C speed assist sensor.
- Controller Housing: Made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload.
- Durable Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit.
- Widely Used: Suitable for 250W,350W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle greatly improves riding fun, for cyclists who like challenge.
- LED S800 Meter: Compatible with 36V and 48V voltage, intelligent power display, true reflection of battery power, real time recording of power consumption, to ensure riding mileage. High, medium and low analog torque thrust comes from switch gear and gear indication display. It adopts five wire digital communication and has multifunction self tuning function parameters. Users can customize setti
Electric Bike Conversion Kit 15A Controller LED S800 36V/48V Compatible Description
Electric Bike 15A Controller 36V 48V Common Speed Controller with LED S800 Display Panel for 250W 350W Motor
Item Type: Electric Bicycle Controller S800 Instrument Kit
Color: As Pictures Shown
Material: Aluminum Alloy + ABS Plastic
Weight: Approx.471g/16.6oz

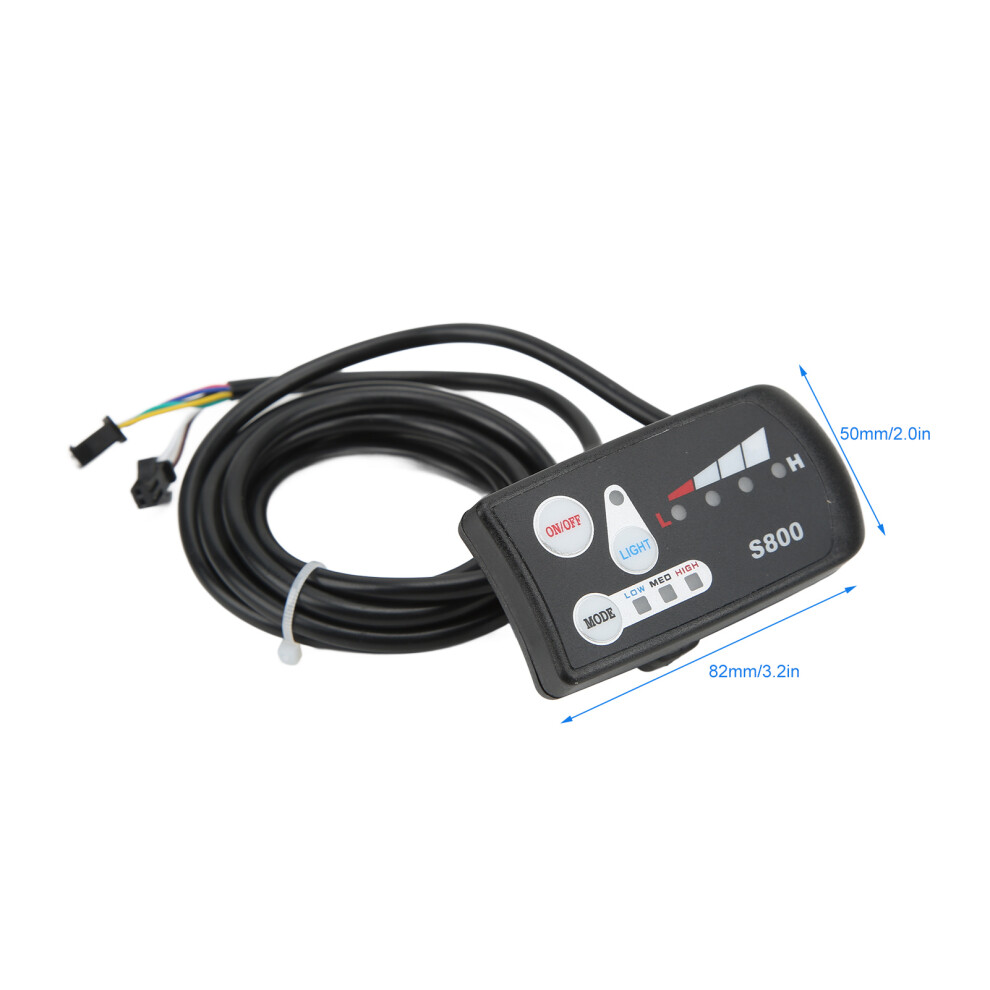

Controller Box Size: Approx. 82x50x30mm/3.2x2.0x1.2in, Meter Size: Approx. 80x40mm/3.2x1.6in
Controller Rated Voltage: DC 36V/48V
Controller Maximum Current: 15A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Booster: 1:5
Applicable Motor Power: 250W, 350W

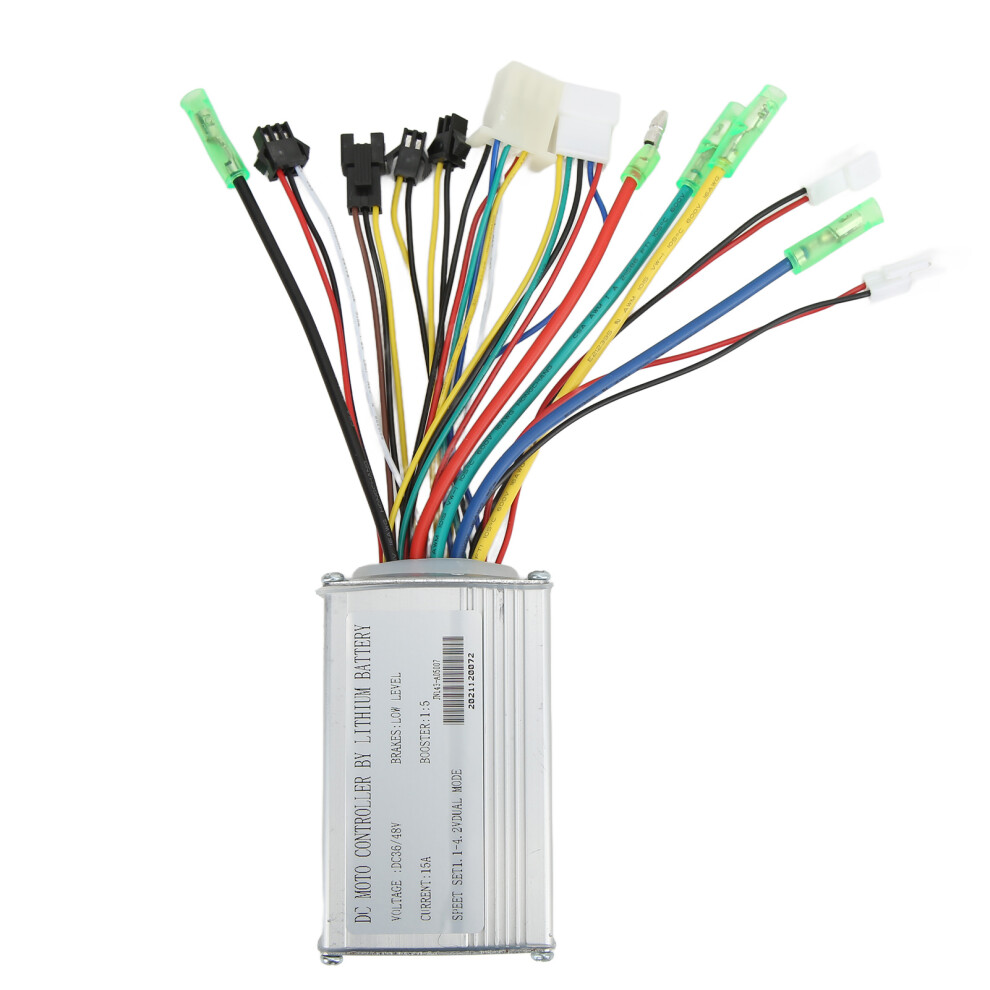

Controller Wire Color Definition:
1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line
2. Red-white-black-blue-green-yellow Double Row Six-wire Port: Motor Hall Wire
3. Red and Black Single Big Head Line: Power Line
4. Red, Blue, Black, Green and Yellow Single-row Five-wire Port: Instrument Line (5pin)
5. Black and Yellow Lines (two): Power off Brake Handle Line
6. Red and Black White Lines: Throttle Dial Line (3pin)
7. Brown, Black and Yellow Wire: Pas Power Sensor Wire (3pin)
8. Black and Red Lines (two): Headlight Lines
Description of Led S800 Instrument Line End:
1. Line Color Definition (5pin):
Red: Meter Power Cord
Blue: Power Control Wire of the Controller
Black: Instrument Ground Wire
Green: the Data Receiving Line of the Meter
Yellow: the Data Transmission Line of the Meter
2. Expand Headlight Function: Brown Wire (headlight Positive), White Wire (headlight Negative)
Details
| OPC | PMPKFNQ |
|---|---|
| Codes | 4971357577438 (EAN) |
