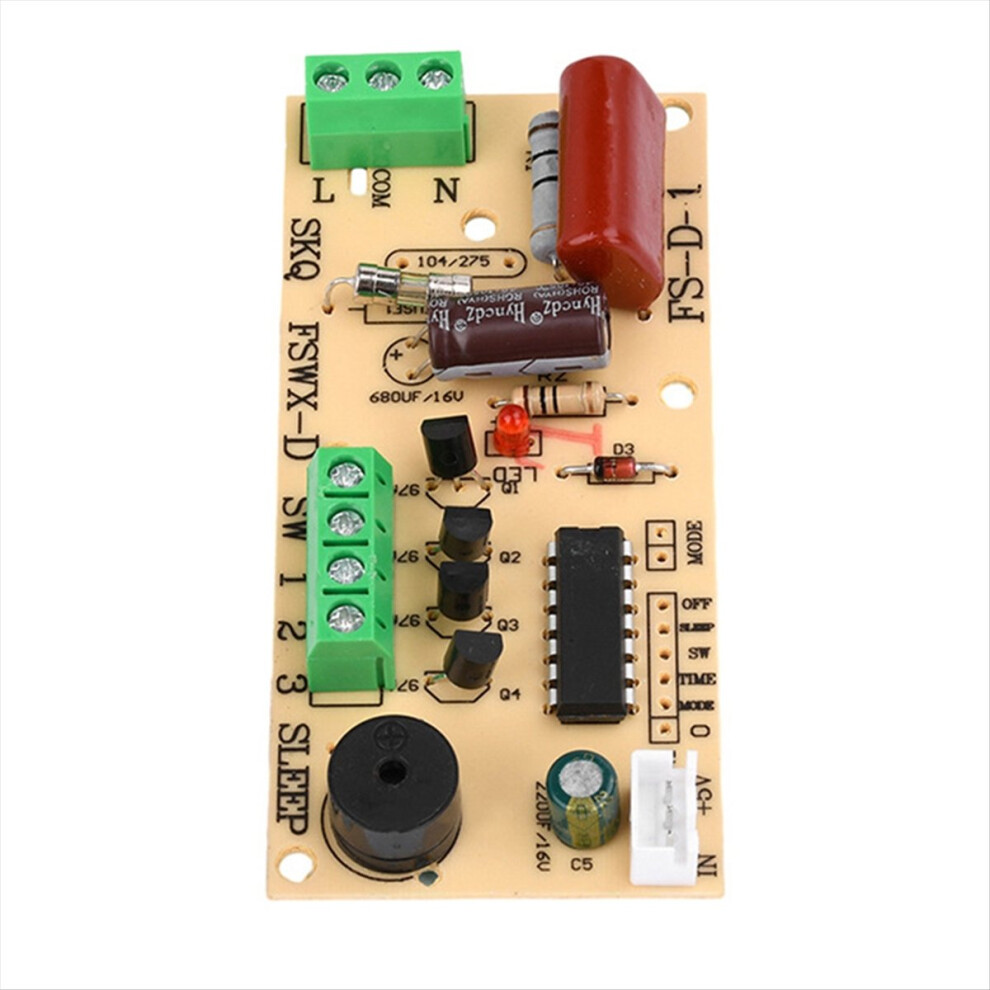

Electric Fan Universal Repair Board Modified Circuit Control with Remote

Electric Fan Universal Repair Board Modified Circuit Control with Remote Description

1. Designed for all kinds of electric fans, suitable for most and models, whether it is a table fan, vertical fan or ceiling fan, to provide one-stop repair and upgrade solutions
2. Simple replacement, no complex wiring, quickly restore the function of the electric fan, even non-professionals can also be easily operated

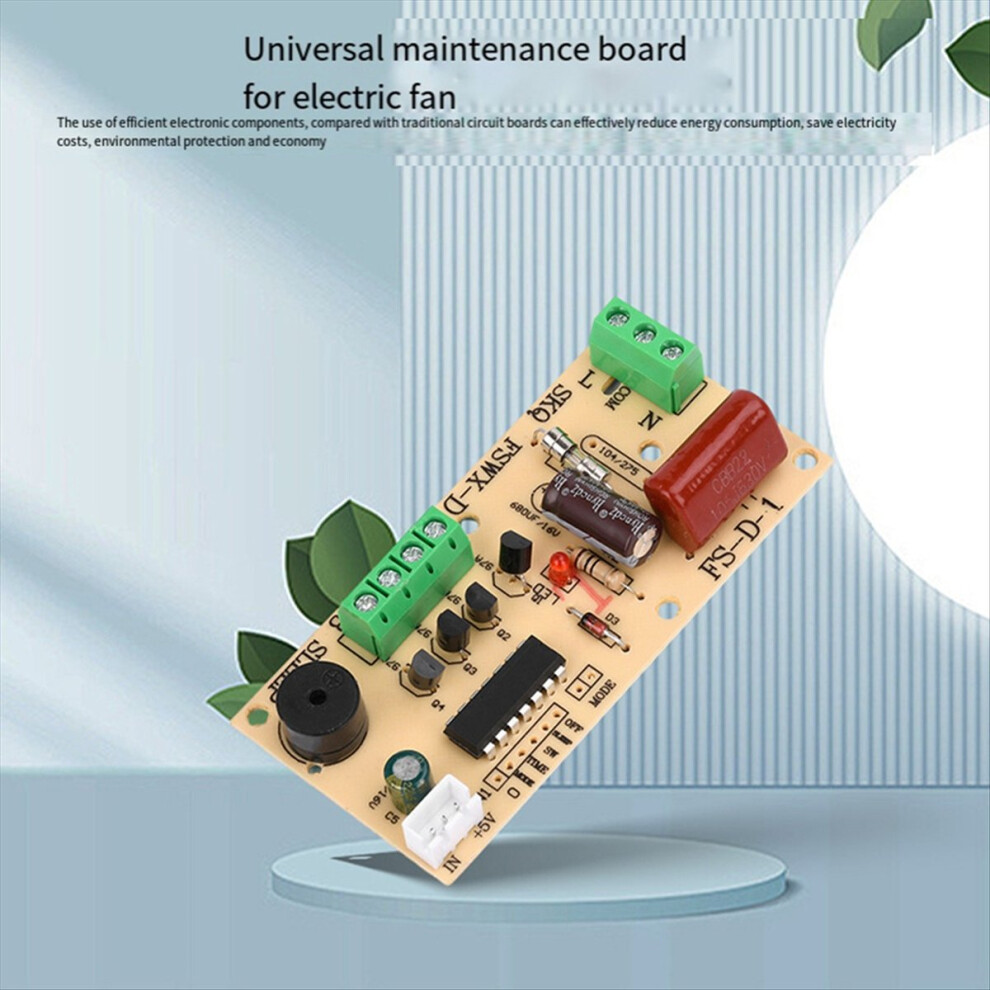

3. Adopting high-efficiency electronic components, compared with the traditional circuit boards can effectively reduce energy consumption, saving electricity costs, environmental protection and economy.

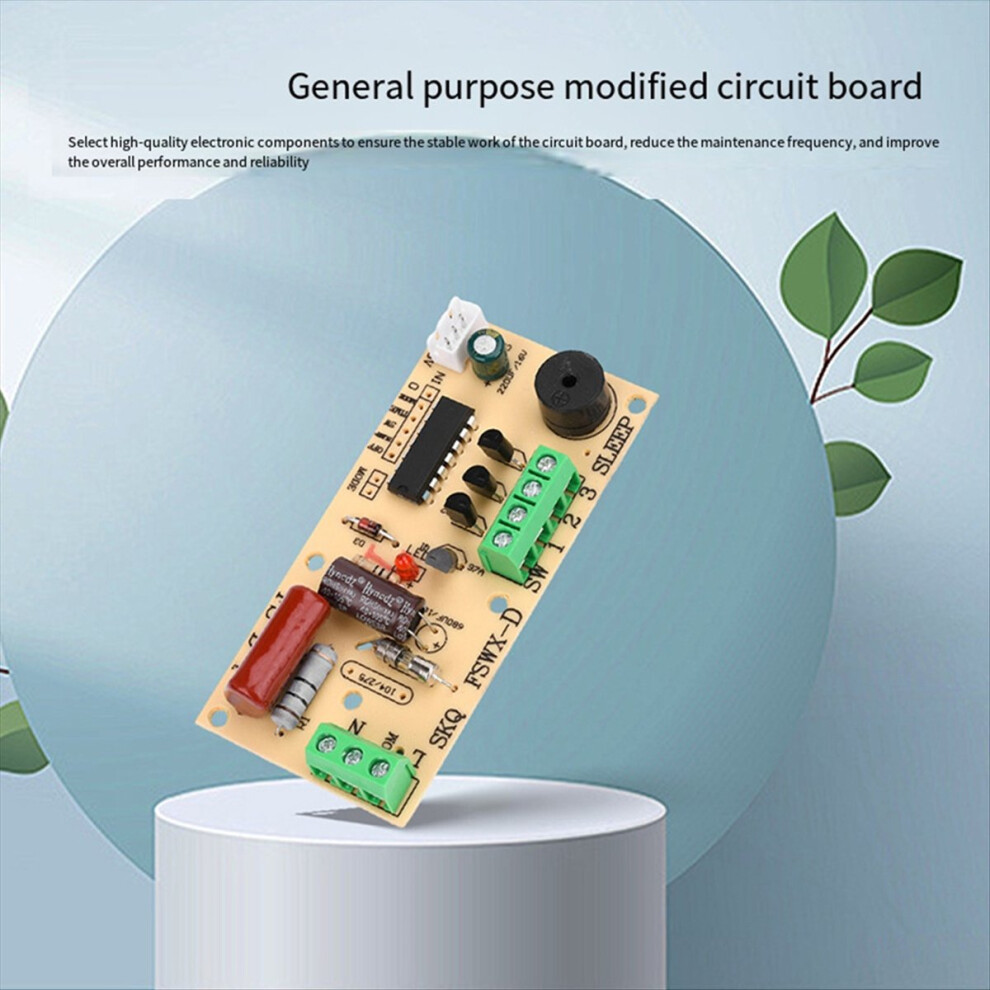

4. high-quality electronic components to stable operation of the circuit board, reduce the frequency of maintenance, improve overall performance and reliability
5. Wide range of applications, users can easily modify the success of their own!

Parameter:
Control socket:

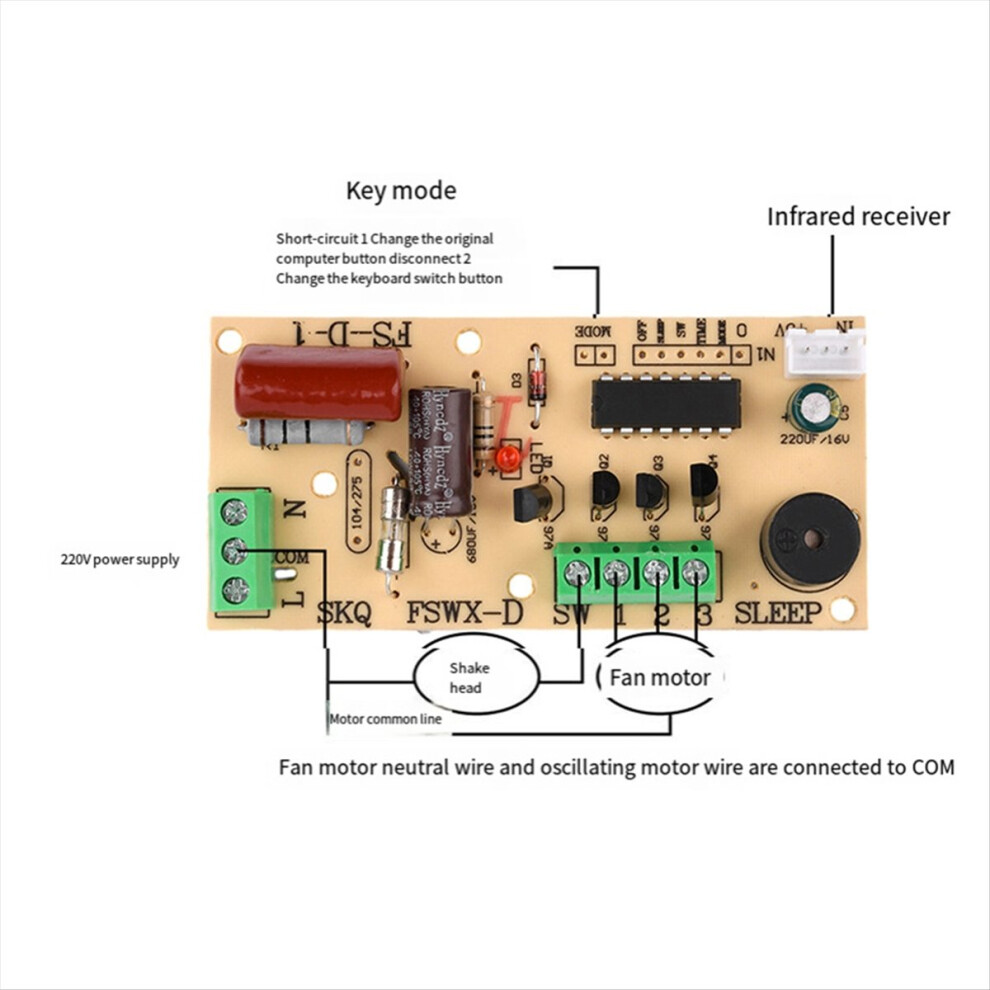

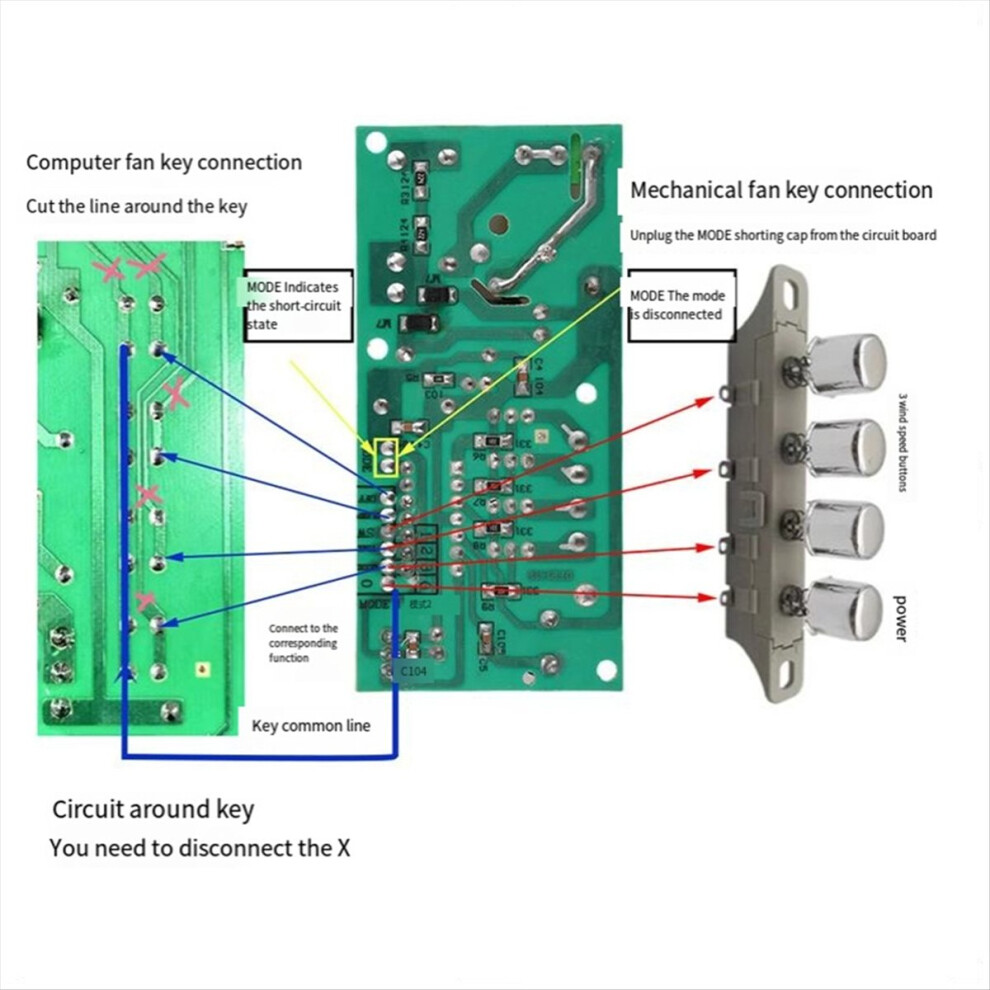

MODE short:A-key public terminal, B-wind class, C-timing, D-rocker, E-speed, F-switches
Interface definition:
MODE disconnect:A-stop button, B-C-D were connected to the wind speed, EF does not connect
Using method.
1. open/wind speed: standby state, the "open/wind speed" key, the fan wind work, and then this button fan can be "large - medium - small" cycle work
2. Shake the head: under the working condition, the "Shake the head" key to enter the shaking head state, and then this key to close the shaking head, without shaking the head of the motor can not use this function!
3. Timing: working condition, the "Timing" key, according to "0,5-1-1.5-2-2.5-3-3-3.5-4-4.5-5-5.5-6-6.5-7-7.5-0" this order cycle timing!
4. Wind class: under working condition, "wind class" key, you can convert "natural wind - sleep wind - normal wind" working mode
5. Shutdown: working state, this key can turn off the fan all working conditions
Colour:As Shown
Material:Plastic+Metal

Package Contents:

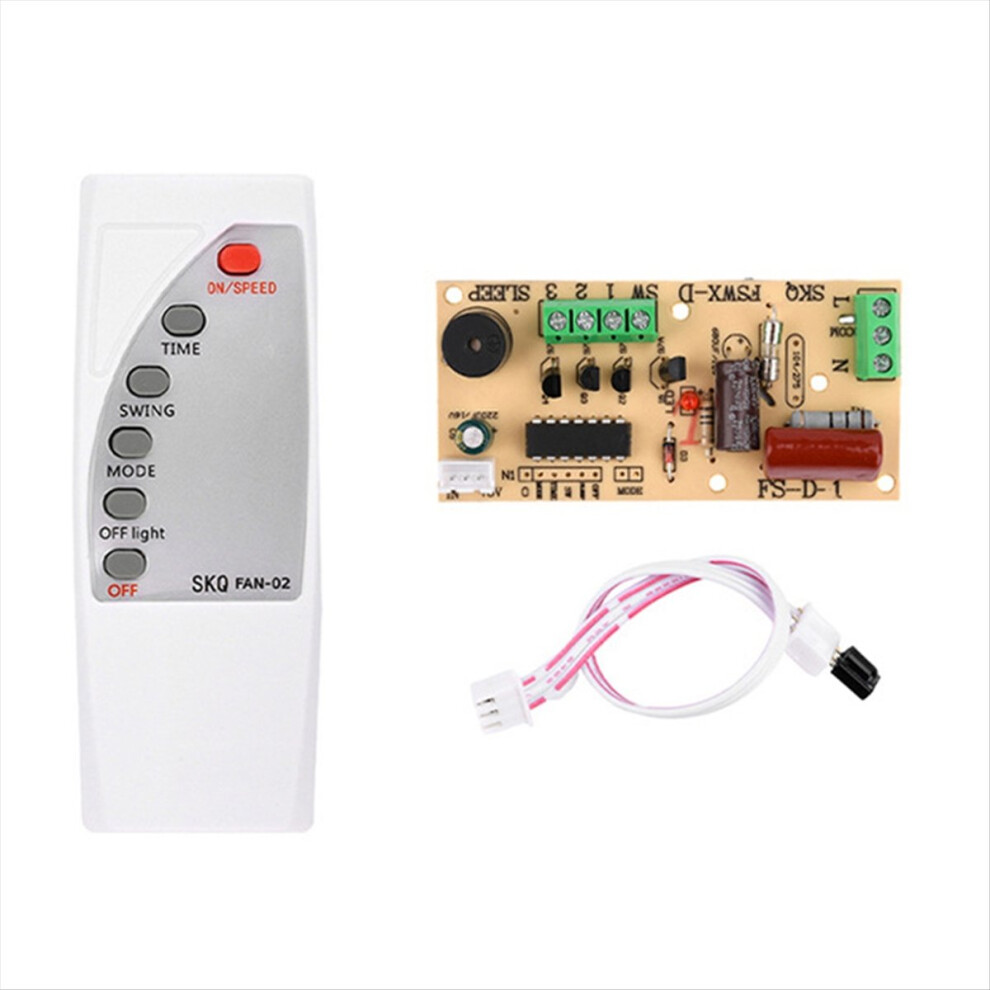

1 * circuit board
1 * remote control
1 * wire

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
