Electric Scooter 10S 4WD Control Module Hub with Remote

Electric Scooter 10S 4WD Control Module Hub with Remote Description

1、High Performance: High quality chip and electronic components, 4WD design, having excellent performance and stability and good performance for long service life. 2、Simple Operation: The strong construction of the motherboard greatly extends the service life. With remote receiving module, support remote control for convenient operation. 3、EMP Control Module: EMP control module belonging to remote control module, can work similar to ESC, providing a satisfying using experience. Remote control with screen can make data clearer and easier to view. 4、Safe to Use: Has over voltage, under voltage, over heat, over current protection functions, safe and reliable to use, support speed regulation, easy to use. 5、Long Term Use: Circuit board with protective shell, can effectively protect the circuit board will not be easily hurt. Well organized type is easy to install, but require some hands on skills.
Item Type: Scooter Control Module Set
Material: Electronic Components + Plastic
Color: As Picture Shown
Gross Weight: Approx.410g/14.5oz
S2 Remote Control:
Battery Model: 602030
Capacity: 3.7V/300mAh(Built In)
Charging Time: 50% Charge In 20min
Charging Interface: Micro USB
Lanyard: Supported
Communication Mode: Multipoint Frequency Hopping, 2.4G
Remote Control Distance: 20m
Display Type: Organic Light Emitting Diode
Display Screen Size: 0.96inch /15x22mm(0.6x0.9in)
Control Module:
Rated Current: 10A-12A
Blocking Time: 4 Seconds
Peak Phase Current: 40A-45A
Rated Current: 6A-8A
Blocking Time: 4 Seconds
Static Power Consumption: 5uA

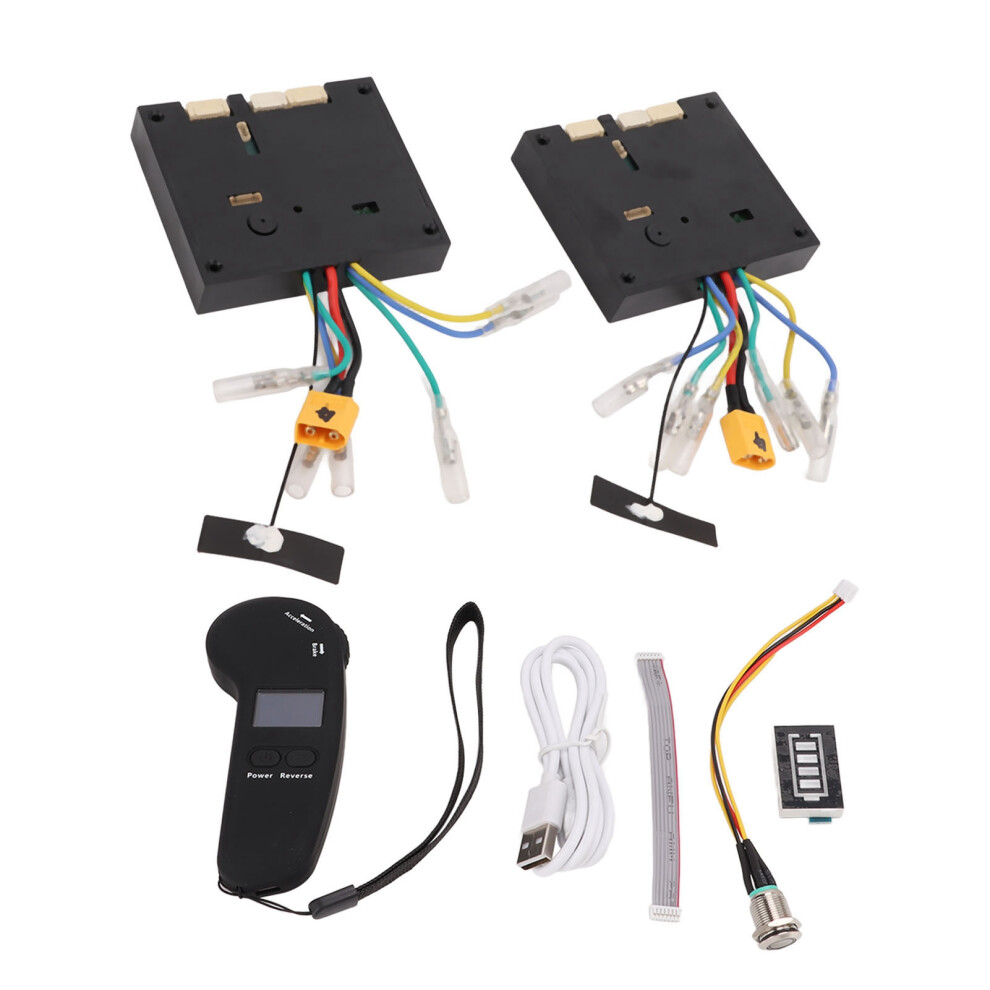

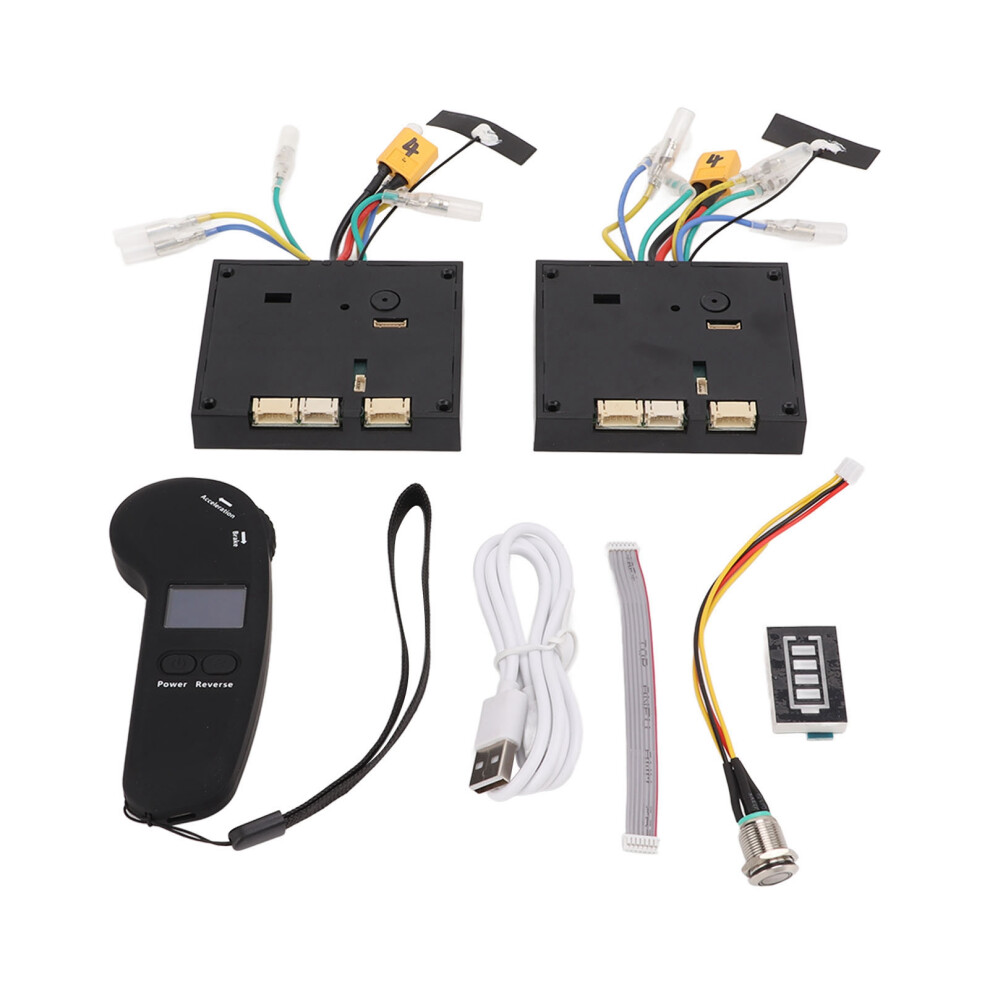

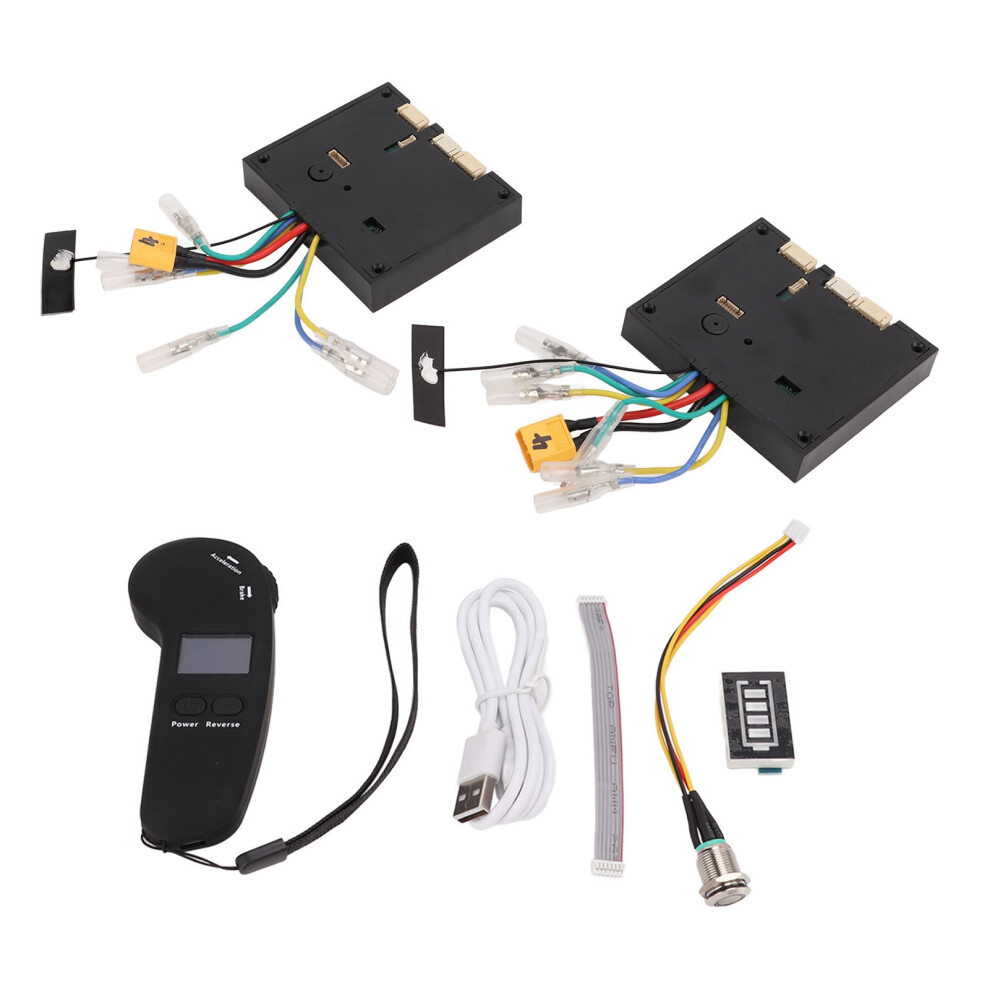

2 x Scooter Control Module
1 x Remote Control
1 x Charging Cable
2 x Switch
2 x Electric Quantity Display
1 x Connect Cable
