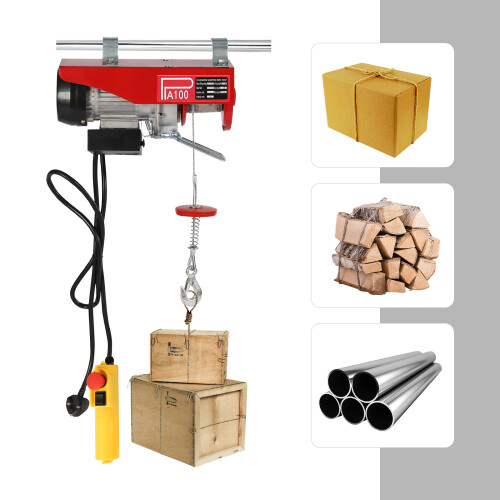

electric winch 220lbs engine hoist with remote control

electric winch 220lbs engine hoist with remote control Description

Application

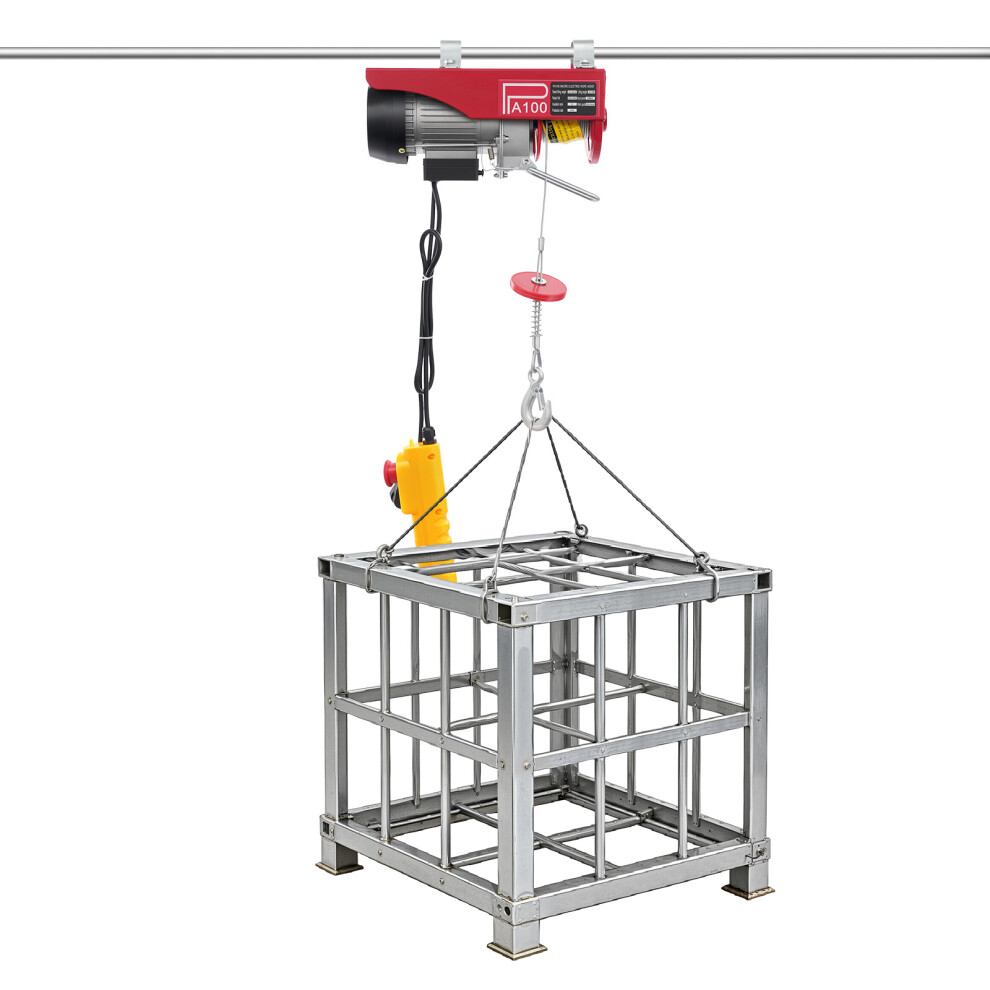

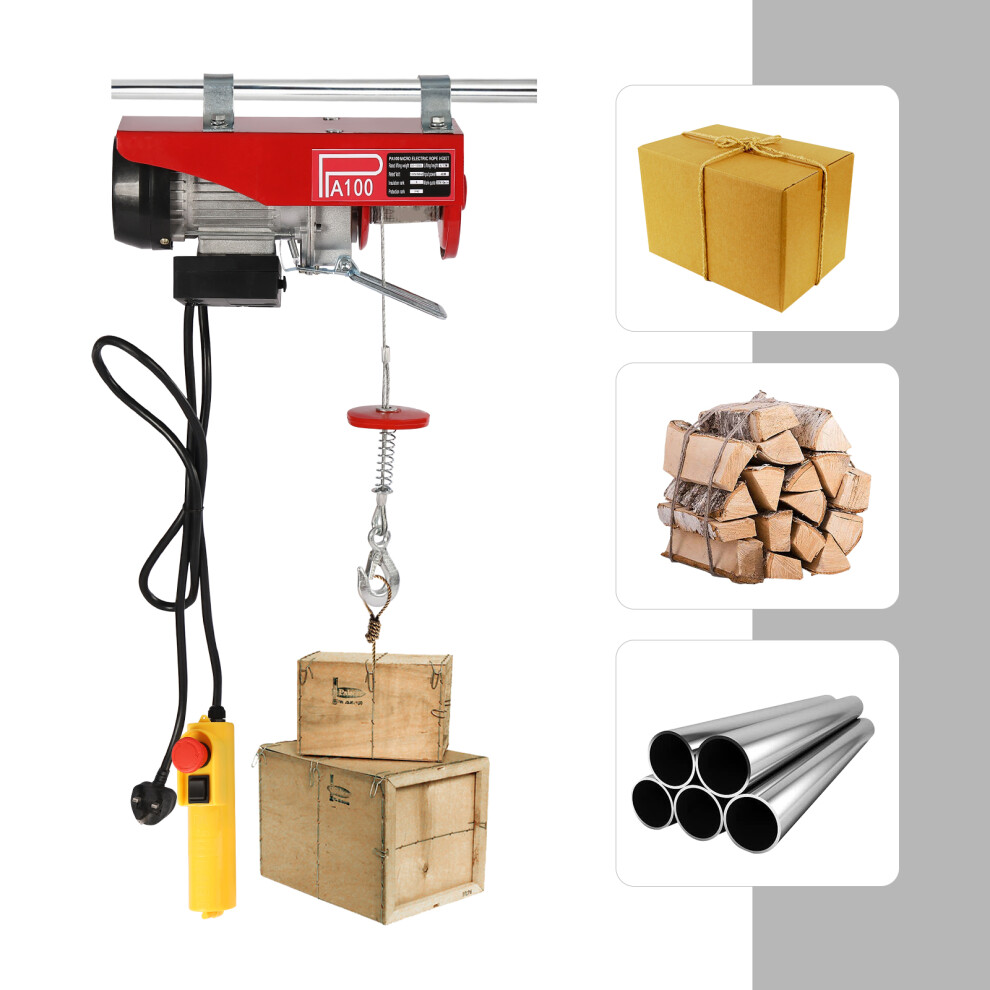

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects. The electric hoist can be used for various lifting equipment, such as single column, wall column, crane, etc.

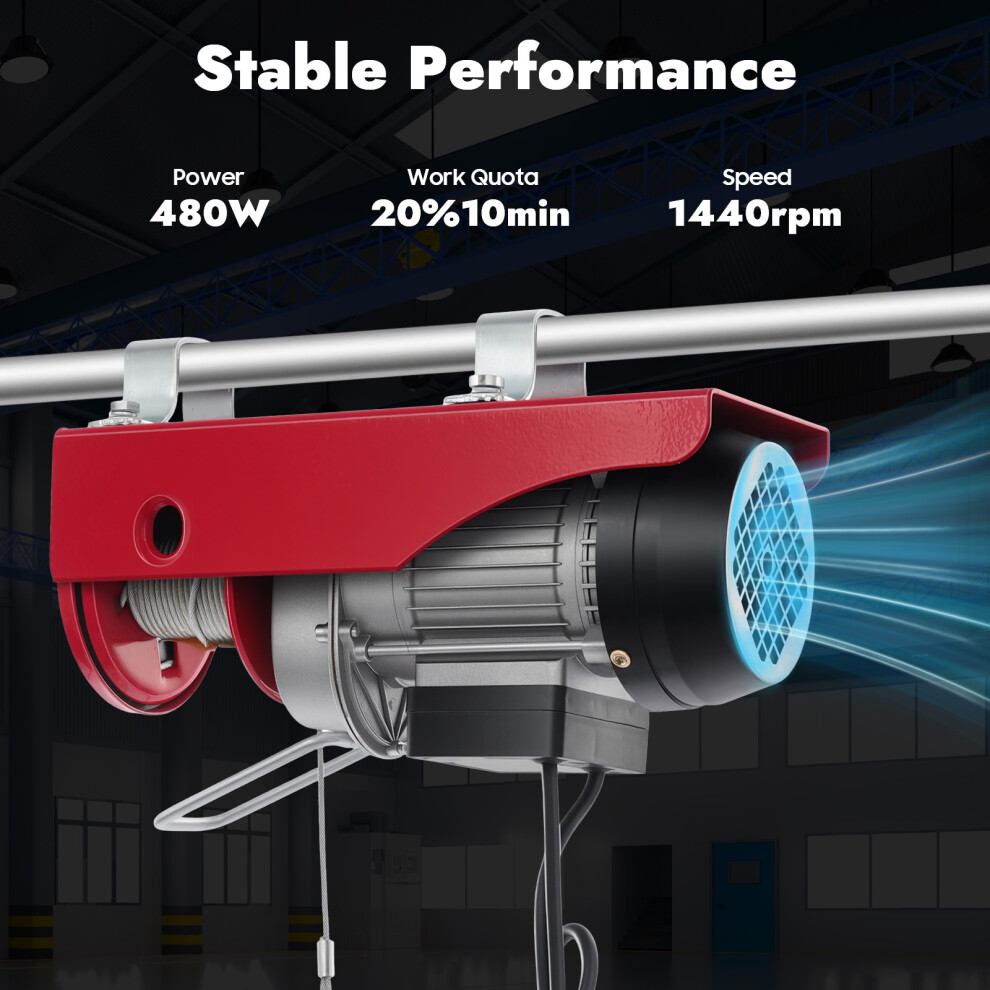

Specifications

• Housing Material: Carbon Steel
• Finish: Plastic Spray
• Hook Material: Galvanised Alloy Steel
• Cable Material: Galvanised Carbon Steel

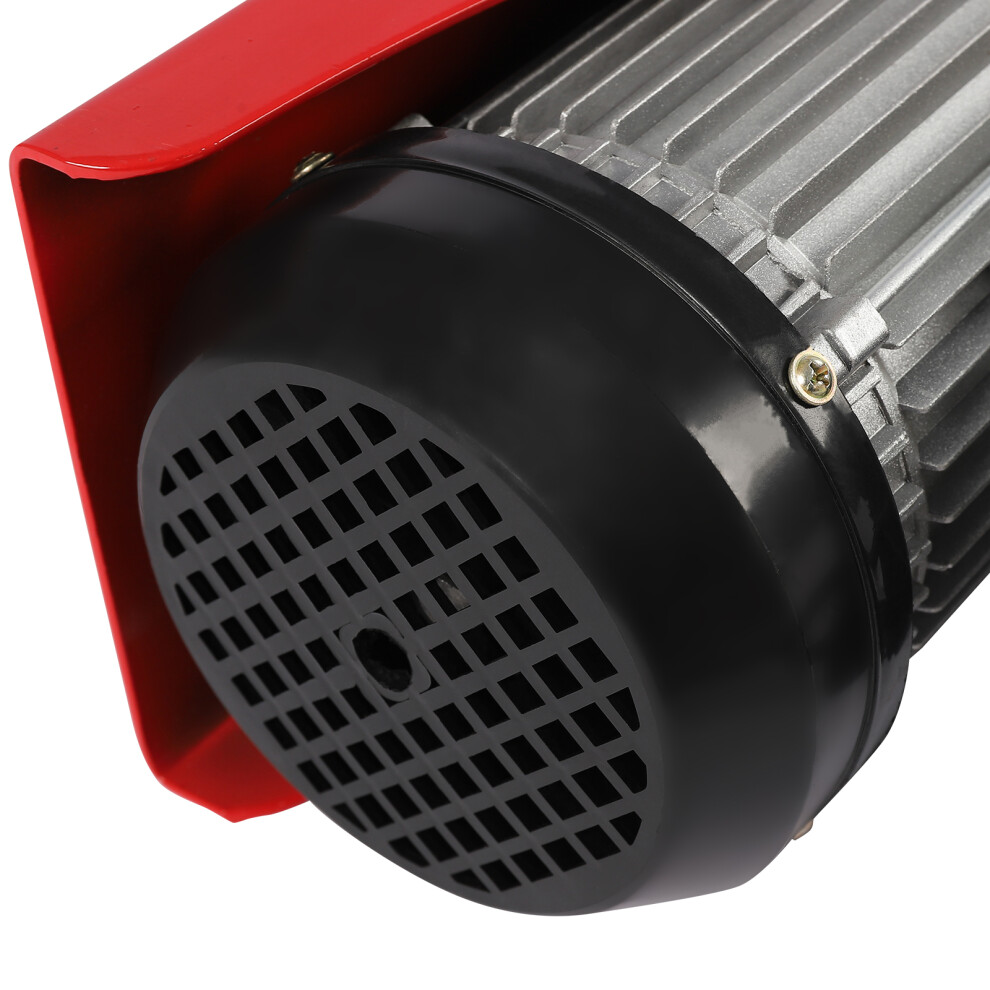

• Motor Housing Material: Aluminum
• Motor Type: Pure Copper Motor
• Color: Red

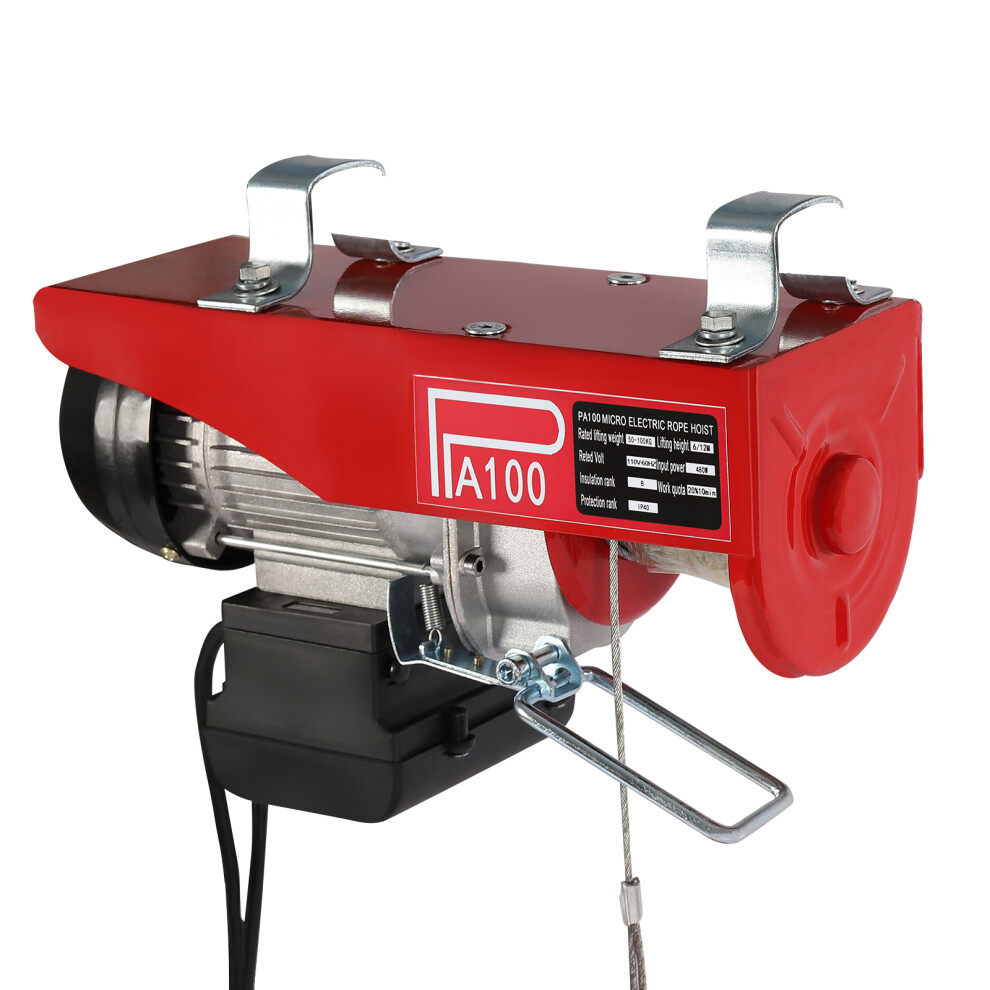

• Model: PA100
• Plug Type: UK Standard
• Voltage: 220V-50Hz
• Power: 480W
• Insulation Rank: B
• Protection Rank: IP40

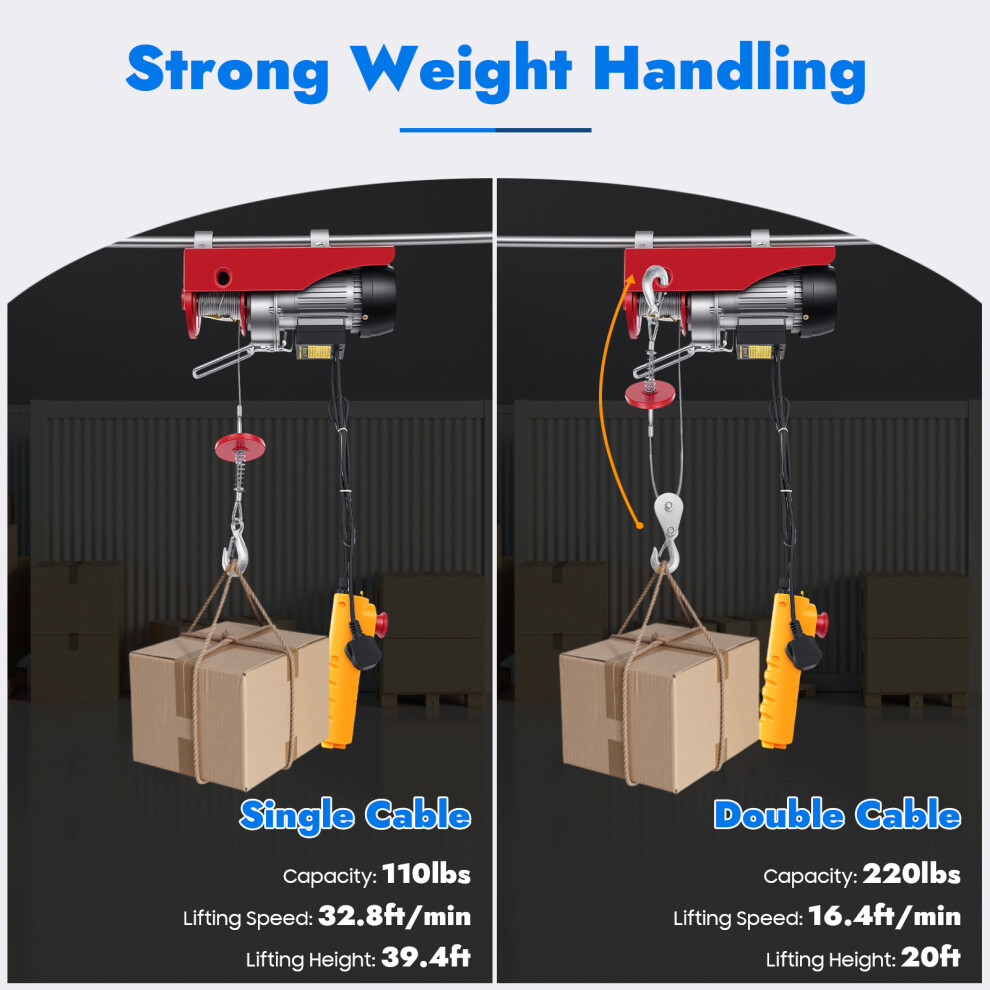

• Load Capacity: 50kg/110lbs(Single Cable), 100kg/220lbs(Double Cable)
• Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)
• Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)
• Work Quota: 20%10min
• Product Size: 36*22*14cm/14.2*8.7*5.5in
• Large Hook Length: 11.5cm/4.5in
• Small Hook Length: 10cm/4in
• Packing Size: 38*16*27cm/14.96*6.29*10.62in
• Gross Weight: 9.8kg/21.6lbs

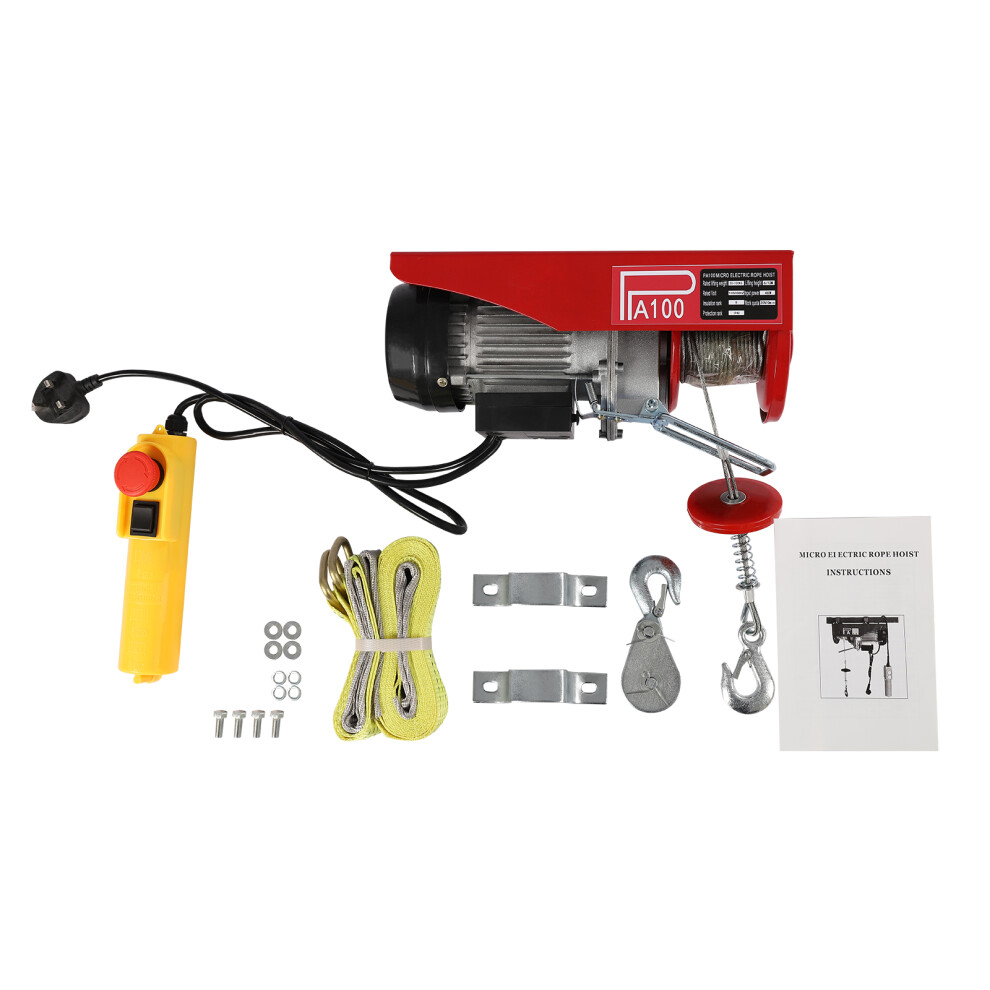

Package Included

• 1 * Electric Hoist

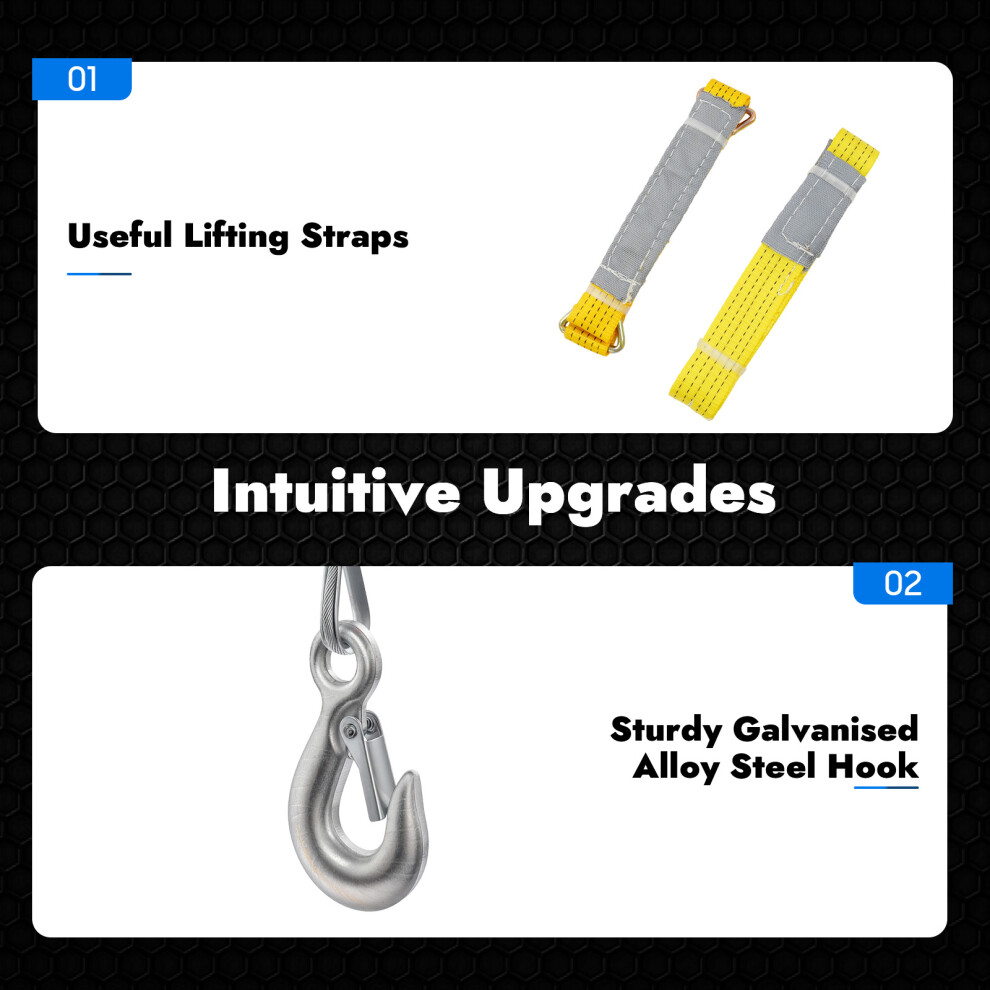

• 2 * Lifting Straps
• 1 * Hook
• 2 *Mounting Clamp Brackets
• 1* Wired Remote Control
• 1* English Manual
• All Accessories for Use

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.

3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

4. Please purchase the electric hoist corresponding to the weight required for the job.

5. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.

6. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.

7. Before using the machine, please read carefully all the safety instructions in the product manual.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
