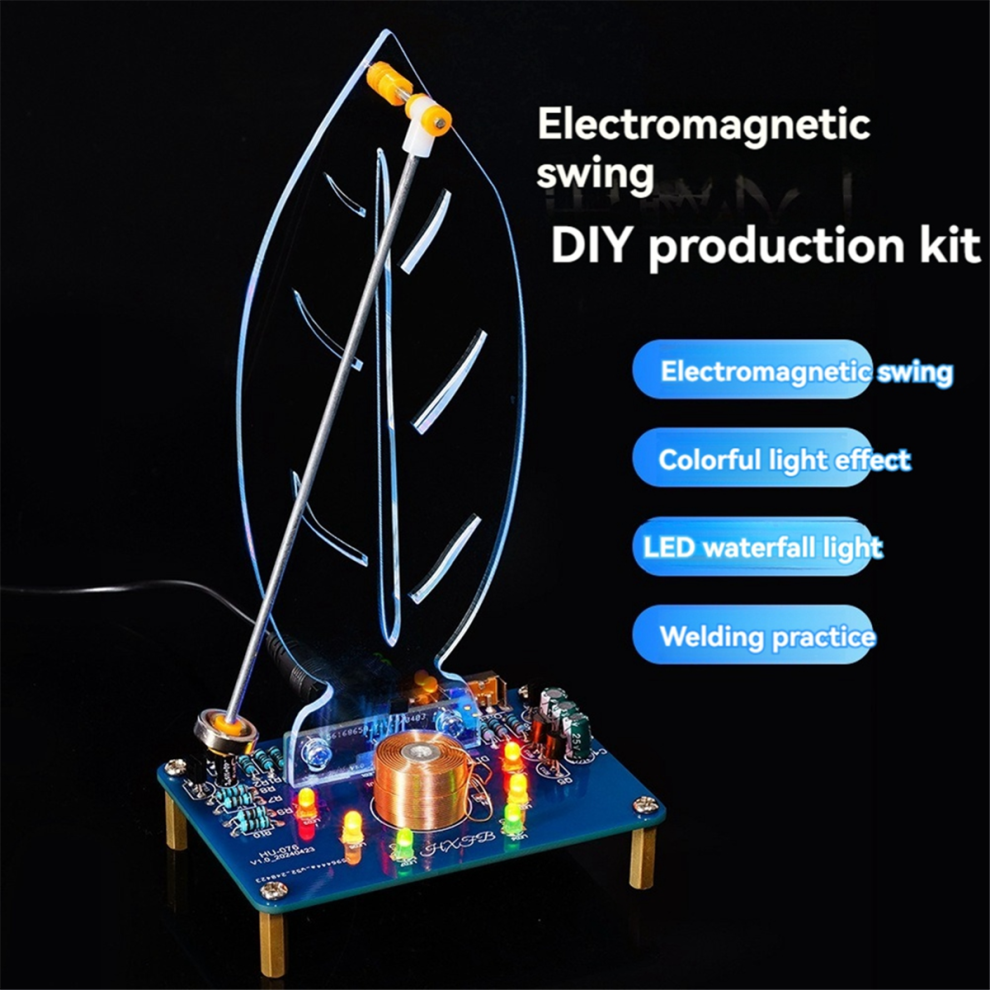

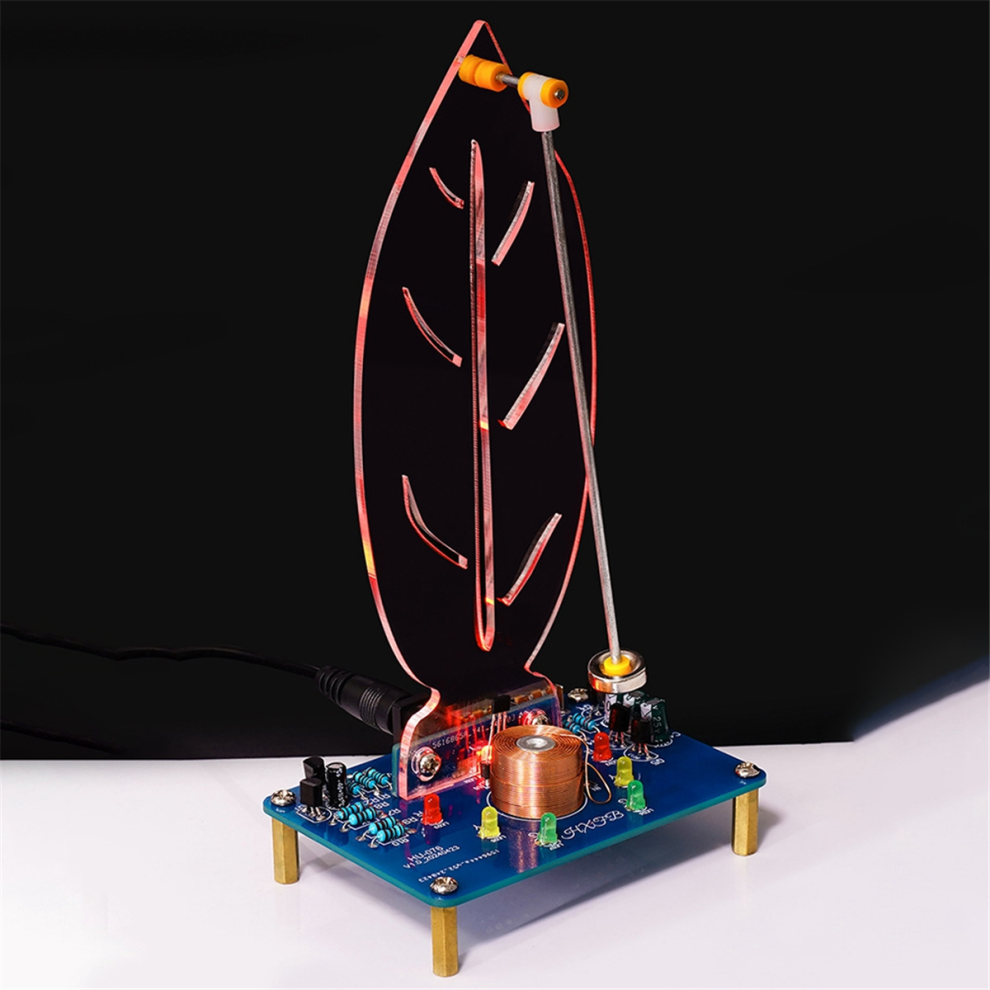

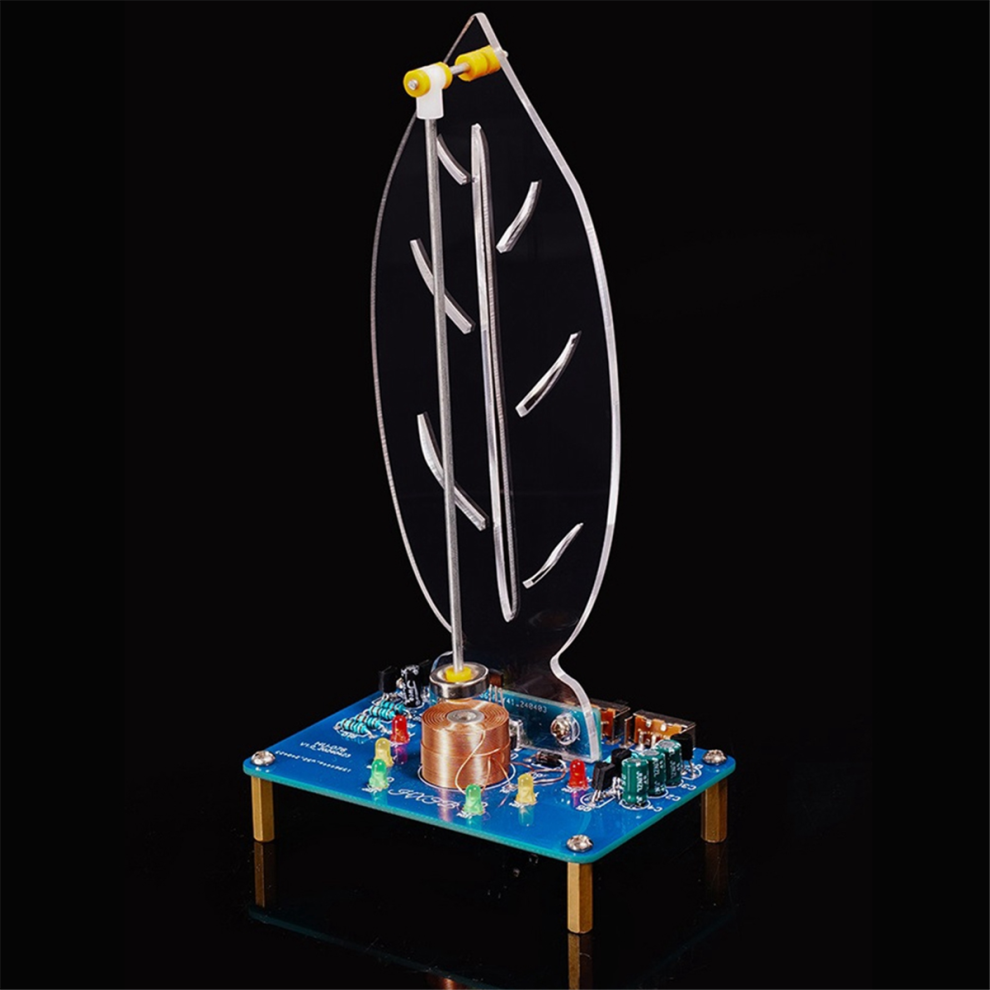

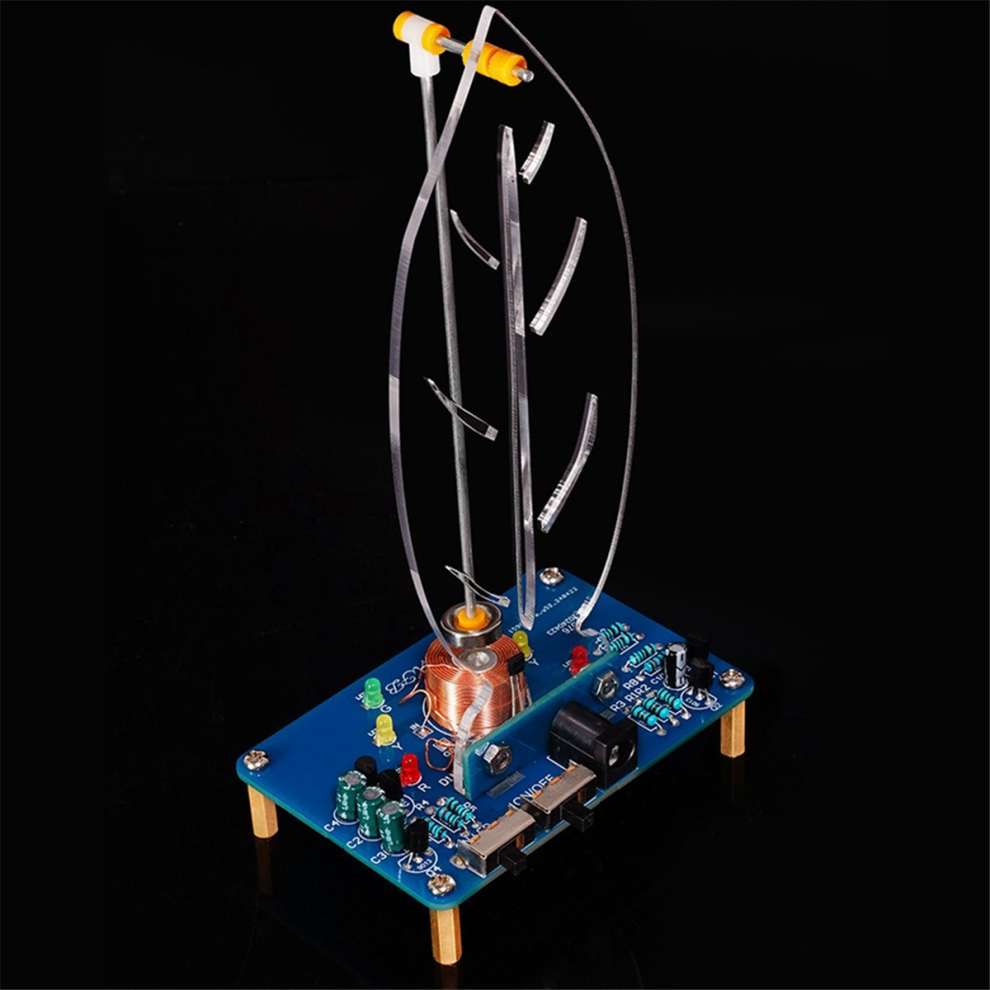

Electromagnetic Swing DIY Electronic Kits Soldering Practice

Electromagnetic Swing DIY Electronic Kits Soldering Practice Description

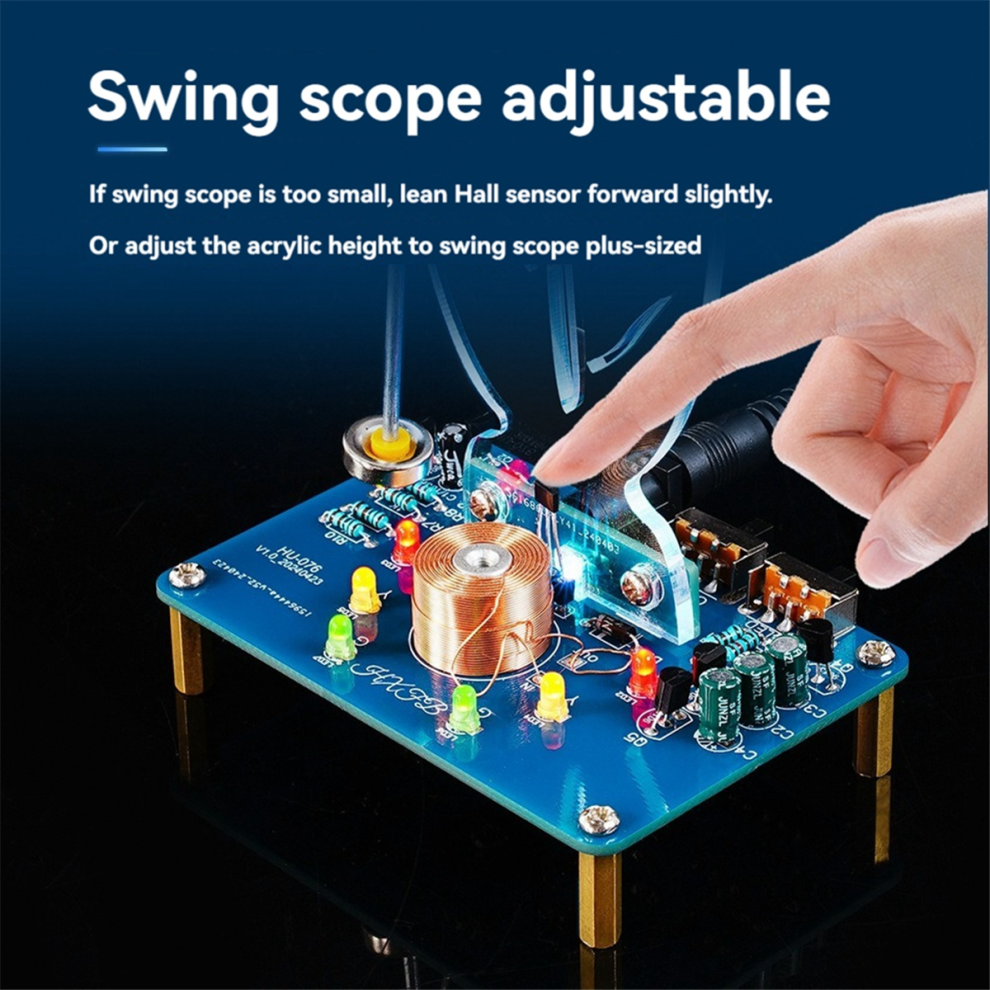

1. Swing Adjustment: The Electronic Swing Can Control The Amplitude, Speed And Frequency Of The Swing Through The Acrylic Shell, Making The Swing More Stable And Comfortable.
2. Energy Saving And Environmental Protection: The Electronic Swing Is Driven By Electricity, Which Has Higher Energy Utilization Efficiency And Lower Energy Consumption Than The Traditional Mechanical Swing.
3. Strong Adaptability: The Electronic Swing Can Adjust The Swing Amplitude And Speed According To The Needs Of Different Users.

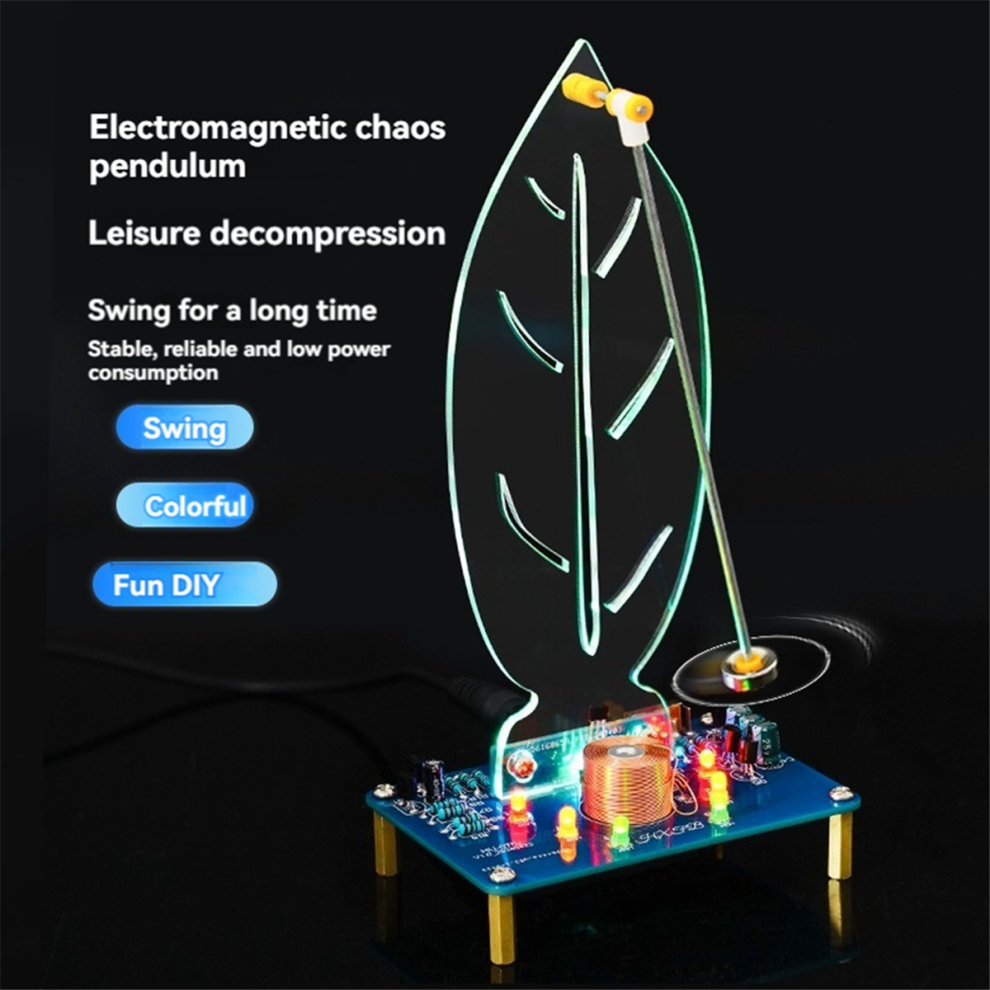

4. Stable And Reliable: After 24 Hours Of Non-Stop Testing, The Swing Is Stable And Reliable, And Has Low Power Consumption.
5. Colorful Lighting Effects: Colorful Led Lighting Effects, Freely Controllable Led Running Lights

Kit name:-076 electromagnetic swing kit
Working power supply:USB to DC-5V
Working voltage:DC 5V
Standby current:13-15mA when the running light is off/22-26mA when the running water light is on
Working current:When the running water lamp is turned off, 16-80mA (the greater the amplitude of the swing, the greater the working current); when the running water lamp is turned on, 25-100mA (the greater the amplitude of the swing, the greater the working current).
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use.
Colour:As Shown

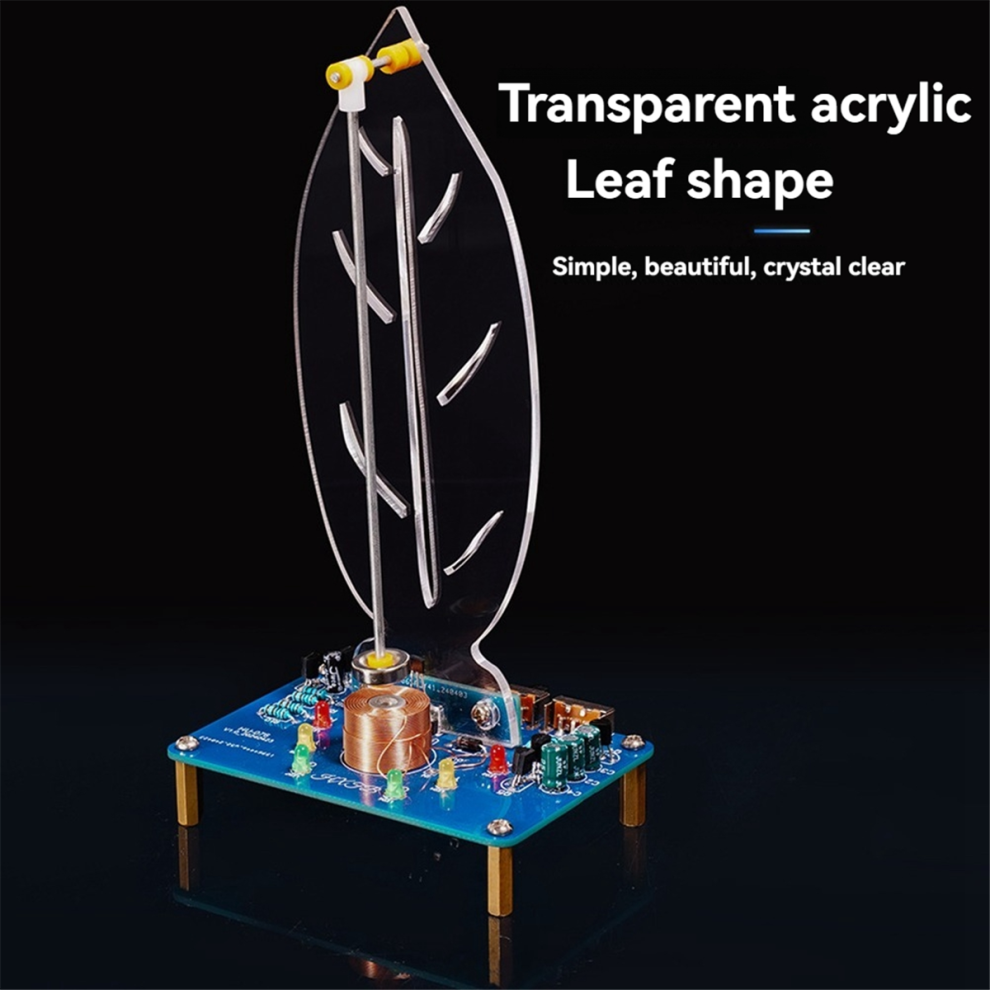

Material:Acrylic+ABS+Plastic

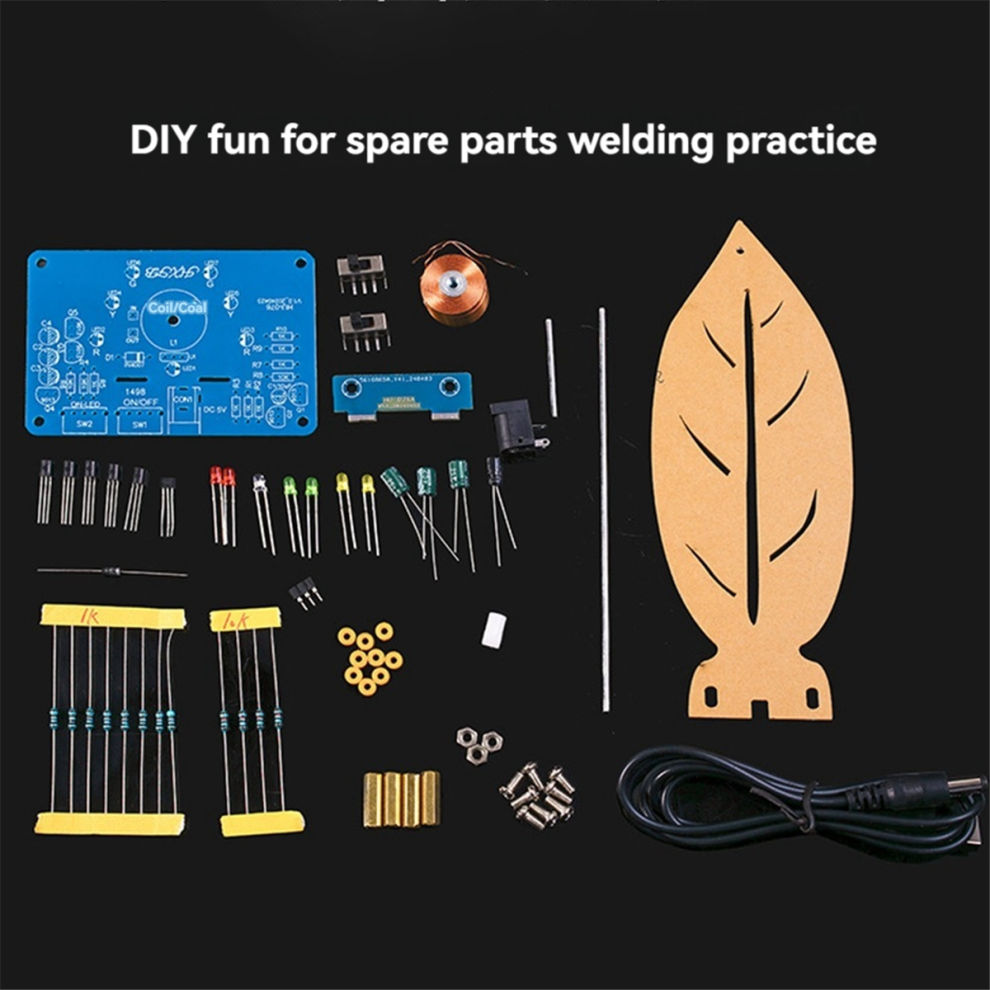

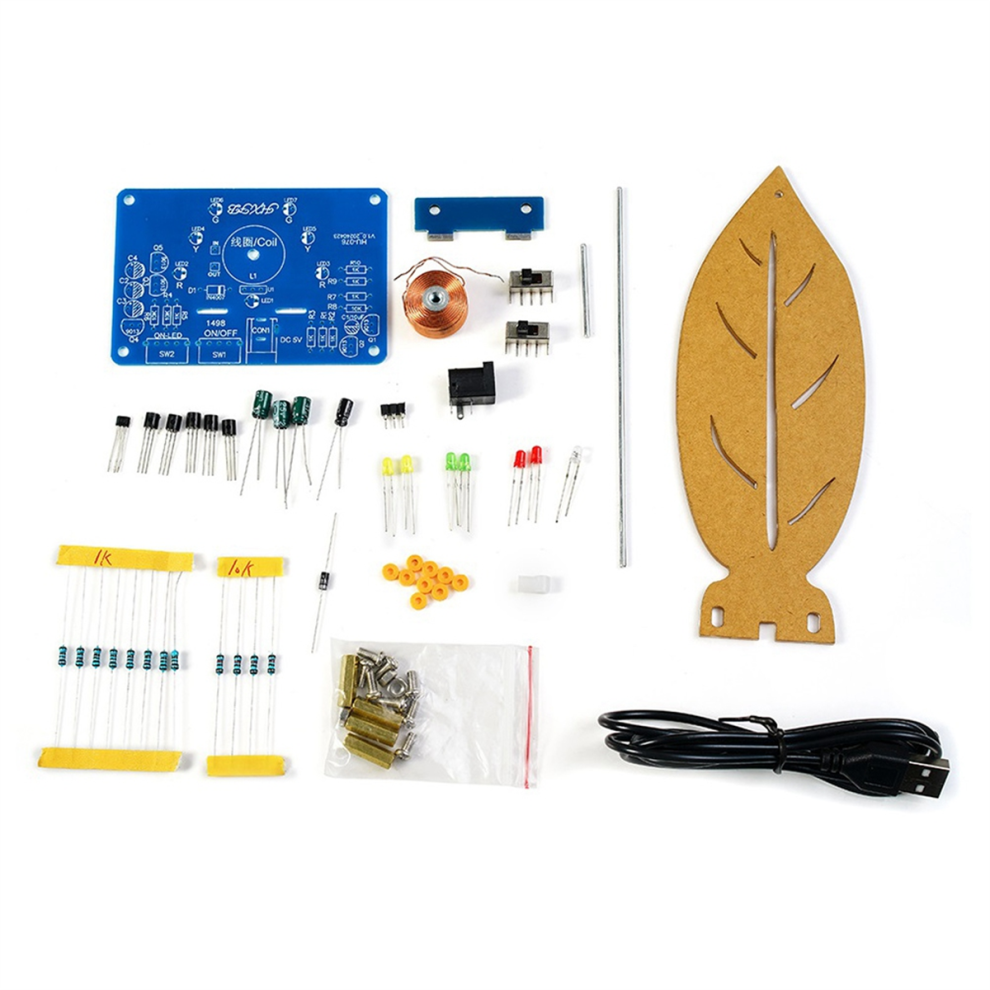

Package Contents:
1 * electrolytic capacitor 10uf
3 * electrolytic capacitor 47uf
2 * 3MM red red LED
2 * 3MM yellow yellow LED
2 * 3MM green-emitting green LED
1 * DC power socket
1 * magnetic levitation coil
1 * USB to DC 5V power cord
1 * IN4007 rectifier diode
1 * 3P single row female seat
3 * horizontal toggle switch
8 * 2mm plastic bushing
5 * transistor 9013
1 * Tee 3T2AB
1 * Acrylic shell
7 * Plug-in resistor 1k
3 * Plug-in resistor 10k
1 * Hall sensor
1 * 3mm colorful LED
1 * short iron shaft
1 * long iron shaft
1 * round magnet
1 * circuit board
1 * Circuit board A
1 set * screw bag
1 * Instructions in Chinese and English

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
