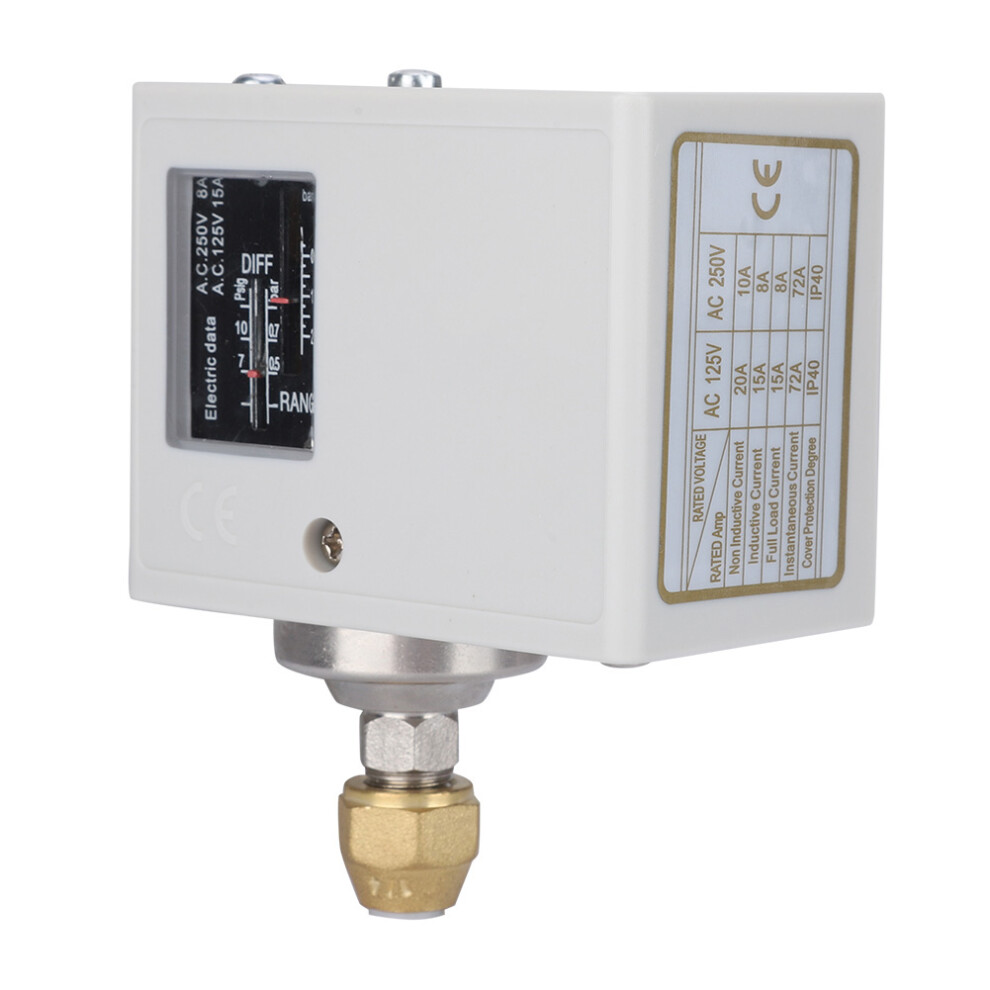

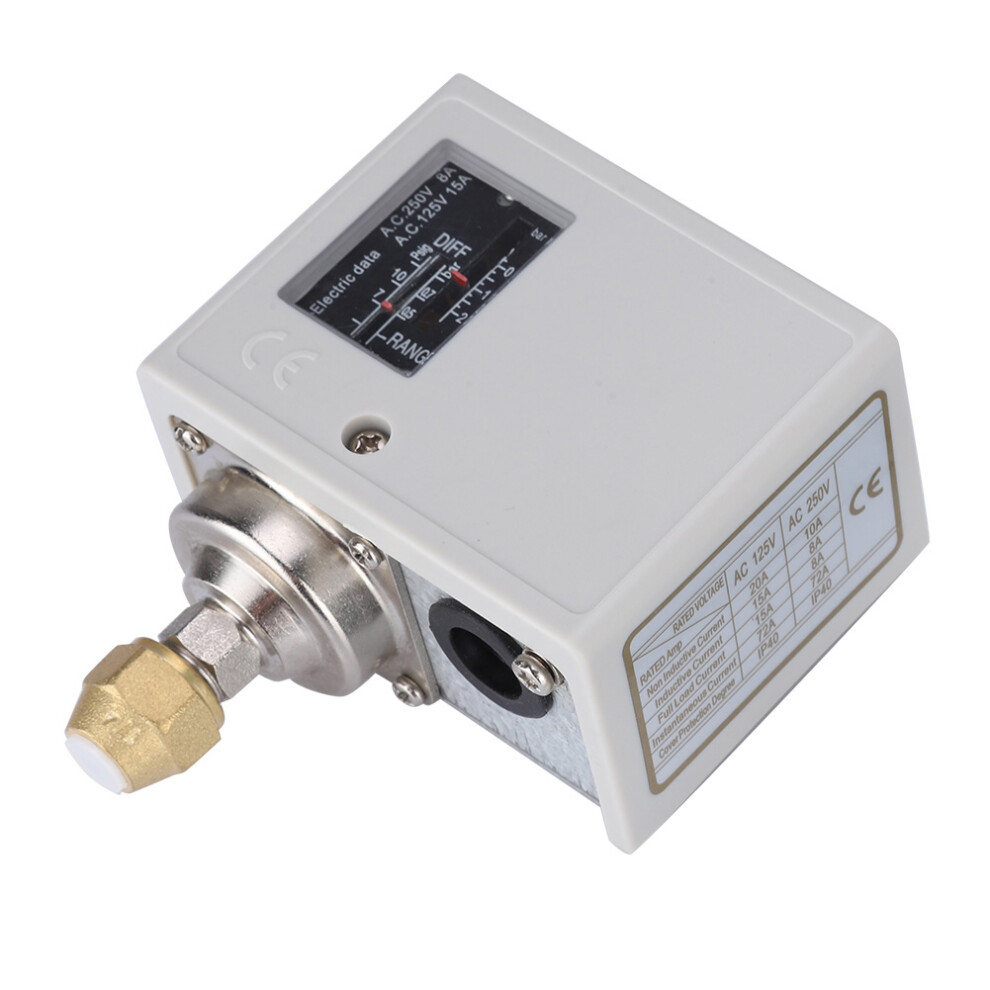

Electronic Pressure Switch for Air Water Compressor, 24V-380V, 20A

Electronic Pressure Switch for Air Water Compressor, 24V-380V, 20A Description

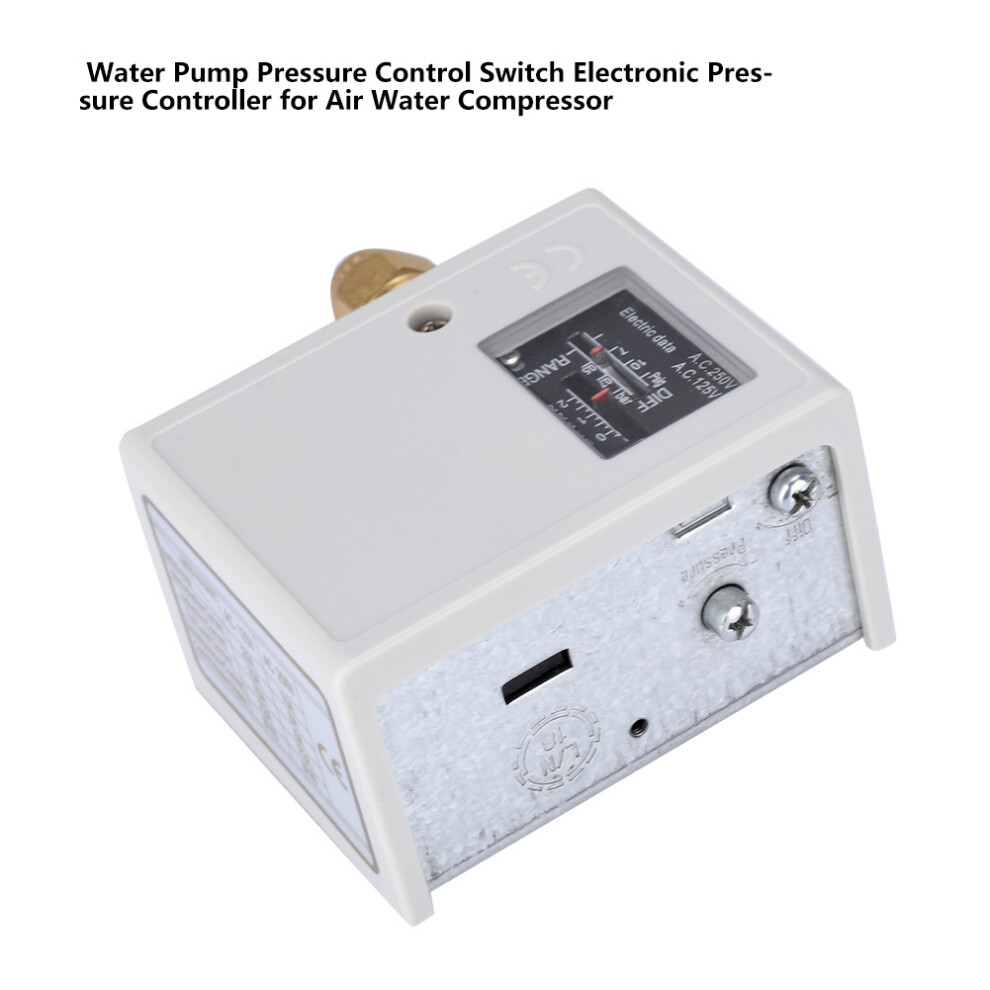

Water Pump Pressure Control Switch Electronic Pressure Controller for Air Water Compressor

Features:

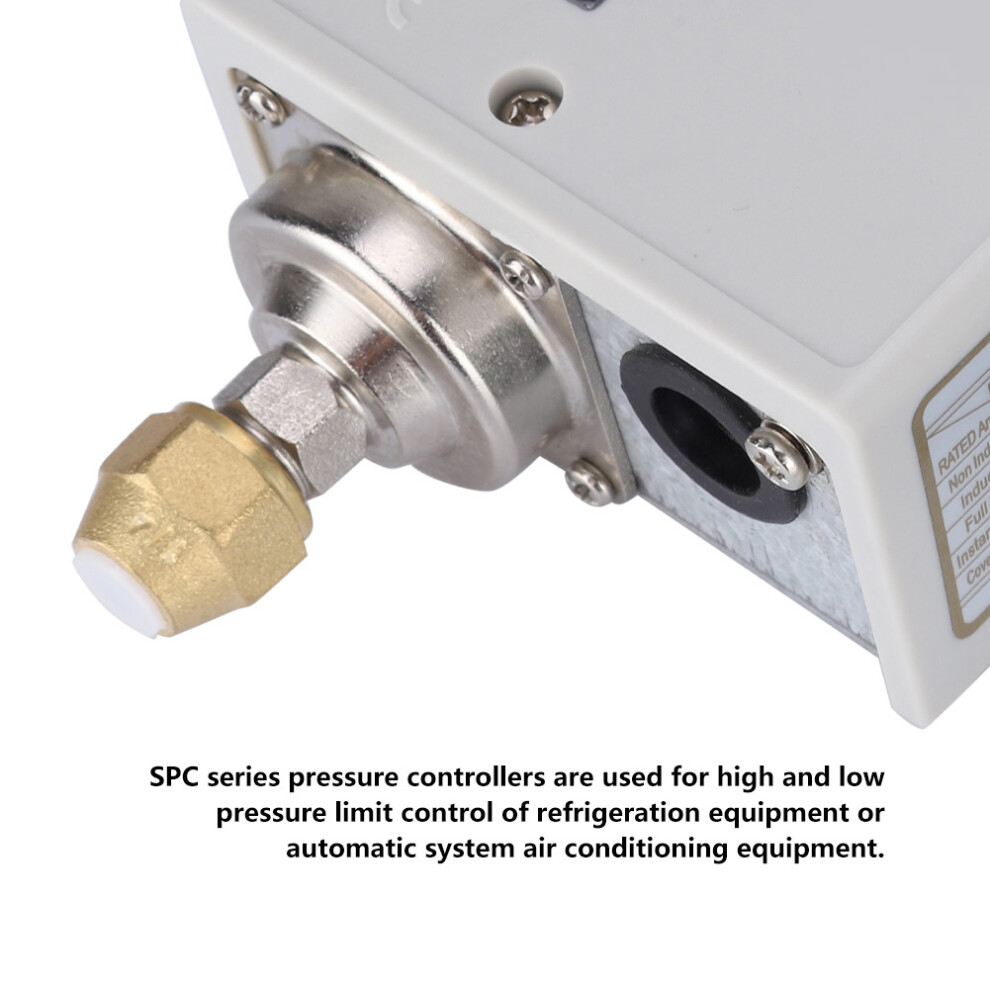

SPC
series pressure controllers are used for high and low pressure limit
control of refrigeration equipment or automatic system air conditioning
equipment.


Apply to air, liquid and other non - corrosive media.

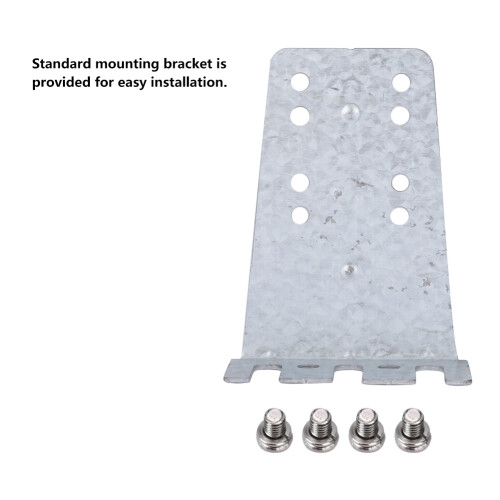

Standard mounting bracket is provided for easy installation.


The SPDT switch ensures reliable contact switching.


The
pressure bellows of the standard model are phosphor copper bellows and
the pressure connection is made of brass. The bellows and the pressure
connection for the ammonia refrigerant model are made of stainless steel






Specification:


Non-inductive current :20A, full load current :15A, and instantaneous current :72A;When rated voltage is 125VAC,


Non-inductive current: 10A, full load current: 8A, and instantaneous current: 72A;When rated voltage is 250VAC


Thread: G thread

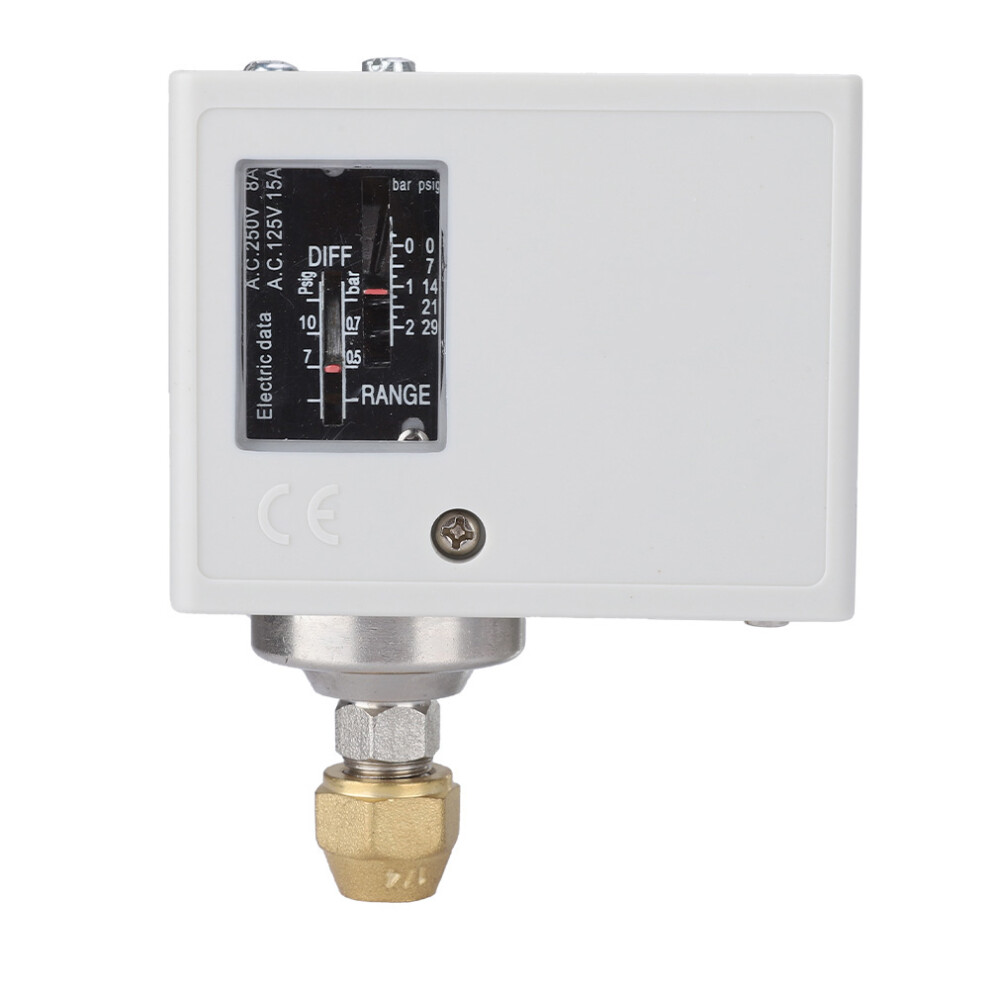

Pressure regulating range (bar) : -0.5 (Min) ~2 (Max)


Differential pressure adjustment range (bar) : 0.2 (Min) ~0.7 (Max)


Maximum air tightness test (bar) : 16.5


Power supply voltage: 24V~380V


Life of micro switch: 100,000 times


Weight: Approx.397g/14oz


Refrigerant: air, liquid and other non - corrosive media

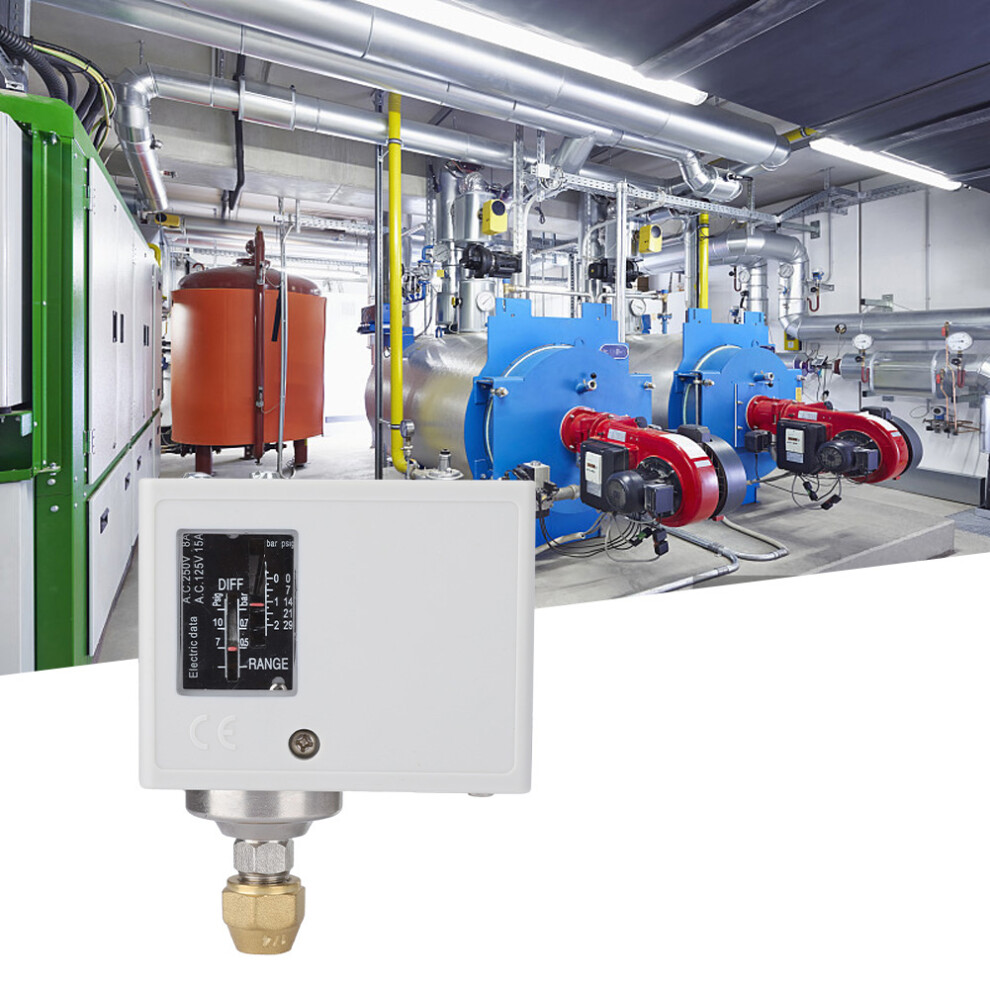

Scope
of application: control the pressure difference between liquid pipe and
return pipe in water and oil series (air conditioning and other
specific places)

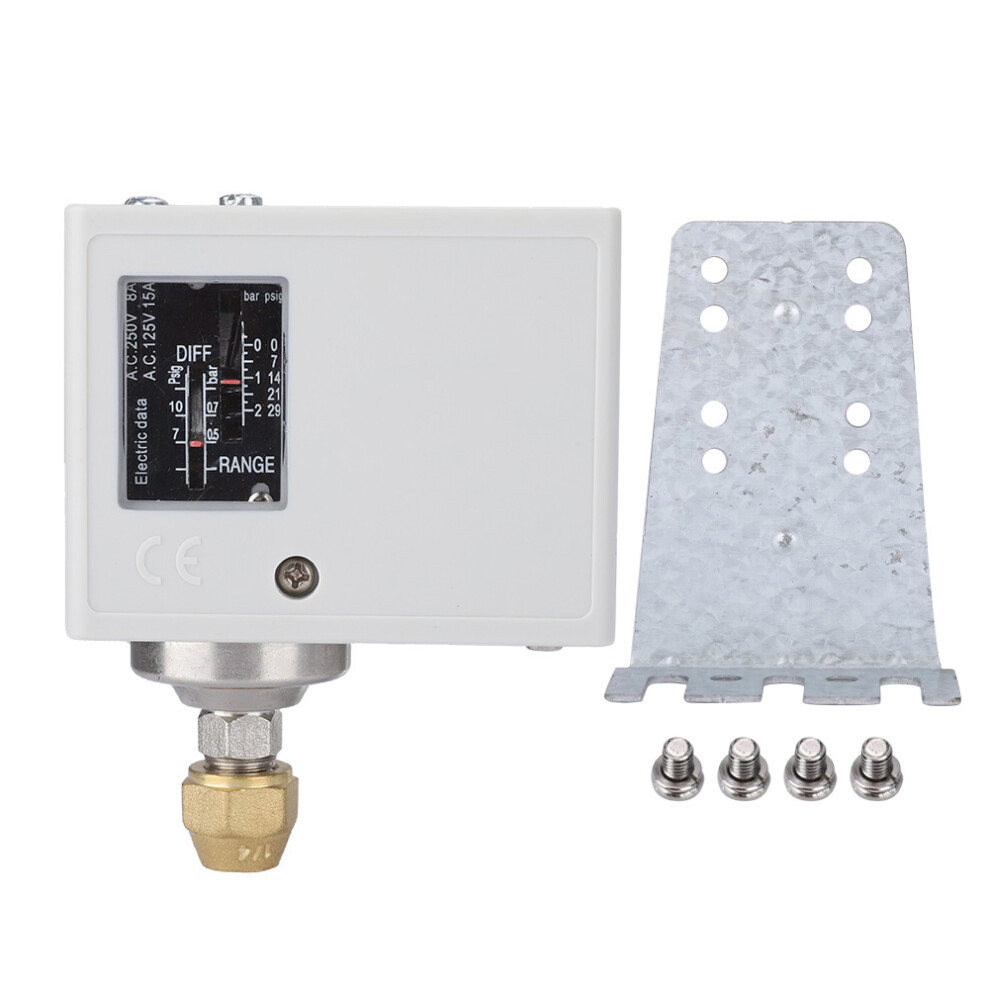

Package list:


1 x Pressure Controller


1 x Install bracket


1 x instructions


4 x Screw
