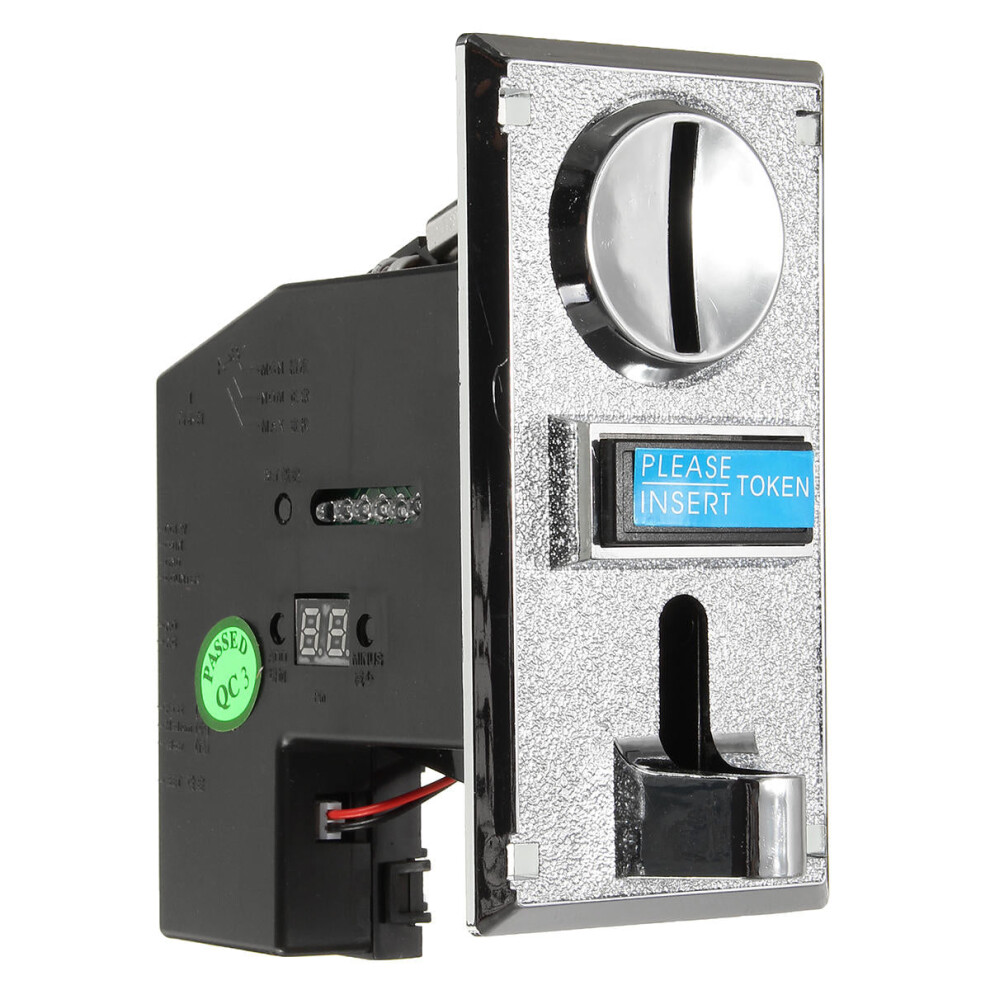

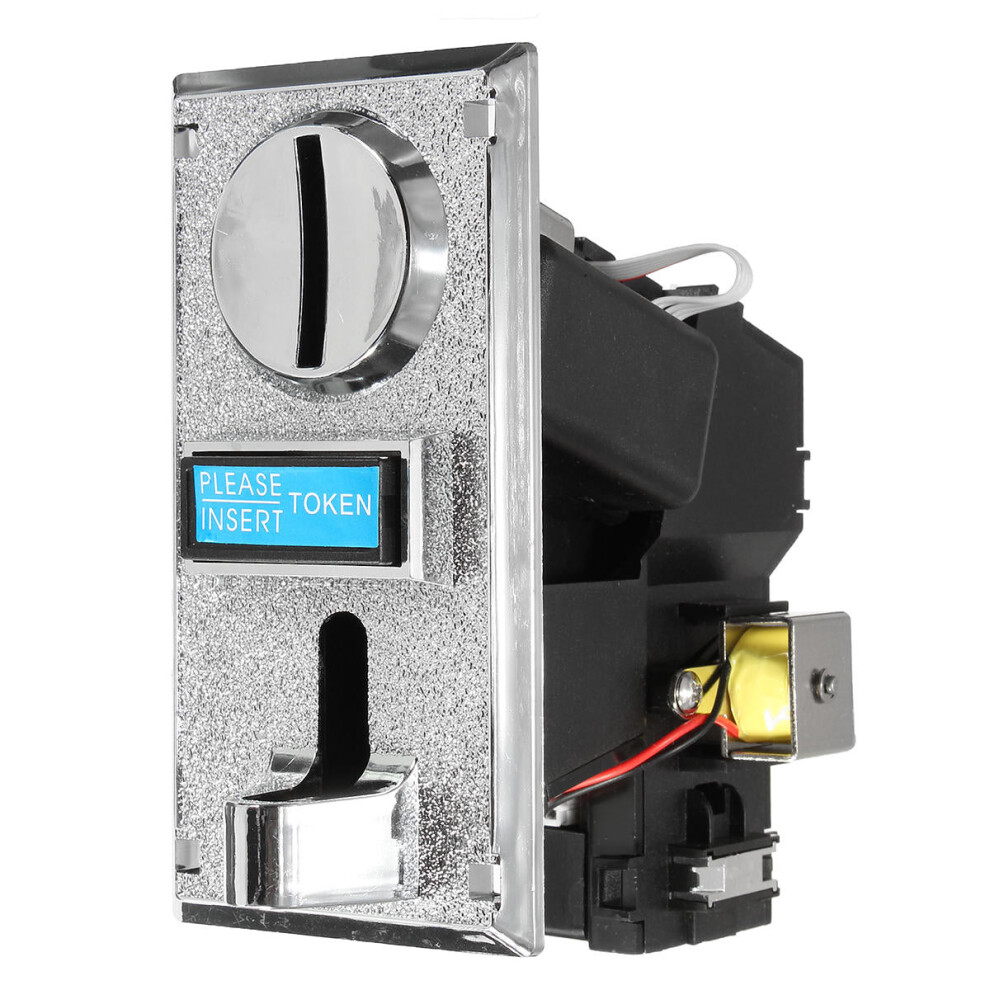

Electronic Roll Down Coin Acceptor Arcade Game Console Multicade Redemptio

Electronic Roll Down Coin Acceptor Arcade Game Console Multicade Redemptio Description

Characteristic:
Suitable for a variety of coins (6 types).
CPU process control, and accurate scoring.
Special precision/normal stall, coins smoother.
Pulse output available widths.
Prevent phishing and other means of cheating,cheat alarm.
Suitable of water vending machine, snack vending machine or game machine.

Instructions:
Pressing the setting key(8), and then you will see the letter E, (choosing) several currency system), after that you can press the accurate key or broaden key to increase or decrease the numerical value. After setting up, please press the setting key to confirm.
Appearing the letter H (the quantity of sampling for various currency value).
Appearing the letter P (the numerical valuef for signal output of various currency value).
Appearing the letter F (the precision of various currency value).
By parity of reasoning , setting is finished with your chosen currency. When the letter E is shown, plase turn off the power and it will reopen again.

Identify accuracy rate: 95%.
Applying coins:
Diameter: 15mm-29mm.
Thickness: 1.8mm-3.0mm.
Applicable to All kind of coins and foreign currencies.
Atmospheric pressure: 80Kpa-106Kpa.
Operating voltage: DC12V 10%.
Working current: 50mA.
Moment maximum current: 350mA (less than 0.5S).
Humidity: 95%.
Storing temperature: -20--+85.
Operating temperature: -15--+60.
Recognition speed: 0.6sec.
Recognition: 99.5%.
Canning material: PC plastic.

Package included:
1 xGame Console
