Ellard Genesis remote control system + 2 remotes for garage doors

Ellard Genesis remote control system + 2 remotes for garage doors Description

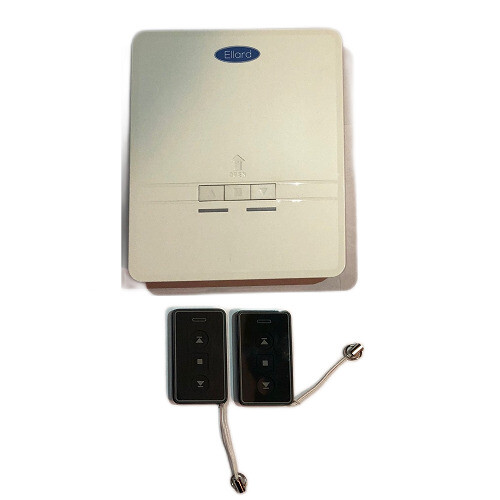

The Athena Genesis is a standalone remote control system that connects to an existing control panel. It is ideal for situations where a pre-existing door requires upgrading to a remote control system, or new builds where remote controls are required and not built in to the control panel. The Genesis system consists of a receiver and keyring sized transmitters, allowing property keyholders to operate the door shutter or gate as part of their opening or closing routine. The system allows the use of up to 1000 handsets, allowing multiple people to control the door.

FEATURES

• For use with roller shutters which have a tube motor with 4 wires in the motor cable (Live, Earth, Up, Down)


• Comes complete with two transmitters ( Either the black handsets or white handsets)


• Has the operation buttons on the front of the unit


• 100 transmitters memory


• Has photocell option - can be bought separately


• Large visual power and signal indicators


• Aesthetically designed to blend into most surroundings


• Operating range 30m (approx) from handset


• Power supply 230v 50hz 1ph


• Max motor load of up to 500W


• Easy to wire in


• Unit is set to hold to run for closing of shutter (for safety reasons)


• Dedicated connections for safety break, external push button station/key switch and photocell


• Secure 5-way cable clamping system

• Comes complete with instructions and wiring info
